Understanding Variable Frequency Drive Speed Control
Variable Frequency Drives (VFDs) regulate electric motor speed by adjusting the frequency of the supplied AC power. In modern factory automation, engineers must choose how a central control system sends these speed references to the drive. Some applications require straightforward, hardwired control methods. Conversely, complex systems demand advanced digital communication networks. Selecting the right interface balances system complexity, installation costs, and operational flexibility.
Implementing Fixed and Multi-Speed Digital Inputs
Fixed-speed operation offers the most basic control method for industrial applications. Technicians configure a preset frequency directly within the VFD parameters. When the drive receives a run command, it accelerates the motor to this dedicated setpoint.

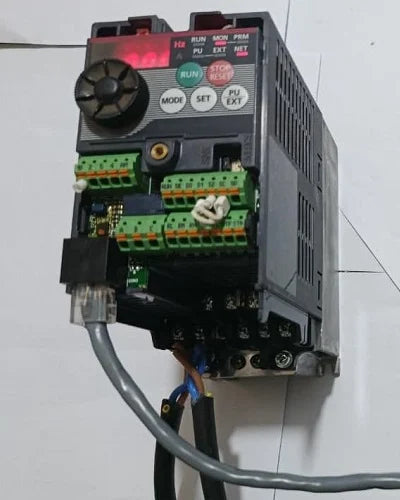

Using the Mitsubishi FR-D700 series as a reference, engineers can expand this concept into multi-speed selection. Wiring digital inputs to specific terminals allows the drive to switch between discrete speed steps.
| Parameter | Function Name | Typical Application |
| Pr.1 | Maximum Frequency | Sets upper operational limit |
| Pr.4 | Multi-Speed (High) | Triggers high-speed process cycle |
| Pr.5 | Multi-Speed (Middle) | Triggers standard run speed |
| Pr.6 | Multi-Speed (Low) | Triggers maintenance or jog speed |
Connecting the forward run terminal (STF) to the common terminal (SD) starts the motor. Adding the high-speed terminal (RH) switches the drive to the Pr.4 frequency. This approach eliminates the need for expensive analog hardware or communication networks. However, it lacks flexibility because operators cannot adjust the speed continuously between the preset steps.
Managing Local Speed Control via Keypad Interfaces
Most industrial VFDs feature an integrated operator keypad and parameter unit on the front fascia. This interface includes navigation buttons, status LEDs, and an integrated potentiometer dial. Operators can start, stop, and tune motor speeds manually from this single point.
To use this method, you must switch the VFD from external control to local mode. The operator inputs the desired frequency value and presses the local start button. This manual control method works perfectly for machine commissioning, localized troubleshooting, or standalone equipment. Nevertheless, it remains impractical for fully automated factory automation systems because it demands physical human intervention.
Leveraging External Analog Signals for Continuous Tuning
External analog control provides continuous, smooth motor speed adjustment without using a PLC or a serial network. The VFD continuously monitors an incoming voltage or current signal at its analog terminal strip. It maps this physical signal to its programmed frequency range in real time.
A standard 3-wire potentiometer acts as a simple voltage divider, delivering a 0-10V or 0-5V reference. Alternatively, instrumentation devices like temperature transmitters can feed a 4-20mA current loop into the drive. Minimum signal values correspond to 0 Hz, while maximum values drive the motor to full speed. While this approach is cost-effective and highly responsive, long analog cable runs remain vulnerable to electromagnetic interference and signal degradation.
Utilizing Serial Communication and Modbus RTU Networks
Serial communication networks allow digital controllers to manage multiple variable speed drives over a single cable. Most industrial drives include an integrated RS-485 serial interface that supports the open Modbus RTU protocol. In this topology, a centralized PLC acts as the network master, while individual VFDs serve as slave nodes.
The master controller writes digital commands directly to specific internal hex registers on the drive. These commands dictate start/stop logic, set the target frequency, and clear active faults. Furthermore, the PLC can read diagnostic data like output current and fault history. This digital network layout reduces wiring overhead and improves control precision. However, engineers must carefully match network parameters like baud rate, parity, and node addresses to prevent data collisions.
Integrating Advanced Industrial Ethernet Fieldbus Protocols
Modern control systems increasingly rely on high-speed Industrial Ethernet fieldbus architectures for comprehensive factory automation. By adding optional communication cards, VFDs integrate directly into advanced networks as independent network nodes. These setups utilize robust protocols such as PROFINET, EtherCAT, and EtherNet/IP.
Industrial Ethernet enables fast, deterministic, two-way data exchange between the VFD and a Distributed Control System (DCS). The system controller sends cyclical control words to the drive while simultaneously reading real-time performance feedback. This network topology provides unparalleled diagnostics and seamless scalability for massive plant footprints. However, industrial networks demand advanced programming expertise and require a higher initial hardware investment.
Author Insight: Navigating the Shift Toward Networked Drives
Industry Trend Observation: The landscape of motor control is shifting rapidly away from traditional analog wiring. While a 0-10V potentiometer remains perfectly adequate for a simple, isolated conveyor belt, it creates significant information silos in a modern smart factory.
Deploying Ethernet-based VFD control aligns your infrastructure with Industry 4.0 standards. Centralizing diagnostic metrics like energy consumption and thermal data allows maintenance teams to transition from reactive fixes to predictive maintenance strategies. Therefore, investing in networked drives early reduces long-term operational downtime.
Application Scenario: Multi-Zone Industrial Pumping Station
In a large-scale municipal water treatment plant, operators must synchronize multiple high-capacity centrifugal pumps to maintain constant line pressure.
A centralized Siemens S7 PLC monitors system pressure transmitters via an industrial network. The PLC runs a Proportional-Integral-Derivative (PID) loop to calculate the precise flow adjustments required across the station. Instead of running separate analog wires to every drive, the controller transmits digital speed commands to all three VFDs simultaneously via a PROFINET ring network.
If a single pump experiences a mechanical fault, the drive instantly passes the fault code back to the PLC. The control system immediately isolates the damaged unit and increases the speed references of the remaining operational drives. This networked approach maintains uninterrupted line pressure, reduces system wear, and prevents catastrophic water hammer effects.
