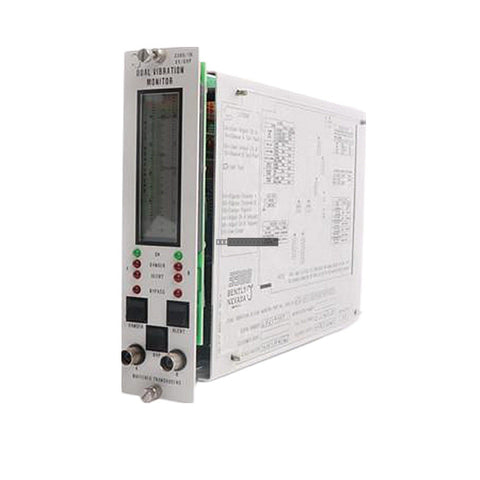

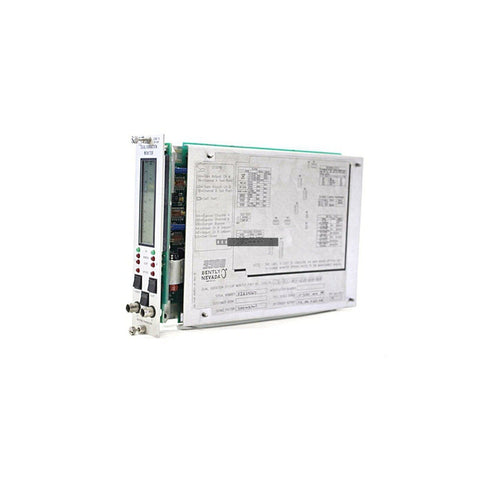

Bently Nevada 3300/26-XX-XX-XX-00-00-01-00 Dual Accelerometer RMS Monitor

Disponibilidad: 10 Quedan en stock

The Bently Nevada 3300/26 Dual Accelerometer RMS Monitor is a specialized vibration monitoring module designed for the 3300 series rack...

Código: 3300/26-XX-XX-XX-00-00-01-00

Manufacturer: Bently Nevada
Product No.: 3300/26-XX-XX-XX-00-00-01-00
Product Type: Vibration Monitor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Bently Nevada 3300/26 Dual Accelerometer RMS Monitor is a specialized vibration monitoring module designed for the 3300 series rack systems. This unit provides continuous monitoring of acceleration and velocity parameters, delivering reliable data for protective machinery management and condition-based maintenance.

Features

Dual-channel configuration for monitoring two independent accelerometer inputs.
RMS (Root Mean Square) signal processing for accurate vibration amplitude measurement.
Standard 4-20 mA output for integration with DCS, PLC, or SCADA monitoring systems.
Wide frequency response capability for diverse rotating machinery applications.
Designed for integration into existing Bently Nevada 3300 series rack environments.

Technical Specifications

Model	3300/26-XX-XX-XX-00-00-01-00
Function	Dual Accelerometer RMS Monitor
Sensitivity	100 mV/g (10 mV per m/s2)
Frequency Range (No Filter)	2.7 Hz to 90 kHz (-3 dB nominal)
Frequency Range (w/ Integration)	10 Hz to 90 kHz
Output Impedance	100 Ohm
Operating Temperature	0 degC to +65 degC (+32 degF to +150 degF)
Storage Temperature	-40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity	Up to 95%, non-condensing

Installation Guidelines

Ensure the 3300 series rack is powered down before inserting or removing the monitor module to prevent electrical damage.
Verify that the module is fully seated in the rack slot and that the front panel connectors are secured.
Use appropriate shielded cabling for sensor inputs to minimize EMI interference in high-noise industrial environments.
Observe proper grounding practices for the rack and signal wiring to maintain signal integrity.
Maintain ambient operating temperatures within the specified 0 to 65 degC range to ensure long-term component reliability.

FAQ

What is the primary function of the 3300/26 monitor?
This module is designed to accept inputs from accelerometers and convert them into RMS vibration levels, providing a 4-20 mA output for process control systems.

Is this module compatible with other 3300 series components?
Yes, the 3300/26 is specifically engineered to function within the standard Bently Nevada 3300 series rack architecture.
