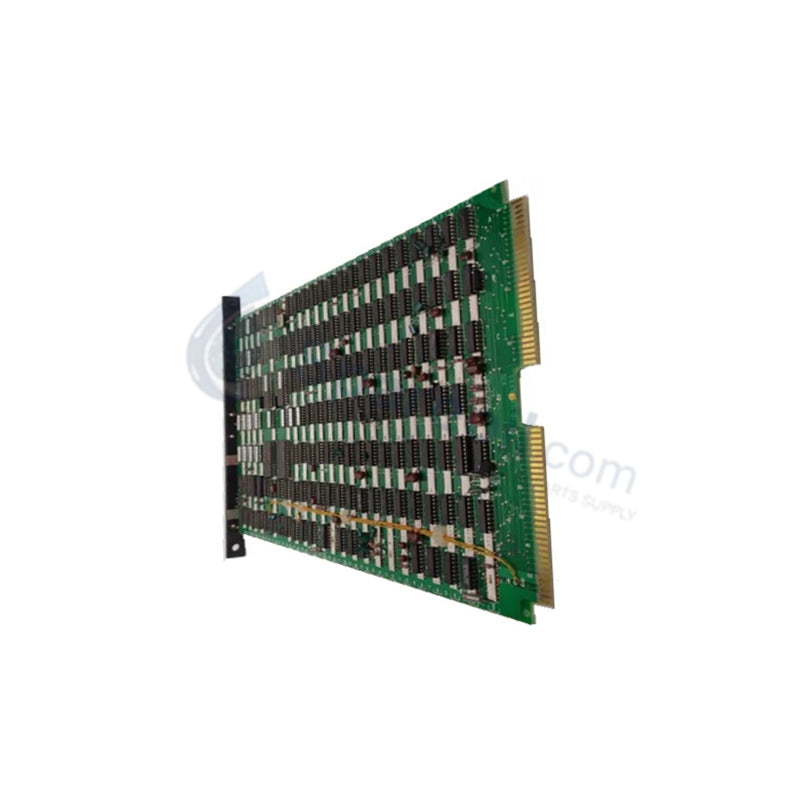

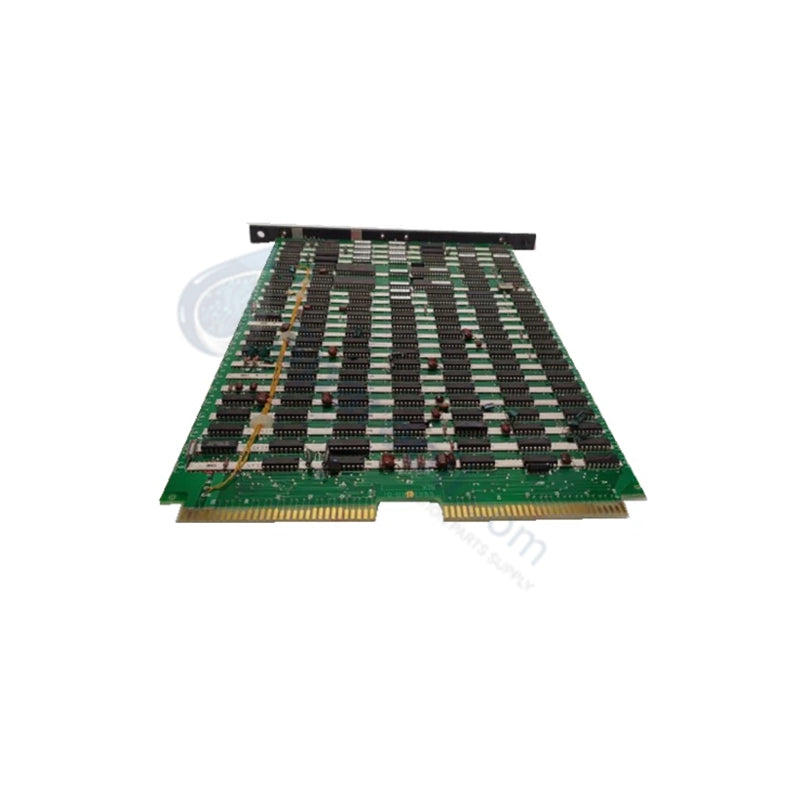

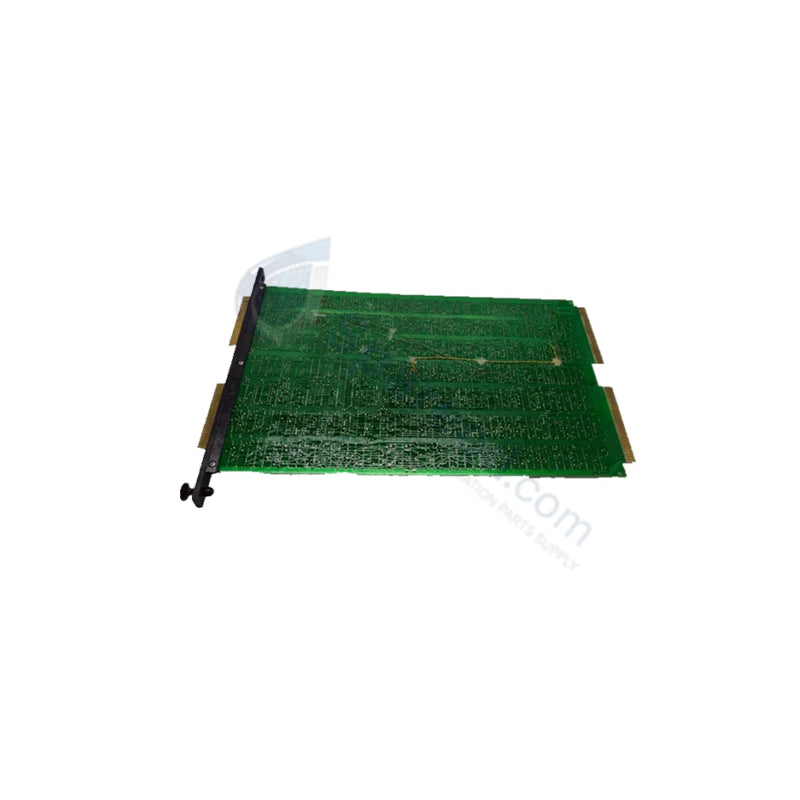

Yokogawa FCA4*A Interface Module Card

The Yokogawa FCA4*A, also cataloged as the FCA4*A Interface Module Card, operates as a dedicated hardware component for signal communication and I/O integration within Yokogawa control system platforms.

Hardware Specifications

Parameter Specification
Model FCA4*A
Brand Yokogawa
Origin Japan / Singapore
Weight 250 g
Dimensions 150 mm x 20 mm x 100 mm
Operating Temp 0 deg C to 60 deg C
Power Consumption 24 VDC
I/O Capability Analog and digital signal processing

Process Control and DCS Connectivity

The FCA4*A facilitates high-speed data exchange between field instrumentation and control processors. To maintain loop integrity in distributed control systems, the module supports multi-channel I/O configurations, which require precise impedance matching for 4-20 mA HART loop protocol adherence. In applications where long cable runs are present, ensure that channel-to-channel isolation parameters are observed to prevent ground loops that could introduce common-mode noise into the process signal. When integrating with Foundation Fieldbus or Profibus PA segments, verify that the module firmware revision is compatible with the existing host control station bus communication velocity to avoid deterministic network latencies.

Frequently Asked Questions

Q: Does this module support hot-swapping within the control rack?

A: The FCA4*A allows for removal and replacement; however, ensure the specific I/O channel is set to a safe state or manual control mode within the DCS software to prevent process disturbances during the transition.

Q: Is external signal conditioning required for low-level thermocouple inputs?

A: While the FCA4*A supports various analog signals, ensure the internal module configuration matches the specific sensor type. If cold junction compensation (CJC) is not handled internally by the specific sub-model configuration, external hardware or baseplate compensation may be required to maintain measurement accuracy.

Field Installation Guidelines

  • Mounting: Seat the FCA4*A securely into the designated rack slot, ensuring the backplane pins are aligned to prevent mechanical damage. If using the optional panel or DIN rail mount, ensure the module housing is flush to prevent vibration-induced stress on the connector terminals.
  • Wiring: Terminate field wiring using the appropriate shielded twisted-pair cables. Ground the shield at the cabinet entry point using an approved grounding bar to maintain electromagnetic compatibility (EMC) and prevent interference from high-frequency power lines.
  • Configuration: After physical installation, perform a status check via the DCS maintenance interface to confirm module recognition and power-on self-test (POST) completion. Validate loop continuity for each channel before initiating active control output.
