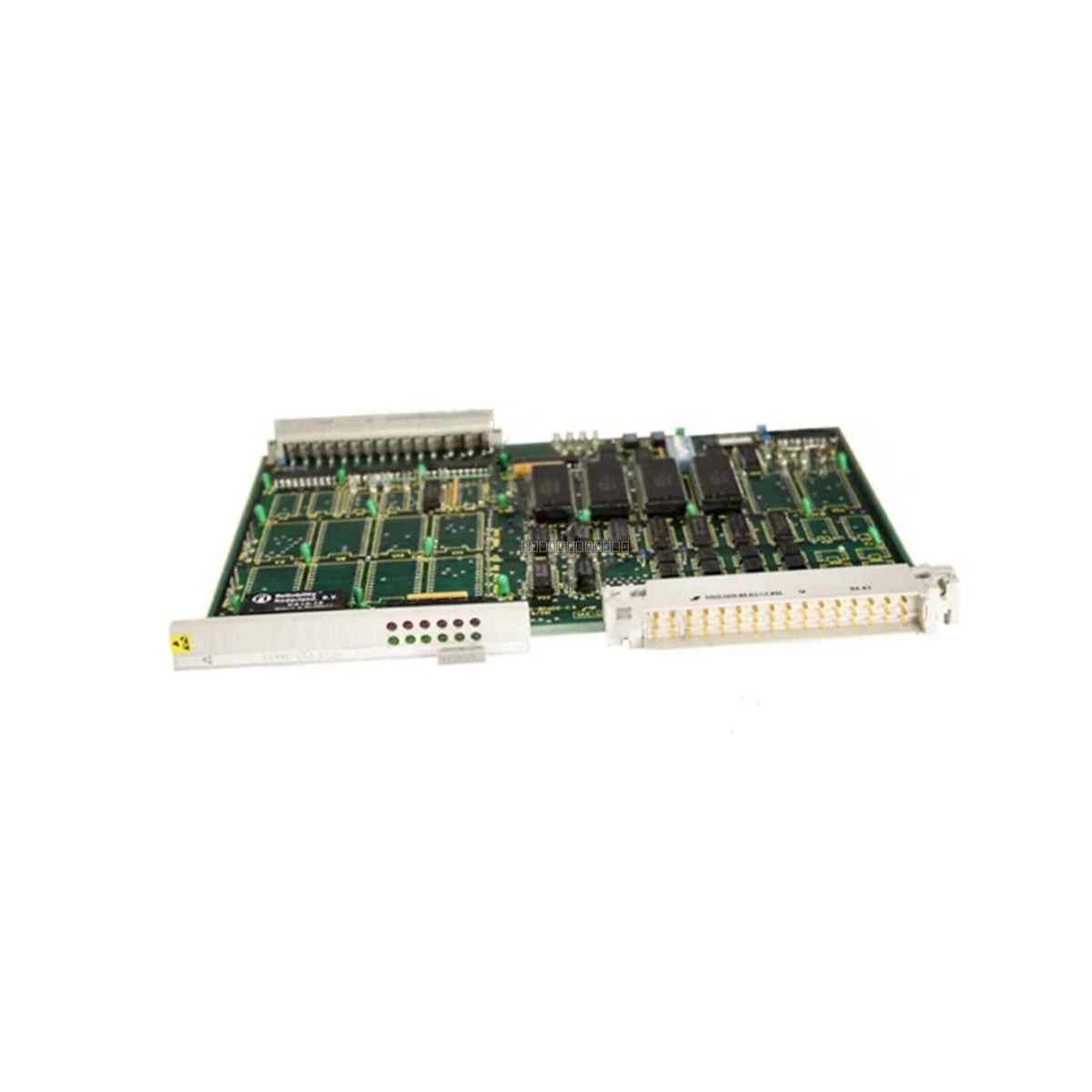

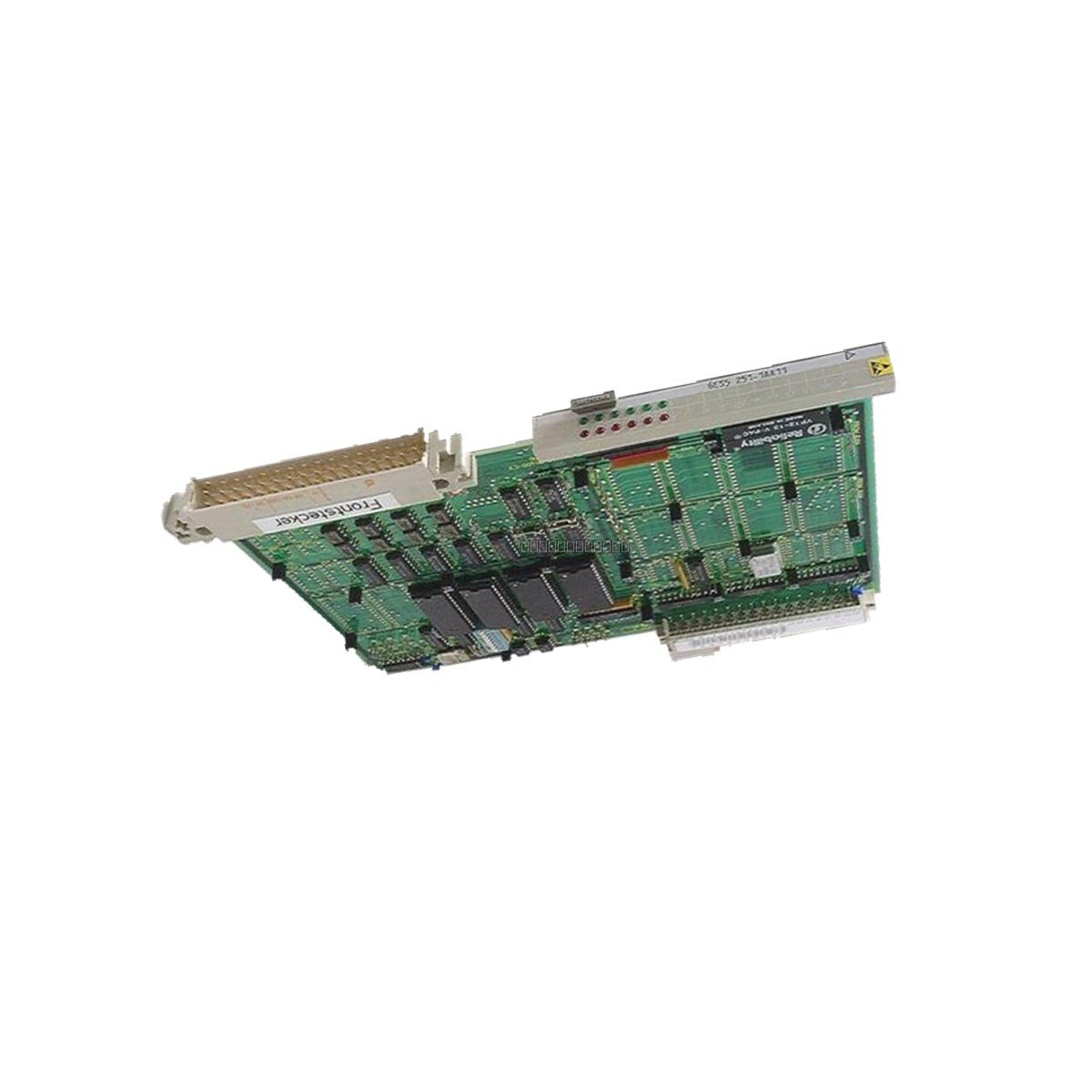

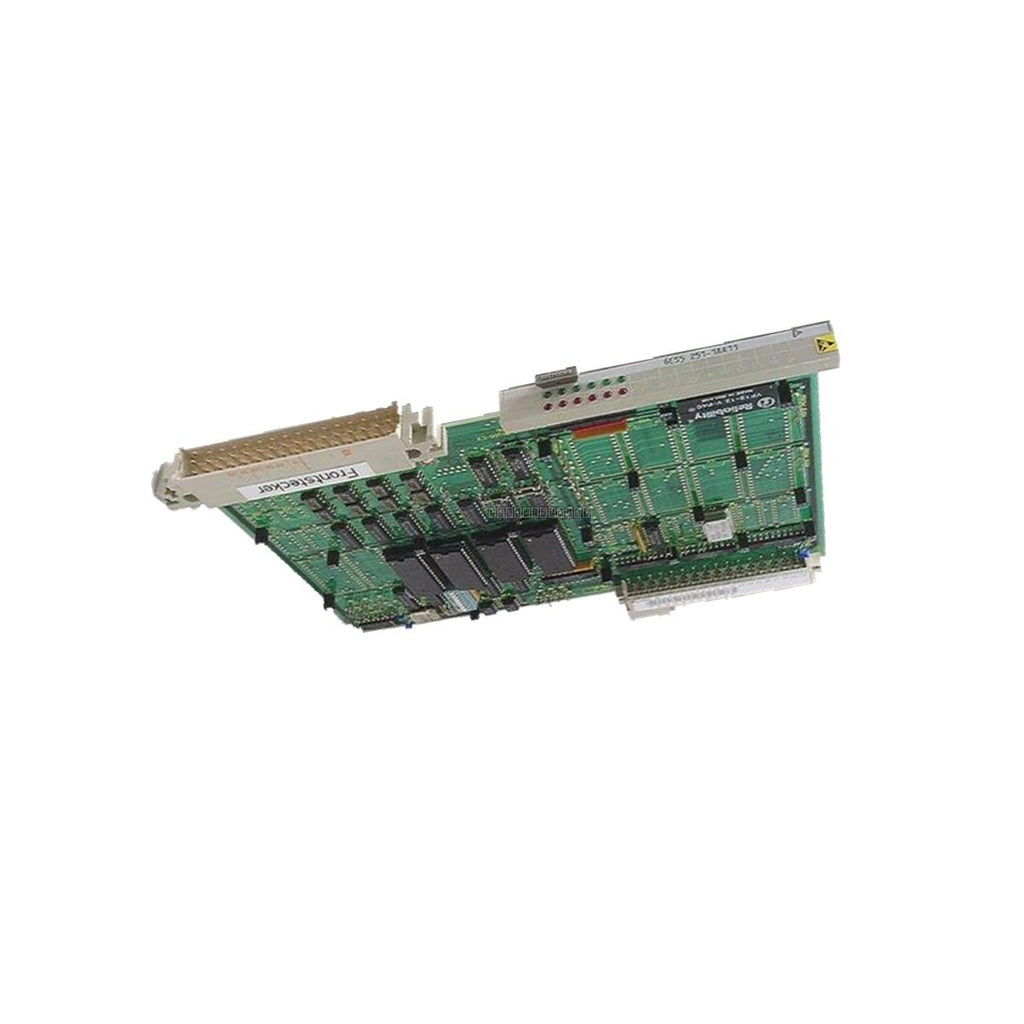

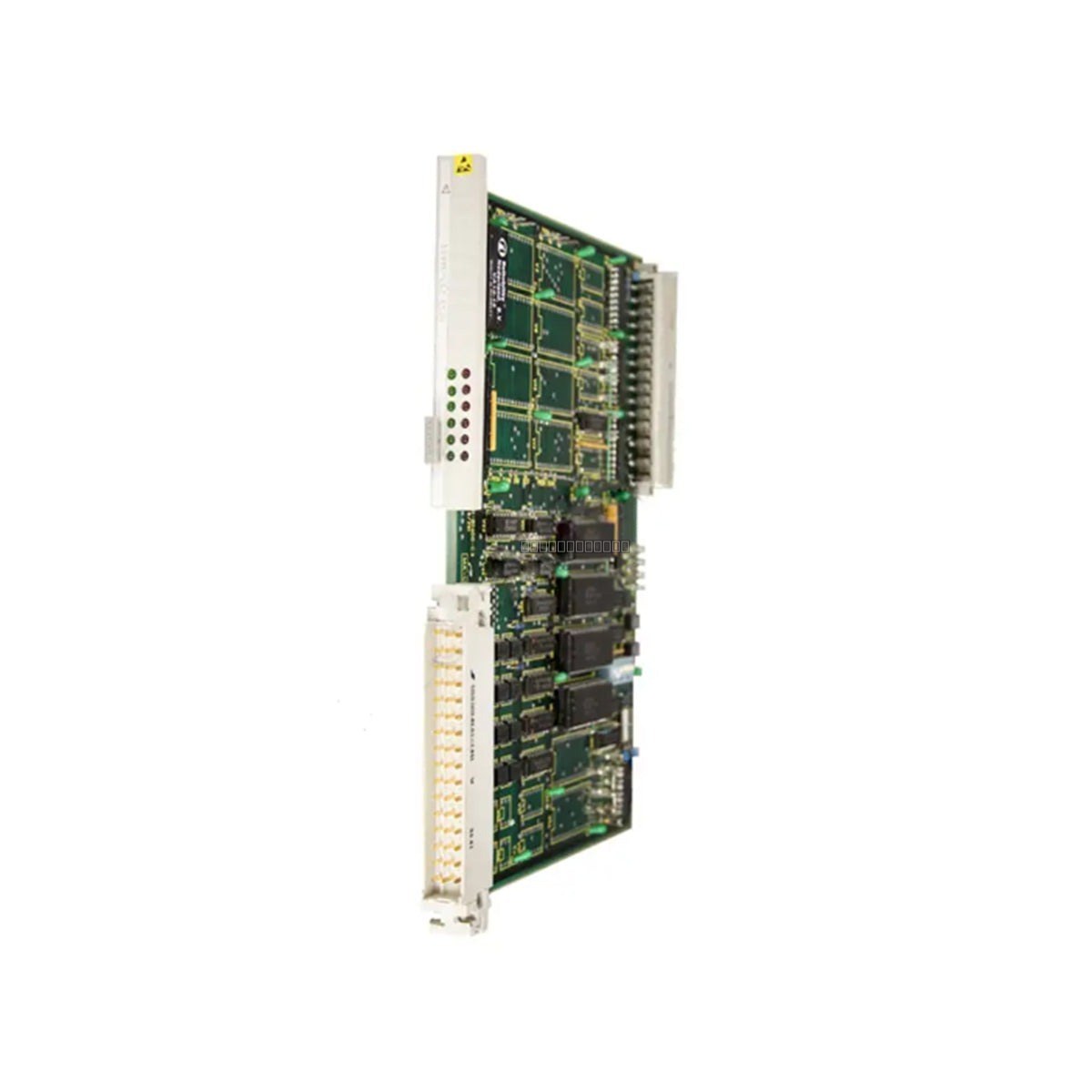

Siemens 6ES5251-1AA11 Simatic S5-210 Keyboard Interface Board

Availability: 8 left in stock

DescriptionThe Siemens Simatic S5 6ES5251-1AA11 is a specialized microcomputer system control board designed as a keyboard interface for Nahmat OS...

SKU: 6ES5251-1AA11

Manufacturer: Siemens
Product No.: 6ES5251-1AA11
Product Type: Keyboard Interface Board
Product Origin: Germany
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens Simatic S5 6ES5251-1AA11 is a specialized microcomputer system control board designed as a keyboard interface for Nahmat OS workstations within the Simatic S5-210 platform. This printed circuit board (PCB) serves as the critical bridge between operator input hardware and the central processing architecture, translating tactile operator entries into deterministic digital instructions. It is engineered for reliable performance in continuous process control environments, including chemical refining, thermal power generation, and mining operations, ensuring stable human-machine communication and minimizing interface-related downtime.

Features

Nahmat OS Integration: Contains dedicated logic circuitry optimized to decode keyboard matrices within the Nahmat OS environment, ensuring real-time interrupt processing of operator commands.
Signal Conditioning: Integrated logic chips provide on-board signal conditioning, mechanical contact bounce filtration, and intermediate data buffering to protect data integrity against electromagnetic interference (EMI).
System Bus Communication: Designed for direct integration into the S5-210 system backplane or rack, utilizing parallel communication paths for low-latency data transfer to the host CPU.

Applications

This interface board is primarily utilized in industrial control terminals where the Simatic S5-210 platform is deployed. It is essential for operator workstations requiring high-reliability input processing in demanding industrial environments.

Technical Specifications

Model	6ES5251-1AA11
Brand	Siemens
Product Family	Simatic S5-210
Module Type	PCB Control Board / Keyboard Interface
Operating System Compatibility	Nahmat OS
Operating Temperature	0 to 55 deg C
Storage Temperature	-40 to 70 deg C
Power Consumption	2.5 W (typical)

Installation Guidelines

Power Down: Always ensure the S5-210 system is fully powered down before inserting or removing the PCB from the backplane to prevent electrical damage.
ESD Handling: Use proper electrostatic discharge (ESD) protection, such as a grounded wrist strap, when handling the board to avoid damaging sensitive logic components.
Seating: Ensure the board is firmly seated in the designated rack slot, with all connectors properly aligned to prevent pin misalignment or intermittent signal loss.
Environment: Maintain the installation area within the specified temperature range and ensure adequate ventilation to prevent heat buildup within the workstation enclosure.

FAQ

Q: Is this board compatible with other Simatic S5 series?
A: No, the 6ES5251-1AA11 is specifically engineered for the Simatic S5-210 platform and its associated Nahmat OS workstation architecture.

Q: Does this board require external power?
A: No, the board is powered directly from the internal system rail of the S5-210 backplane, with a typical power consumption of 2.5 W.
