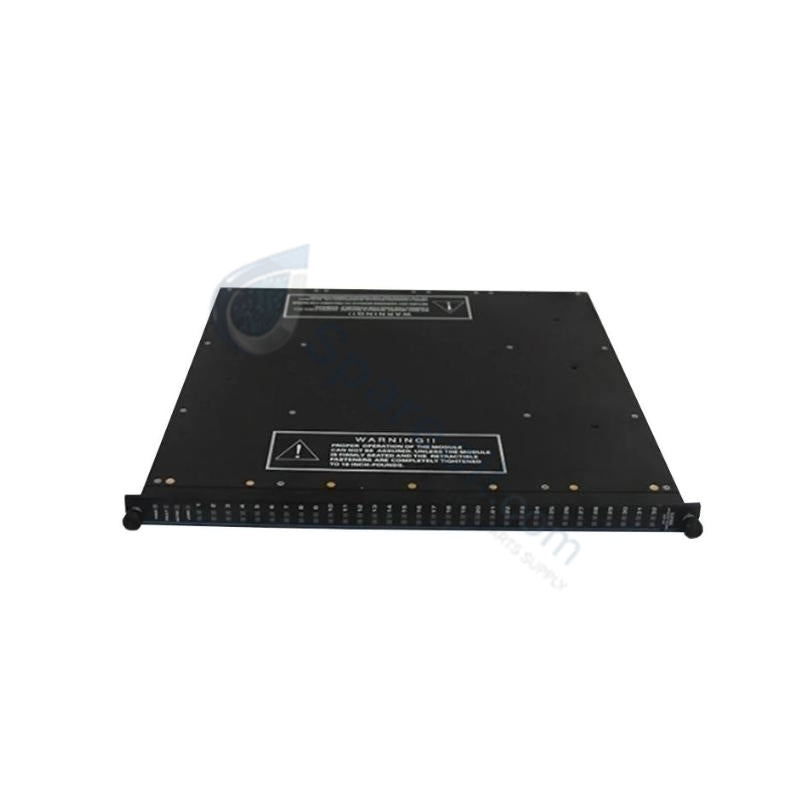

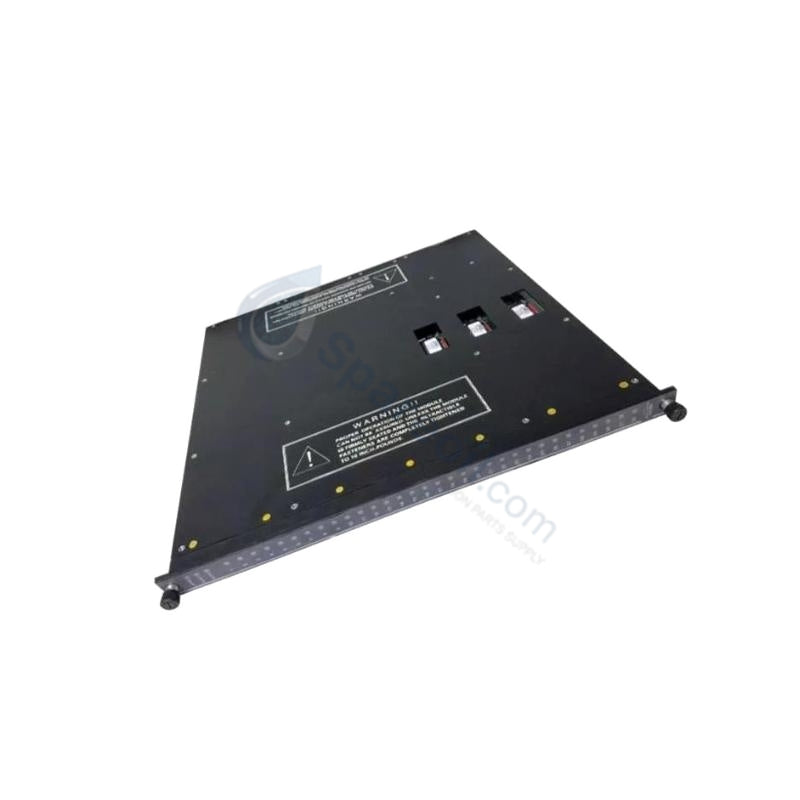

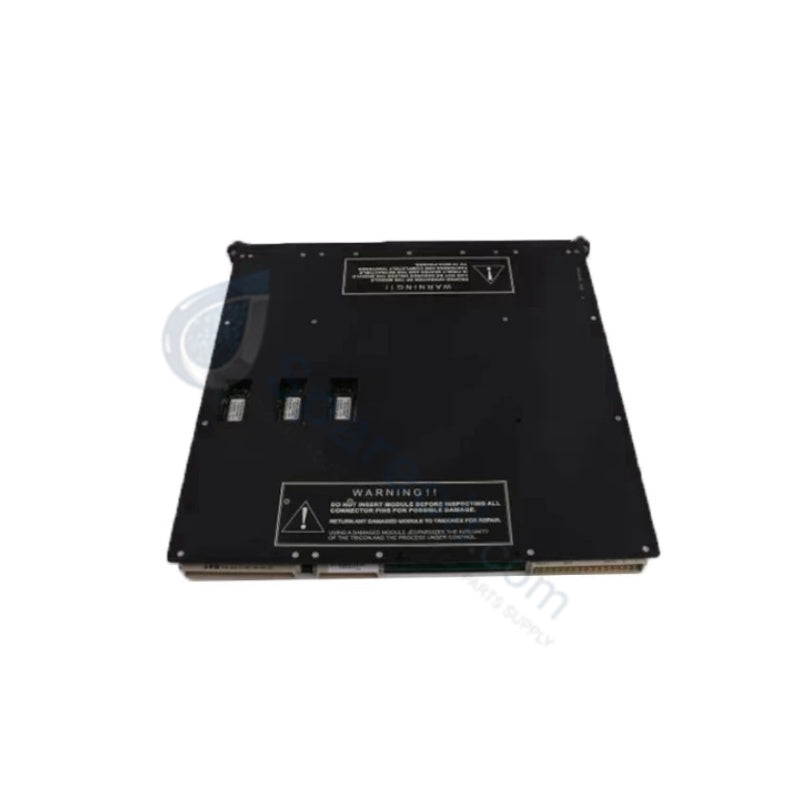

3708E TRICONEX Digital Input Module

3708E TRICONEX Tricon 3000 Series Digital Input Modules

3708E TRICONEX Tricon 3000 Series Digital Input Modules

التوفر: 10 متوفر في المخزون

TRICONEX 3708E Tricon 3000 Series Module Configured for discrete signal processing in Tricon 3000 Series SIS racks, the TRICONEX 3708E...

رمز المنتج: 3708E

Manufacturer: Triconex
Product No.: 3708E
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

TRICONEX 3708E Tricon 3000 Series Module

Configured for discrete signal processing in Tricon 3000 Series SIS racks, the TRICONEX 3708E (3708E Digital Input Module) provides direct physical/electrical execution. The assembly routes field-derived binary status signals directly into the Triple Modular Redundancy (TMR) safety backplane matrix to drive real-time logic calculations.

Hardware Specifications

Parameter	Specification
Model	3708E
Brand	TRICONEX (Schneider Electric)
Origin	China
Weight	1.5 kg
Dimensions	177.8 mm x 101.6 mm x 228.6 mm
Operating Temp	-20 to +60 deg C
Power Consumption	Not specified / Backplane distributed (~6 mA per channel current draw)
Input Channels	32 isolated digital inputs
Signal Type	Dry contact or 24 VDC logic inputs
Input Voltage Range	18-32 VDC
Architecture	Triple Modular Redundancy (TMR) with 2-out-of-3 voter logic
Safety Integrity Level	SIL3 (IEC 61508 / IEC 61511)
Isolation	1500 VAC galvanic isolation between channels and backplane
Diagnostics	Continuous per-channel monitoring, LED indicators, fault detection
Storage Temp	-40 to +85 deg C
Humidity Range	5% to 95% non-condensing
Certifications	IEC 61508 SIL3, TÜV, CE, UL Class I Div 2, ATEX Zone 2

Triple Modular Redundancy and Safety Integrity

The internal processing architecture enforces continuous safety loops using a hardware-implemented triple modular redundancy (TMR) 2oo3 voting scheme. Three fully separate microcontroller channels independently sample input voltage levels and resolve the application logic. Galvanic isolation rated at 1500 VAC splits the high-density field side circuitry from the core backplane communication bus. This arrangement blocks voltage surges and common-mode transients from disrupting the execution of safety interlocks, securing deterministic fail-safe state execution in strict alignment with IEC 61508 SIL3 certification rules.

Frequently Asked Questions

Q: What boundaries govern hot-swap replacement procedures for this digital input hardware?

A: The module permits hot-swap replacement directly within an energized system chassis slot. During the physical exchange, the TMR system maintains active diagnostics and processing on surrounding slots, which prevents the logic solver from triggering false shutdown actions or process trips.

Q: How do the embedded diagnostics handle field loop integrity monitoring?

A: The internal testing circuit performs continuous background scanning across all 32 channels. It cross-checks state configurations between the three processing legs to identify input voltage degradation, open loops, and hardware errors before they impact the overall safety loop runtime.

Field Installation Guidelines

Mount the module vertically within the allotted slot of the Tricon 3000 Series SIS rack. Ensure all rear connectors align precisely with the active backplane before pushing the unit home and tightening the retention screws. Wire all field loops directly through the corresponding external termination baseplate assembly using twisted, shielded instrumentation wiring. Bond all cable shields directly to the dedicated low-impedance facility instrument ground bus to suppress electromagnetic interference (EMI). Route these low-voltage signal paths through dedicated cable trays away from heavy motor starters, variable speed drives, and high-power AC lines.
