4210 TRICONEX Tricon v9/v10 Datasheet & Technical Manual

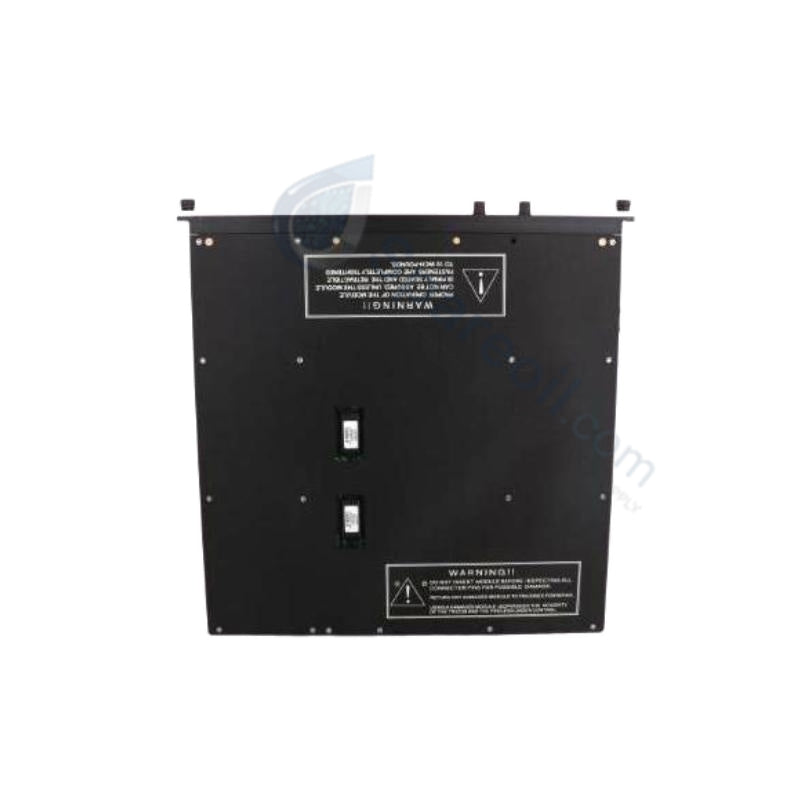

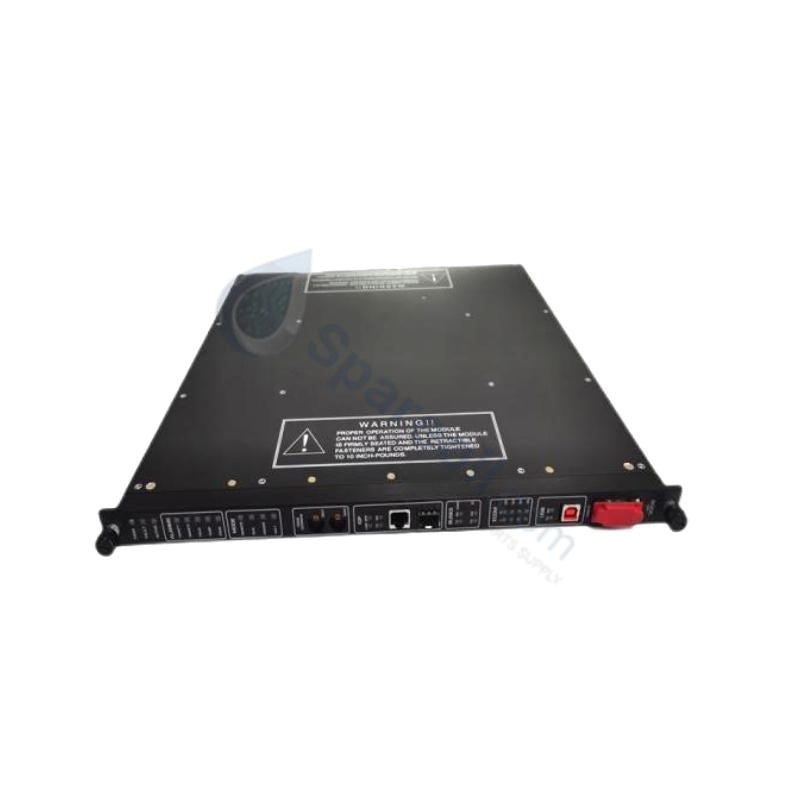

Triconex 4210 Tricon Remote Extender Module

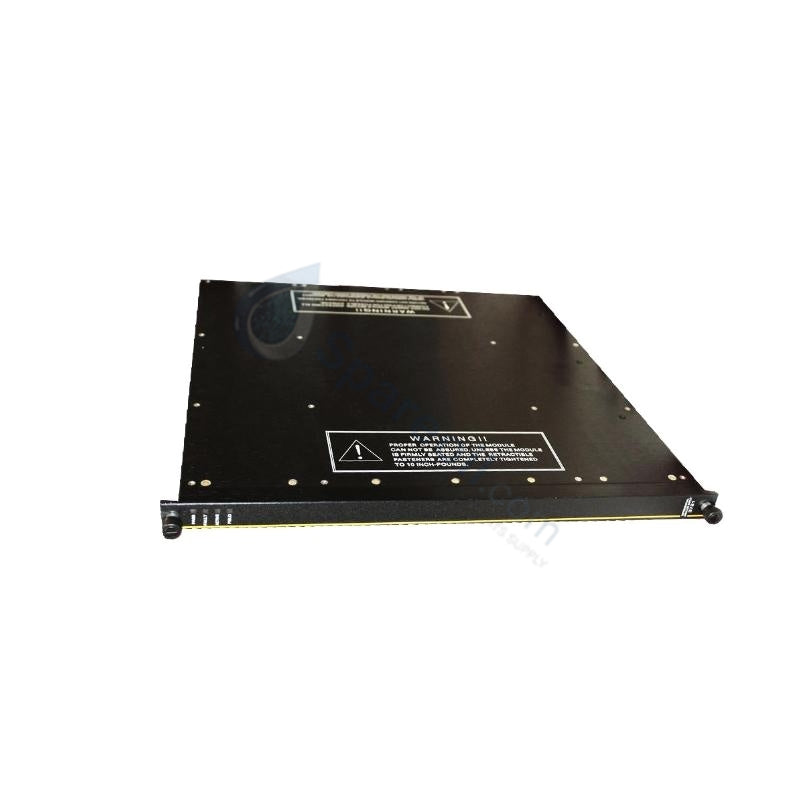

Triconex 4210 Tricon Remote Extender Module

التوفر: 10 متوفر في المخزون

TRICONEX 4210 Remote Extender Modules The TRICONEX 4210, also cataloged as the 4210 Remote Extender Module, operates as a dedicated...

رمز المنتج: 4210

Manufacturer: Triconex
Product No.: 4210
Product Type: Remote Extender Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

TRICONEX 4210 Remote Extender Modules

The TRICONEX 4210, also cataloged as the 4210 Remote Extender Module, operates as a dedicated hardware component for remote chassis communication within Tricon v9/v10 Safety Instrumented System (SIS) networks.

Hardware Specifications

Parameter	Specification
Model	4210
Brand	Triconex (Schneider Electric)
Origin	China
Weight	5.0 kg shipping weight
Dimensions	Standard Tricon chassis slot footprint
Operating Temp	0 to +60 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	5 to 15 W typical per module
Communication Medium	Copper twisted-pair cabling
Data Rate	2.5 to 25 Mbps synchronous serial Tribus protocol
Maximum Distance	Up to 300 m
Electrical Isolation	2000 VDC galvanic isolation between copper link and backplane
Safety Certification	IEC 61508 SIL3, ISO 13849 PLe, TÜV, UL Class I Div 2, ATEX Zone 2
Redundancy Architecture	Triple Modular Redundancy (TMR) with dual-channel copper paths
Diagnostics	Integrated LED indicators (PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3)

Safety Control (SIS) Technical Characteristics

The module implements full Triple Modular Redundancy (TMR) across dual-channel copper paths to enforce fail-safe state execution without interrupting process availability. It isolates communication errors through a 2000 VDC galvanic isolation barrier between the external copper interface and the logic backplane, mitigating transient surge propagation. Operating via the synchronous serial Tribus protocol at speeds up to 25 Mbps, the internal architecture validates voting logic data integrity before forwarding remote I/O data to the main processor.

Frequently Asked Questions

Q: What are the specific procedural steps for executing a hot-swap replacement on this module?

A: To execute a hot-swap, the module must first be marked offline via TriStation software. Verify that the ACTIVE LED turns off, extract the faulty hardware from the chassis slot, insert the replacement unit, and monitor the internal initialization sequence via the PASS LED before re-enabling online communication.

Q: How does the module handle a single-channel copper path failure under redundant operation?

A: The hardware incorporates dual-channel copper links operating under internal TMR voting. If one path undergoes an open circuit or heavy EMI degradation, the internal Tribus voting engine automatically shifts communication load to the remaining healthy path with zero protocol transmission latency or disruption to the safety loop.

Field Installation Guidelines

Shielding and Grounding: All copper twisted-pair cables must utilize high-density braided shields terminated directly to the functional earth ground bar at the chassis entry point to suppress electromagnetic interference (EMI).
Bending Radius Limits: Maintain a minimum structural bending radius of 10 times the outer cable diameter during installation within cable trays to prevent internal impedance mismatches and signaling degradation.
Separation of Media: Maintain a physical distance of at least 30 cm between the communication copper links and high-voltage power distribution conduits to prevent cross-talk and induced voltage spikes.
