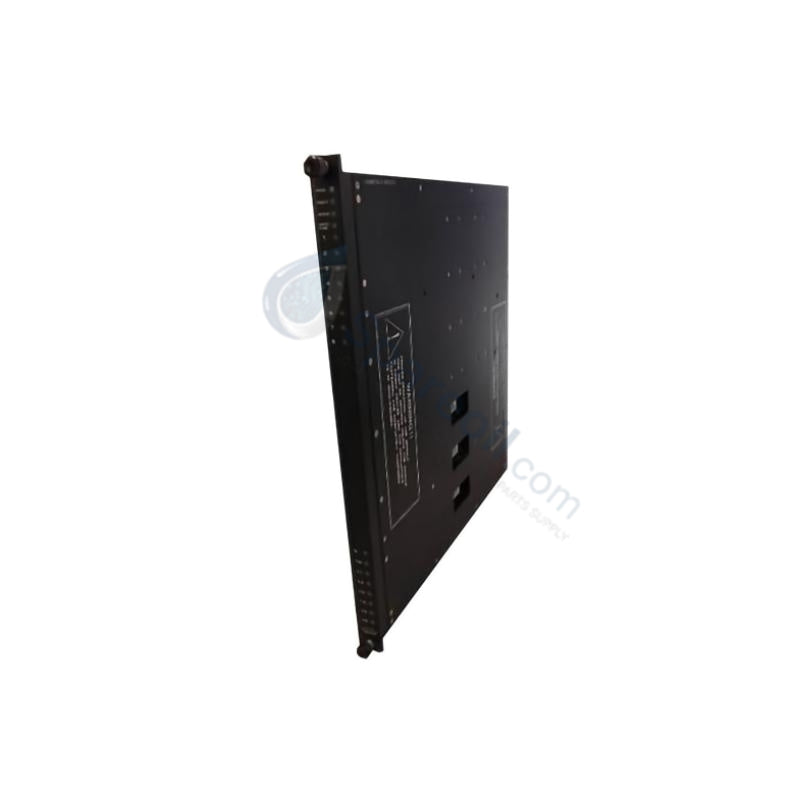

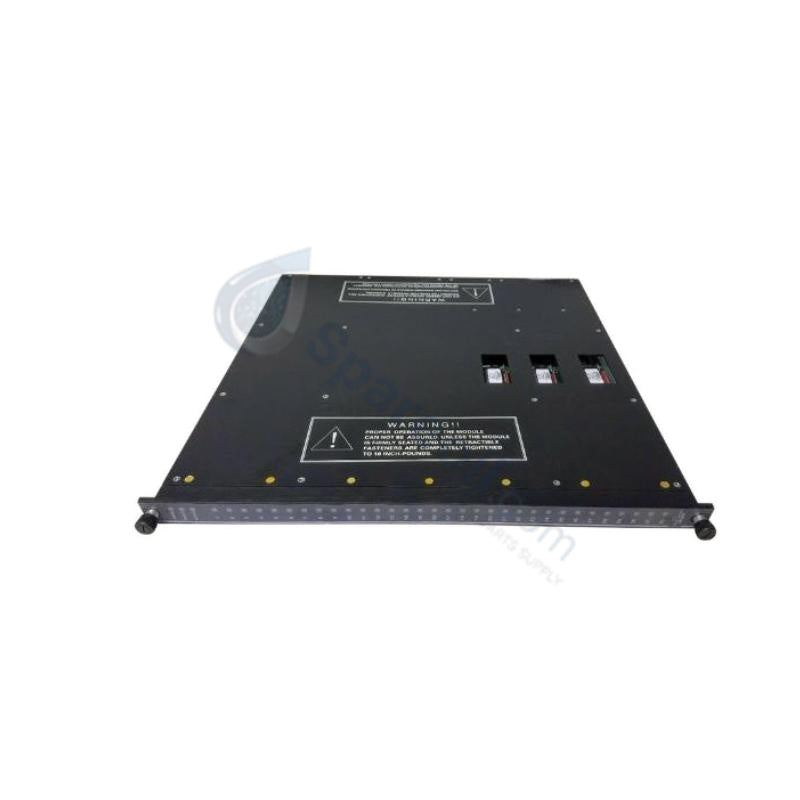

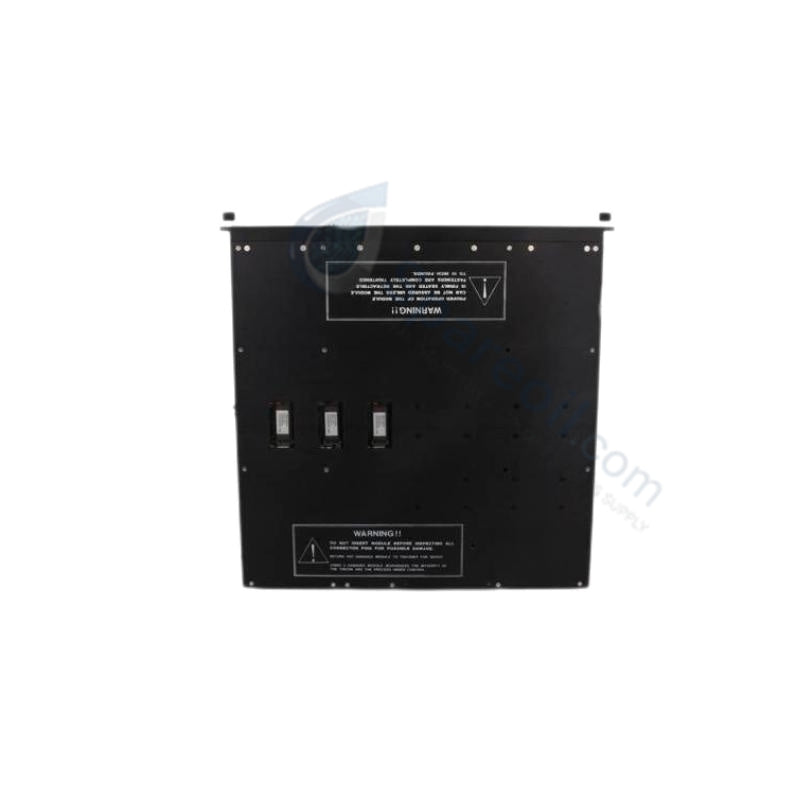

TRICONEX 3604E Tricon 3000 Series Digital Output Modules

Configured for high-reliability final control element actuation in Tricon 3000 Series SIS platforms, the TRICONEX 3604E (3604E Digital Output Module) provides direct physical/electrical execution. The module drives discrete field devices by executing safe state switching across triple modular redundant paths.

Hardware Specifications

Parameter Specification
Model 3604E
Brand Triconex (Schneider Electric)
Origin USA
Weight 1.5 kg net weight (5.00 kg shipping weight)
Dimensions 177.8 mm x 101.6 mm x 228.6 mm
Operating Temp -20 to +60 deg C
Storage Temp -40 to +85 deg C
Output Channels 16 discrete, non-commoned outputs
Nominal Voltage 24 VDC
Voltage Range 22 to 45 VDC
Voltage Drop Less than 4 V typical
Current Ratings 2 A maximum per point (10 A surge for 10 ms)
Load Leakage 2 mA maximum
Point Isolation 1500 VDC
Color Code Dark blue
Safety Certification IEC 61508 SIL3, IEC 61511, TÜV, UL Class I Div 2, ATEX Zone 2

Safety Control (SIS) Technical Characteristics

The module incorporates a Triple Modular Redundancy (TMR) 2oo3 architecture featuring three internal, isolated logic legs executing parallel output algorithms. Quad voting circuitry on the output stage ensures that internal electronic component faults are automatically voted out, executing fail-safe state execution without interrupting process uptime or dropping the load. Individual channel galvanic isolation rated at 1500 VDC decouples the processing electronics from field loop interference and inductive voltage spikes. The module runs integrated diagnostic subroutines to verify the switching readiness of the output switches and to monitor field wiring paths for open loops or short circuits.

Frequently Asked Questions

Q: How does the module control the thermal energy generated during inductive load switching?

A: The internal switching array routes the inductive kickback current through integrated clamp diodes. To maintain operational safety margins and prevent hardware degradation, external field termination bases require fast-acting 2.5 A fuses on each individual output to interrupt high-energy short circuits before they reach the main module frame.

Q: What are the specific visual status indications when an internal leg fault occurs during runtime?

A: When an internal diagnostic routine flags an error on one of the logic legs, the module front-panel FAIL LED activates while the ACTIVE light remains illuminated. The remaining two functional legs sustain the 2oo3 voting structure by operating in a degraded 1oo2 mode, transmitting full diagnostic parameters to the TriStation application without causing a spurious process trip.

Field Installation Guidelines

  • Fusing Infrastructure: Ensure every output point has a 2.5 A fast-acting fuse installed on the associated field termination baseplate to secure the module against field load overcurrent conditions.
  • Cable Separation Rules: Enforce absolute separation between these 24 VDC discrete output control paths and low-voltage analog signal circuits within the panel wireways to eliminate transient switching EMI injection.
  • Termination Torque Limit: Tighten all field terminal wire connections to 0.5 Nm to prevent high-resistance contact arcs that can destabilize the discrete load circuits.
