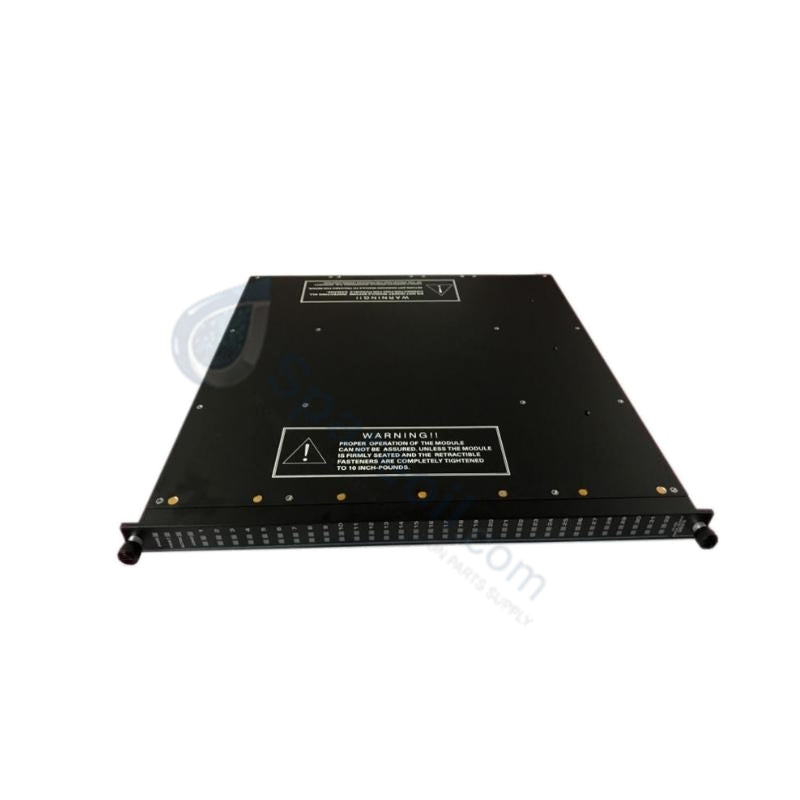

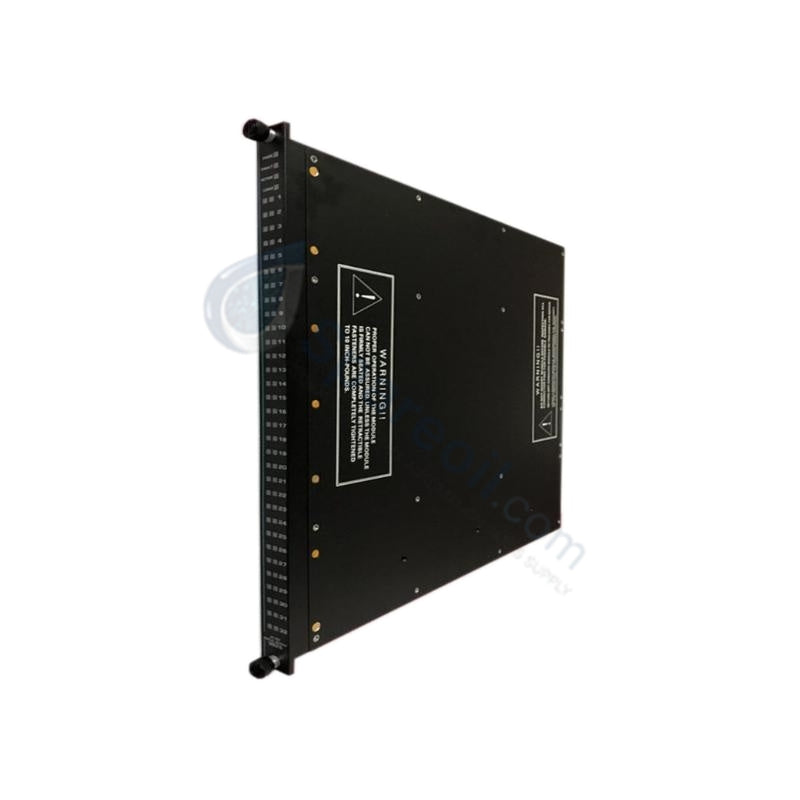

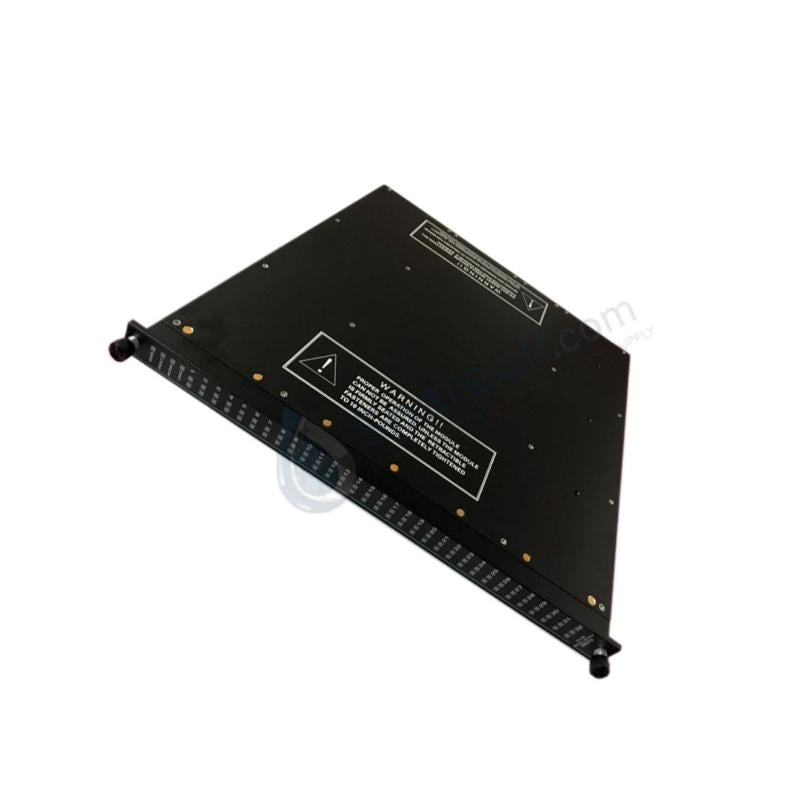

Triconex 3625A Digital Output Module

The Triconex 3625A, also cataloged as the 3625 Digital Output Module, operates as a dedicated hardware component for discrete ON/OFF control within Triconex TMR Safety Instrumented Systems platforms. The hardware processes command signals from the main processors to drive external final control elements, switching power directly to field solenoids, actuator coils, relays, and indicators. It executes automated internal loop testing to verify circuit state execution without altering the designated status of the active output channels.

Hardware Specifications

Parameter	Specification
Model	3625A (3625)
Brand	Triconex
Origin	United States
Weight	2.06 kg
Dimensions	2.2 x 40.8 x 40 cm
Operating Temp	-20 to +70 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	Less than or equal to 5 W
Output Signals	32 channels, commoned
Output Type	Switch-type (ON/OFF)
Load Voltage	Up to 250 VAC/DC
Output Current	2 A per channel
Response Time	Less than or equal to 2 ms
Redundancy	Dual-channel fault tolerance; supports TMR mid-value selection
Diagnostics	Channel-level fault detection (open/short circuits), chassis alarm signals
Hot-Swappable	Yes
Certifications	IEC 61508 SIL 3, TUV, CE

Triple Modular Redundant Safety Control

The electronic backplane uses a triple modular redundancy (TMR) 2oo3 architecture to sustain fault-tolerant control commands over the active output loops. Three independent processing legs execute internal mid-value selection routines, validating output state changes against parallel internal data networks before altering field voltages. Internal galvanic isolation barriers decouple the internal processing bus from the high-voltage field-side circuitry, allowing the hardware to command inductive loads up to 250 VAC/DC while keeping fail-safe state execution metrics fully intact and maintaining SIL3 certification criteria.

Frequently Asked Questions

Q: How does the module execute a hot-swap replacement without interrupting power delivery to active external actuators?

A: The slot configuration allows live insertion and removal of the card. During a hot-swap procedure, the module under replacement transfers its output track to a parallel module situated in the adjacent slot via the chassis backplane without introducing electrical glitches or disrupting the active 2oo3 safety logic.

Q: What mechanisms protect the 32 commoned channels from high-voltage transients induced by inductive field devices?

A: The module relies on comprehensive galvanic isolation pathways between the field termination plane and the internal logic layers. Internal suppressors damp inductive kickback voltages up to the maximum load limit of 250 VAC/DC, preventing common-mode noise from propagating backward into the controller logic.

Field Installation Guidelines

Chassis Engagement and Mechanical Anchoring: Slide the module vertically along the chassis guide rails until the rear alignment pins engage the backplane receptacle. Depress the top and bottom installation handles fully to mate the multi-pin array, and hand-torque the panel screws to prevent high-vibration loosening.
Commoned Termination and Shield Grounding: Connect field return wires to the designated common busbar on the external termination assembly. Terminate all control loop cable shield drain wires at the primary instrument grounding bus inside the cabinet, ensuring clean metal-to-metal contact to bleed off high-frequency noise.
Wire Routing Constraints and Load Balancing: Route the discrete 24 VDC or 250 V output cabling through dedicated high-power wire ducts. Maintain distinct physical separation from incoming low-voltage analog sensor lines, and verify that total loop current remains within the 2 A per channel maximum continuous rating.
