T8310 ICS Triplex Expander Processor Datasheet & Manual

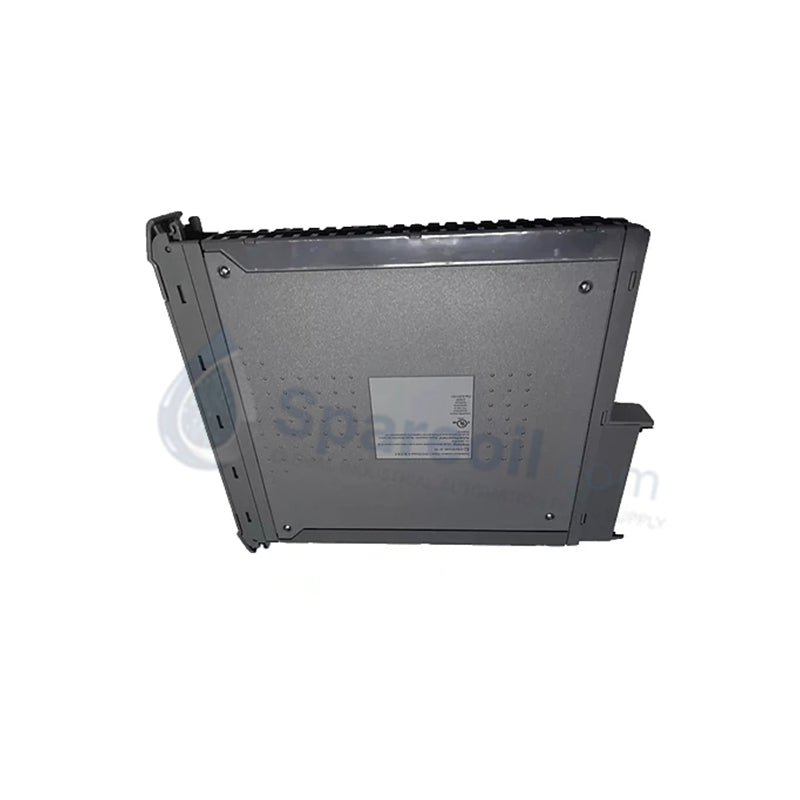

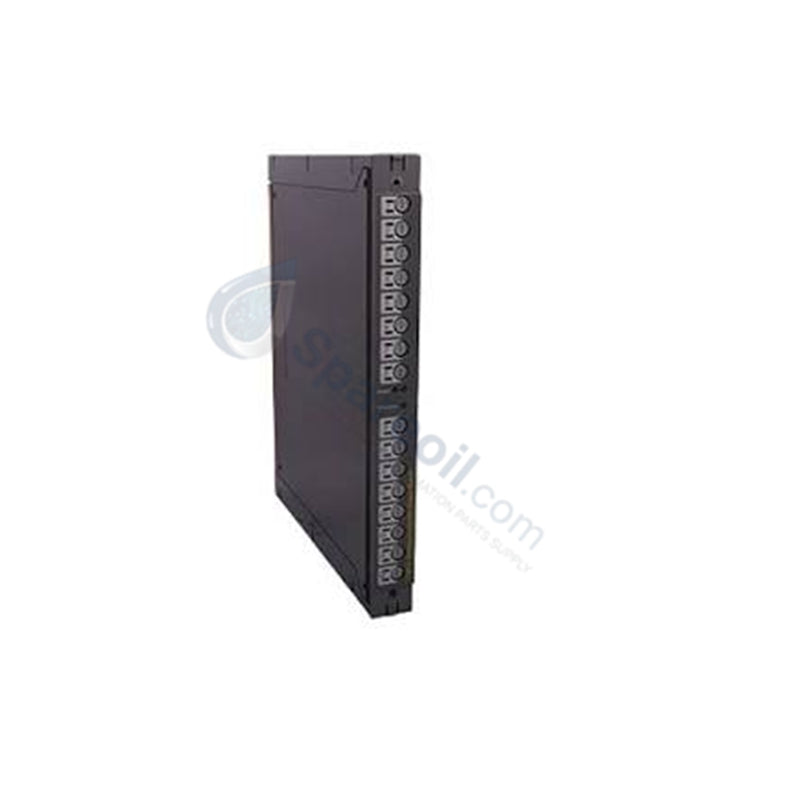

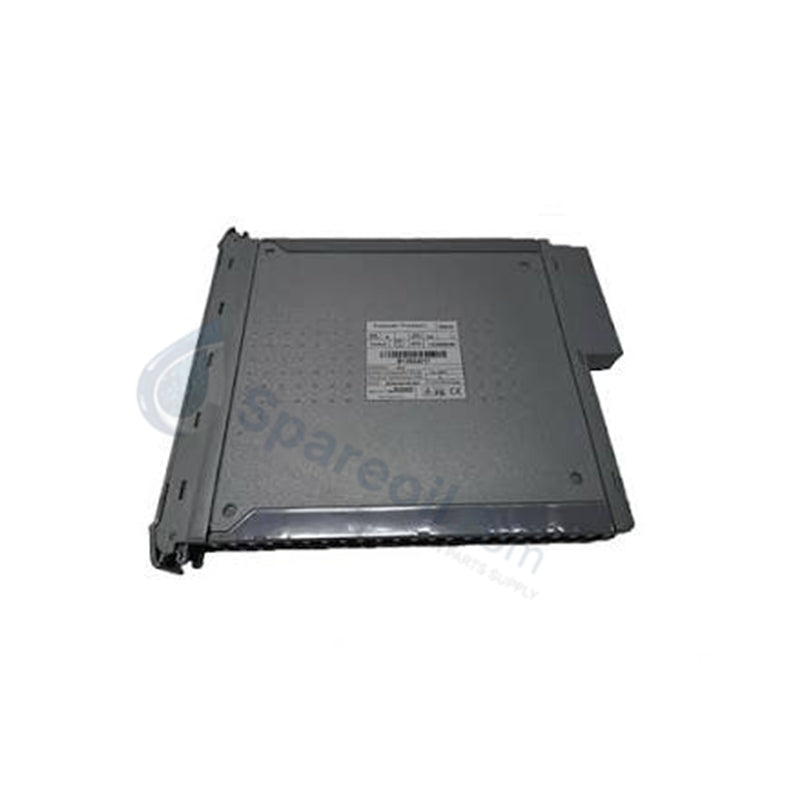

ICS Triplex T8310 Trusted Expander Processor

ICS Triplex T8310 Trusted Expander Processor

Disponibilidad: 20 Quedan en stock

ICS Triplex T8310 Expander Processor Configured for scalable I/O expansion in Trusted safety systems, the ICS Triplex T8310 (T8310 Expander...

Código: T8310

Manufacturer: ICS Triplex
Product No.: T8310
Product Type: Processor Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1260g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

ICS Triplex T8310 Expander Processor

Configured for scalable I/O expansion in Trusted safety systems, the ICS Triplex T8310 (T8310 Expander Processor) provides direct physical and electrical execution for interfacing the Expander Bus with the Expander Chassis Backplane.

Hardware Specifications

Parameter	Specification
Model	T8310
Brand	ICS Triplex
Origin	United States
Weight	1.26 kg
Dimensions	3.1 cm x 30.2 cm x 26.5 cm
Operating Temp	-40 to +70 deg C
Power Consumption	40 W
Processor Architecture	Triple Modular Redundancy (TMR)
Safety Rating	SIL 3 certified

High-Reliability Safety Control and TMR Architecture

The T8310 module employs a Hardware Implemented Fault Tolerant (HIFT) TMR 2oo3 architecture to maintain deterministic control across distributed chassis systems. By utilizing majority voting logic, the module isolates the Expander Bus from localized chassis faults, ensuring that failures within an expansion node do not propagate to the primary processor or other system segments. Galvanic isolation at 1500 VDC between channels and the chassis backplane provides protection against ground loops and electrical interference. The system performs continuous diagnostic testing and internal monitoring to facilitate fail-safe state execution, enabling rapid fault identification without triggering spurious system shutdowns.

Frequently Asked Questions

Q: Does the T8310 support hot-swapping for maintenance repair strategies?

A: Yes, the T8310 supports hot-swapping and hot-standby configurations. The module is designed to allow replacement without interrupting the system's safety-critical functions, provided the redundant expander path remains active.

Q: How does the module handle fault containment between the Expander Bus and the Chassis?

A: The T8310 acts as a subordinate node that monitors the health of both the Expander Bus and the internal IMB (Inter-Module Bus). If a hardware fault is detected, the module self-isolates from the backplane, and the HIFT architecture ensures the remaining nodes continue to process safety logic until manual or automatic repair is performed.

Field Installation Guidelines

Ensure the T8310 module is oriented correctly for the T8300 expander chassis processor slots. The module occupies two slots; verify alignment with the backplane guides before insertion.
Secure the module using the front-panel locking mechanisms to ensure high-vibration stability and electrical continuity with the chassis ground.
Connect the Unshielded Twisted Pair (UTP) cabling to the Expander Bus ports. Ensure proper termination to maintain the high-bandwidth Inter-Module Bus (IMB) signaling integrity.
Verify that the dual redundant 24 VDC power supply to the backplane is stable and within the specified 20-32 VDC range prior to module initialization.
After installation, monitor the front-panel LED indicators to verify module health, active/standby status, and network data transmission (Tx/Rx) before configuring the node via the safety controller software.
