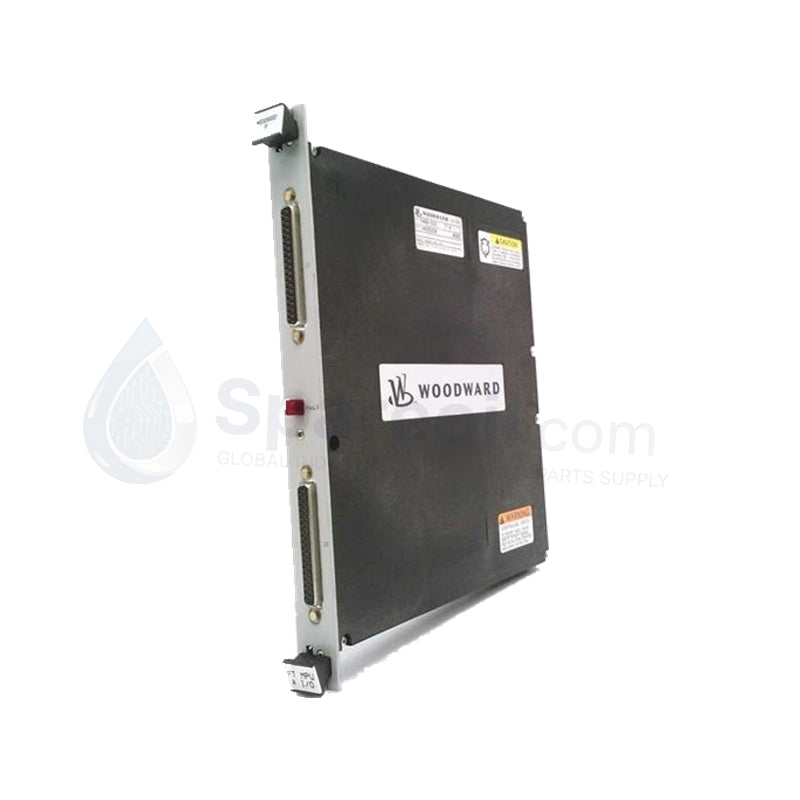

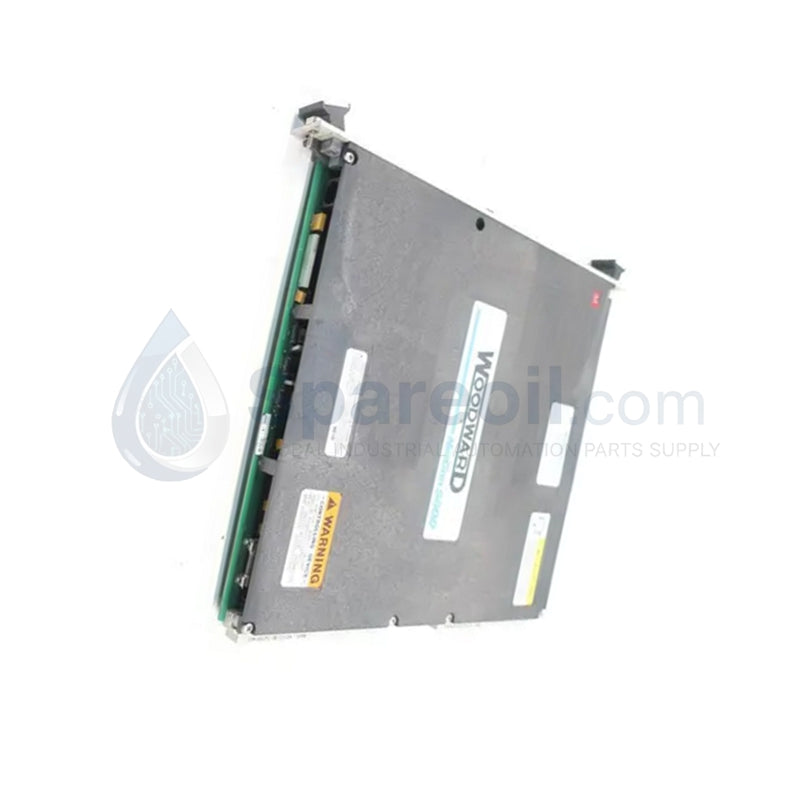

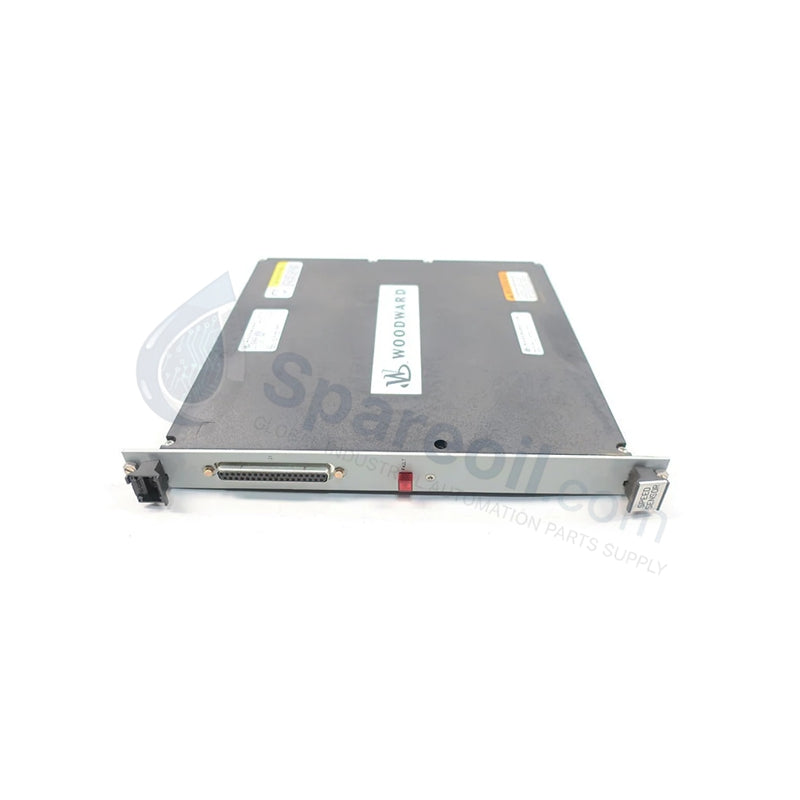

Woodward 5466-258M MicroNet I/O Module

The Woodward 5466-258M, also cataloged as the Woodward 5466-258M MicroNet I/O Module, operates as a dedicated hardware component for discrete and analog input/output processing within MicroNet platform backplanes.

Hardware Specifications

Parameter Specification
Model 5466-258M
Brand Woodward
Origin China
Weight 0.5-1 kg
Dimensions Standard MicroNet module size
Operating Temp -40 to +70 deg C
Power Consumption 18-32 VDC (Nominal 24 VDC)
Inputs Discrete inputs (dry contact / voltage sensing)
Outputs Relay outputs, analog outputs (0-20 mA / +/-10 V)
Isolation 500 VDC channel-to-channel and channel-to-ground
Storage Temp -55 to +105 deg C
Humidity 95% non-condensing at 50 deg C

Actuator Loop Feedback Response

The processing circuitry inside the module is optimized to sustain low-latency signal conversions necessary for real-time turbine governor response. By handling both discrete sensing and multi-range analog outputs (0-20 mA or +/-10 V), the device maps field feedback data directly to the central processor via the backplane bus. Independent galvanic isolation barriers rated at 500 VDC insulate each channel path, suppressing common-mode noise and ground loop disruptions to preserve the accuracy of high-speed actuator loop feedback loops during transient engine changes.

Frequently Asked Questions

Q: What are the electrical constraints regarding hot-swap maintenance for this module?

A: The module architecture supports hot-swappable replacement procedures, allowing users to extract or insert the card directly into an active MicroNet rack slot without dropping backplane power or introducing signal disruptions to adjacent operational modules.

Q: How does the hardware handle input signal variations under fluctuating field wiring conditions?

A: The input channels deploy specialized sensing circuits configurable for either dry contact monitoring or direct voltage detection. These paths are galvanically separated via a 500 VDC isolation barrier to shield internal logic from field-side voltage spikes.

Field Installation Guidelines

  • Rack Insertion and Fastening: Align the circuit board edges with the target slot guides in the MicroNet chassis. Slide the module completely forward into the backplane connectors, then hand-tighten the integrated faceplate retention screws to ensure proper grounding and mechanical lock.
  • Signal Line Shielding: All analog output and low-voltage discrete wiring must employ twisted, shielded pairs. Terminate the outer shields cleanly at the dedicated chassis earth ground point rather than at the module terminal block to maintain noise immunity.
  • Thermal Management: Maintain adequate clearances around the chassis ventilation pathways to permit unimpeded ambient airflow, keeping operational temperatures within the defined -40 to +70 deg C limits.
