AAI543-H50/K4A00 Yokogawa CENTUM VP Datasheet & Technical Manual

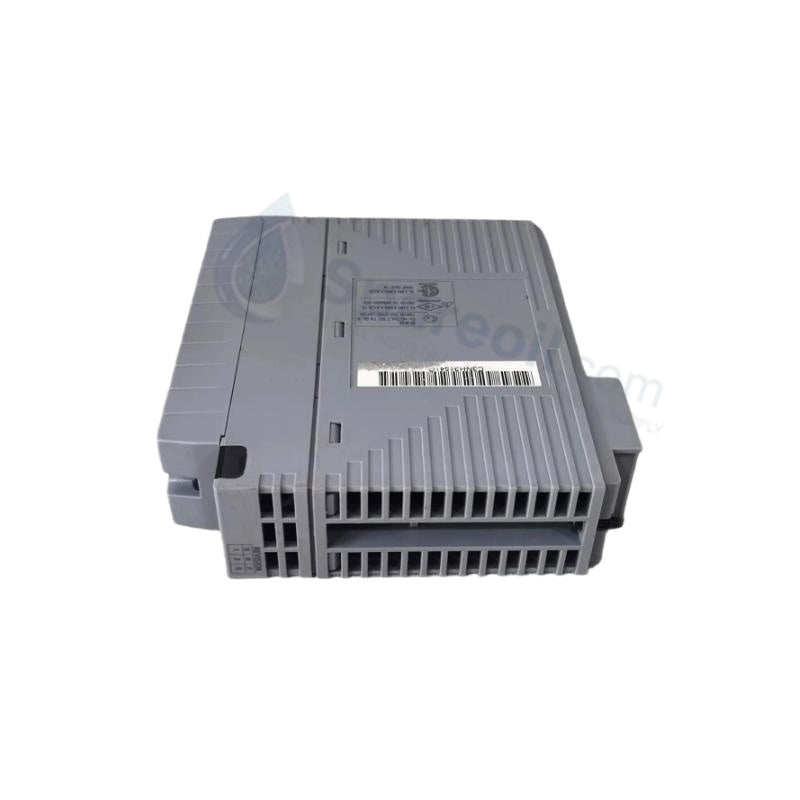

Yokogawa AAI543-H50/K4A00 CENTUM VP Analog Output Module AAI543

Yokogawa AAI543-H50/K4A00 CENTUM VP Analog Output Module AAI543

Availability: 20 left in stock

Yokogawa AAI543-H50/K4A00 Analog Output Module The Yokogawa AAI543-H50/K4A00, also cataloged as the AAI543 Analog Output Module, operates as a dedicated...

SKU: AAI543-H50/K4A00

Manufacturer: Yokogawa
Product No.: AAI543-H50/K4A00
Product Type: Analog Output Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AAI543-H50/K4A00 Analog Output Module

The Yokogawa AAI543-H50/K4A00, also cataloged as the AAI543 Analog Output Module, operates as a dedicated hardware component for 4-20 mA current loop driving and HART digital signal transmission within CENTUM VP control system architectures. Configured with 16 isolated output channels, the module converts internal backplane instructions into precise analog control currents for field actuators and positioning valves. The unit includes the factory-installed ATK4A-00 KS cable interface adapter, facilitating direct connection to AEA4D terminal boards via standard KS cable assemblies.

Suffix Breakdown & Model Matrix

Suffix / Option Code	Specification	Functional Description
AAI543	Base Model	16-channel isolated analog output module
-H	HART Communication	Integrated HART digital communication protocol support
5	Dual Redundancy Type	Standard switch-over response in redundant configuration, non-explosionproof
0	Basic Specifications	Standard circuit housing layout
/K4A00	Interface Adapter Option	Includes ATK4A-00 KS cable adapter for direct connection to AEA4D terminal board

Hardware Specifications

Parameter	Specification
Model	AAI543-H50/K4A00
Brand	Yokogawa
Origin	Japan
Weight	0.4 kg
Dimensions	107.5 mm x 32.8 mm x 130 mm
Operating Temp	-20 to +60 deg C
Power Consumption	Max 230 mA at 5 V DC, Max 540 mA at 24 V DC
Output Signal	4 to 20 mA DC (16 channels, isolated)
Allowable Load Resistance	0 to 750 ohm
Accuracy	+/-48 uA
Temperature Drift	+/-16 uA per 10 deg C
Data Update Period	10 ms
Open-Circuit Detection	Less than 0.65 mA
Withstanding Voltage	1500 V AC for 1 minute between output channels and system backplane

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation Integration

The AAI543-H50/K4A00 output module maintains signal stability across process control circuits by modulating digital HART carrier frequencies over standard 4-20 mA analog output loops. The internal circuit architecture provides continuous galvanic isolation rated at 1500 V AC for 1 minute between field-side output loops and internal system backplane logic. This isolation barrier prevents ground potential variations from disturbing analog valve positions or corrupting HART telemetry. When configured in redundant pairs, the module executes a seamless bumpments switch-over protocol within 10 ms, maintaining constant current drive without dropping active HART communication sessions.

Frequently Asked Questions

Q: What function does the /K4A00 option code serve on this module assembly?

A: The /K4A00 option designates that the module includes the ATK4A-00 KS cable interface adapter attached directly to the front interface. This allows signal routing to AEA4D terminal boards via pre-fabricated KS cable harnesses rather than point-to-point field wiring.

Q: How does the module handle field-side wiring open circuits during operation?

A: The onboard diagnostic logic detects open-circuit conditions when loop current drops below 0.65 mA. Upon detection, the module updates system status flags across the CENTUM VP backplane bus to signal field-wire fault conditions.

Q: What are the primary backplane power requirements for operating the module?

A: The module draws power directly from the I/O node backplane, requiring a maximum of 230 mA at 5 V DC logic supply and 540 mA at 24 V DC field loop supply under full 16-channel load conditions.

Field Installation Guidelines

Adapter Latch Verification: Ensure the ATK4A-00 KS cable adapter latches securely onto the module interface connector before inserting the module assembly into the I/O rack backplane.
KS Cable Shield Grounding: Ground all KS cable shield drain wires at the functional earth (FE) bus bar located inside the control cabinet to prevent high-frequency electromagnetic noise from coupling onto output channels.
Load Loop Resistance Bounds: Verify that the total loop resistance for each channel, including wire resistance and field device impedance, does not exceed 750 ohm to prevent current drive saturation.
Redundant Pair Slot Alignment: Install dual-redundant AAI543 modules into adjacent, designated redundant slot pairs on the FIO node baseplate to ensure automatic hardware switch-over execution.
