8235-650 Woodward PISC II Datasheet & Technical Manual

Availability: 10 left in stock

Woodward 8235-650 ProAct PISC II Configured for butterfly valve actuation in gaseous and diesel-fueled engine applications, the Woodward 8235-650 (8235-650...

SKU: 8235-650

Manufacturer: Woodward
Product No.: 8235-650
Product Type: Actuator Control Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

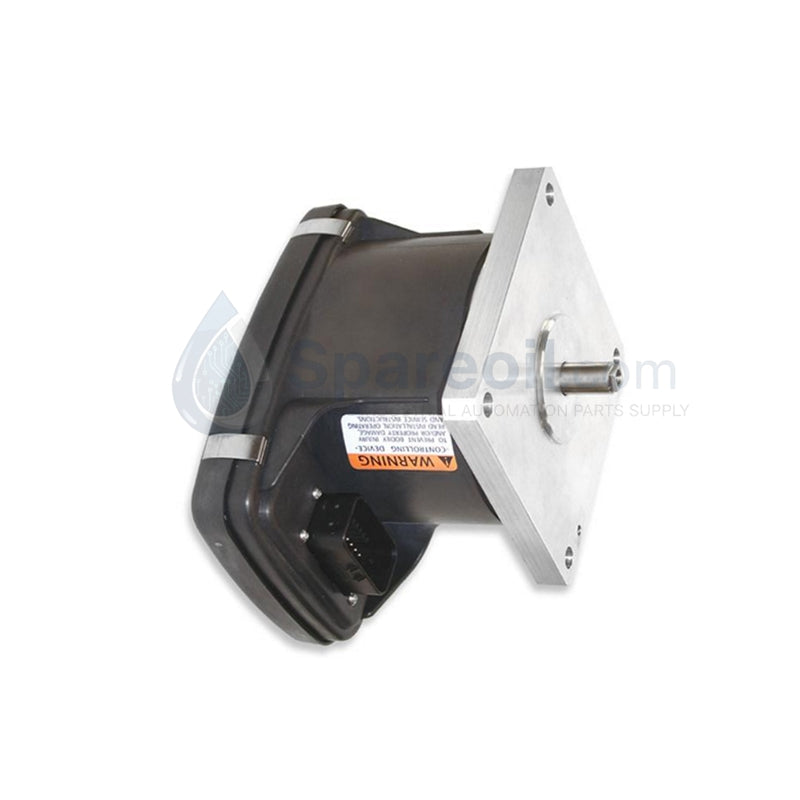

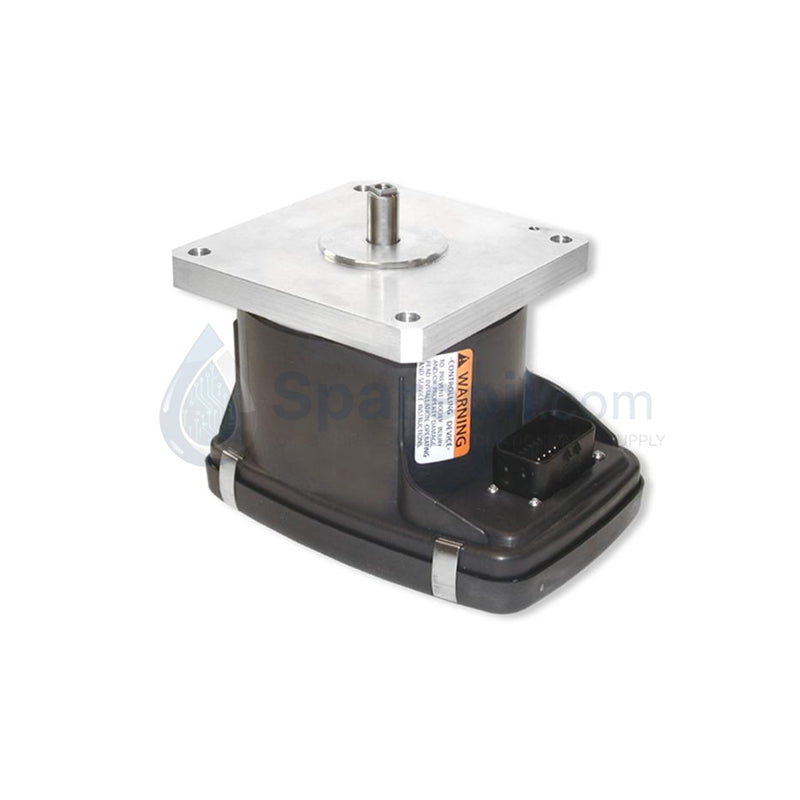

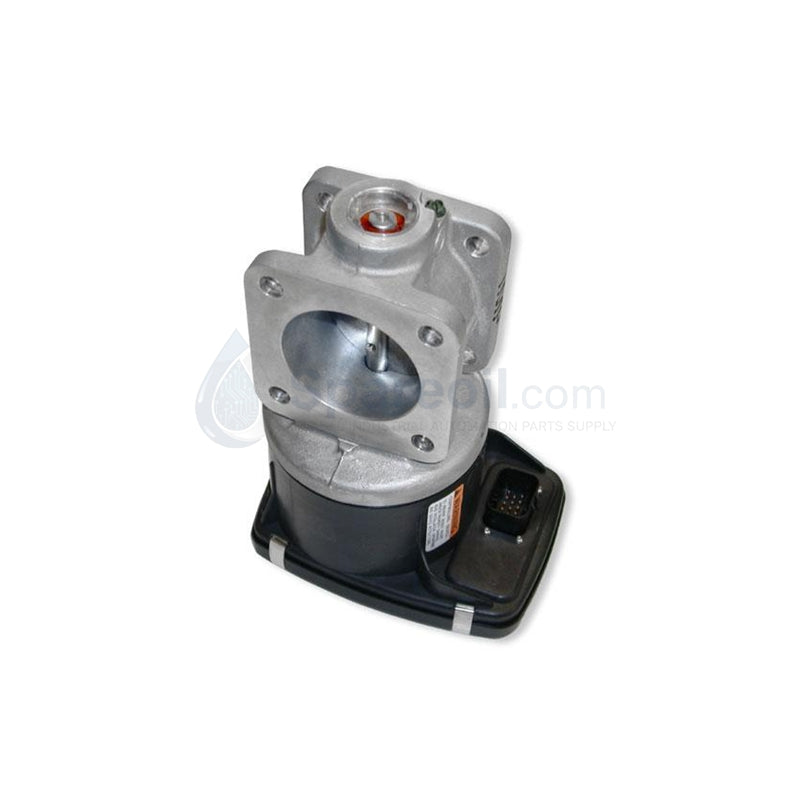

Woodward 8235-650 ProAct PISC II

Configured for butterfly valve actuation in gaseous and diesel-fueled engine applications, the Woodward 8235-650 (8235-650 ProAct Integrated Speed Control Module) provides direct physical/electrical execution. Operating as a hardware component within the PISC II and MicroNet Digital Control platforms, it regulates air or fuel-air mixture flow by adjusting valve position to maximize thermal efficiency and minimize fluid leakage.

Hardware Specifications

Parameter	Specification
Model	8235-650
Brand	Woodward
Origin	USA
Actuator Type	PISC II (ProAct Integrated Speed Control)
Control Function	Butterfly valve actuation
Nominal Piping Size	DN 120
Center of Gravity Offset	5.4 inches from valve bore centerline
Flange O-Ring Spec	Parker 2-255
Input Voltage (Normal)	18-32 VDC (Nominal 24 VDC)
Input Voltage (Transient)	8-40 VDC (up to 1 minute maximum)
Max Working Pressure	5.2 bar absolute
Flow Medium Max Temp	85 deg C
Operating Temperature	-20 to +70 deg C
Power Consumption	Not specified
Dimensions	Standard MicroNet chassis module dimensions
Weight	1.2 kg (actuator core) / 6-8 kg (chassis system integrated)

Actuator Loop Feedback Response and Dynamics

The Woodward 8235-650 utilizes a dedicated V/Hz and field-oriented vector control algorithm optimized for high-speed butterfly valve positioning. The closed-loop control system dynamically compensates for high-velocity gaseous media flow, matching the actuator loop feedback response to the sudden load changes of heavy reciprocating engines or turbines. This control loop architecture minimizes harmonic distortion suppression liabilities across the power bus, stabilizing the inner current loop under transient voltage fluctuations from 8 to 40 VDC. Thermal heat sink dissipation profiles are calculated relative to the DN 120 piping boundary, isolating the sensitive digital processing electronics from fluid medium conduction up to 85 deg C.

Frequently Asked Questions

Q: What is the maximum duration the module can withstand transient voltage drops or spikes outside the normal 18-32 VDC range?

A: The module accommodates transient inputs spanning 8-40 VDC for a duration not exceeding 1 minute. Prolonged operation outside the nominal 18-32 VDC envelope will trigger under-voltage or over-voltage protection circuits, disabling the actuator drive signals.

Q: How does the mechanical offset affect installation and structural support requirements?

A: The module exhibits a center of gravity offset of 5.4 inches measured from the valve bore centerline. Because of this asymmetric mass distribution, the module must be secured using both the standard flange mounts and the specified structural support bracket to counter vibrational shear forces during engine operation.

Q: Is the 8235-650 module hot-swappable during live turbine or engine operation?

A: When integrated within a redundant MicroNet chassis architecture, the digital control module supports hot-swap replacement. However, because the module directly controls physical butterfly valves, the specific fuel or air loop must be isolated or bypassed before hot-swapping to prevent unstable engine speed behavior or overspeed trips during the module changeout.

Field Installation Guidelines

Flange and O-Ring Alignment: Install the Parker 2-255 O-ring securely into the machined flange grooves before mating the module to the DN 120 piping. Ensure the surfaces are free of debris to prevent pressure leaks up to the 5.2 bar absolute working limit.
Vibration Prevention: Secure the primary flange bolts according to standard torque specifications, and anchor the secondary support bracket to minimize mechanical resonance caused by the 5.4-inch center of gravity offset.
Electrical Shielding: Terminate all analog (4-20 mA, 10 V) and speed pickup wiring using twisted-pair shielded cables. Ground the cable shields at the chassis end only to prevent ground loops from corrupting the actuator position feedback loop.
Thermal Clearance: Maintain adequate physical clearance between the module enclosure and external high-temperature piping. The flow medium temperature must not exceed 85 deg C at the valve body to prevent degradation of the internal electronics.
