Description

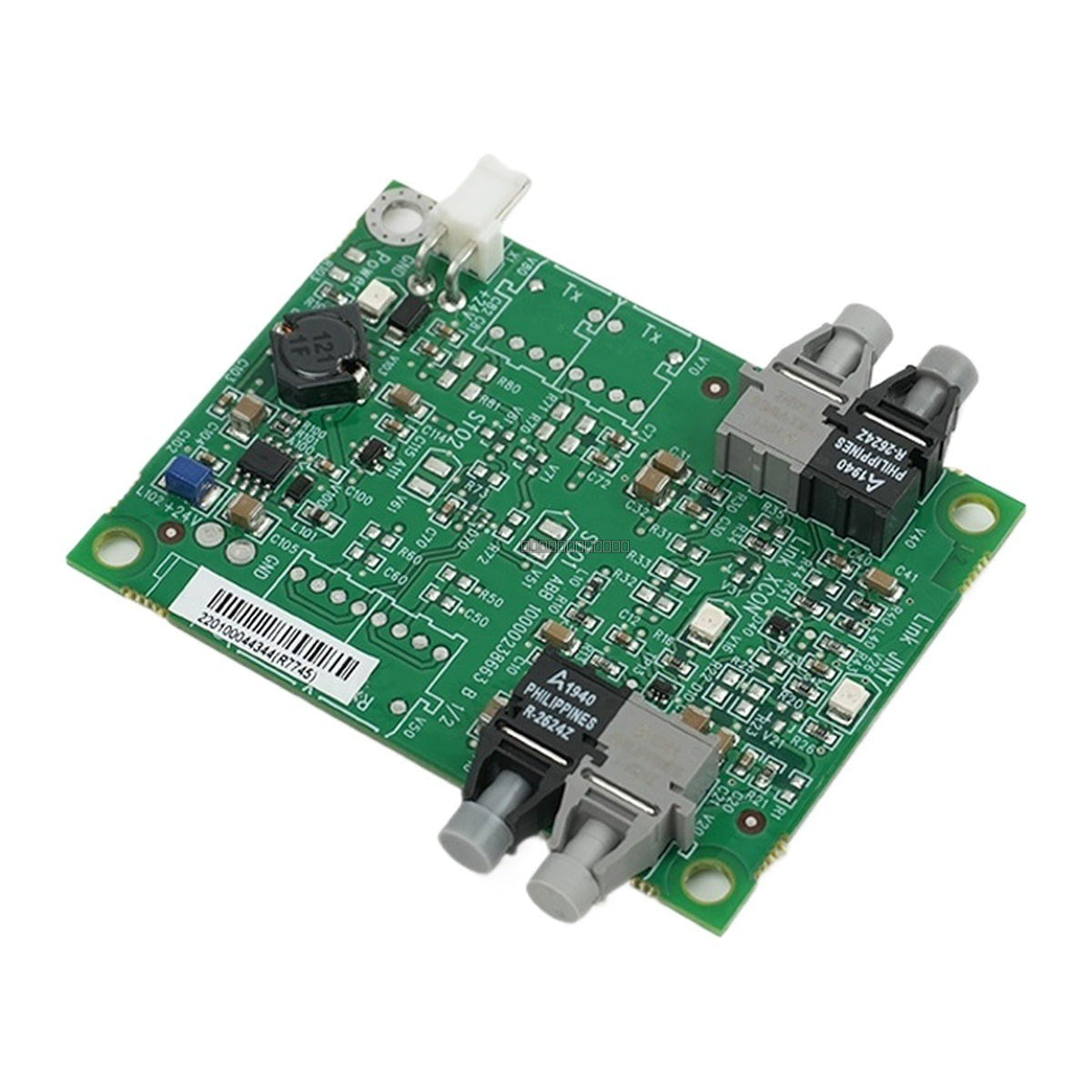

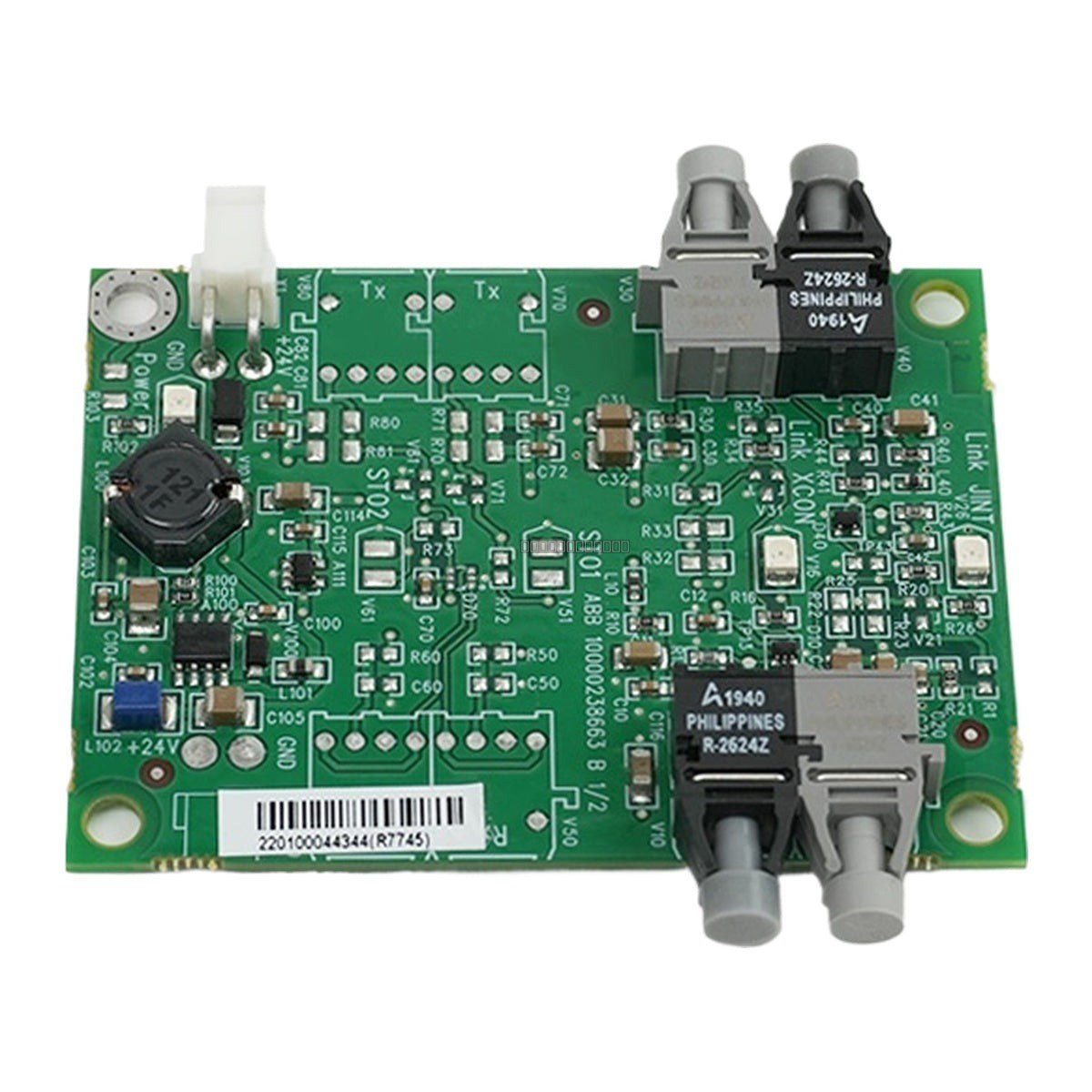

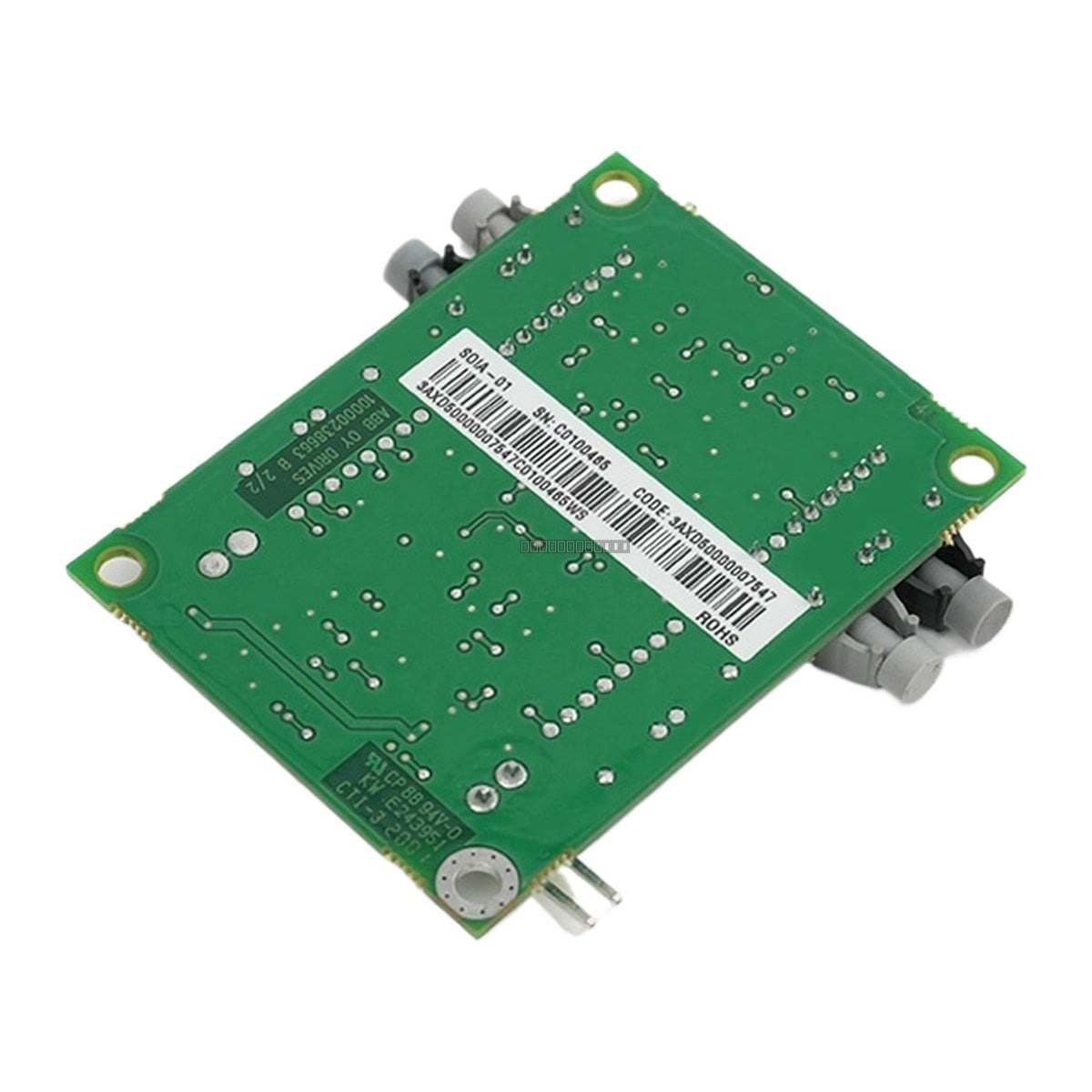

The ABB SOIA-01 (Order Code: 3AXD50000007547) is a specialized Optical Interface Adapter Board engineered for the ABB ACS880 series industrial drive family. This module functions as a critical communication interface, converting electrical serial signals into optical signals. By utilizing fiber optic transmission, it ensures high-speed, noise-immune data communication between the drive system and external control devices, effectively isolating the drive from electromagnetic interference (EMI) common in industrial environments.
Features
- High-speed fiber optic communication interface.
- Designed specifically for integration with ABB ACS880 drive systems.
- Provides robust signal conversion for noise-immune data transmission.
- Supports reliable connectivity in high-EMI industrial settings.
Applications
- Oil and Gas: Used in drilling rigs, compressor stations, and pump sets.
- Mining and Cement: Ideal for conveyor systems, crushers, and ball mills where electrical noise is prevalent.
- Pulp and Paper: Integrated into complex paper machine drive systems.
- Electricity and Energy: Supports power plant feedwater pumps, induced draft fans, and excitation systems.
Technical Specifications
| Product Model | SOIA-01 |
| Order Code | 3AXD50000007547 |
| Manufacturer | ABB |
| Supply Voltage | 24V DC |
| Power Consumption | 5-15W |
| Isolation | 2500-4000V optical isolation |
| Operating Temperature | 0 degC to +60 degC |
| Storage Temperature | -40 degC to +85 degC |
| Humidity | 5-95% RH non-condensing |
| Tariff Code | 8537101190 |
Installation Guidelines
- Power Down: Always ensure the drive system is fully powered down and capacitors are discharged before installing or removing the SOIA-01 module.
- ESD Protection: Use standard electrostatic discharge (ESD) precautions, such as wearing a grounded wrist strap, when handling the adapter board.
- Seating: Ensure the module is securely seated in the designated drive slot. Verify that all fiber optic connectors are clean and properly aligned before insertion.
- Cable Routing: When using fiber optic cables, avoid sharp bends that could damage the internal glass or plastic fibers. Maintain the manufacturer's recommended minimum bend radius.
- Grounding: Ensure the drive chassis is properly grounded according to local electrical codes to maintain the effectiveness of the optical isolation.
FAQs
What is the primary function of the SOIA-01?
The SOIA-01 acts as an optical interface adapter that converts electrical serial data into optical signals, allowing for high-speed, interference-free communication between an ACS880 drive and external controllers.
Is this module compatible with other ABB drive series?
The SOIA-01 is specifically designed for the ACS880 series. Please consult your drive's hardware manual to confirm compatibility before installation.
What are the environmental requirements for this board?
The module is rated for operation between 0 degC and +60 degC with a non-condensing humidity range of 5-95%.
