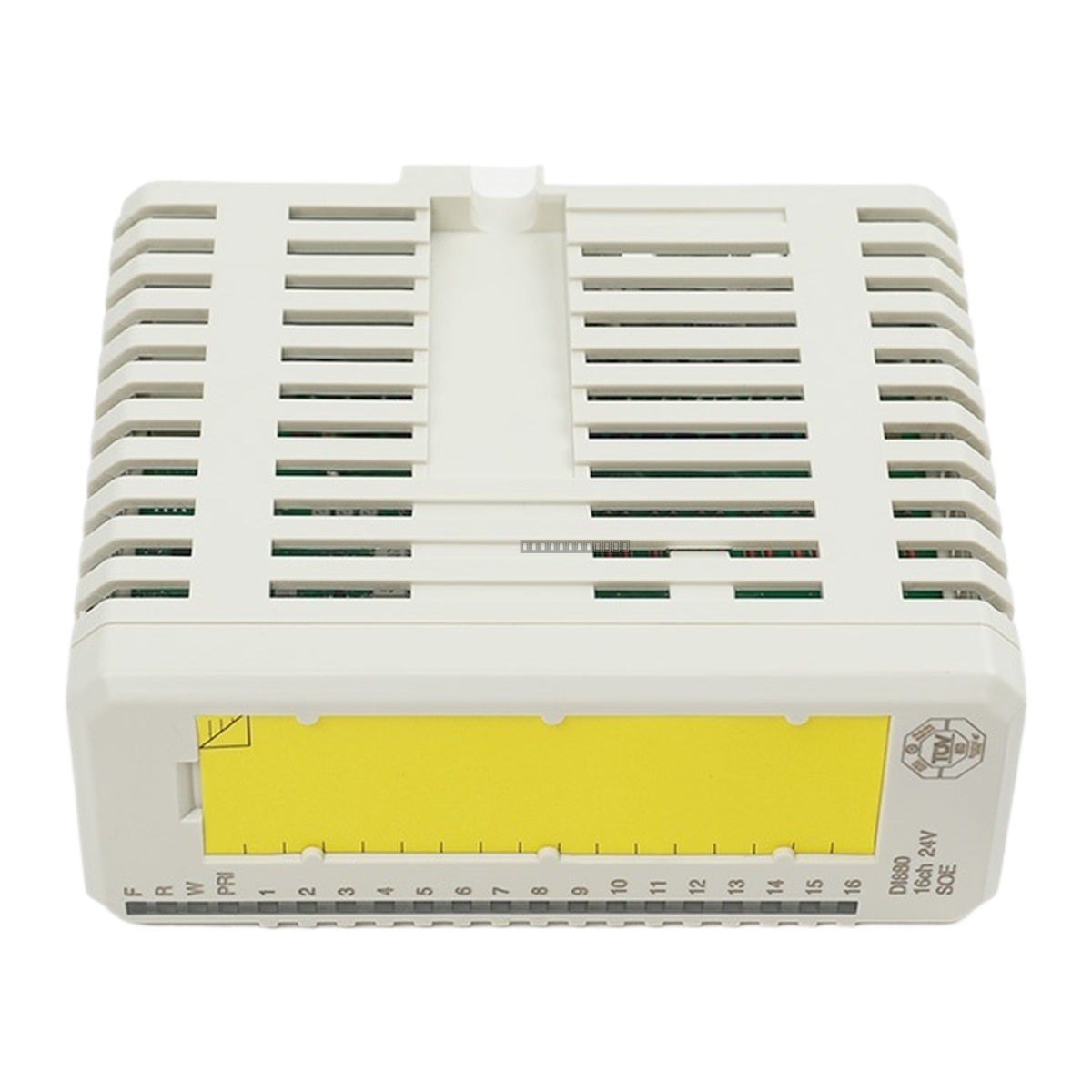

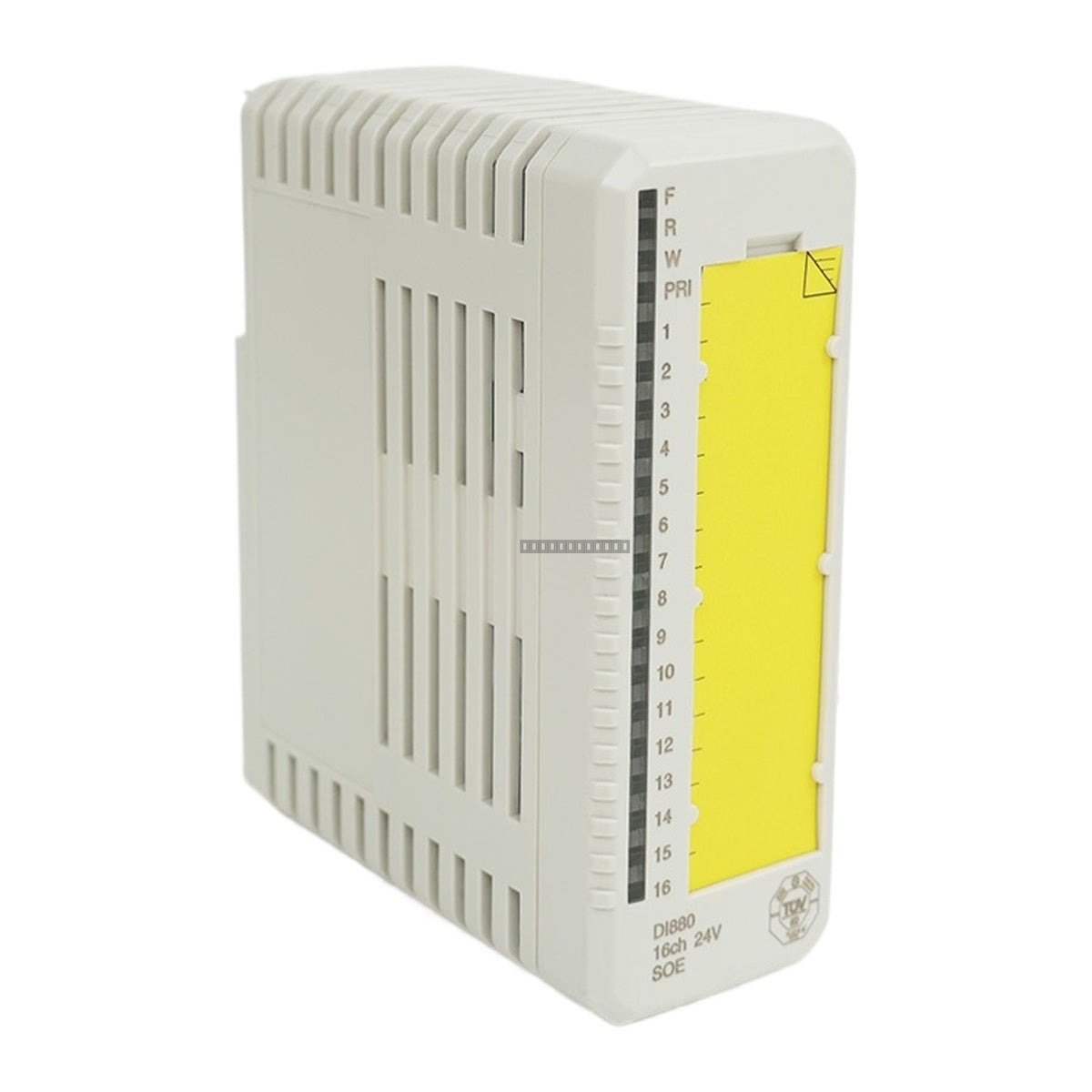

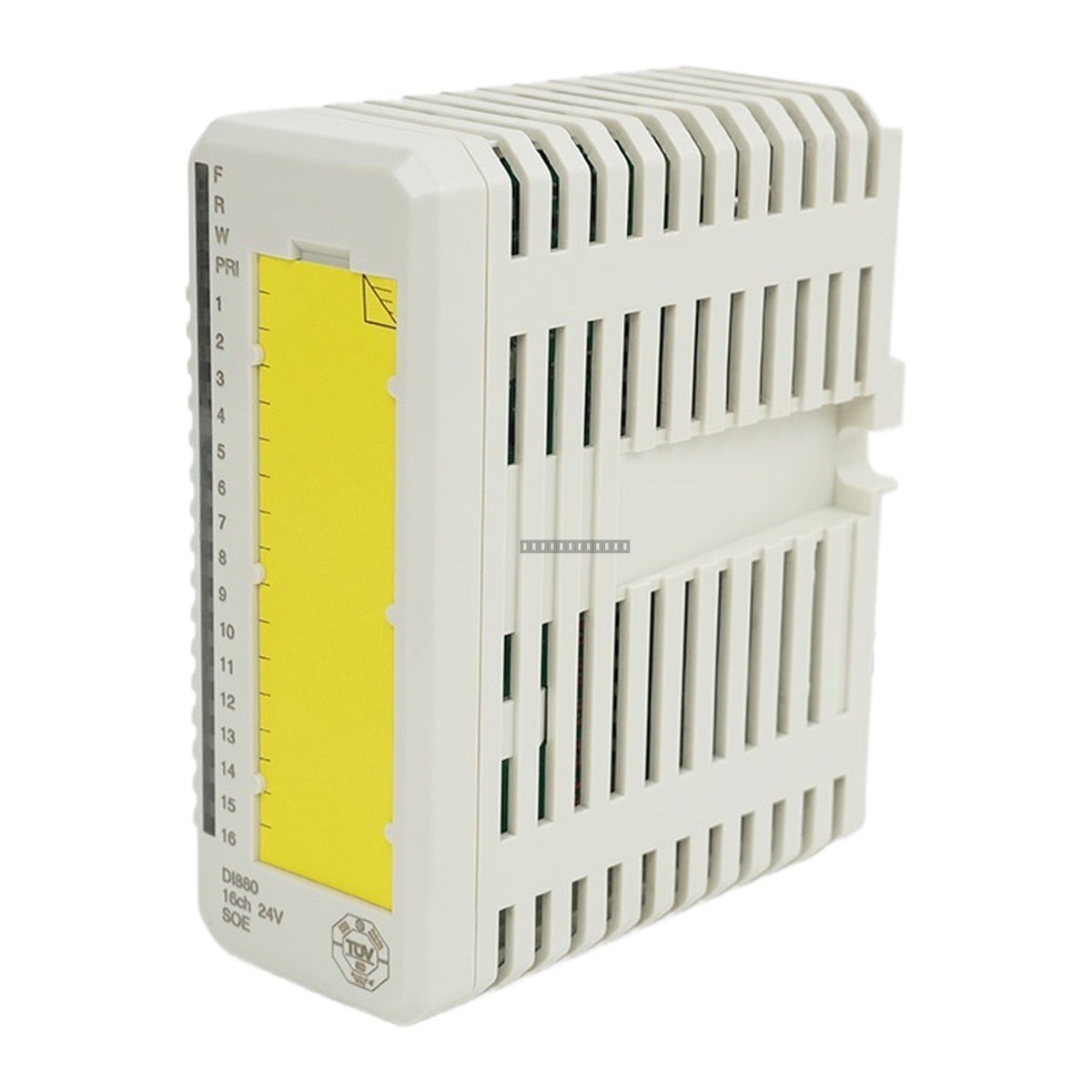

ABB DI880 3BSE028586R1 Digital Input Module

Availability: 0 left in stock

DescriptionThe ABB DI880 (3BSE028586R1) is a 16-channel, 24 V d.c. digital input module designed for the S800 I/O system. It...

SKU: DI880 3BSE028586R1

Manufacturer: ABB
Product No.: DI880 3BSE028586R1
Product Type: Digital Input Module
Product Origin: Sweden
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The ABB DI880 (3BSE028586R1) is a 16-channel, 24 V d.c. digital input module designed for the S800 I/O system. It supports both single and redundant configurations, making it suitable for high-availability industrial control applications. Each input channel is equipped with current limiting, EMC protection, status indication LEDs, and optical isolation to ensure robust signal processing. The module also features advanced Sequence of Events (SOE) recording capabilities with 1 ms resolution, allowing for precise diagnostics and event tracking in critical systems.

Features

16 channels for 24 V d.c. inputs with current sinking.
Supports single or redundant system configurations.
1 group of 16 channels isolated from ground.
Integrated Sequence of Events (SOE) function with 1 ms resolution.
Current-limited transducer power supply provided per input channel.
Advanced on-board diagnostics and input status LEDs.
Supports hot-swapping for maintenance without system downtime.

Applications

Safety Instrumented Systems (SIS): Primary input for ESD and F&G applications.
Oil & Gas: Monitoring of critical valves, pressure switches, and level sensors.
Power Generation: Turbine control and distribution protection.
Chemical & Petrochemical: Management of high-risk reactor inputs.
Marine & Offshore: Certified for harsh maritime environments.

Technical Specifications

Product Model	DI880 3BSE028586R1
Number of Channels	16
Signal Specification	24 V d.c.
Input Voltage Range	18 to 30 V d.c.
Input Impedance	3.1 kΩ
Filter Times (Selectable)	0 to 127 ms
SOE Resolution	1 ms
Power Dissipation	2.4 W
Rated Insulation Voltage	50 V

Installation Guidelines

The DI880 must be installed with a compatible Module Termination Unit (MTU) such as the TU810, TU842, or TU843.
Mounting: Designed for horizontal or vertical DIN-rail installation. Ensure the locking mechanism is fully engaged for mechanical stability and proper electrical grounding.
Mechanical Keying: The module utilizes a keying code of FF to prevent incorrect module insertion into the MTU.
Handling: Use standard ESD precautions when handling the module.
Hot Swapping: The module supports hot-swapping; however, always refer to the specific S800 I/O system manual for safety procedures before removal or insertion under power.

Compliance and Certifications

The DI880 complies with EN50178, EN61131-2, and UL508 industrial standards. It is certified for use in SIL3 high-integrity applications.

FAQs

Does the DI880 3BSE028586R1 support event logging?

Yes, the DI880 features Sequence of Events (SOE) functionality, collecting logical events with a resolution of 1 millisecond and a queue capacity of up to 512 x 16 events.

What is the voltage hold-up time?

In the event of a mains blackout, the secondary output of the DI880 has a voltage hold-up time of approximately 46–47 ms.

Is the module compatible with redundant systems?

Yes, the DI880 is designed to support both single and redundant configurations to meet high-availability requirements.
