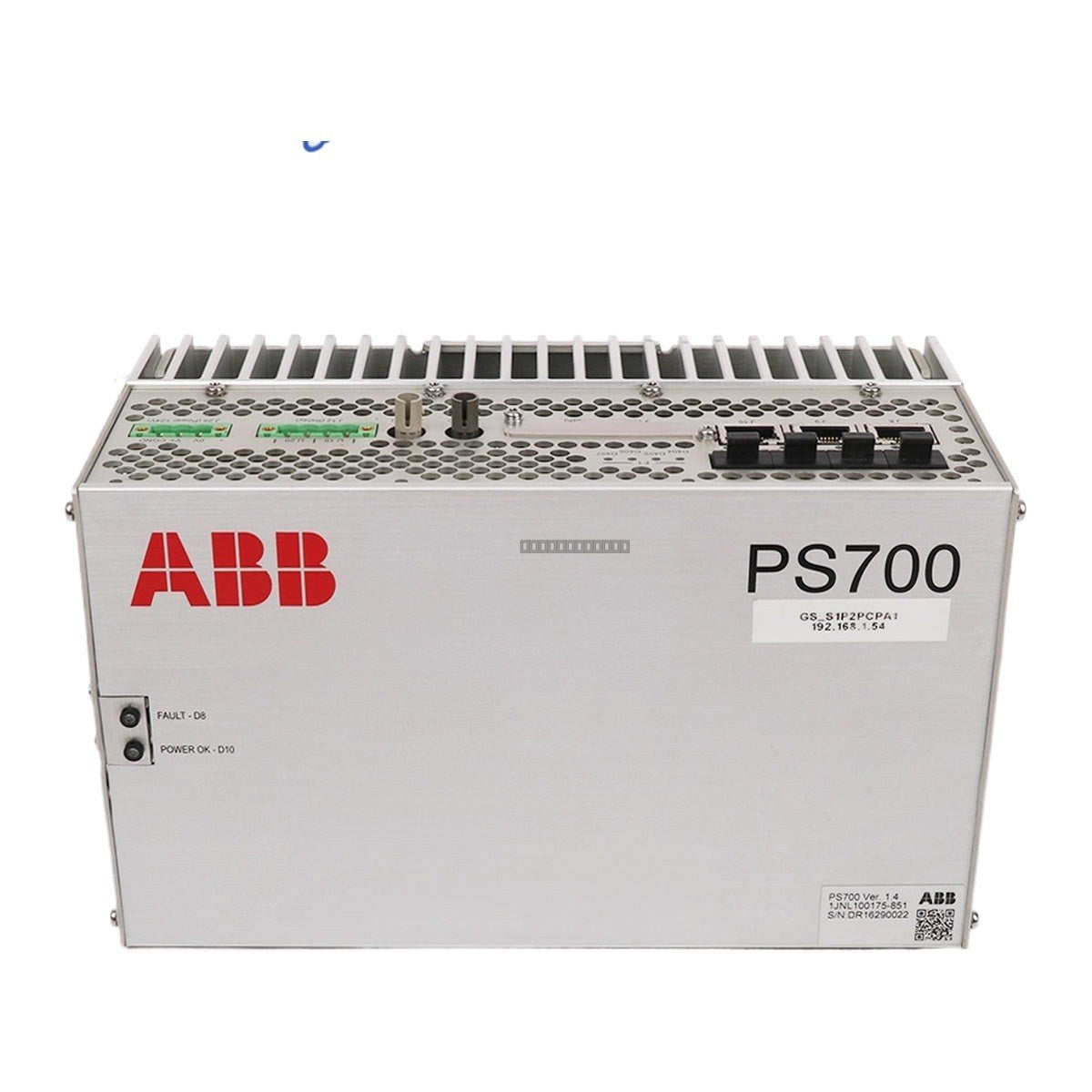

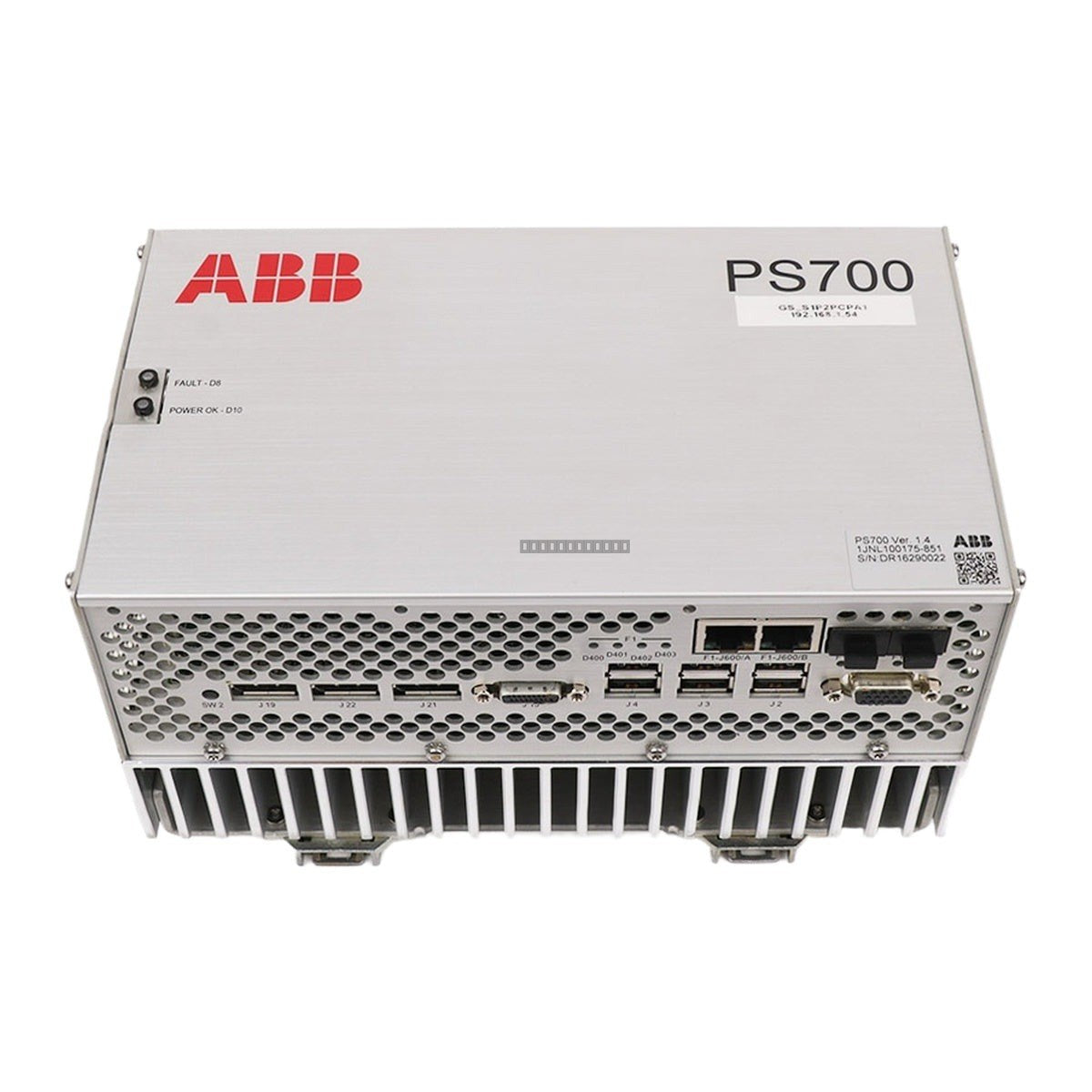

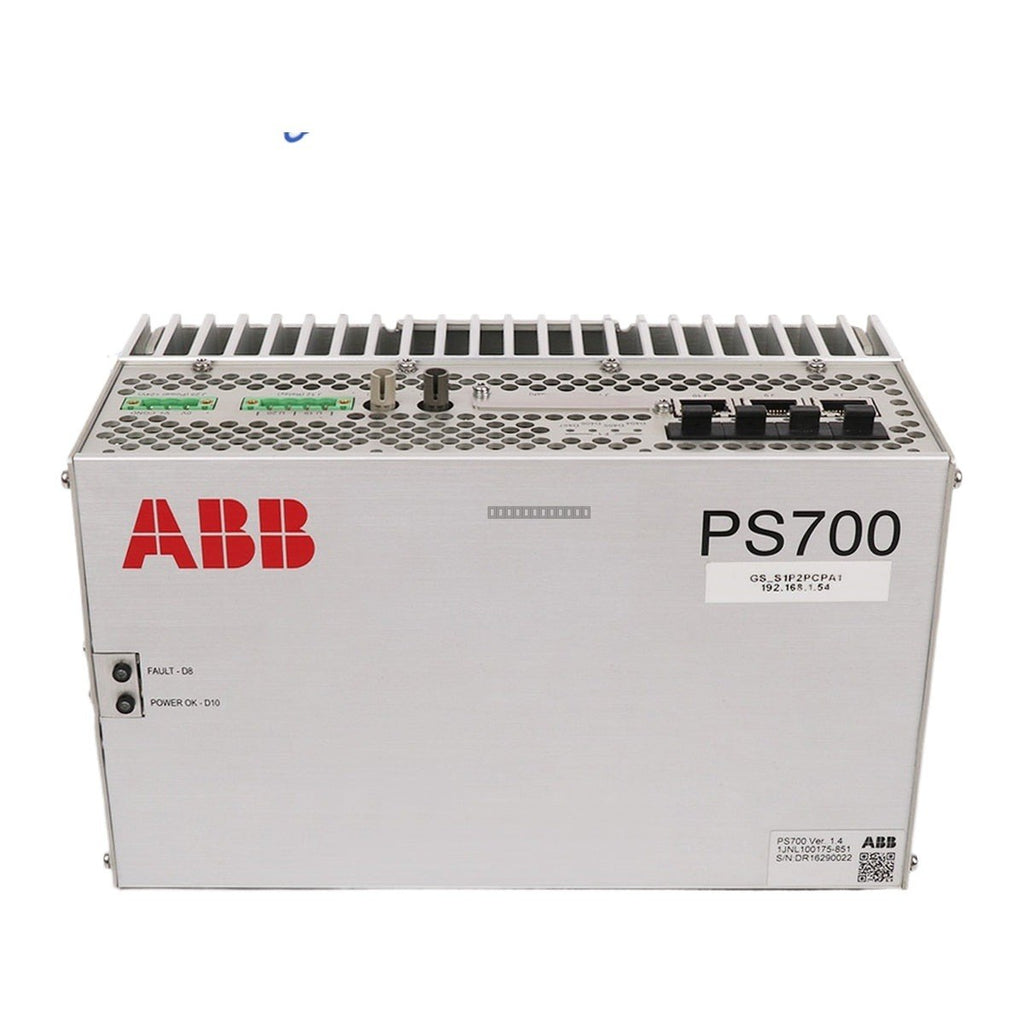

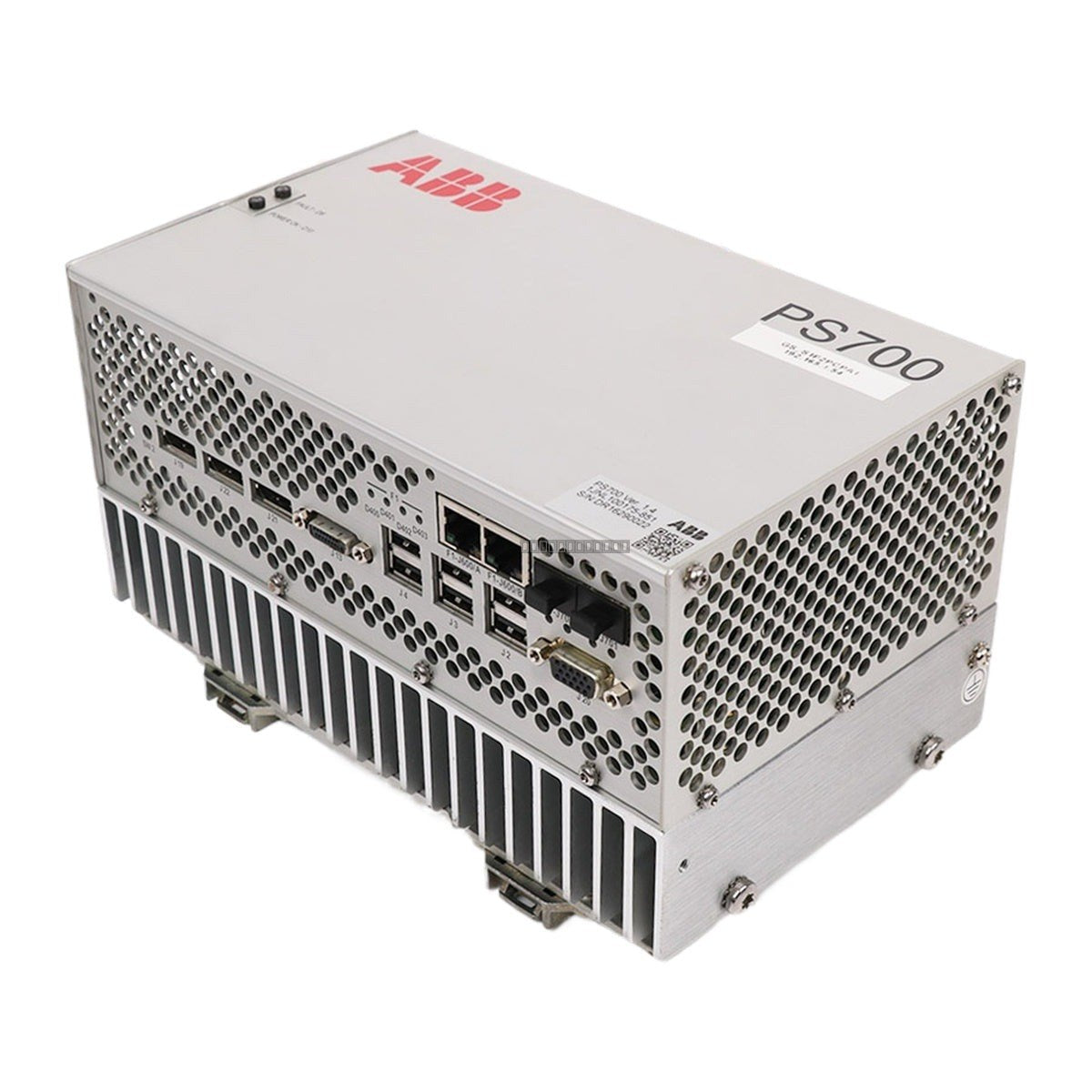

The ABB PS700 1JNL100175-851 is a high-performance Mach 3 Distributed I/O unit designed for demanding industrial automation environments. This module provides a robust interface for both digital and analog signal processing, ensuring reliable data acquisition and control within distributed architectures.
Features
- Integrated support for PROFINET IO and Modbus TCP protocols.
- High-speed data communication at 100Mbps (full duplex).
- Synchronized cycle times of 1ms or less with minimal jitter.
- High-resolution 16-bit analog signal processing.
- Galvanic isolation rated at 1500V AC for enhanced system protection.
Technical Specifications
| Product Model | PS700 1JNL100175-851 |
| Input Voltage | 24V DC (19.2-30V) |
| Power Consumption | 12W (typical), 18W (max) |
| Digital Channels | 32 |
| Analog Channels | 8 (16-bit resolution) |
| Operating Temperature | -25 degC to +60 degC |
| Storage Temperature | -40 degC to +85 degC |
| Humidity | 5-95% RH (non-condensing) |
| Vibration Resistance | 5g at 10-150Hz |
Installation Guidelines
- Ensure the module is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures within the specified range.
- Always disconnect power before installing or removing the module from the backplane to prevent electrical damage.
- Use shielded cabling for all I/O connections to minimize electromagnetic interference (EMI) in high-noise industrial areas.
- Verify that the 24V DC power supply is stable and within the 19.2-30V range before energizing the unit.
- Ensure proper grounding of the chassis to the system earth to maintain signal integrity and safety.
FAQ
What communication protocols are supported by this unit?
The PS700 1JNL100175-851 supports PROFINET IO and Modbus TCP protocols for seamless integration into standard industrial networks.
What is the primary function of this module?
This is a Mach 3 Distributed I/O unit, which serves as a remote interface to collect digital and analog signals and communicate them to a central controller over an Ethernet-based network.
