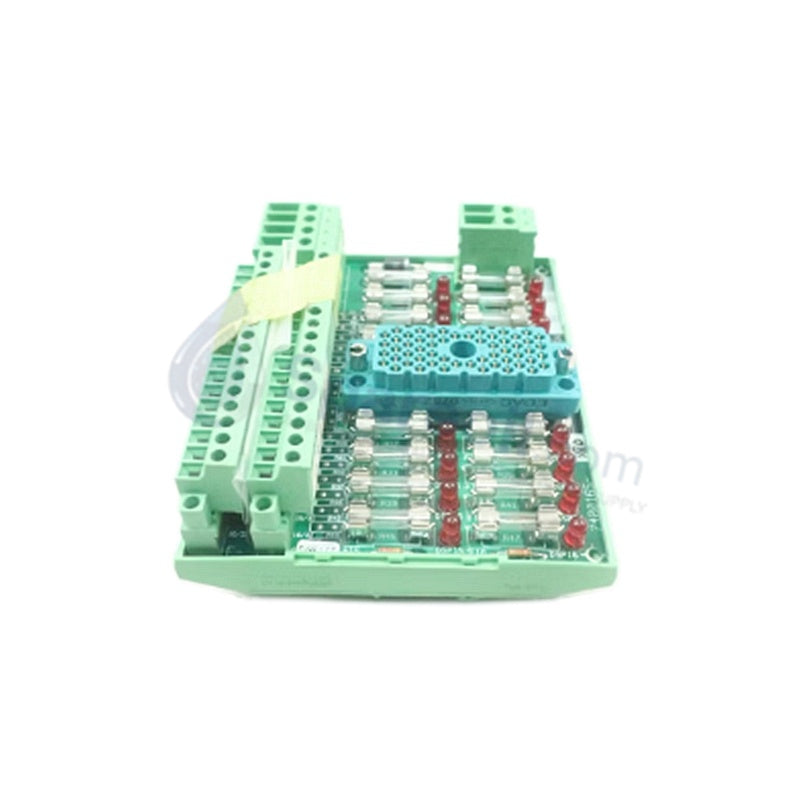

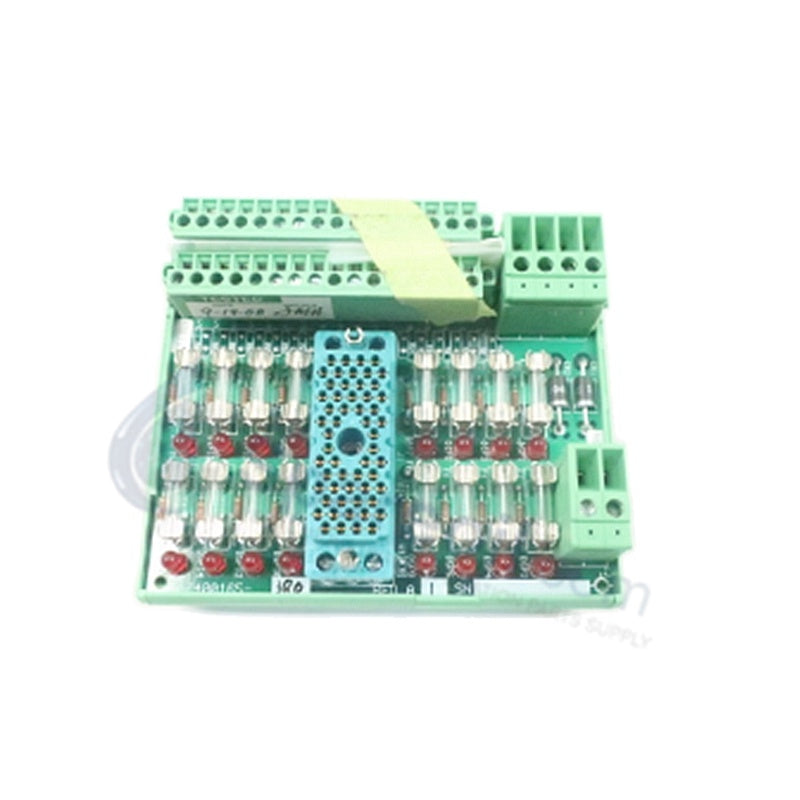

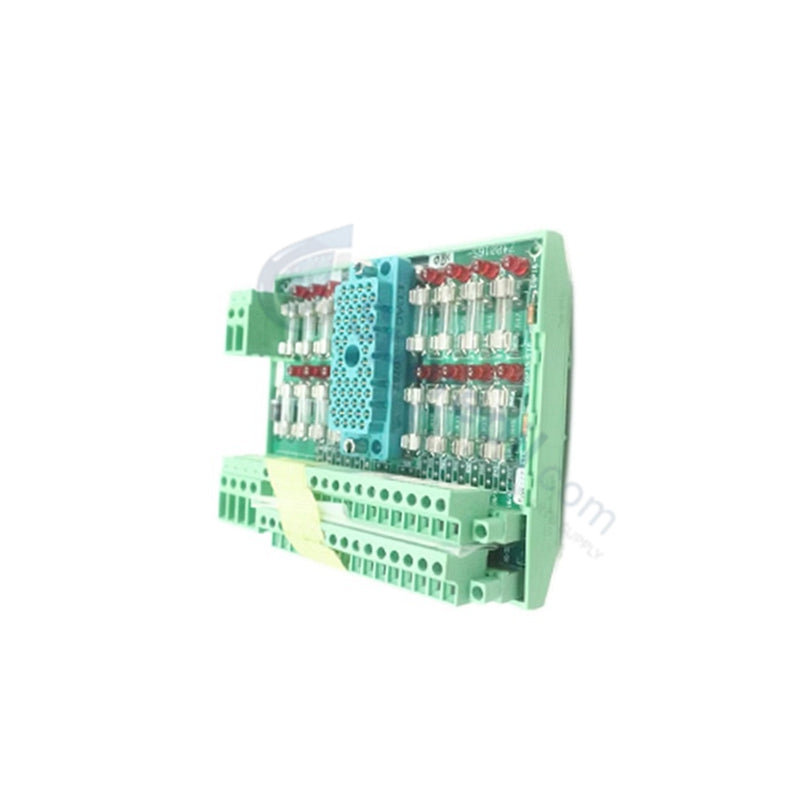

7400165-380 TRICONEX Terminal Board Rev A

7400165-380 TRICONEX 3000510-380 Terminal Board Safety Module

7400165-380 TRICONEX 3000510-380 Terminal Board Safety Module

التوفر: 20 متوفر في المخزون

TRICONEX 7400165-380 Terminal Board Rev A (3000510-380) The TRICONEX 7400165-380, also cataloged as the 3000510-380 Terminal Board Rev A, operates...

رمز المنتج: 7400165-380

Manufacturer: ICS Triplex
Product No.: 7400165-380
Product Type: Terminal Boards
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

TRICONEX 7400165-380 Terminal Board Rev A (3000510-380)

The TRICONEX 7400165-380, also cataloged as the 3000510-380 Terminal Board Rev A, operates as a dedicated hardware component for field signal termination and wiring interface routing within Triconex safety instrumented systems.

Suffix Breakdown & Model Matrix

7400165-380: Primary assembly part number specifying the physical terminal board panel.
3000510-380: Base schematic/PCB reference designator associated with the physical layout revision.
REV A: Hardware engineering revision level indicating initial trace layout and component specifications.

Hardware Specifications

Parameter	Specification
Model	7400165-380 / 3000510-380
Brand	TRICONEX
Origin	United States
Weight	0.87 lbs (0.40 kg)
Dimensions	Standard Triconex panel mounting footprint
Operating Temp	-20 to +60 deg C
Power Consumption	Passive field termination (system powered)
Board Revision	Rev A
Channel Capacity	Multi-point high-density termination points
Signal Compatibility	Discrete and analog I/O signal conditioning

High-Reliability Safety Control Integration

Designed for integration into triple modular redundancy (TMR) 2oo3 architectures, this termination panel provides galvanic isolation paths and deterministic signal routing between field field instruments and main processor I/O modules. The physical hardware execution ensures fail-safe state execution by maintaining strict channel-to-channel isolation and preventing single-point earth fault propagation across critical control loops. Galvanic separation across termination terminals guarantees noise suppression in safety integrity level 3 (SIL3) loop deployments.

Frequently Asked Questions

Q: Does replacing the terminal board require shutting down the active system main processor?

A: Field signal wiring connects directly to the terminal panel. While system main processors feature hot-swap capability, swapping physical terminal wiring assemblies requires verifying field loop isolation to prevent unexpected trip signals or open-circuit conditions.

Q: How does the revision level affect physical drop-in compatibility?

A: Revision A establishes the core circuit trace pattern and terminal lug spacing. Upgrades or replacements should match the hardware revision code to preserve system safety certifications and pinout definitions.

Field Installation Guidelines

Mount the panel securely onto the designated chassis frame or panel rail using standard mounting hardware to establish a solid ground bond. Torque all terminal screw connections according to standard industrial panel wiring codes to avoid high-resistance junctions. Ensure field cable shields land cleanly at designated earth ground terminals to prevent stray ground loops from corrupting low-voltage field instrument signals. Routing of high-voltage lines must remain physically separated from low-level signal pairs in accordance with standard cabinet wiring practices.
