SSC60D-F2542 Yokogawa Vnet/IP Series Datasheet & Manual

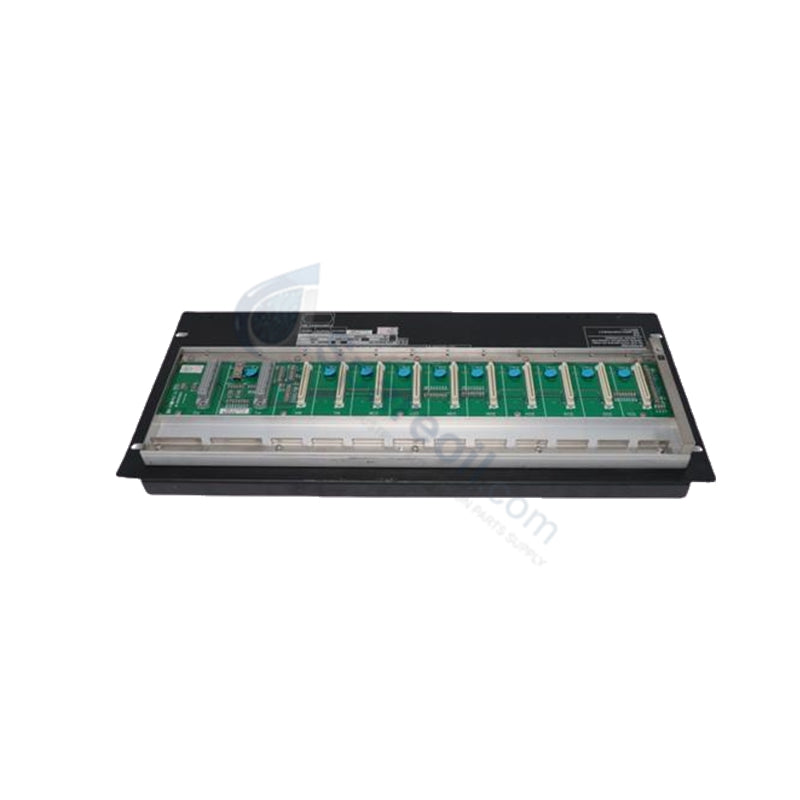

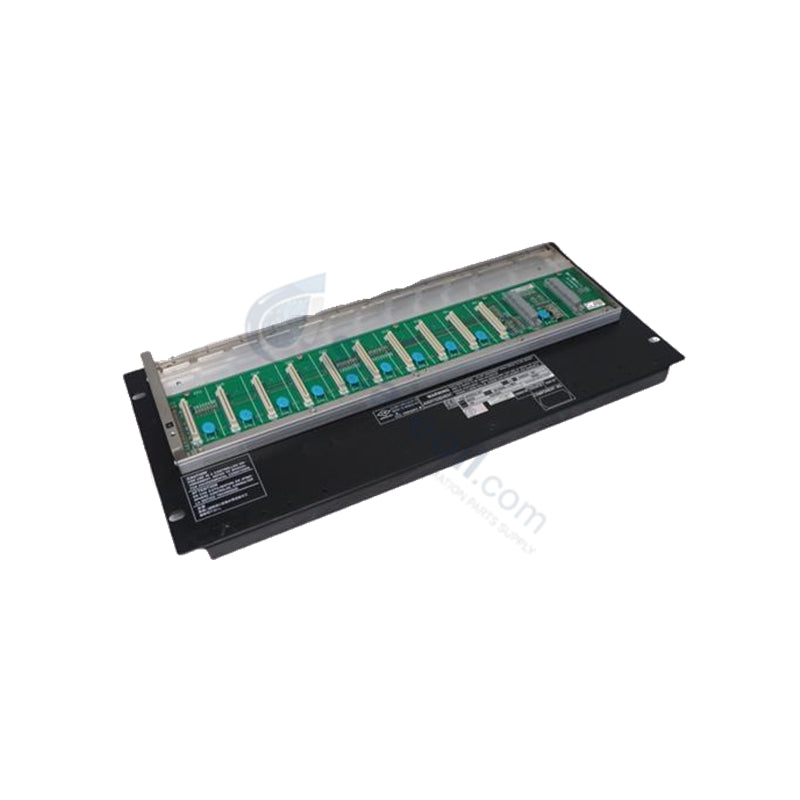

Duplexed Safety Control Unit DCS Yokogawa SSC60D-F2542

Duplexed Safety Control Unit DCS Yokogawa SSC60D-F2542

التوفر: 99 متوفر في المخزون

Yokogawa SSC60D-F2542 Duplexed Safety Control Unit Configured for high-availability process control in CENTUM VP and Vnet/IP platforms, the Yokogawa SSC60D-F2542 (SSC60D-F2542 Duplexed Safety...

رمز المنتج: SSC60D-F2542

Manufacturer: Yokogawa
Product No.: SSC60D-F2542
Product Type: Safety Control Units
Product Origin: Japan
Payment:T/T, Western Union
Weight: 8500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Yokogawa SSC60D-F2542 Duplexed Safety Control Unit

Configured for high-availability process control in CENTUM VP and Vnet/IP platforms, the Yokogawa SSC60D-F2542 (SSC60D-F2542 Duplexed Safety Control Unit) provides direct physical signal processing and redundant execution for distributed control networks.

Suffix Breakdown & Model Matrix

The SSC60D base model designates the duplexed safety control unit architecture designed for rack-mounted installations. The suffix code breakdown for the specific SSC60D-F2542 configuration is defined as follows:

F: Indicates hardware revision/variant specification.
2: Dual-redundant power supply configuration for primary and secondary power rails.
5: Standard assembly without specific explosion protection certification.
4: 220–240 V AC power supply input module requirement.
2: Base control unit variant without specific Safety Control Function licenses (compatible with R4.01 or later system software).

Hardware Specifications

Parameter	Specification
Model	SSC60D-F2542
Brand	Yokogawa
Origin	Japan
Weight	8.5 kg
Dimensions	Rack Mountable Standard
Operating Temp	-20 deg C to +40 deg C
Power Consumption	Dual-redundant input requirements
Communication	Vnet/IP Deterministic Network

Process Control Connectivity

The SSC60D-F2542 utilizes channel-to-channel isolation and galvanic separation to maintain process integrity across complex control loops. To facilitate accurate data acquisition, the unit manages 4-20 mA HART loop protocol connectivity, allowing for seamless integration with smart transmitters and diagnostic analyzers. The architecture supports internal cold junction compensation (CJC) logic for analog input modules connected to the local bus, ensuring precision in temperature-sensitive control environments. Furthermore, the duplexed design incorporates high-speed synchronization interfaces to ensure bumpless transfer during primary-to-secondary controller failover events.

Frequently Asked Questions (FAQ)

Q: Can the power supply units be hot-swapped while the controller is active?

A: Yes, the dual-redundant power supply configuration supports the removal and replacement of individual power modules without interrupting the execution of the control logic, provided the secondary power rail remains energized.

Q: How does the lack of a Safety Control Function license affect module operation?

A: The base unit without the specific Safety Control Function license operates as a standard DCS controller. It executes routine regulatory control tasks but cannot perform logic functions explicitly reserved for SIL-rated safety instrumented systems.

Field Installation Guidelines

Rack Mounting: Secure the controller within a standard 19-inch instrumentation rack. Ensure that the chassis ground is bonded to the cabinet main earth bar using a low-impedance copper conductor to mitigate common-mode noise.
Thermal Management: The SSC60D series requires adequate airflow. Maintain a minimum clearance of 50 mm above and below the unit to prevent thermal throttling, as the operating range is restricted to -20 deg C to +40 deg C for this specific standard configuration.
Power Cabling: Connect 220–240 V AC sources to the redundant power inputs. Utilize independent circuit protection for each feed to ensure that a localized short circuit does not compromise both power rails.
Signal Shielding: All I/O cabling must utilize shielded twisted-pair conductors. Terminate shields at the cabinet-specific terminal block to minimize the ingress of EMI/RFI, which could degrade A/D conversion accuracy.
