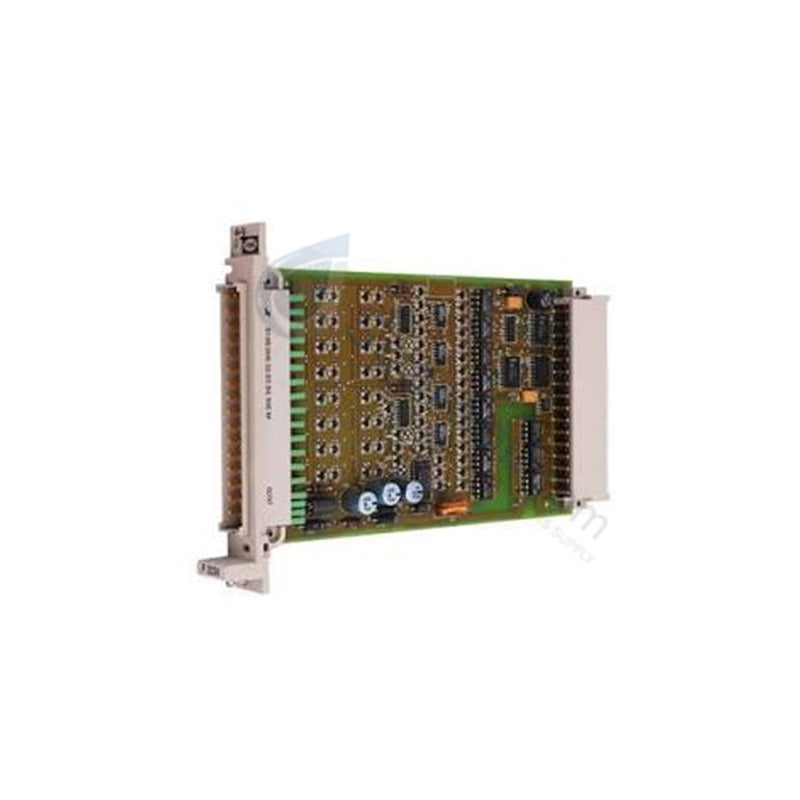

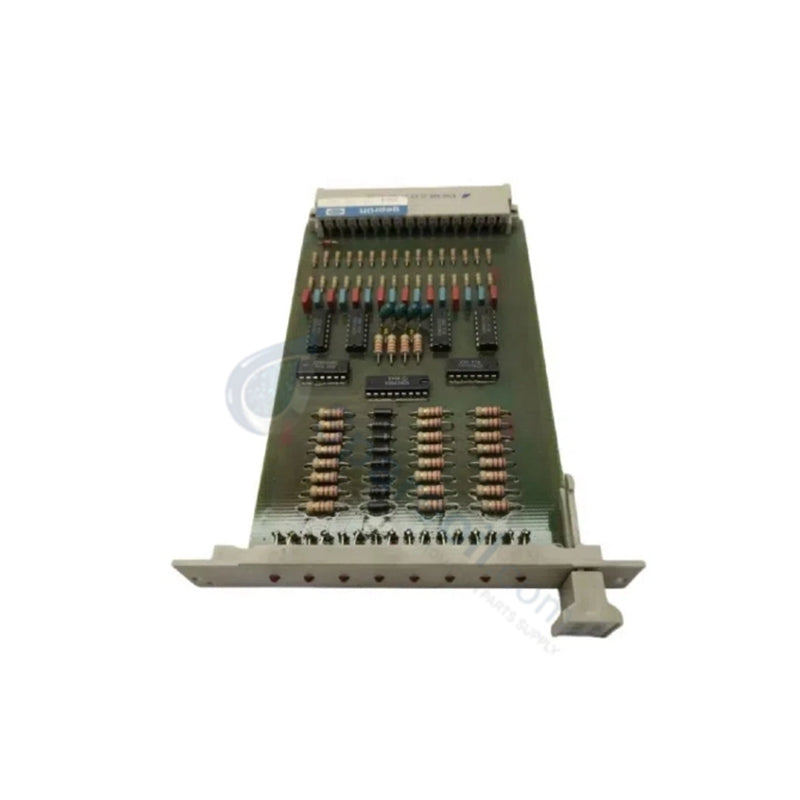

F-3102 HIMA HIMatrix Safety PLC Digital Input Module

التوفر: 99 متوفر في المخزون

HIMA F3102 Digital Input Module Configured for discrete signal acquisition in HIMatrix safety platforms, the HIMA F3102 (F3102 Digital Input...

رمز المنتج: F3102

Manufacturer: HIMA
Product No.: F3102
Product Type: Digital Input Modules
Product Origin: Germany
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

HIMA F3102 Digital Input Module

Configured for discrete signal acquisition in HIMatrix safety platforms, the HIMA F3102 (F3102 Digital Input Module) provides direct physical/electrical execution across safety-instrumented loops.

Hardware Specifications

Parameter	Specification
Model	F3102
Brand	HIMA
Origin	Germany
Weight	0.35 kg
Dimensions	203 x 127 x 25 mm
Operating Temp	-40 to +70 deg C
Power Consumption	24 VDC input voltage (Max Current: 300 mA)
Discrete Channel Density	Up to 20 digital inputs, 8 digital outputs
Signal Current	~8 mA per channel
Switching Response Time	<10 ms typical
Safety Integrity Level	SIL3 (IEC 61508 certified, TÜV compliant)
Environmental Rating	ISA-S71.04 Class G3 airborne contaminants
Mechanical Shock/Vibration	Shock: 10 g half-sine for 11 ms; Vibration: 0.7 g (13.2 to 150 Hz)
Ingress Protection	IP20

Galvanic Isolation & Fail-Safe State Execution

The HIMA F3102 incorporates individual channel-to-bus galvanic isolation to shield internal logic processing units from field-side voltage spikes, ground loops, and electromagnetic interference. This physical barrier ensures that transient electrical noise across discrete sensor channels does not penetrate the HIMatrix system backplane.

Continuous diagnostic routines perform real-time line monitoring, short-circuit detection, and hardware fault evaluation across all input circuits. In compliance with IEC 61508 SIL3 specifications, any detected line fault or channel integrity failure triggers immediate fail-safe state execution, driving output channels to a defined de-energized condition to protect connected process assets.

Frequently Asked Questions

Q: Does the module maintain SIL3 diagnostic performance during high-vibration industrial conditions?

A: Yes. The hardware is certified to withstand mechanical shock levels up to 10 g for 11 ms and continuous vibration up to 0.7 g from 13.2 to 150 Hz without dropping internal signal acquisition or diagnostic routines.

Q: How does channel-to-bus galvanic isolation protect the HIMatrix backplane?

A: Optocouplers and physical isolation barriers break direct electrical connections between the 24 VDC field wiring loops and the central logic supply, preventing external surges from corrupting internal processor memory.

Q: What is the typical channel response time for field input state transitions?

A: The module evaluates digital signal state transitions and updates diagnostic registers across the backplane in less than 10 ms under normal operating conditions.

Field Installation Guidelines

Mount the F3102 module onto a standard DIN rail track or insert it into a HIMatrix subrack slot, ensuring the grounding clips click securely to establish chassis frame bonding. Maintain a minimum vertical clearance of 50 mm above and below the housing to facilitate airflow across the -40 to +70 deg C operating temperature spectrum.

Route field input cables through separate wire ducts isolated from AC power conductors and variable frequency drive output leads to mitigate high-frequency signal coupling. Connect field wiring shields to a central master earth ground bus bar, and verify terminal retention screws are torqued properly before applying 24 VDC bus power.
