IC695ECM850 GE Fanuc Ethernet Module

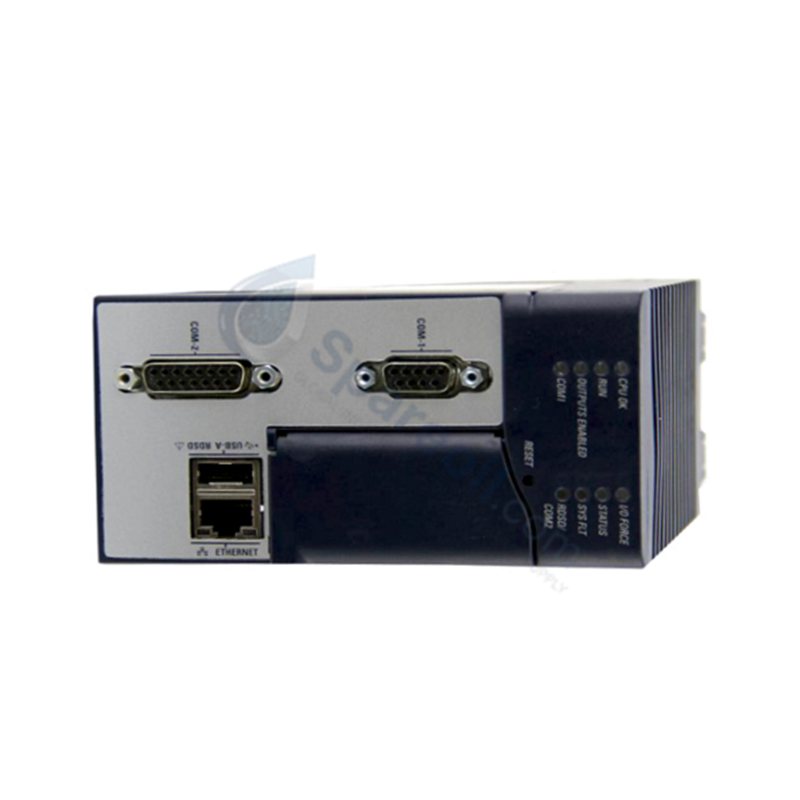

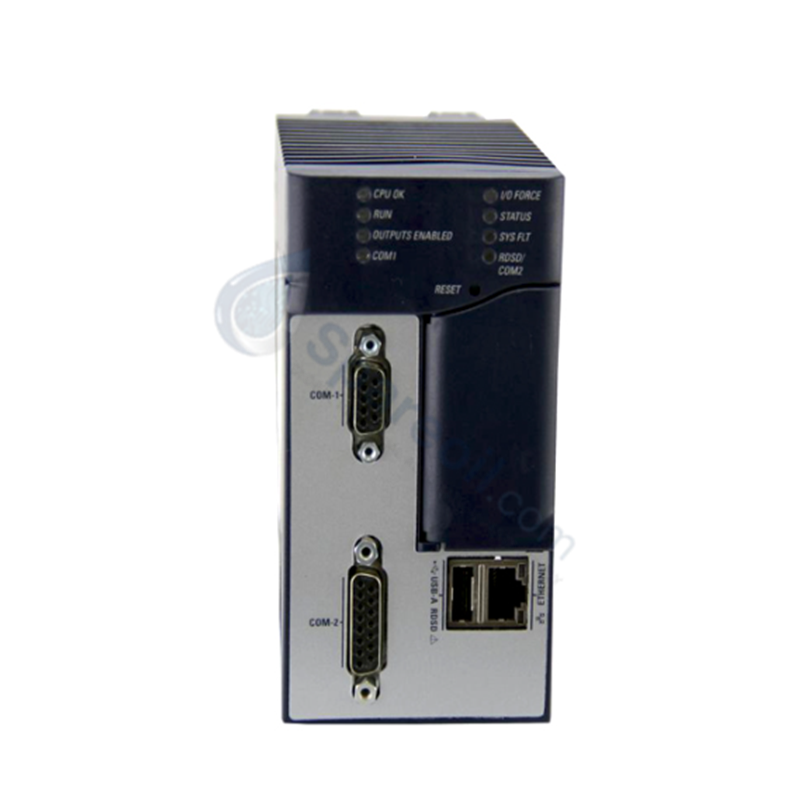

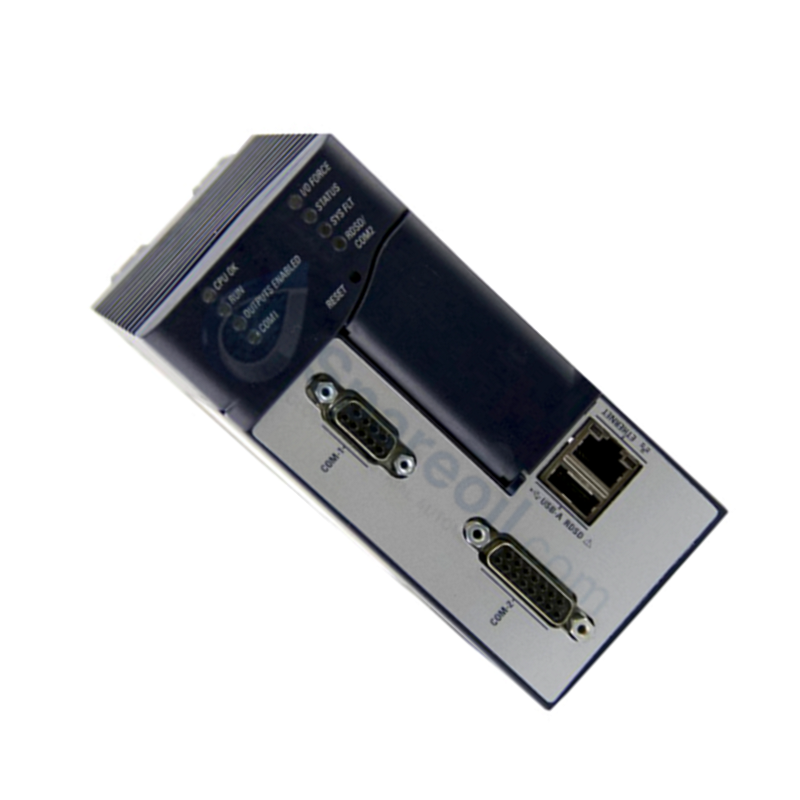

IC695ECM850 GE Fanuc PACSystems RX3i Ethernet Communication Module

IC695ECM850 GE Fanuc PACSystems RX3i Ethernet Communication Module

التوفر: 10 متوفر في المخزون

The GE Fanuc IC695ECM850, also cataloged as the IC695ECM850 Ethernet Communication Module, operates as a dedicated hardware component for IEC...

رمز المنتج: IC695ECM850

Manufacturer: GE Fanuc
Product No.: IC695ECM850
Product Type: Communication Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The GE Fanuc IC695ECM850, also cataloged as the IC695ECM850 Ethernet Communication Module, operates as a dedicated hardware component for IEC 61850 protocol translation and switched network interfacing within PACSystems RX3i platforms.

Hardware Specifications

Parameter	Specification
Model	IC695ECM850
Brand	GE Fanuc Emerson
Origin	United States
Weight	1.00 lbs (0.45 kg)
Dimensions	Single-slot RX3i module profile
Operating Temp	0 to 60 deg C (derates to 57 deg C with 100 Mbps SFP or 1 Gbps copper SFP)
Power Consumption	3.3 VDC: 1.2 A (no SFP), 1.9 A max (2 SFPs); 5 VDC: 1.1 A max
Network Ports	4 switched ports (2 RJ-45 copper, 2 SFP cages)
Media Support	10/100/1000 Mbps copper, 100/1000 Mbps single-mode / multi-mode fiber
Network Topology	Star and linear topologies
Addressing Limit	1 IP address, up to 5 MAC addresses per module
System Capacity	Maximum 4 modules per RX3i CPU (main rack installation only)
CPU Compatibility	RX3i CPUs with firmware 8.05 or higher (CPE310, CPE305, CPU315, CPU320, CRU320)
Configuration Software	Proficy Machine Edition 8.0 SIM7 or later
Maintenance Interfaces	1 Mini-USB port (CLI), 1 SD-card slot
Features	Hot-swappable, SNTP time synchronization

Profinet and EtherNet/IP Deterministic Networks

The IC695ECM850 executes real-time data frame transmission over high-speed networks while optimizing backplane bus communication velocity across the RX3i chassis. Operating as an IEC 61850 client device, the module handles deterministic network routing between substation servers and the host controller. Integrated firmware flash compatibility ensures seamless operating updates without physical chip replacement, maintaining deterministic packet transfer and supporting I/O density scaling across complex multi-node architecture topologies.

Frequently Asked Questions

Q: Can the IC695ECM850 module be hot-swapped during active system operation?

A: Yes. The IC695ECM850 is hot-swappable, allowing insertion or removal in the main RX3i rack without interrupting backplane power to adjacent operational modules.

Q: What are the backplane current draw requirements for the IC695ECM850?

A: At 3.3 VDC, the module draws 1.2 A without SFPs installed and up to 1.9 A with 2 SFP optical devices installed. At 5 VDC, the maximum current draw is 1.1 A.

Q: What restricts the physical rack placement and quantity of IC695ECM850 modules per system?

A: A single RX3i CPU supports up to 4 IC694/IC695 ECM850 modules, and all installed modules must reside exclusively within the main system rack.

Field Installation Guidelines

Verify backplane slot availability in the main PACSystems RX3i chassis before module insertion.
Align the IC695ECM850 side housing tabs with the backplane guide slots and push firmly until the rear connector latches securely.
Insert compatible copper or optical SFP transceivers into the SFP cages until the retaining clips click into place.
Route industrial Ethernet cabling away from high-voltage AC lines, terminating shields to the system functional earth ground bus to minimize noise interference.
Connect via the front Mini-USB port or download configuration settings from Proficy Machine Edition 8.0 SIM7 or later to initiate client communication routines.
