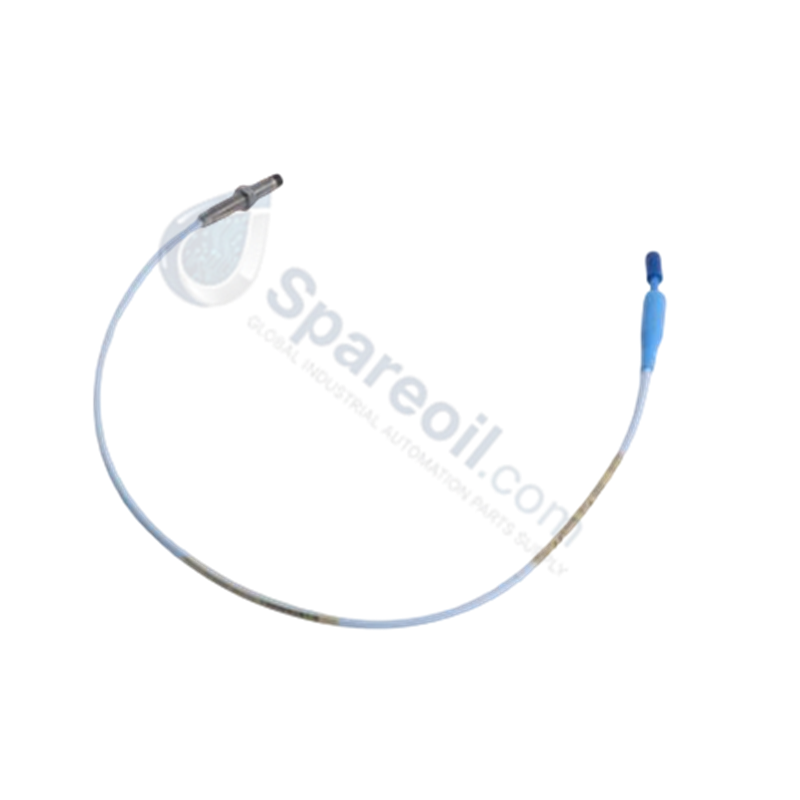

330103-00-03-90-12-05 Bently Nevada Proximity Probe

330103-00-03-90-12-05 3300 XL 8 mm Proximity Probes | Bently Nevada

330103-00-03-90-12-05 3300 XL 8 mm Proximity Probes | Bently Nevada

التوفر: 10 متوفر في المخزون

The Bently Nevada 330103-00-03-90-12-05, also cataloged as the 3300 XL 8 mm Proximity Probes Transducer, operates as a dedicated hardware...

رمز المنتج: 330103-00-03-90-12-05

Manufacturer: Bently Nevada
Product No.: 330103-00-03-90-12-05
Product Type: Proximity Sensors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 330103-00-03-90-12-05, also cataloged as the 3300 XL 8 mm Proximity Probes Transducer, operates as a dedicated hardware component for continuous shaft vibration and axial position measurement within Bently Nevada 3500 and 3300 Machinery Monitoring Systems.

Hardware Specifications

Parameter	Specification
Model	330103-00-03-90-12-05
Brand	Bently Nevada
Origin	Made in U.S.A
Dimensions	30 mm overall case length, 00 mm unthreaded length, 9.0 meters (29.5 feet) total length
Operating Temp	Standard industrial operating temperature range
Power Consumption	Passive component (Powered via Proximitor Sensor loop, -24 VDC system supply)
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel (SST)
Sealing	Differential pressure seal via Viton O-ring between tip and case
Connector Type	Miniature coaxial ClickLoc connector, standard cable
Agency Approvals	CSA, ATEX, IECEx Approvals

Eddy-Current Probe Scaling & Gap Voltage Validation

The probe utilizes high-frequency eddy-current technology to deliver precise linear voltage output proportional to target gap distance. Target calibration requires gap voltage validation targeting -10 VDC at the physical center of the linear range (typically corresponding to approximately 1.0 mm or 40 mils gap setting when referenced to an AISI 4140 steel target). The system exhibits strict eddy-current probe scaling to suppress channel-to-channel cross-talk and maintain flat frequency response characteristics across high-speed rotor dynamics monitoring loops.

Frequently Asked Questions

Q: What is the procedure for verifying the gap voltage during probe physical setup?

A: Connect the probe cable to the extension cable and Proximitor Sensor powered by -24 VDC. Measure the DC voltage between the Proximitor "Out" and "Com" terminals using a digital multimeter. Adjust probe thread engagement until the gap voltage reaches the nominal target of -10.0 VDC (corresponding to mid-span gap), then torque the mounting locknut.

Q: Can the 9.0 meter probe cable be shortened or spliced directly in the field?

A: No. Cutting or splicing the coaxial cable alters total system capacitance and inductance, causing system calibration failure and severe sensitivity deviations. The exact total system electrical length must be strictly maintained.

Field Installation Guidelines

Mechanical Mounting & Sealing: Thread the probe casing into the target mounting port. Ensure the Viton O-ring is properly seated to maintain differential pressure sealing between the probe tip and case.
Connector Assembly: Crimp and lock the miniature coaxial ClickLoc connector. Ensure protective connector boots or silicone tape sealing are applied when installed in oil-mist or wet environments.
Cable Routing & Shielding: Route the 9.0 meter cable clear of sharp machine edges and intense thermal sources. Maintain cable bend radius above 25.4 mm (1.0 in). Ensure the outer shield layer is bonded to safety earth ground at the machine casing entry point.
