YOKOGAWA AMN11 / AMN22 Analog Input Modules The YOKOGAWA AMN11, also cataloged as the AMN11 / AMN22 Analog Input Module,...

رمز المنتج: AMN11 AMN22

Manufacturer: Yokogawa
Product No.: AMN11 AMN22
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

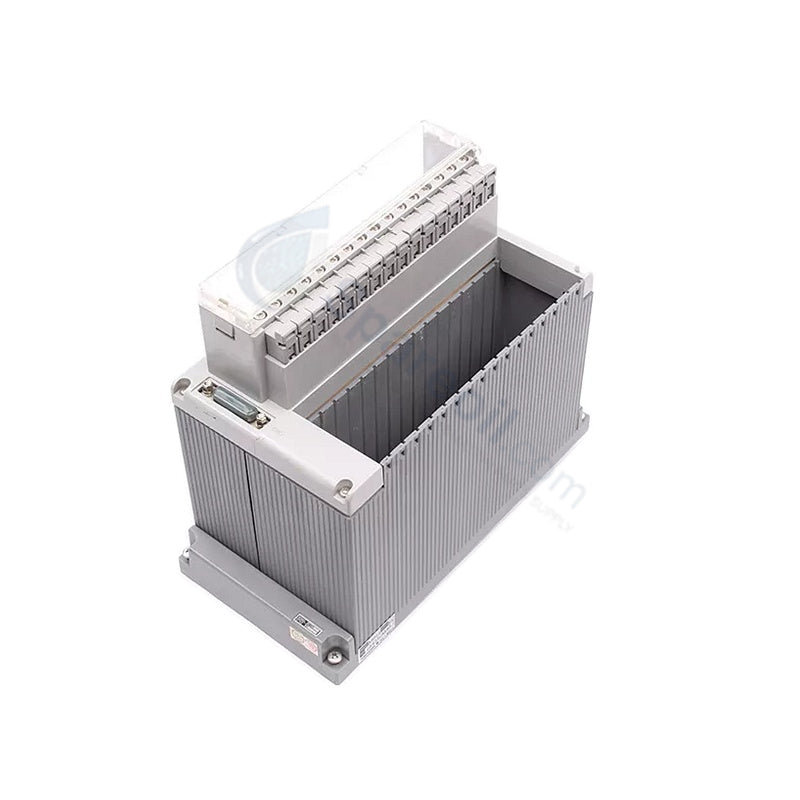

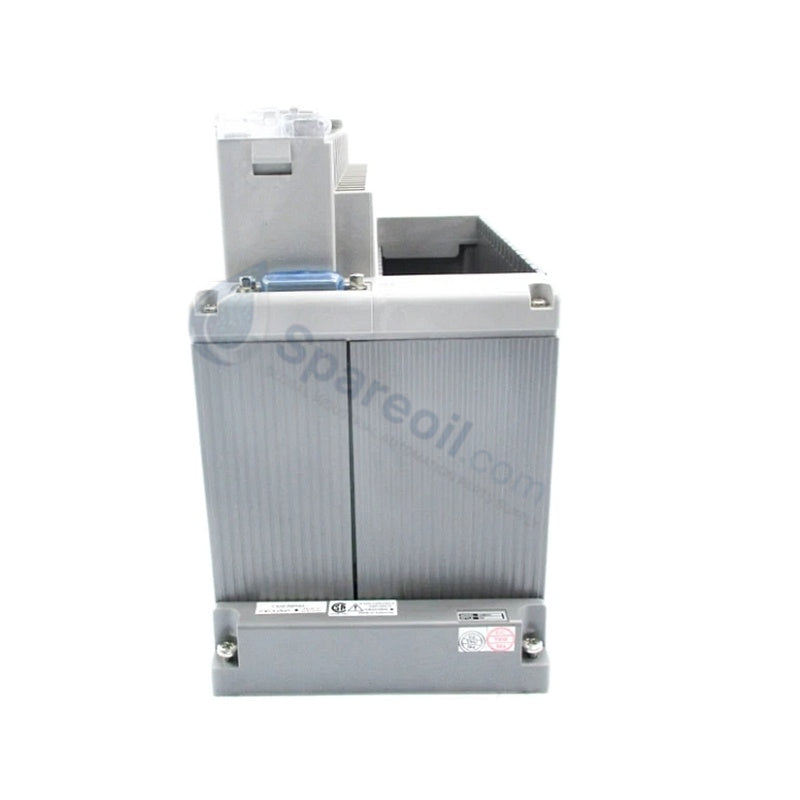

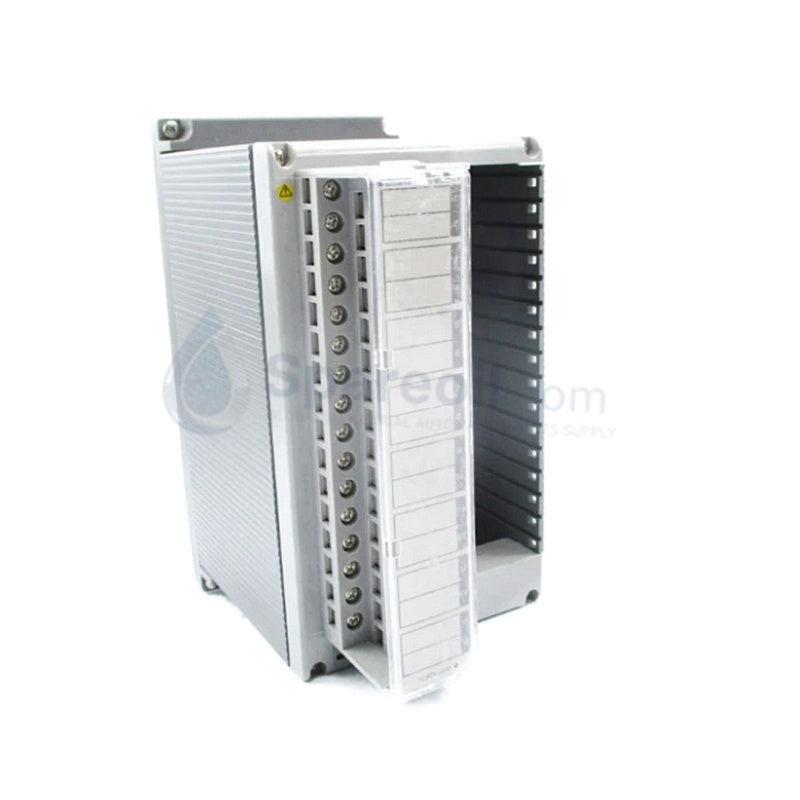

YOKOGAWA AMN11 / AMN22 Analog Input Modules

The YOKOGAWA AMN11, also cataloged as the AMN11 / AMN22 Analog Input Module, operates as a dedicated hardware component for precision analog signal acquisition and analog-to-digital conversion within Yokogawa DCS platforms.

Hardware Specifications

Parameter	Specification
Model	AMN11 / AMN22
Brand	Yokogawa Electric Corporation
Origin	France / Japan
Weight	0.35 kg (AMN11) / 0.45 kg (AMN22)
Dimensions	100 mm x 40 mm x 110 mm (AMN11) / 100 mm x 65 mm x 110 mm (AMN22)
Operating Temp	0 deg C to +55 deg C
Power Consumption	5 VDC via backplane bus
Input Channels	2 isolated channels (AMN11) / 4 isolated channels (AMN22)
Input Signal Types	4-20 mA current loop, 1-5 VDC
Resolution	16-bit analog-to-digital conversion
Accuracy	+/-0.1% of full scale
Circuit Protection	Reverse-polarity diodes, per-channel programmable filtering

Process Control & Channel Isolation Characteristics

Field engineers deploy the AMN11 and AMN22 analog input modules to capture 4-20 mA current loop signals and convert process variables into digital records over the internal backplane bus. The hardware design features galvanically isolated input channels that prevent common-mode noise propagation and eliminate ground loop currents between field transmitters and system logic. Each channel incorporates high-resolution 16-bit analog-to-digital converters alongside programmable filtering to smooth process signal fluctuations. Internal self-diagnostics continuously monitor channel integrity to identify open-circuit wire breaks or over-range transmitter conditions, ensuring stable continuous loop execution across the control system controller.

Frequently Asked Questions

Q: How do the AMN11 and AMN22 handle field wire breaks or out-of-range signal conditions?

A: Integrated self-diagnostics constantly evaluate live channel electrical parameters against full-scale bounds. When a wire break or out-of-range current level occurs, the module flags a hardware diagnostic interrupt across the serial backplane bus, allowing the system controller to trigger predefined fail-safe control logic.

Q: Can the 4-20 mA current loop inputs and 1-5 VDC signals share channels on the same module?

A: Yes, the 16-bit analog-to-digital converter architecture supports configuration for either standard 4-20 mA process loops or 1-5 VDC inputs. Field technicians select the appropriate input range mode per channel via hardware settings or system engineering tools before connecting field terminal wiring.

Q: What mechanisms protect the module from field-side voltage transients and reverse polarity wiring errors?

A: Passive reverse-polarity diodes on each terminal circuit block reverse current flow during improper field loop wiring. Additionally, channel-to-channel galvanic isolation decouples field voltage surges from the sensitive 5 VDC logic backplane power bus.

Field Installation Guidelines

Field technicians must ensure backplane rack power is completely de-energized prior to inserting or seating the AMN11 or AMN22 module into the slot frame. Run all 4-20 mA input wiring in individual twisted shielded cables to suppress external high-frequency electromagnetic interference. Connect cable shielding to a single ground point on the DCS cabinet grounding bar, avoiding dual-ended grounding that creates ground loop potential differences. Tighten screw terminal block connections to manufacturer torque specs to ensure stable electrical contact. Verify that cabinet ventilation slots remain unobstructed so ambient convection cooling maintains internal cabinet temperatures within the designated 0 deg C to +55 deg C operational range.
