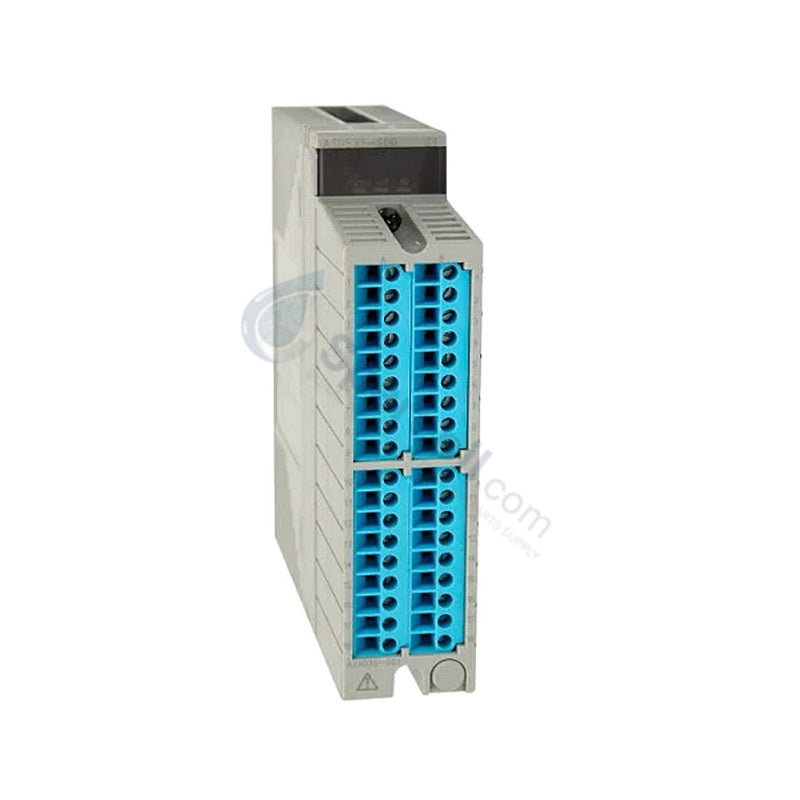

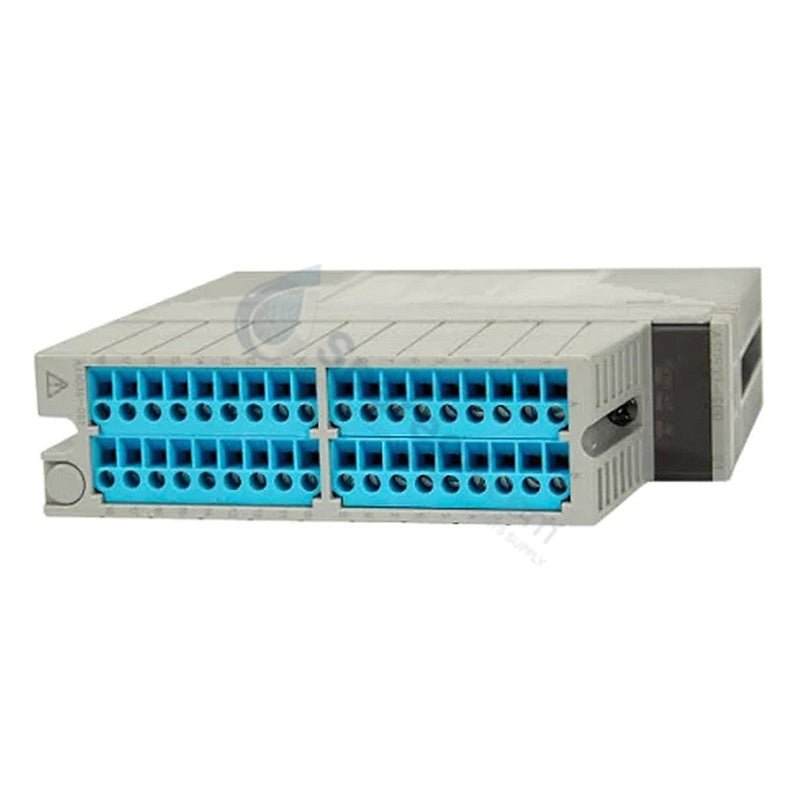

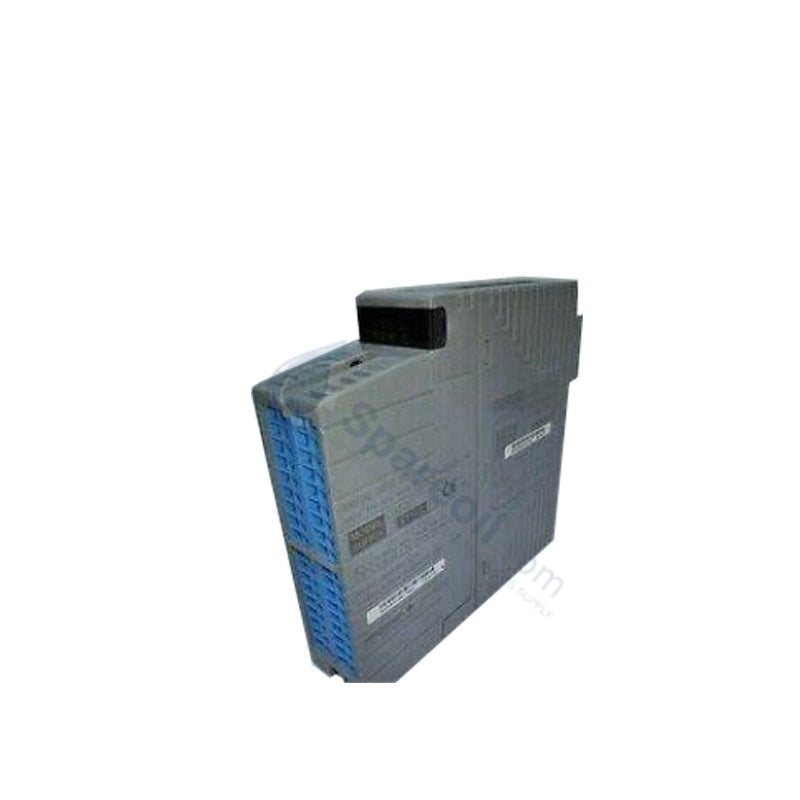

YOKOGAWA ASD533-S00 CENTUM VP Module

The YOKOGAWA ASD533-S00, also cataloged as the ASD533 Digital Output Module with Built-in Barrier, operates as a dedicated hardware component for direct physical/electrical execution within CENTUM VP / CS 3000 node structures. The unit interfaces field control circuits directly with the host Field Control Unit (FCU), managing signal states across isolated channels. Technicians deploy this rack-mountable module to command field actuators while utilizing built-in intrinsic safety barriers and ISA Standard G3 conformant conformal coating to isolate internal node electronics from external loop anomalies.

Suffix Breakdown & Model Matrix

Suffix Code Description
ASD533 Base Model: Digital Output Module with Built-In Barrier
-S Standard Type Execution
0 Fixed Configuration Digits (Always 0)
0 Fixed Configuration Digits (Always 0)

Hardware Specifications

Parameter Specification
Model ASD533-S00
Brand YOKOGAWA
Origin China
Weight 2 kg (Shipping weight) / 0.3 kg (Net module weight)
Dimensions 125 x 130 x 248 mm
Operating Temp -20 to +70 deg C (Extended temperature option)
Power Consumption 5 VDC via Node Interface Unit / ~300 mA current draw
Channels 8-channel, isolated configuration
Accuracy Metrics Full-scale loop limits apply (Diagnostic supported)
Environment ISA Standard G3 corrosion resistance baseline
Signal Interface Isolated circuit paths with integrated physical barrier
System Compatibility CENTUM VP, CS 3000 Series FCU

Process Control and DCS Instrumentation Technical Characteristics

The module incorporates robust channel-to-channel isolation parameters to prevent ground loops and shield internal processor logic from external plant floor electrical interference. Active diagnostic support subroutines monitor the loop integrity continuously, driving front-panel LED indicators immediately when a channel fault or open-circuit status occurs.

Field circuits feed into the device through dedicated physical barriers that secure the intrinsic safety envelope. The hardware firmware maintains tight synchronization with the node controller, driving execution parameters across the system bus without inducing timing skew. By embedding galvanic separation directly into the physical block, the component minimizes common-mode voltages and stabilizes field-side loop parameters against unexpected line cross-talk.

Frequently Asked Questions

Q: Does the ASD533-S00 module accept direct hot-swapping during active DCS operation?

A: No. Maintenance personnel must follow standard de-energization procedures for the specific rack node before extracting the module to prevent electrical transients across adjacent channel-to-channel isolation networks.

Q: How does the ISA Standard G3 option affect installation within corrosive environments?

A: The G3 classification indicates that the internal circuit board assemblies possess enhanced conformal coating protection. This treatment actively resists atmospheric corrosion from hydrogen sulfide and chlorine gases without requiring auxiliary cabinet purging.

Q: Which power rail provides the ~300 mA operating current for this module?

A: The module draws its operating current directly from the 5 VDC system power lines located on the Node Interface Unit backplane, meaning the module requires no external branch circuit power fuses.

Field Installation Guidelines

  • Rack Mounting Security: Align the card frame with the vertical card guides of the node unit. Push firmly until the backplane connectors seat completely, then fasten the captive alignment screws to stabilize the hardware against ambient structural vibration.
  • Shield Grounding Infrastructure: Connect all field-side external cable shields to a dedicated, low-resistance master instrumentation ground bus. Keep shield pigtails short to maximize noise attenuation.
  • Separation of Field Lines: Route intrinsic safety loop wires through dedicated, segregated wire ducts. Maintain physical distance from high-voltage AC motor lines to eliminate inductive noise coupling into the 8-channel interface.
  • Thermal Management Clearances: Verify that cabinet ventilation pathways remain clear. Ambient air must flow vertically through the module cooling louvers to maintain inner component temperatures below the +70 deg C limit.
