0916ND FOXBORO Base-to-Base Cable | New & Original Stock

Availability: 10 left in stock

FOXBORO P0916ND I/A Series Fieldbus Base-to-Base Cable The FOXBORO P0916ND, also cataloged as the FOXBORO P0916ND Base-to-Base Cable, operates as...

SKU: P0916ND

Manufacturer: Foxboro
Product No.: P0916ND
Product Type: Cables and Hardware Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 70g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

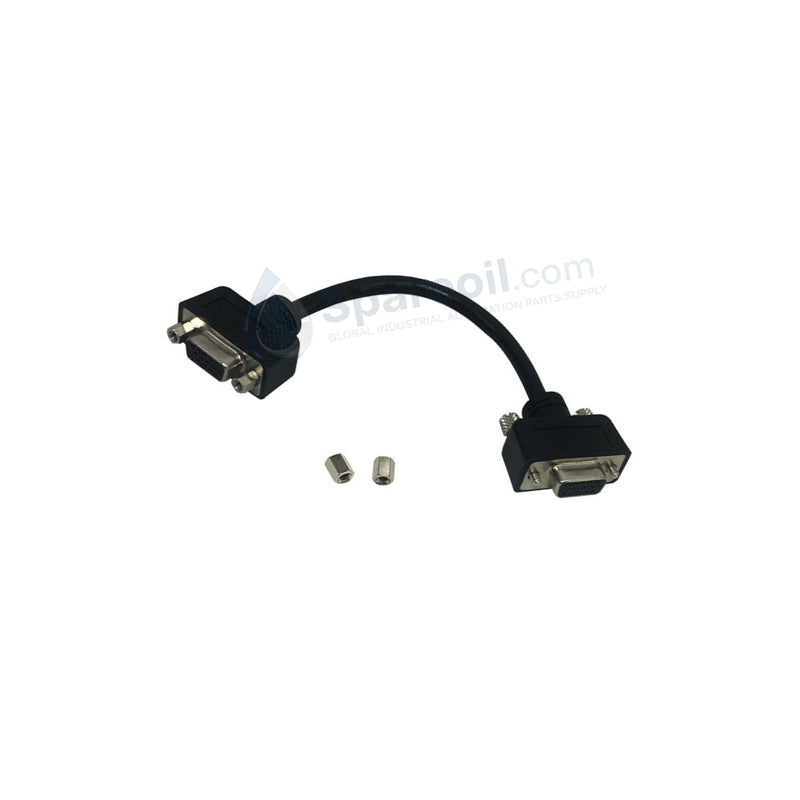

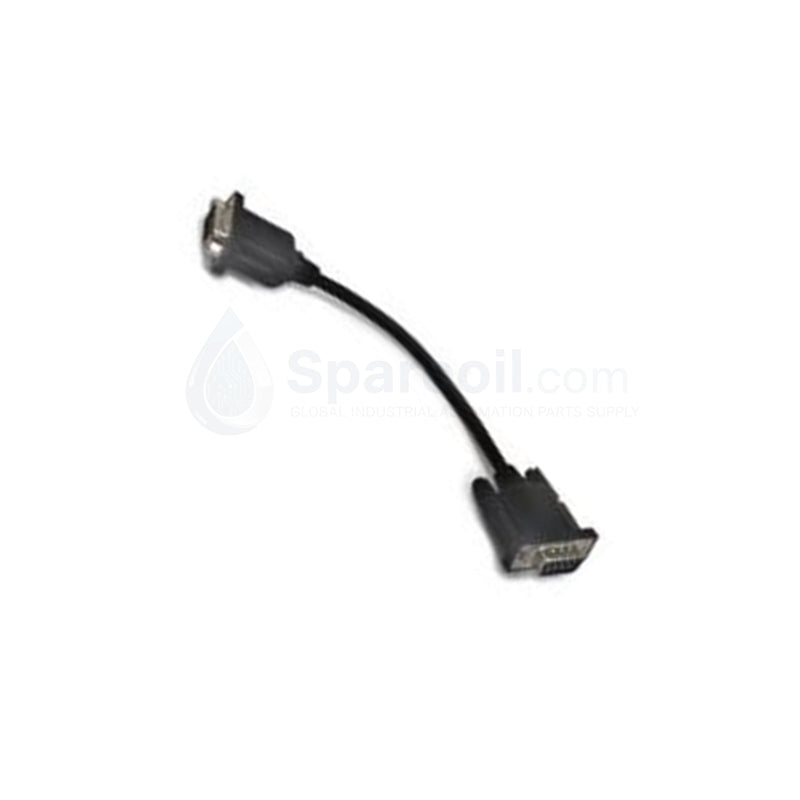

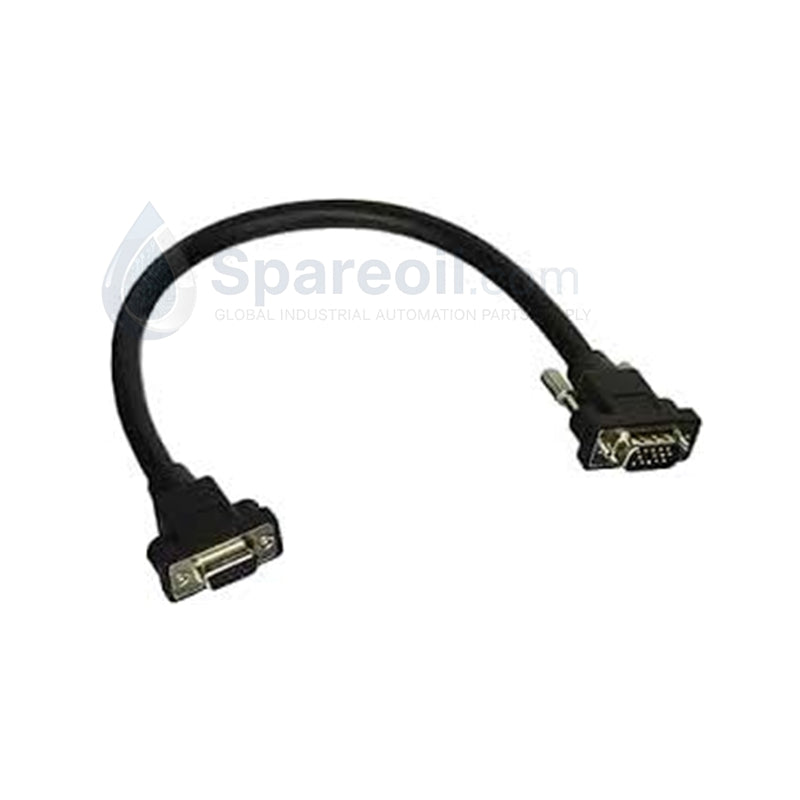

FOXBORO P0916ND I/A Series Fieldbus Base-to-Base Cable

The FOXBORO P0916ND, also cataloged as the FOXBORO P0916ND Base-to-Base Cable, operates as a dedicated hardware component for 2 Mbps high-speed data interconnection between adjacent Fieldbus Module baseplates within Foxboro I/A Series DCS networks.

Hardware Specifications

Parameter	Specification
Model	P0916ND
Brand	FOXBORO (Invensys / Schneider Electric)
Cable Type	2 Mbps Base-to-Base Fieldbus Interconnect Cable
Platform Compatibility	Foxboro I/A Series DCS / FBM Baseplates
Physical Cable Length	0.25 meters (25.0 cm)
Communication Velocity	2 Mbps deterministic data transfer rate
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Maximum Relative Humidity	95% RH non-condensing
Interface Application	Inter-baseplate communication bus expansion
Mechanical Protection	Heavy-duty low-profile jacketed data bus connector assembly
Certifications	CE, UL, CSA
Physical Weight	0.15 lbs ( 0.07 kg)
Origin	China

DCS Process Control and Loop Protocols

The FOXBORO P0916ND data assembly functions as the hardware link that extends the internal 2 Mbps fieldbus backplane across multiple baseplate segments. By establishing low-latency signal continuity, this interconnect component enables synchronous data exchange between processing units and remote Fieldbus Modules (FBMs). The internal multi-conductor balancing controls crosstalk and electromagnetic induction, maintaining the data frame accuracy required to process complex 4-20 mA HART loop protocol lines. This steady transmission line integrity ensures that downstream channel-to-channel and channel-to-bus isolation circuits execute validation routines without experiencing communication drift or packet loss.

Frequently Asked Questions

Q: Can the P0916ND bus cable be safely disconnected while the adjacent FBM baseplates are powered?

A: No. Unplugging the base-to-base cable while the system backplane is energized interrupts the 2 Mbps fieldbus trunk, which will instantly drop downstream modules offline and force all dependent control loops into their fail-safe trip states.

Q: How does the short length of the P0916ND cable affect signal propagation and impedance matching on the bus?

A: The 0.25-meter physical footprint is precisely calculated by the factory to minimize transmission line reflections and match the exact characteristic impedance of the Foxboro I/A Series backplane communication bus.

Q: What environmental shielding properties prevent data corruption across this cable interface?

A: The cable assembly features an integrated braided foil shield that encapsulates the data lines. This construction paths transient high-frequency noise directly to the chassis frame via the baseplate ground tabs, protecting signal frames from ambient interference.

Field Installation Guidelines

Connector Keying Alignment: Line up the integrated mechanical alignment keys on the P0916ND plug with the matching receptacle shroud on the baseplate prior to pushing the connector home to prevent pins from bending.
Latch Engagement Validation: Push the cable plugs into the baseplate ports until the internal mechanical retention clips click into place, securing the link against typical control cabinet vibrations.
Bend Radius Constraints: Do not force sharp bends or kinks into the 0.25-meter cable body during close-coupled cabinet routing. Maintain a smooth loop configuration to preserve the integrity of the internal copper wire strands.
Grounding Continuity: Check that the FBM baseplates themselves are locked to a common low-impedance master ground bus to ensure the braided shielding on the cable drains induced currents efficiently.
