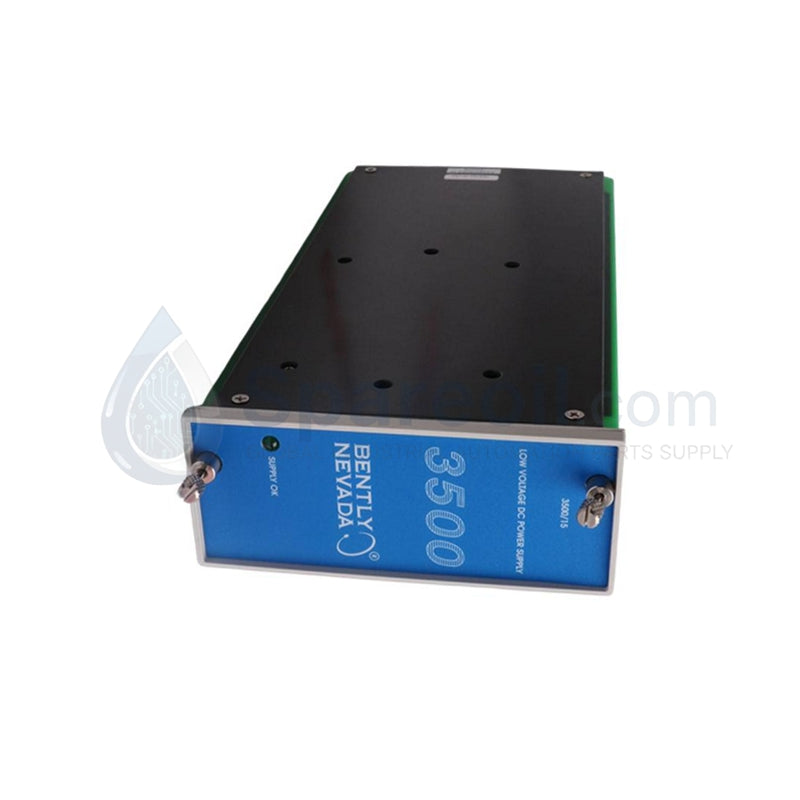

133292-01 Bently Nevada Low Voltage DC Power Supply

133292-01 Bently Nevada Low Voltage DC Power Supply Module

Availability: 10 left in stock

Bently Nevada 133292-01 3500/15 Power Supply Module The Bently Nevada 133292-01, also cataloged as the 3500/15 Low Voltage DC Power...

SKU: 3500/15 133292-01

Manufacturer: Bently Nevada
Product No.: 3500/15 133292-01
Product Type: Power Supply Modules
Payment:T/T, Western Union
Weight: 1220g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bently Nevada 133292-01 3500/15 Power Supply Module

The Bently Nevada 133292-01, also cataloged as the 3500/15 Low Voltage DC Power Supply, operates as a dedicated hardware component for converting direct current source input into regulated internal direct current rails within 3500 Series Machinery Protection System networks.

Hardware Specifications

Parameter	Specification
Model	3500/15
Brand	Bently Nevada (Baker Hughes)
Part Number	133292-01
Product Type	Low Voltage DC Power Supply
Origin	USA
Weight	1.22 kg
Dimensions	26 cm x 13 cm x 6 cm
Operating Temp	-20 to +70 deg C
Storage Temp	-40 to +85 deg C
Input Voltage	24 VDC nominal
Isolation Voltage	150 VDC for 60 seconds
Communication Protocol	Modbus RTU via RS485
Humidity	0% to 95% non-condensing

Machinery Monitoring & Power Isolation

The module manages input power conditioning across the rack backplane, converting unregulated 24 VDC source power into isolated, low-noise operating voltages. This internal distribution circuit prevents line-side voltage fluctuations from affecting high-resolution eddy-current probe scaling or shift validation routines. Built-in cross-talk suppression and 150 VDC galvanic isolation guard the internal bus from field-side transients, ensuring that high-frequency rotor dynamics data channels remain unaffected during external electrical faults.

Frequently Asked Questions

Q: How can the operational parameters and diagnostics of this supply be accessed remotely?

A: The 133292-01 module incorporates an integrated Modbus RTU protocol interface communicating over RS485 physical links. This interface streams hardware health parameters, fault registers, and continuous load data directly to an external distributed control system or asset management network.

Q: What fault conditions trigger the internal protection circuits?

A: The onboard diagnostic routines monitor for overvoltage, undervoltage, overcurrent, and short-circuit conditions. If a boundary limit is breached, the hardware executes a localized safe state shutdown to isolate the fault and protect the internal monitoring module array.

Field Installation Guidelines

Mount the power supply chassis securely into the specified slot orientation on the left side of the 3500 rack structure.
Confirm that the incoming DC utility supply is locked out and verified at 0 VDC before attaching the power wires to the input terminal blocks.
Connect the 24 VDC positive, negative, and frame ground conductors to their designated terminals, maintaining clean conductor stripping with no stray wire strands.
Route all RS485 Modbus communication lines through separate shielded conduit channels to minimize electromagnetic interference from adjacent heavy machinery power lines.
Verify that the ambient operating environment remains within the -20 to +70 deg C temperature boundaries and that humidity limits do not exceed 95% non-condensing.
