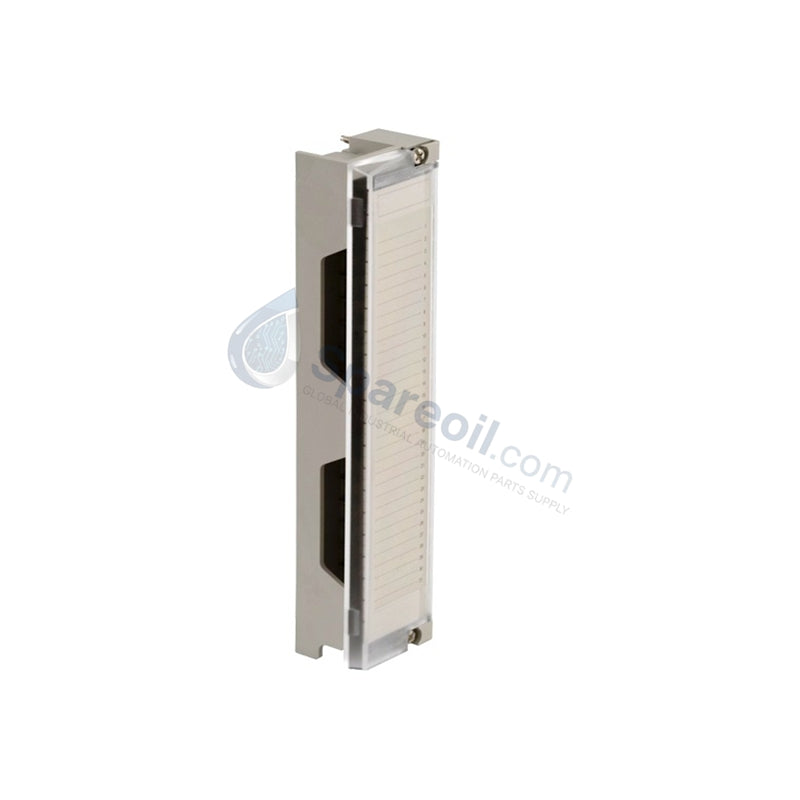

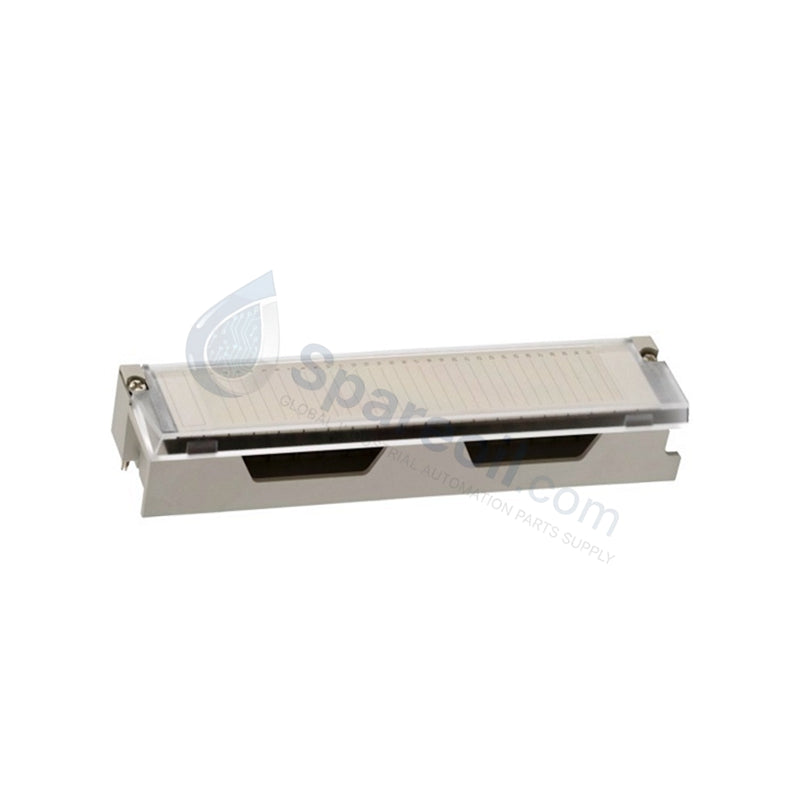

140XTS00200 Schneider Electric Terminal Block

140XTS00200 Schneider Electric Terminal Block | New & Original Stock

Availability: 94 left in stock

Schneider Electric 140XTS00200 Modicon Quantum Series The Schneider Electric 140XTS00200, also cataloged as the 140XTS00200 Screw Terminal Block, operates as...

SKU: 140XTS00200

Manufacturer: Schneider
Product No.: 140XTS00200
Product Type: Screw Terminal Blocks
Product Origin: France
Payment:T/T, Western Union
Weight: 150g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Schneider Electric 140XTS00200 Modicon Quantum Series

The Schneider Electric 140XTS00200, also cataloged as the 140XTS00200 Screw Terminal Block, operates as a dedicated hardware component for physical wiring termination within Modicon Quantum automation platform architectures. This 40-way connection interface provides direct electrical execution for field-side signal paths routing to analog input/output, counter, safety, discrete combination, and high-accuracy time-stamping modules housed within the system rack.

Hardware Specifications

Parameter	Specification
Model	140XTS00200
Brand	Schneider Electric
Origin	France
Weight	0.15 kg (Net) / 0.45 kg (1.00 lbs gross)
Dimensions	40 mm x 130 mm x 120 mm
Operating Temp	0 to 60 deg C
Power Consumption	Passive connection component (No external power required)
Connection Type	40-way screw terminal block
Pin Count	40 points
Protection Class	< IP20
Storage Temperature Range	-40 to +85 deg C
Module Compatibility	Analog I/O, Counter, Accurate Time Stamping, and Safety modules
Safety Category	Noninterfering

I/O Density Scaling and Backplane Execution

The mechanical and electrical infrastructure of the 140XTS00200 establishes a low-impedance interface optimized for rapid I/O density scaling up to 40 distinct connection points per functional slot. By utilizing hardwired compression terminals, the unit avoids signal degradation and parasitic capacitance along the measurement loop. This design preserves sub-millisecond execution times and deterministic clock cycles required for high-speed counter modules and precise time-stamping input signals processing through the main chassis bus.

Frequently Asked Questions

Q: Can the 140XTS00200 termination block be hot-swapped while the active host module is processing live analog loops?

A: No. Removing the terminal block while field circuits are energized will break active current loops and sensor lines abruptly. This can cause floating inputs, induce high-voltage spikes on inductive channels, and lead to major diagnostic faults or safety interlock execution on the processor.

Q: Does this hardware component require firmware updates or a flash utility for safety-instrumented modules?

A: No. The 140XTS00200 is a completely passive mechanical wiring terminal assembly. It contains no electronic silicon, microcontrollers, or non-volatile memory registers, making it immune to firmware flash compatibility criteria.

Q: What is the mechanical life expectancy of the screw clamp terminals under high-vibration profiles?

A: The terminal blocks are rated for industrial panel environments. To maintain long-term continuous physical retention and prevent screw relaxation under constant vibration, wire terminations must be torqued to standard industrial specifications during routine physical inspections.

Field Installation Guidelines

Mounting Alignment: Slide the terminal block body onto the front matching connector pins of the destination Modicon Quantum I/O module. Secure the physical retention screws completely to ensure the block does not back off under mechanical stress.
Wiring Configurations: Strip field wire insulation to the designated length before inserting conductors into the 40-way terminal jaws. Use ferrules on stranded wires to avoid frayed conductors and potential short circuits between adjacent pins.
Cable Strain Relief: Group and tie all field wiring bundles cleanly inside the wiring channel ducting. Ensure the total hanging weight of the 40 copper lines does not exert direct physical downward tension on the face of the terminal assembly.
