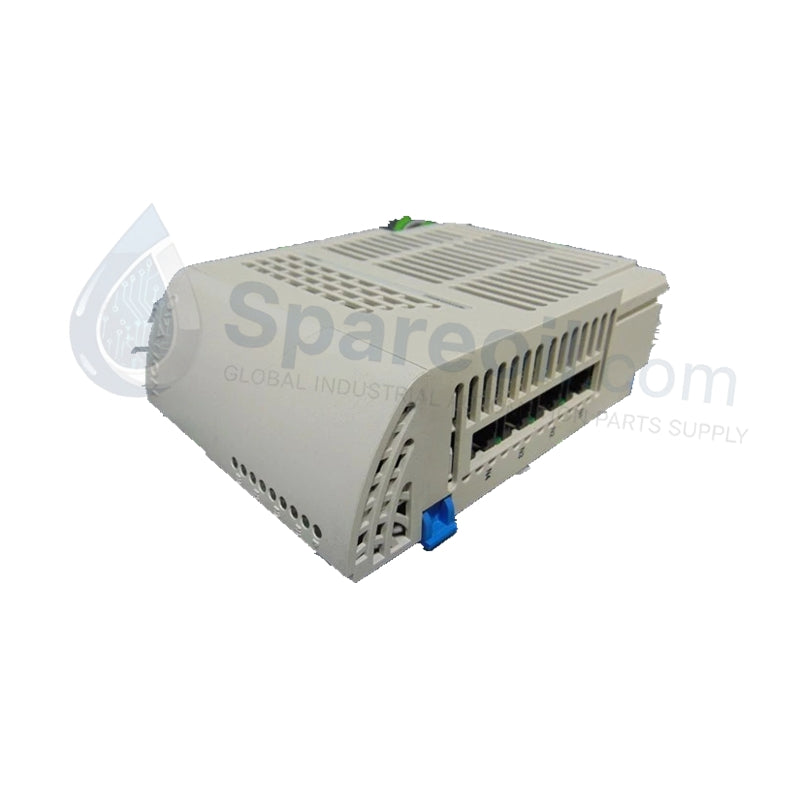

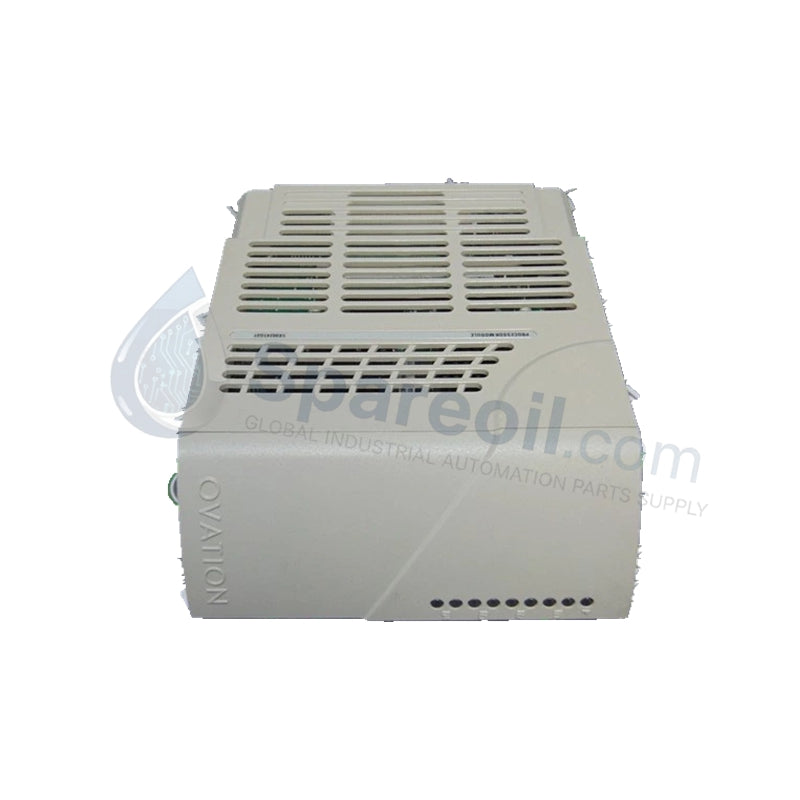

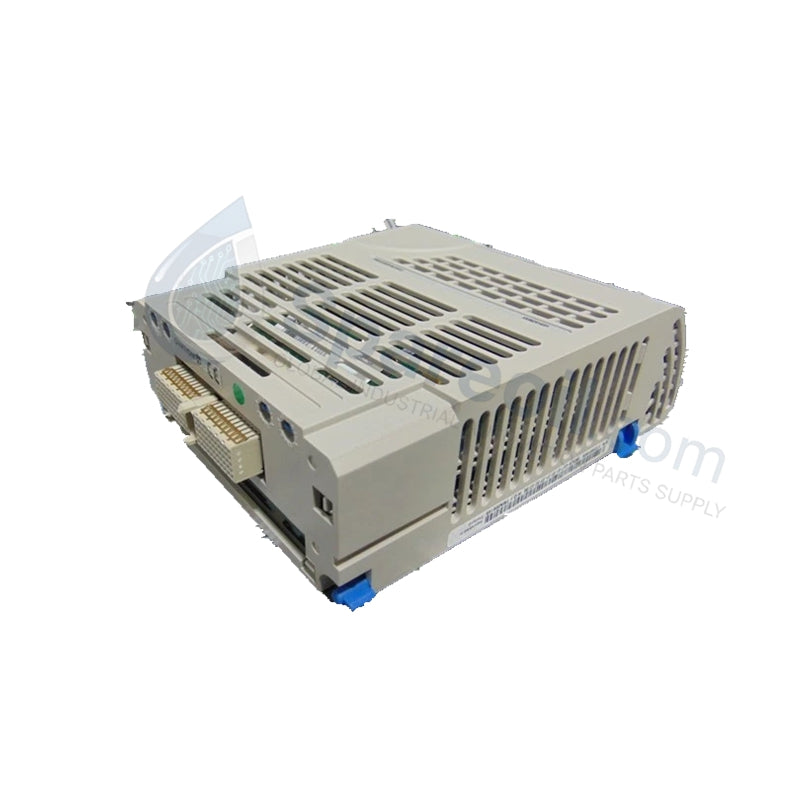

5X00454G01 Ovation DCS High-Speed Backplane Assembly

Availability: 99 left in stock

Product Overview The Emerson Ovation 5X00454G01 functions as the essential physical and electrical backbone for the Ovation™ Distributed Control System (DCS). This...

SKU: 5X00454G01

Manufacturer: Emerson
Product No.: 5X00454G01
Product Type: Remote I/O Bases
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Emerson Ovation 5X00454G01 functions as the essential physical and electrical backbone for the Ovation™ Distributed Control System (DCS). This multi-slot backplane assembly acts as a high-speed communication hub, aggregating signals from various analog and digital I/O modules and transmitting them to the central controller via a deterministic Ethernet interface. It provides the foundational infrastructure for power distribution and data synchronization across the chassis. We supply this unit as 100% brand new and original, ensuring maximum system integrity for mission-critical power and process control applications.

Technical Specifications

The 5X00454G01 utilizes a rugged, multi-layer circuit board design to handle high-density data traffic without signal degradation.

Parameter	Specification
Model Number	5X00454G01
Category	Controller Backplane / Remote I/O Base
Manufacturer	Emerson (Ovation Division)
Communication	High-speed Ethernet (Deterministic)
Bus Type	Proprietary Ovation Controller Bus
Operating Temp	0°C to 60°C (Typical Industrial Range)
Dimensions	350 mm × 120 mm × 80 mm (Standard Chassis)
Weight	1.2 kg
IP Rating	IP20 (Industrial Enclosure Required)
Redundancy	Supports Redundant Controller Configurations
Power Routing	Integrated DC Distribution to Module Slots

Engineering Advantages

Deterministic Data Transfer: The 5X00454G01 utilizes a high-speed Ethernet interface designed for real-time control. This architecture minimizes latency and ensures that process data reaches the controller within fixed time intervals, which is vital for stable turbine and boiler control.
Electrical Signal Isolation: The backplane incorporates robust isolation layers between the I/O module slots and the Ethernet communication circuitry. This design prevents field-side electrical noise or transients from propagating into the central processor, significantly reducing the risk of system-wide failures.
Scalable Modular Expansion: The multi-slot design allows engineers to scale the system by adding Processor, I/O, or Communication modules as needed. This flexibility permits plant-wide expansion without replacing the foundational chassis infrastructure.
Vibration-Resistant Interconnects: Specialized connectors secure every module to the backplane, maintaining electrical continuity even in high-vibration environments near heavy rotating machinery. This mechanical stability eliminates intermittent communication drops common in lower-grade chassis bases.

FAQs

Does this backplane support redundant controller hardware?

Yes. The 5X00454G01 specifically supports redundant configurations. When you install dual controllers, the backplane facilitates high-speed synchronization between the primary and backup units, ensuring a bumpless transfer in the event of a processor failure.
Is the 5X00454G01 compatible with both digital and analog Ovation modules?

Yes. The backplane provides a universal interface that accommodates the full range of Ovation I/O modules. It manages the power distribution and high-speed bus communication for both discrete and continuous signal cards simultaneously.
What maintenance does the backplane require?

As a passive, fanless component, the 5X00454G01 requires minimal maintenance. We recommend periodic inspections of the slot connectors to ensure they remain free of dust and contaminants, which maintains low-resistance electrical paths.
How does this base assembly handle thermal loads?

The backplane relies on passive convection and system-level airflow within the Ovation cabinet. Its multi-layer PCB design includes thermal vias to help dissipate heat generated by high-density I/O modules, preventing localized hotspots.
