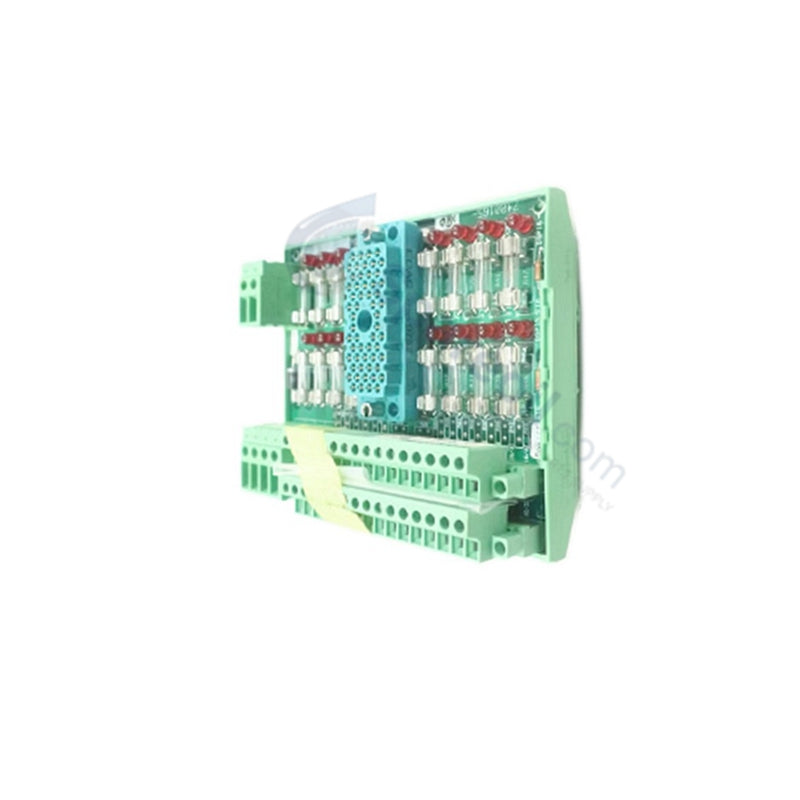

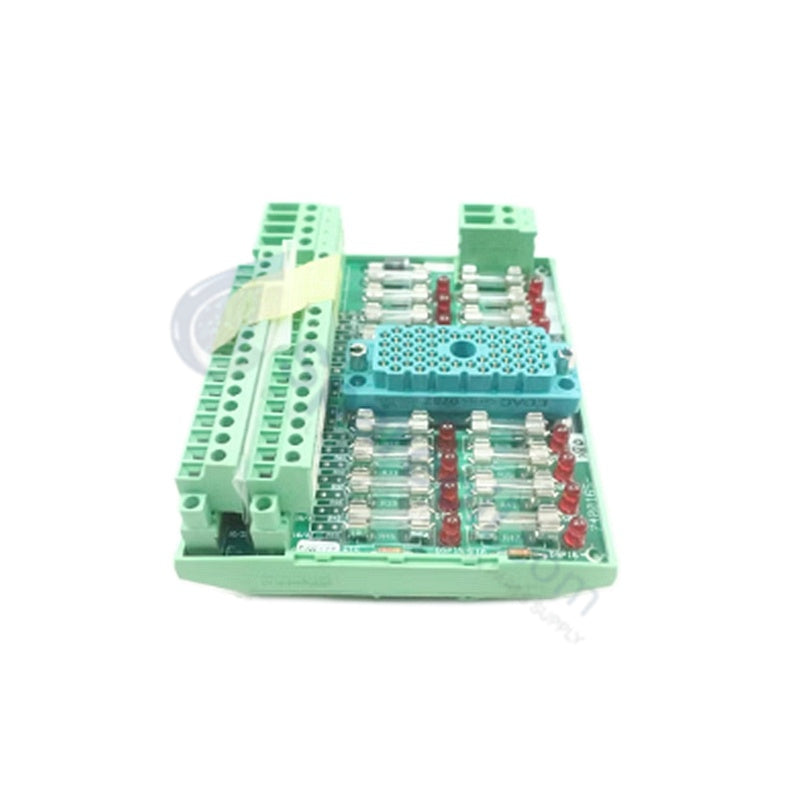

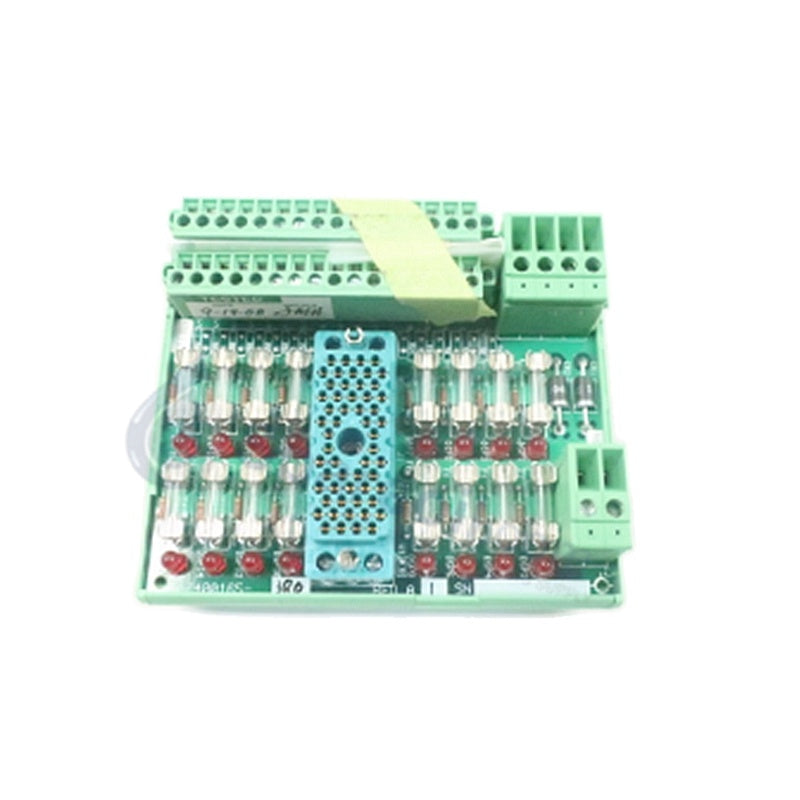

Triconex 7400165-380 Terminal Panel Module

Configured for high-integrity signal transmission in Triconex safety instrumented systems, the Triconex 7400165-380, also cataloged as the 7400165-380 Terminal Panel Module, provides direct physical/electrical execution. The module coordinates wiring paths between active I/O racks and external field elements via a ruggedized 121-point screw terminal block matrix and a 3.8 m shielded multi-conductor assembly (part number 9563-810NJ). Operating with a maximum rated capacity of 10 A at an entry threshold up to 30 VDC, the hardware maintains continuous signal conduction for mission-critical interlocks.

Hardware Specifications

Parameter Specification
Model 7400165-380 (with 9563-810NJ cable assembly)
Brand Triconex
Origin United States
Weight 0.87 lbs (0.4 kg)
Dimensions 14.9 cm x 5.3 cm x 6.8 cm
Operating Temp -20 to +70 deg C
Power Consumption Passive field terminal layout (30 VDC maximum voltage rating)
Maximum Current 10 A total loop capacity
Connection Type Heavy-duty screw terminals
Number of Terminals 121 positions
Shielding Coverage 85% braided copper shield overlay
Conductor Size 22 - 24 AWG stranded copper lines

Galvanic Isolation and Fail-Safe State Execution

The physical interface assembly utilizes structured separation barriers to provide permanent galvanic isolation between adjacent loop channels and structural protective earth nodes. The internal wiring matrix inside the 9563-810NJ cable architecture exhibits an insulation resistance rating exceeding 100 MΩ, preventing voltage leakage paths from compromising the active 2oo3 voting loops. This electrical protection layout ensures noise-free signal paths, maintaining error-free fail-safe state execution variables within the processing logic during high-frequency electromagnetic interference events.

Frequently Asked Questions

Q: What are the specific terminal wire retention torque limits for the 121 screw terminal points?

A: Technical standards define the application of standard field terminal block parameters, requiring technicians to torque the screw terminals between 0.5 to 0.6 Nm using standard non-magnetic screwdrivers. Over-tightening can strip the copper paths, while under-tightening causes contact resistance issues.

Q: How does the braided shielding arrangement interface with the cabinet ground bus?

A: The 9563-810NJ cable features an 85% coverage braided copper shield layer that routes high-frequency noise directly to the chassis frame. Installers must ground this screen drain at only one single node to eliminate ground loop currents.

Q: Does this component require active firmware flash procedures or module synchronization routines?

A: This model operates as a passive terminal panel module and does not house microprocessor structures or firmware flash logic. The module handles pure physical routing, allowing for hot-swap operations without firmware checking delays.

Field Installation Guidelines

  1. Mount the terminal panel module to the internal sub-plate or cabinet rail using the integrated mechanical mounting holes provided on the enclosure frame.
  2. Route the 9563-810NJ shielded multi-conductor assembly away from high-power supply cables to minimize noise coupling.
  3. Strip field wires to the exact recommended length, insert the copper core completely into the screw clamping sleeve, and tighten the terminal firmly.
  4. Verify that the combined field loop current does not exceed the absolute 10 A limitation specified for the panel board.
  5. Clean the screw terminals during routine maintenance stops to avoid the accumulation of airborne particulates or moisture layers.
