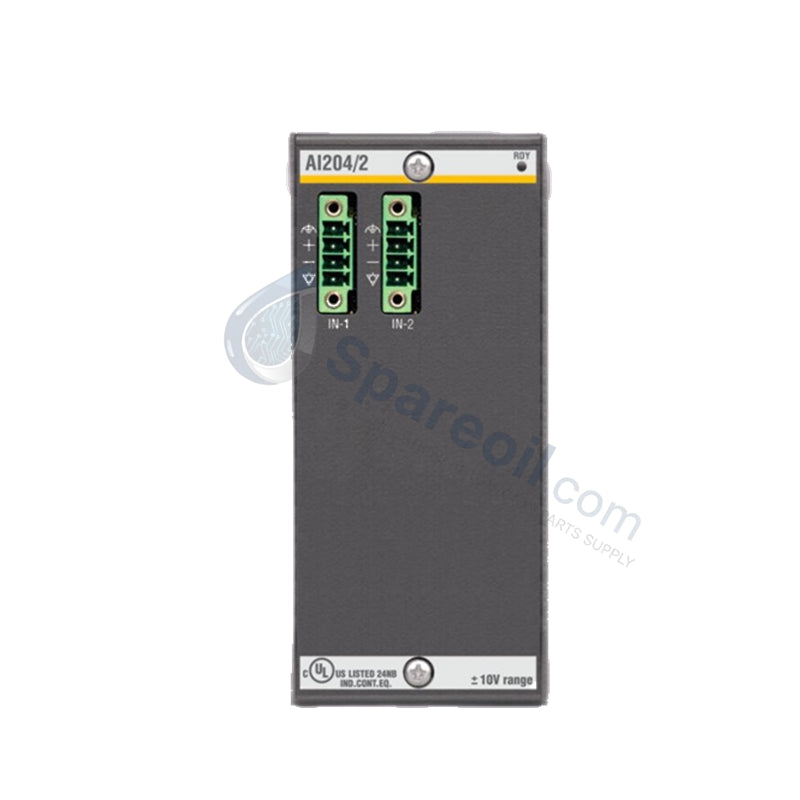

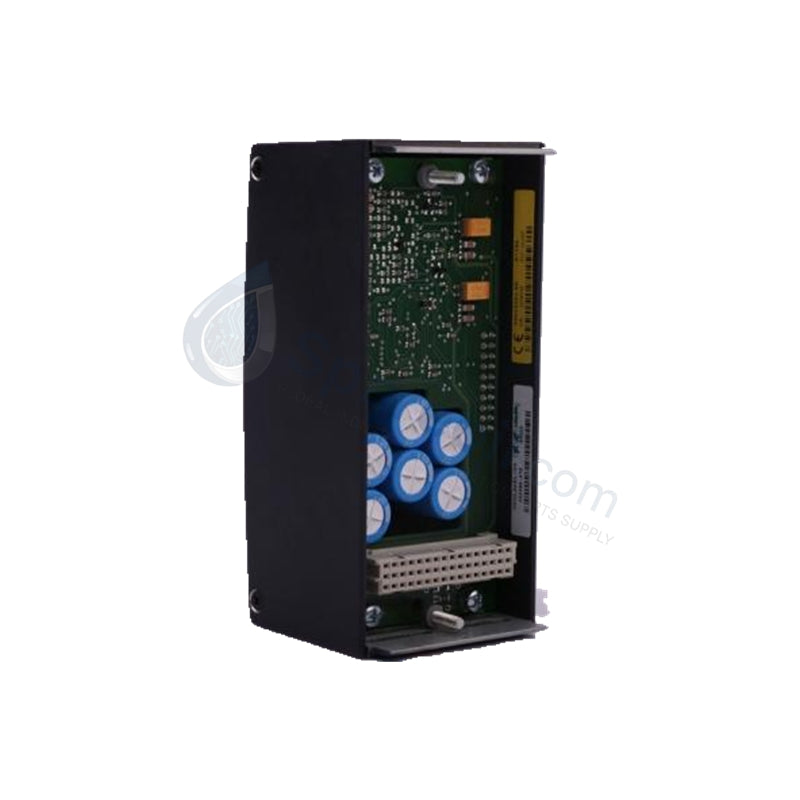

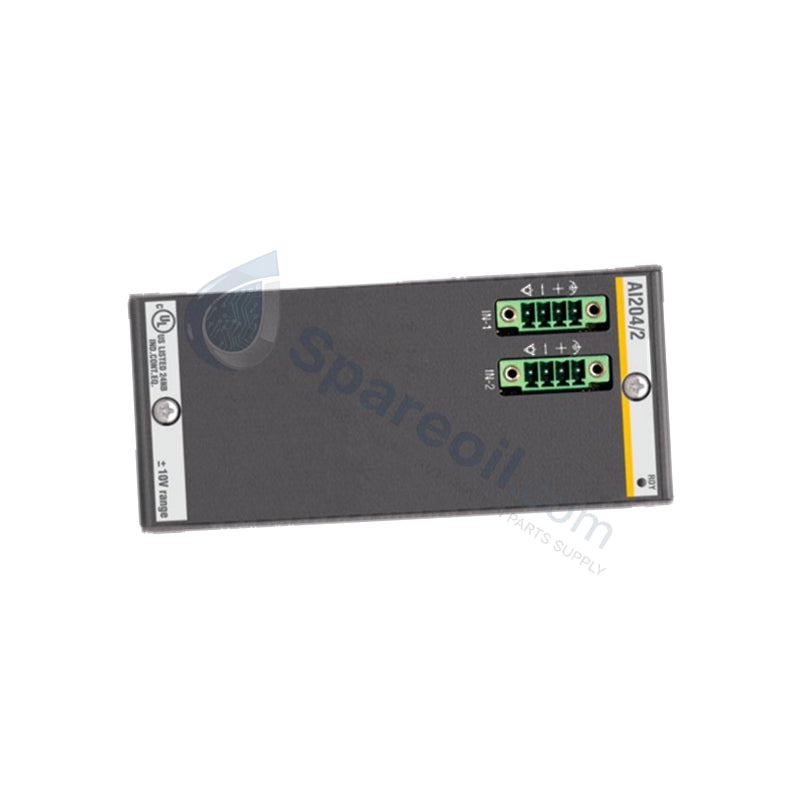

Bachmann AI204/2 M1 Automation System

The Bachmann AI204/2, also cataloged as the AI204/2 Analog Input Module, operates as a dedicated hardware component for high-resolution analog signal acquisition within Bachmann M1 Automation System platforms.

Hardware Specifications

Parameter Specification
Model AI204/2
Brand Bachmann Electronic
Origin Austria / Germany
Weight 1.5 kg (packaged) /  0.5 kg (net)
Dimensions 2.2 cm x 12.4 cm x 12.6 cm
Operating Temp -25 to +70 deg C
Power Consumption 5 W
Input Channels 4 analog input channels
Signal Types Voltage (+/-10 V), Current (0-20 mA / 4-20 mA)
Resolution 16-bit A/D conversion
Accuracy +/-0.1% FS typical
Sampling Rate Up to 1 kHz per channel
Isolation Galvanic isolation between channels and system bus

I/O Density Scaling and Backplane Integration

The hardware subsystem routes digitized telemetry packets across internal high-velocity backplane bus communication pathways directly to the processing stack, suppressing cycle execution jitter. The integrated 16-bit analog-to-digital converter sub-circuits process concurrent sampling profiles across the voltage and current loops up to 1 kHz per channel without dropping frames. This bus coupling architecture facilitates flexible I/O density scaling options within the M1 rack configuration while ensuring permanent firmware flash compatibility with master controller runtimes.

Frequently Asked Questions

Q: What are the continuous electrical isolation limits when mapping concurrent voltage and current loops?

A: The onboard galvanic isolation circuitry completely separates the 4 analog input channels from the logic planes of the internal system bus to prevent common-mode voltage spikes from disrupting backplane bus operations.

Q: How does a running firmware flash sequence on the M1 controller affect the channel inputs?

A: During a firmware flash, the module enters a passive hardware holding pattern. The A/D converter suspends backplane bus data transmission, and the master CPU flags input variables as invalid until the software boot sequence registers the hardware profile.

Q: Is this module capable of supporting active hot-swap insertion within the backplane rack?

A: No. Hot-swapping is not supported on this platform. The M1 base unit assembly must be completely de-energized before mounting or unseating the hardware module to prevent terminal latch-up or damage to the backplane communication pins.

Field Installation Guidelines

  • Chassis Guide Rail Alignment: Align the module frame precisely with the physical slots of the M1 base unit and seat firmly to connect with the high-velocity backplane socket before routing field power.
  • Shield Grounding Matrix: Connect all external analog current loop and voltage cable shields directly to the low-impedance functional earth grounding rail at the control cabinet entry bulkhead.
  • Signal Cable Segregation: Route all low-level 4-20 mA and +/-10 V field sensor wiring within dedicated ducts separated from high-voltage AC motor lines or inductive contactor switches to suppress electromagnetic cross-talk.
  • Terminal Retaining Calibration: Tighten all field terminal wire connections to standard factory torque ratings to maintain stable contact electrical continuity under conditions of constant industrial vibration.
