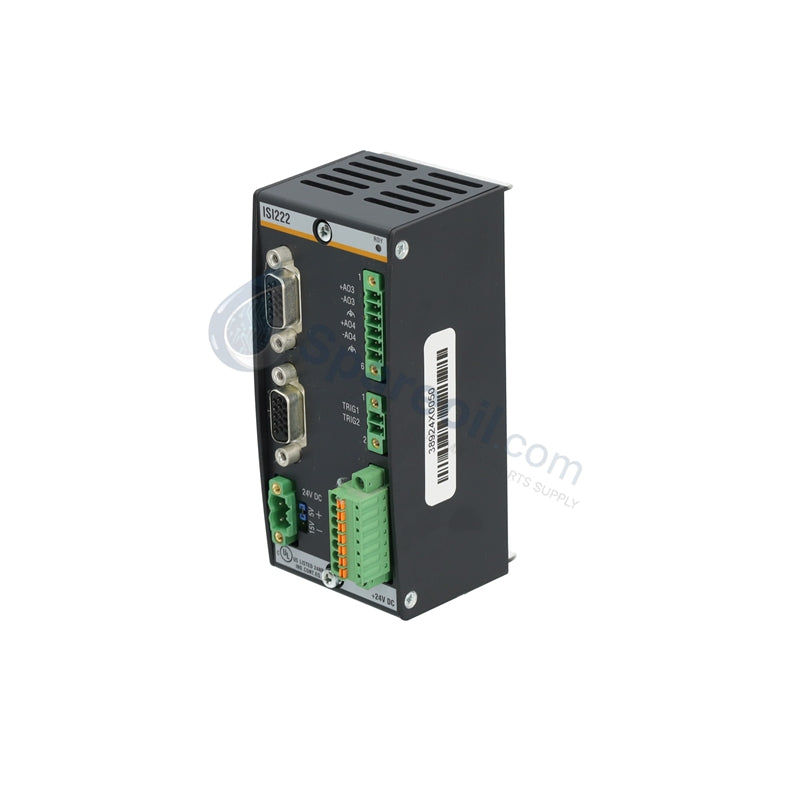

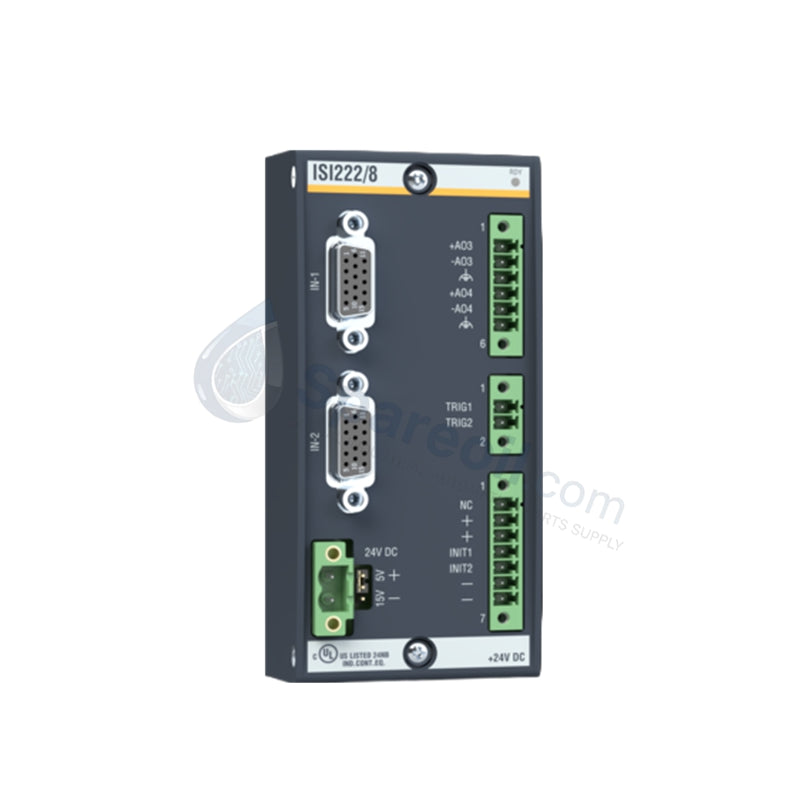

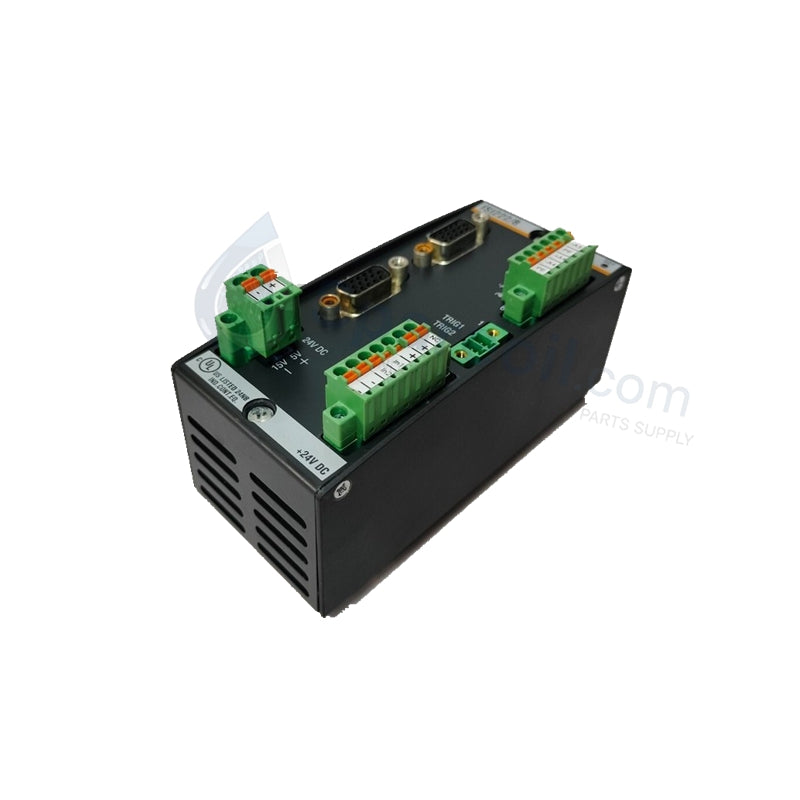

Bachmann ISI222/8 M1 Automation System

The Bachmann ISI222/8, also cataloged as the ISI222/8 Positioning Module, operates as a dedicated hardware component for dual-axis motion control and encoder feedback processing within Bachmann M1 Automation System networks.

Hardware Specifications

Parameter Specification
Model ISI222/8
Brand Bachmann Electronic
Origin Austria / Germany
Weight 0.3 kg
Dimensions 100 x 25 x 120 mm
Operating Temp -25 to +70 deg C
Power Consumption 3 W
Input Channels 2 incremental/SSI encoder channels, 4 fast digital inputs
Output Channels 2 analog outputs (14-bit resolution)
Counter Resolution Full 32-bit counter
Input Frequency Range Up to 8 MHz
Isolation Optical isolation between channels and system bus
Response Time <= 1 ms
Mounting DIN rail / M1 base unit

Deterministic Network Routing and Backplane Integration

The positioning module relies on high-velocity backplane bus communication pathways to execute real-time synchronization with the master controller. This architecture supports integrated system synchronization (I/O-Bus-Sync) to lock the 32-bit counter values and encoder data frames to the system clock cycle without incurring jitter. It allows scalable I/O density options while maintaining firmware flash compatibility with M-SMC, M-CNC, and M-SHAFT system profiles, converting physical encoder pulses into deterministic logic variables.

Frequently Asked Questions

Q: How does the module handle encoder line faults under extreme operating conditions?

A: The internal hardware features built-in continuous error monitoring circuits that perform real-time cable break detection and encoder voltage monitoring to isolate intermittent ESD or wiring failures.

Q: Can the module accept higher frequency inputs without data loss?

A: The internal optical isolation and hardware counter structures are rated to support maximum input pulse frequencies up to 8 MHz on the incremental encoder tracking channels.

Q: What are the backplane load restrictions regarding live module swapping?

A: The hardware architecture requires a complete system backplane power shutdown before inserting or pulling the module from the M1 base rack to avoid interrupting bus communication logic or causing electrical latch-up.

Field Installation Guidelines

  • Base Unit Alignment: Insert the module firmly into the M1 base unit chassis tracking, verifying that the high-velocity backplane bus connectors match completely before locking the assembly.
  • Shield Grounding Matrix: Connect encoder and analog command line shields to the main functional earth grounding bar at the cabinet entrance utilizing low-impedance ground clamps.
  • Cable Separation Architecture: Route high-frequency encoder wires (up to 8 MHz) inside dedicated conduits isolated from 400 VAC motor power feeds to block magnetic cross-talk.
  • Terminal Screw Tensioning: Torque all field terminal wiring points to standard industrial specifications to maintain reliable physical contacts in high-vibration control cabinets.
