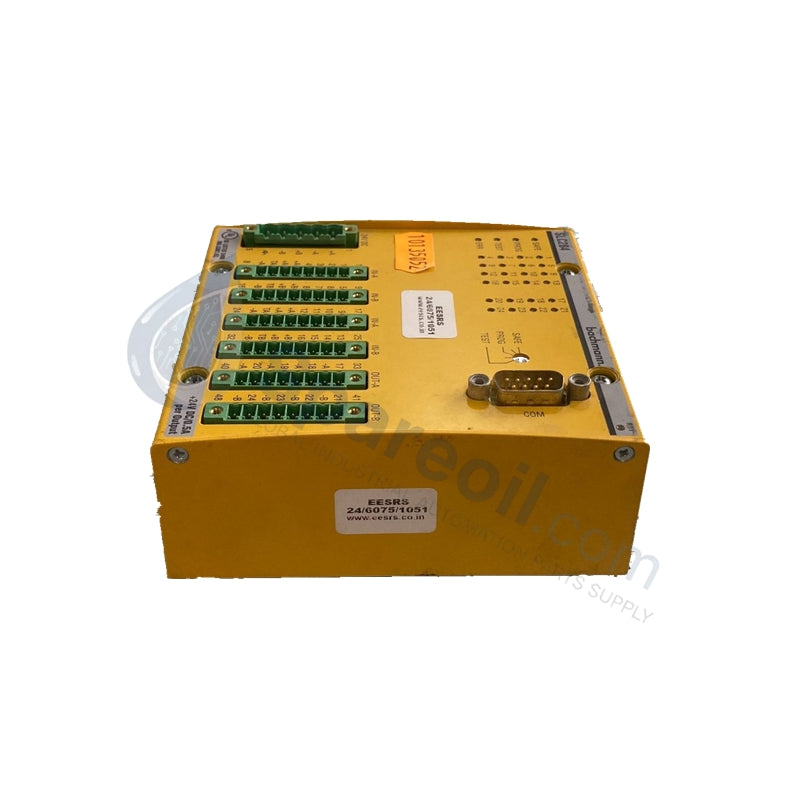

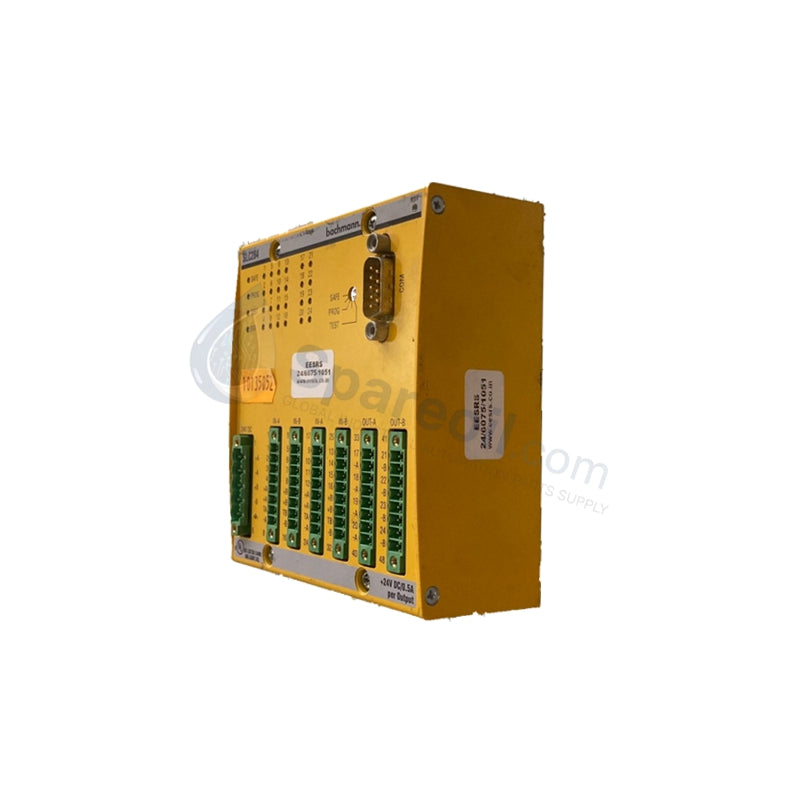

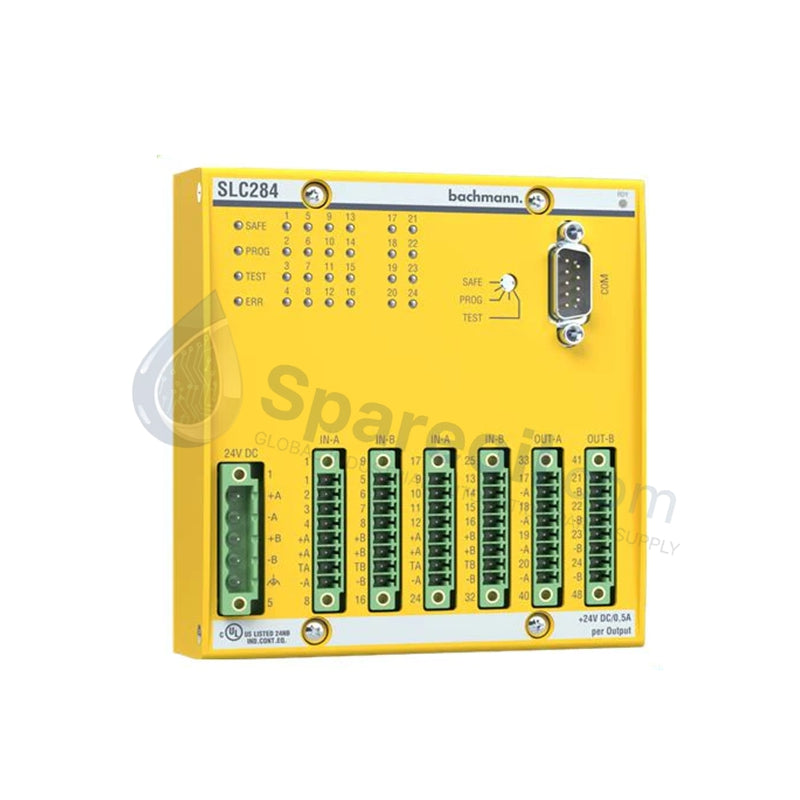

Bachmann SLC284 M1 Automation System
Configured for deterministic logic execution in Bachmann M1 Automation System platforms, the Bachmann SLC284 (SLC284 Security Processor Module) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SLC284 |
| Brand | Bachmann Electronic |
| Origin | Austria / Germany |
| Weight | 0.5 kg |
| Dimensions | 160 mm x 100 mm x 40 mm |
| Operating Temp | -25 to +70 deg C |
| Power Consumption | 5 W |
| Output Voltage | 24 VDC (rated) |
| Output Channels | 32 isolated outputs |
| Output Current | 0.5 A per channel (max) |
| Isolation | Optical isolation between channels and system bus |
| Response Time | <= 1 ms |
| Mounting | DIN rail / M1 base unit |
| Certifications | CE, UL, IEC standards, IEC 61508 approved |
Deterministic Network Routing and Backplane Integration
The security processor module relies on internal high-velocity backplane bus communication pathways to cross-examine data registers across safety network nodes without software jitter. The physical layer processes dedicated safe communication links to distributed input/output blocks over standard bus expansions, FASTBUS, CAN, or bluecom networks. This architecture scales internal I/O density requirements while enforcing firmware flash compatibility across safety-rated controller chassis variants, converting internal CPU logic frames into deterministic field execution signals.
Frequently Asked Questions
Q: What are the backplane integration restrictions regarding live hot-swapping for this security processor?
A: The hardware architecture lacks hot-swap support. The entire backplane base rack must be completely powered down before seating or removing the module to prevent electrical damage to the system bus components.
Q: How is the total current demand validated when all 32 output channels are active?
A: Each channel manages a maximum current load of 0.5 A at 24 VDC. Total simultaneous current consumption must be calculated against the maximum backplane power supply rating to avoid voltage drops on the internal bus logic.
Q: Does the system software require specific licenses to enable the integrated safety functions?
A: Yes. Utilizing the dedicated safety communication pathways and IEC 61508 execution logic requires the corresponding backplane bus communication velocity licenses to be loaded into the engineering software environment.
Field Installation Guidelines
- Base Chassis Engagement: Slide the module firmly along the structural rails of the base unit chassis to secure proper physical seating with the high-speed backplane interface before applying auxiliary power.
- Shield Grounding Matrix: Connect all digital control wire shields to the master cabinet grounding rail using low-impedance grounding clamps to prevent electrical noise interference.
- Conductor Separation Rules: Route the 24 VDC low-voltage signal lines through dedicated wire paths separated from high-voltage AC motor or inductive breaker switching circuits.
- Terminal Retaining Torque: Tighten all field wiring screws to standard engineering torque matrices to eliminate high-resistance points under continuous industrial machine vibration.
