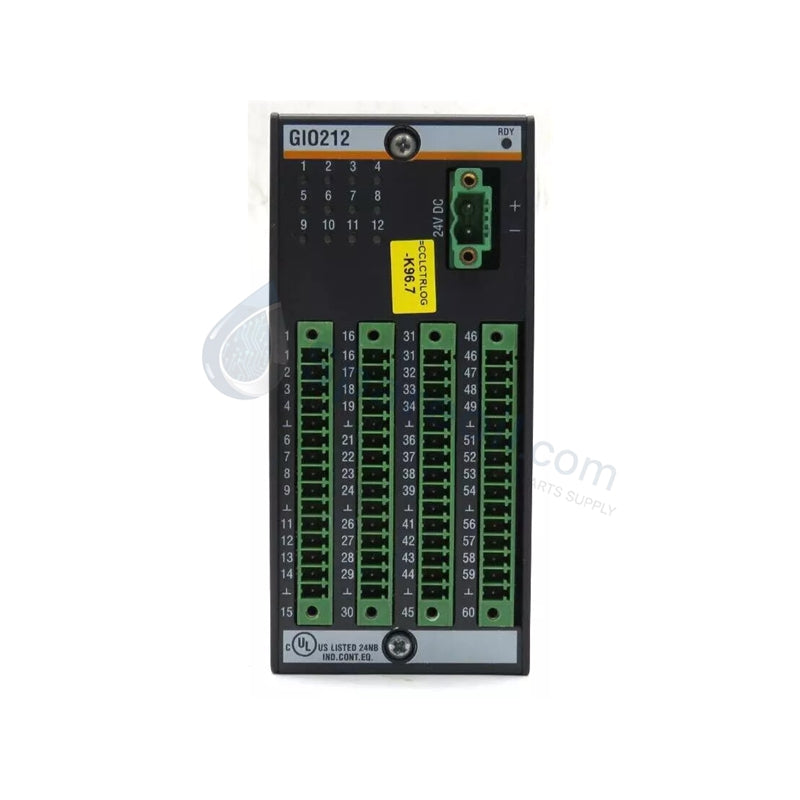

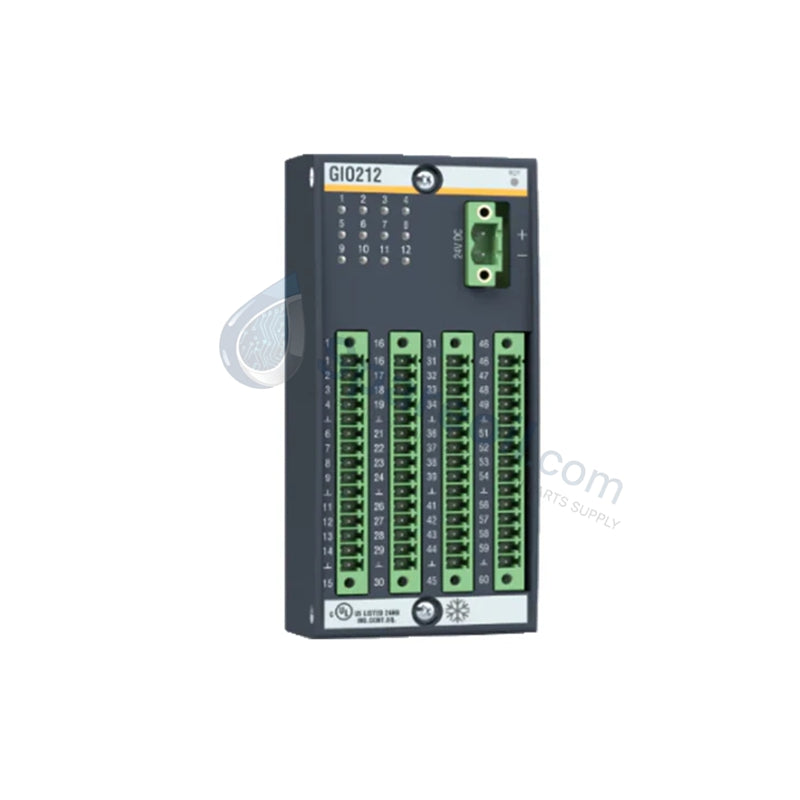

Bachmann GIO212 M1 Automation System

The Bachmann GIO212, also cataloged as the GIO212 Universal Input/Output Module, operates as a dedicated hardware component for multi-signal analog and digital interfacing within Bachmann M1 Automation System platforms.

Hardware Specifications

Parameter Specification
Model GIO212
Brand Bachmann Electronic
Origin Austria / Germany
Weight 0.5 kg
Dimensions 160 mm x 100 mm x 40 mm
Operating Temp -25 to +70 deg C
Power Consumption 5 W
Configurable Channels 16 channels (analog/digital configurable input or output)
Analog Signal Resolution 16-bit A/D and D/A conversion
Analog Input Ranges +/-10 V, 0/4-20 mA, Pt100/Pt1000, Thermocouples
Digital Input Rating 24 VDC (15-30 VDC range), ~ 7 mA per channel
Digital Output Rating 24 VDC, 0.5 A per channel max
Signal Isolation Optical isolation between channels and system bus
Execution Response Time <= 1 ms

I/O Density Scaling and Backplane Integration

The universal interface module utilizes embedded parameter registers to adjust electrical execution paths on a per-channel basis, adapting local I/O density scaling profiles without modifying the physical footprint of the backplane sub-assembly. Internal high-velocity backplane bus communication pathways facilitate the transmission of high-resolution 16-bit analog conversions, 32-bit counter metrics, and fast binary transitions directly to the runtime engine kernel. This software-defined routing mechanism maintains strict hardware timing tolerances while ensuring permanent firmware flash compatibility with the primary M1 processor platform during active operations.

Frequently Asked Questions

Q: How does the internal backplane logic respond when changing channel parameters between analog and digital functions?

A: Channel configuration matrices are locked during the initial controller boot sequence via the system configuration files. Modifying channel assignments requires a complete restart of the M1 rack to upload new hardware profiles over the backplane bus communication interface.

Q: Is this universal hardware component hot-swappable on an energized M1 base unit?

A: No. The backplane design does not support active hot-swap functionality. Power to the M1 base rack must be isolated prior to removing or seating the module to protect the internal optical isolation components from transient voltage damage.

Q: What buffering capacity is available for high-speed digital counter or period measurement operations?

A: The module contains an integrated physical hardware FIFO buffer capable of storing up to 1022 timed values for pulse length and period measurements, insulating the data from backplane bus communication latencies.

Field Installation Guidelines

  • Backplane Socket Alignment: Insert the module housing straight into the M1 base unit guide channels, applying even pressure until the multi-pin rear connector is fully seated into the passive backplane.
  • Shield Grounding Matrix: Clamp all analog instrumentation and high-speed digital signal cable shields to the low-impedance master cabinet ground bus at the physical entry partition.
  • Conductor Type Segregation: Maintain separate physical wiring paths for 24 VDC digital actuation loops, low-level RTD/thermocouple signals, and adjacent high-voltage power lines.
  • Thermal Boundary Clearances: Verify a minimum vertical gap of 50 mm above and below the module ventilation openings to permit unobstructed convection airflow through the assembly.
