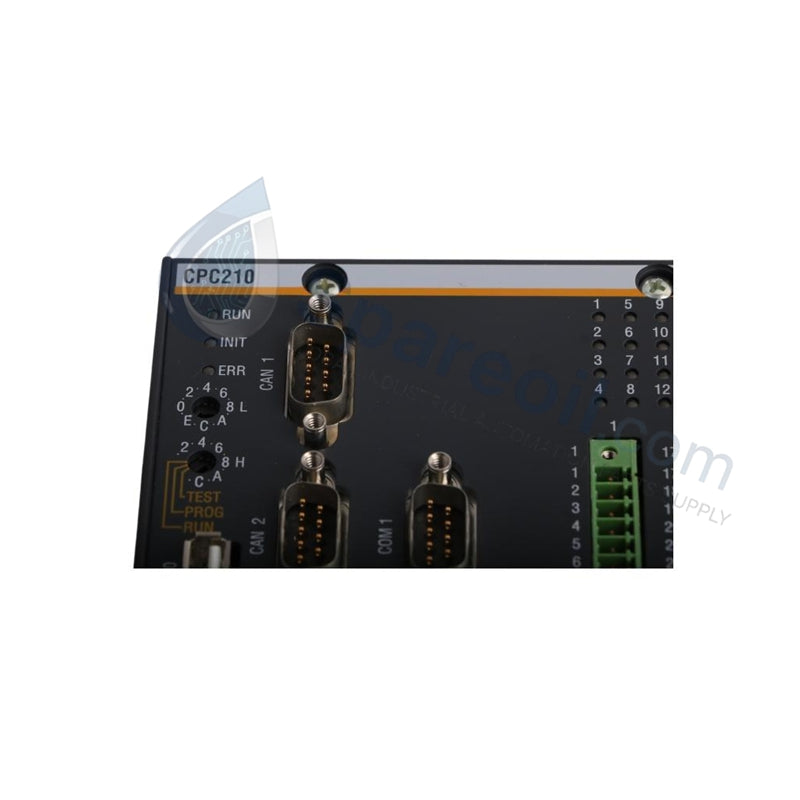

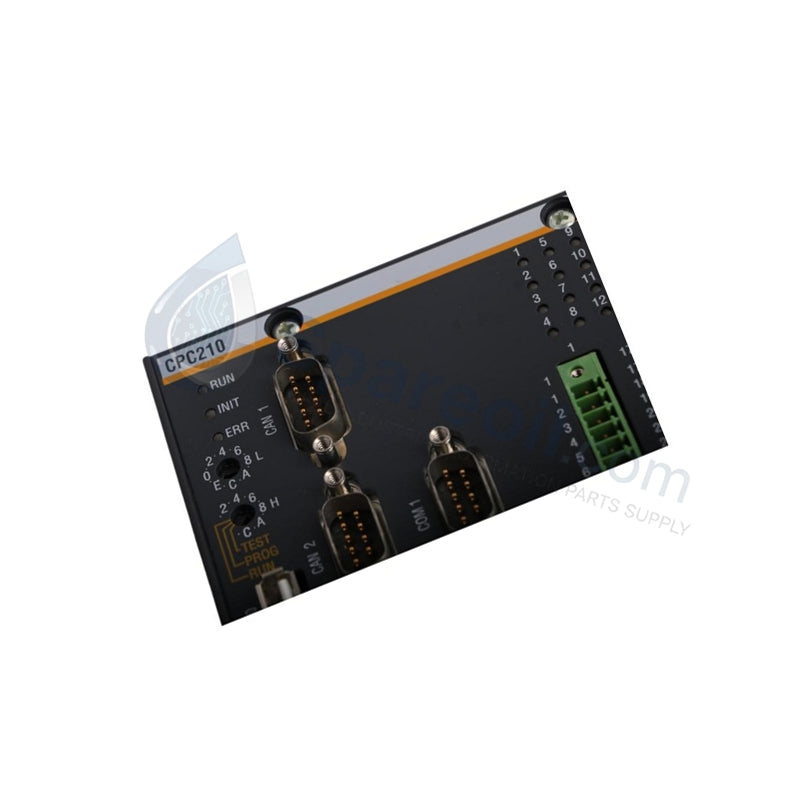

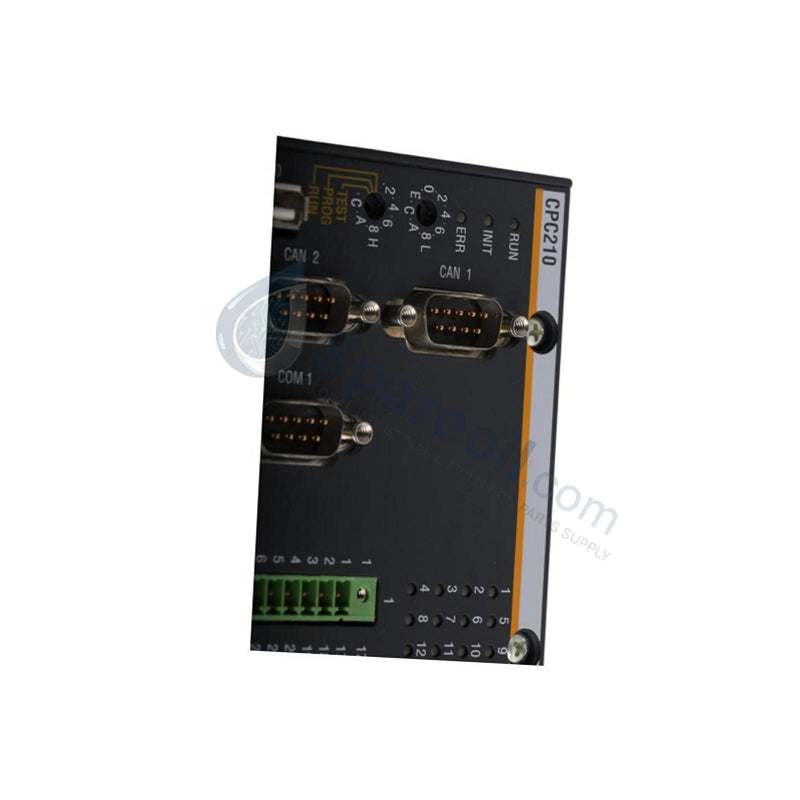

Bachmann CPC210 M1 Automation System

The Bachmann CPC210, also cataloged as the CPC210 CPU Processor Module, operates as a dedicated hardware component for control logic execution within Bachmann M1 Automation System platforms.

Hardware Specifications

Parameter Specification
Model CPC210
Brand Bachmann Electronic
Origin Austria / Germany
Weight 0.5 kg
Dimensions 160 mm x 100 mm x 40 mm
Operating Temp -25 to +70 deg C
Power Consumption 10 W
Processor Type 32-bit RISC processor
Clock Speed 200 MHz
System Memory 64 MB SDRAM, 16 MB Flash
Operating System Bachmann real-time OS (VxWorks architecture)
Communication Interfaces 2x Ethernet (10/100 Mbit), 1x RS-232, 1x CAN bus
Input Power Rating 24 VDC

Deterministic Network Routing and Backplane Integration

The processor module utilizes an integrated system architecture to establish low-latency communication via internal high-velocity backplane bus communication pathways. This localized interface logic enforces microsecond-level synchronization across neighboring input/output channels, preventing signal jitter when executing motion trajectories or fast sequence loops. This high-density backplane interface optimizes total I/O density scaling options while ensuring absolute firmware flash compatibility between peripheral functional cards and the central real-time VxWorks kernel.

Frequently Asked Questions

Q: How does the processor handle peripheral configuration changes during an active firmware flash sequence?

A: An active firmware flash requires the processor to transition out of execution mode into a safe standby state. Peripheral I/O modules connected across the high-velocity backplane will drop to predefined safe values until the master boot block reinitializes.

Q: What is the maximum current load limit this module can draw from the 24 VDC bus input?

A: The central processor assembly has a nominal power consumption of approximately 10 W at 24 VDC. Auxiliary module additions across the backplane bus will scale the total system power consumption metrics and must be calculated against the main supply limits.

Q: Does the CAN bus interface require independent physical termination at the module connector?

A: Yes. When utilizing the embedded CAN bus interface for networking field devices, a standard 120 Ohm termination resistor must be physically installed across the terminal pins at the end points of the network line.

Field Installation Guidelines

  • Backplane Alignment Matrix: Insert the module along the chassis tracking grooves until the internal multi-pin backplane bus adapter locks with the connector interface to prevent pins from bending.
  • Shield Grounding Matrix: Clamp all Ethernet and CAN bus communications cables directly to the master copper ground terminal rail at the cabinet entrance to mitigate high-frequency interference.
  • Separation of Power Circuits: Route the 24 VDC processor supply conductors in wiring ducts separated from 400 VAC motor leads or variable frequency drive cables.
  • Airflow Clearance Boundaries: Maintain a minimum 50 mm free space envelope above and below the module assembly to allow correct convection airflow over the internal heat sinks.
