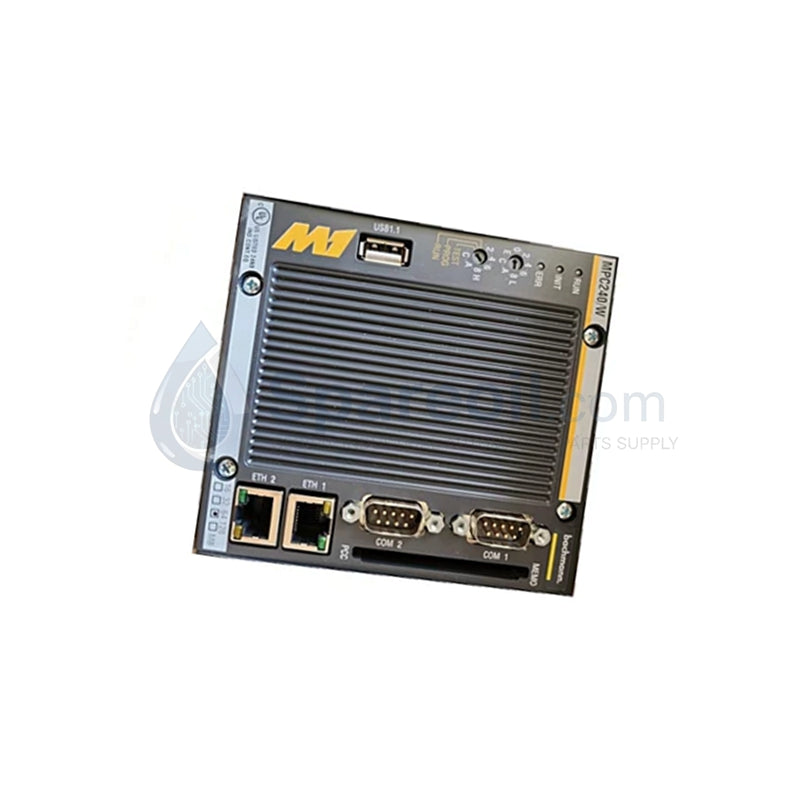

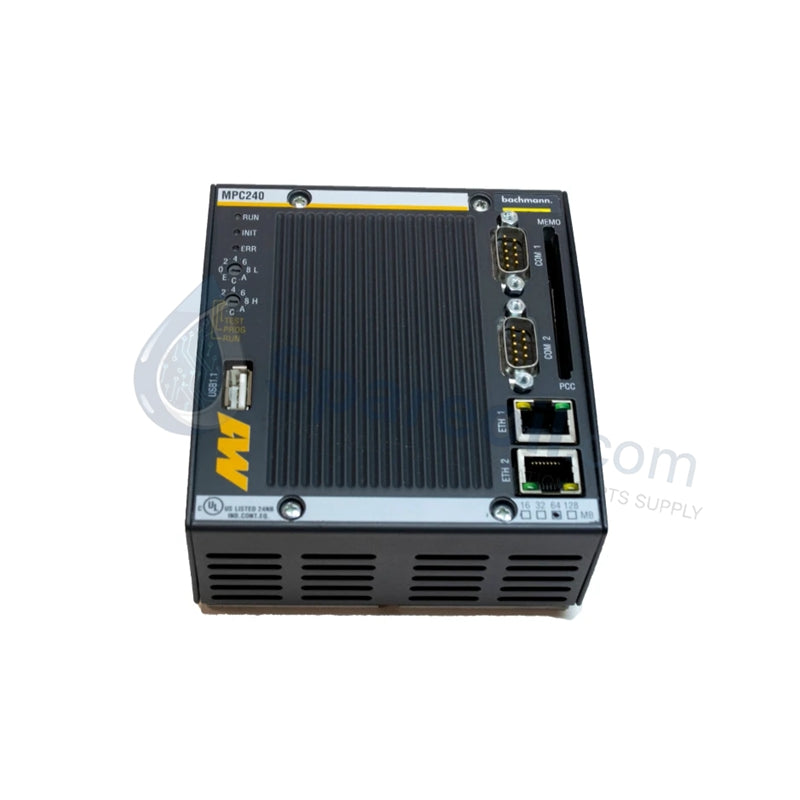

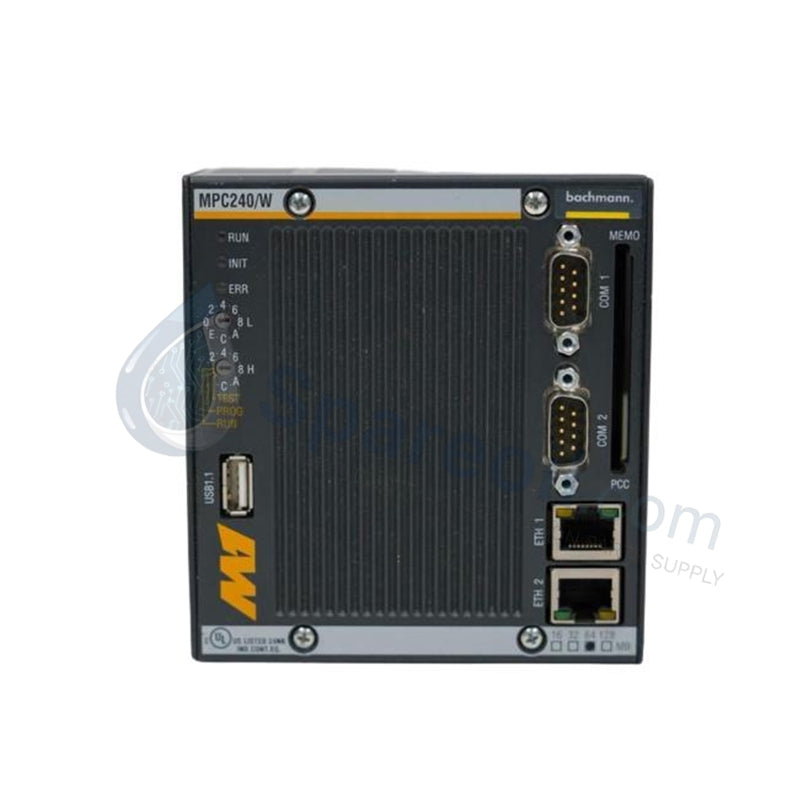

Bachmann MPC240/W M1 Automation System

The Bachmann MPC240/W, also cataloged as the MPC240 CPU Processor Module, operates as a dedicated hardware component for automation program execution within Bachmann M1 Automation System platforms.

Hardware Specifications

Parameter Specification
Model MPC240/W (MPC240-64/512 variant)
Brand Bachmann Electronic
Origin Austria / Germany
Weight  0.5 kg
Dimensions 160 mm x 100 mm x 40 mm
Operating Temp -25 to +70 deg C
Power Consumption 12 W
Processor Type 32-bit RISC processor
Clock Speed 400 MHz
System Memory 128 MB SDRAM, 32 MB Flash
Operating System Bachmann real-time OS (VxWorks architecture)
Communication Interfaces 2x Ethernet (10/100 Mbit), 1x RS-232, 1x CAN bus
Input Power Rating 24 VDC

Deterministic Network Routing and Backplane Integration

The processor module establishes high-velocity backplane bus communication pathways to regulate downstream peripheral interfaces without introducing software scheduling jitter. This localized hardware execution environment guarantees real-time cycle synchronization across high-density digital and analog I/O points. By keeping critical control matrices tied directly to the central VxWorks kernel runtime engine, the unit manages variable I/O density scaling options while ensuring permanent firmware flash compatibility across legacy and current M1 system configurations.

Frequently Asked Questions

Q: What are the functional constraints concerning live backplane hot-swapping for this central processor?

A: This CPU card does not support hot-swap capabilities. The internal backplane bus interface requires a complete power shutdown of the M1 rack before unseating or inserting the module to prevent digital component failure.

Q: How are field module parameters affected during an active firmware flash sequence on the CPU?

A: When executing a firmware flash sequence, the processor halts active program execution, driving connected backplane modules to predefined safe fallback states until the software image is verified and reloaded.

Q: Does the embedded CAN bus channel require separate external power or termination?

A: The physical CAN bus channel is powered through the internal system rail, but it requires standard 120 Ohm termination resistors placed across the physical data lines at each endpoint of the physical network.

Field Installation Guidelines

  • Backplane Socket Insertion: Align the module frame along the integrated chassis slots and push straight back into the M1 rack to mate the multi-pin backplane connector cleanly without bending pins.
  • Shield Grounding Matrix: Terminate all communication cable shields (Ethernet, CAN, RS-232) directly on the functional low-impedance grounding rail located at the cabinet entry bulkhead.
  • Separation of Signal Paths: Route the low-voltage 24 VDC supply conductors and high-speed communication wiring through wire ducts isolated from high-voltage inductive lines and AC motor cables.
  • Thermal Envelope Maintenance: Maintain a continuous physical boundary of at least 50 mm above and below the module housing to allow adequate air circulation across the chassis vent slots.
