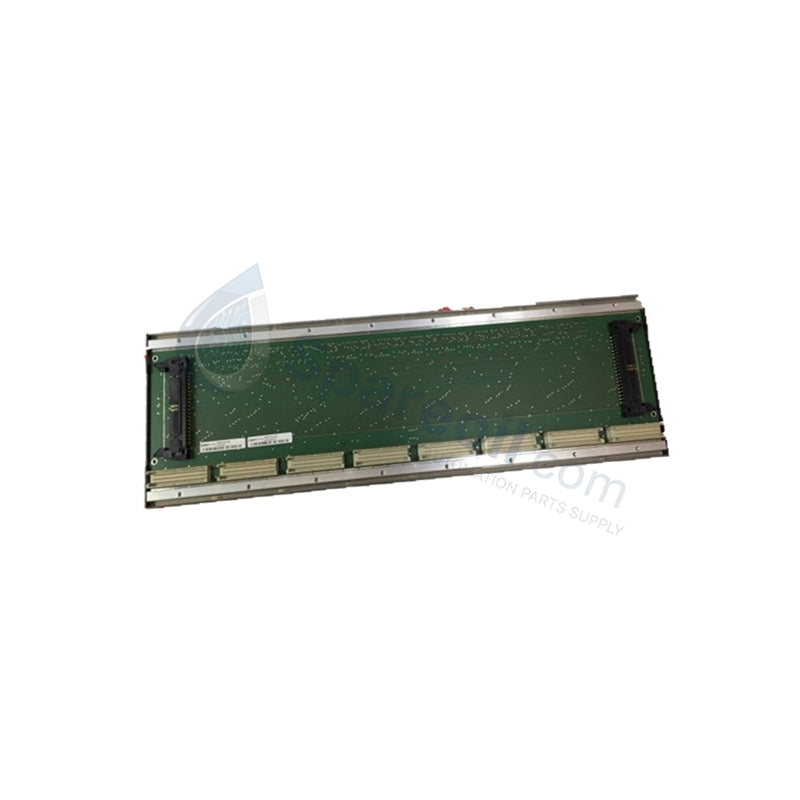

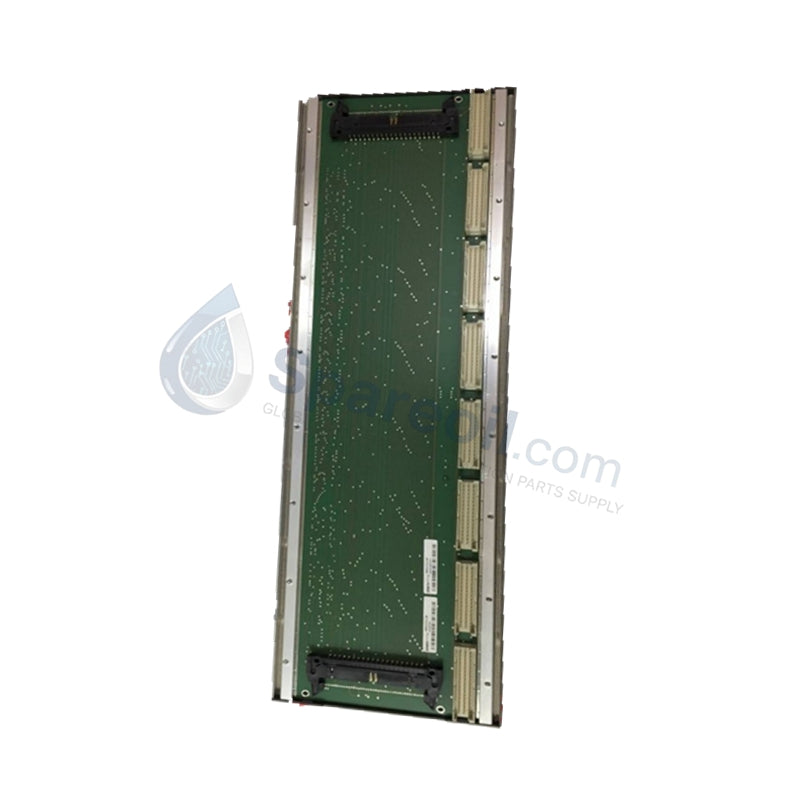

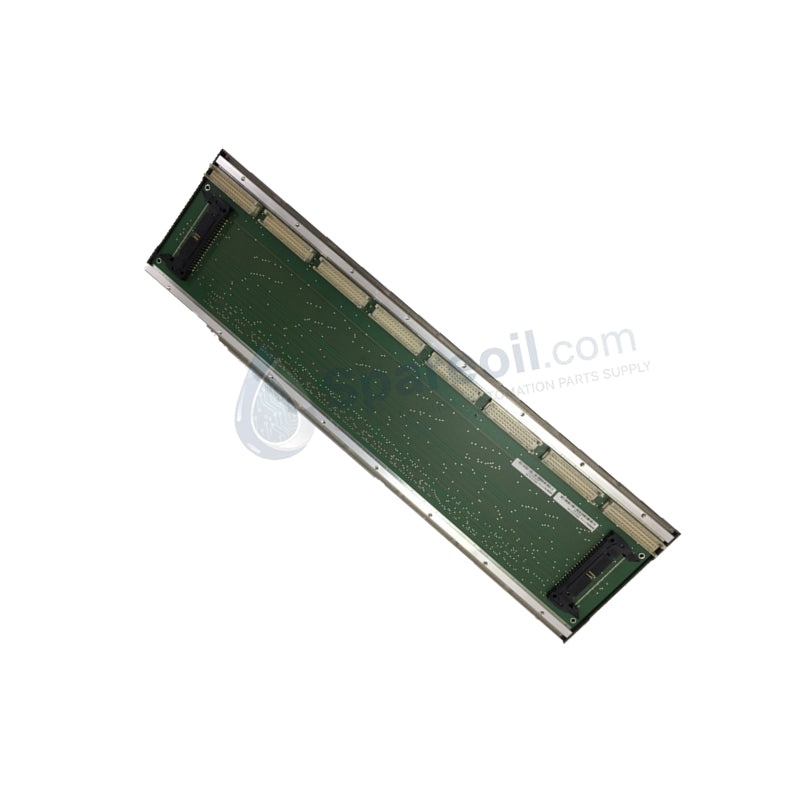

BS208 Bachmann 8-Slot Base Rack | New & Original Stock

Availability: 99 left in stock

Bachmann BS208 M1 Automation System The Bachmann BS208, also cataloged as the BS208 Base Rack, operates as a dedicated hardware...

SKU: BS208

Manufacturer: Bachmann
Product No.: BS208
Product Type: Base Racks
Product Origin: Germany
Payment:T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bachmann BS208 M1 Automation System

The Bachmann BS208, also cataloged as the BS208 Base Rack, operates as a dedicated hardware component for module mounting and bus distribution within Bachmann M1 Automation System platforms.

Hardware Specifications

Parameter	Specification
Model	BS208
Brand	Bachmann Electronic
Origin	Austria / Germany
Weight	0.7 kg
Dimensions	438 mm x 121 mm x 25 mm
Operating Temp	-20 to +60 deg C
Power Consumption	Passive component (system backplane dependent)
Module Capacity	8 module slots
Construction	High-strength aluminum
Cooling Matrix	Passive convection cooling

I/O Density Scaling and Backplane Integration

The chassis frame routes power rails and processing lines across a passive structure to interconnect up to 8 slots without active semiconductor nodes. This layout enables real-time synchronization between the master processor card and adjacent modules by running data paths through standard high-velocity backplane bus communication pathways. The architecture maintains direct physical and electrical properties required for full firmware flash compatibility across attached components, allowing field engineers to scale I/O density configurations while preserving deterministic network timing tolerances under continuous vibration.

Frequently Asked Questions

Q: How does the passive backplane bus handle high-density module insertion during active system operation?

A: The passive architecture lacks isolated live-insertion sub-circuits. The main power supply feed to the backplane rack must be completely de-energized before unseating or adding components to prevent signal line corruption or electrical arcing across the bus pins.

Q: What are the current capacity limits for the internal backplane bus lines when filling all 8 slots?

A: The structural copper bus tracks are optimized to handle standard continuous M1 module load matrices. Total power consumption from the coupled CPU and I/O modules must be validated against the maximum rating of the installed power supply module to prevent localized voltage drops.

Q: Does the physical backplane assembly require independent firmware flash upgrades to maintain compatibility?

A: No. The backplane operates as a completely passive mechanical and electrical routing interface. It contains no onboard microprocessors, meaning it is immune to firmware conflicts and maintains permanent hardware-level compatibility.

Field Installation Guidelines

Chassis Grounding Matrix: Connect the aluminum chassis body directly to the master control cabinet copper grounding bar using a low-impedance conductor to ensure adequate shielding.
Module Alignment Execution: Slide each functional module precisely along the integrated physical guide tracks of the slot to ensure square engagement with the backplane pin sockets.
DIN Rail Mounting Stability: Verify that the rear tensioning springs lock securely onto the standard DIN rail structure to prevent mechanical shifting in high-vibration equipment environments.
Convective Thermal Clearances: Maintain unobstructed boundaries above and below the rack assembly to support proper passive convection cooling across the internal heat dissipation pathways.
