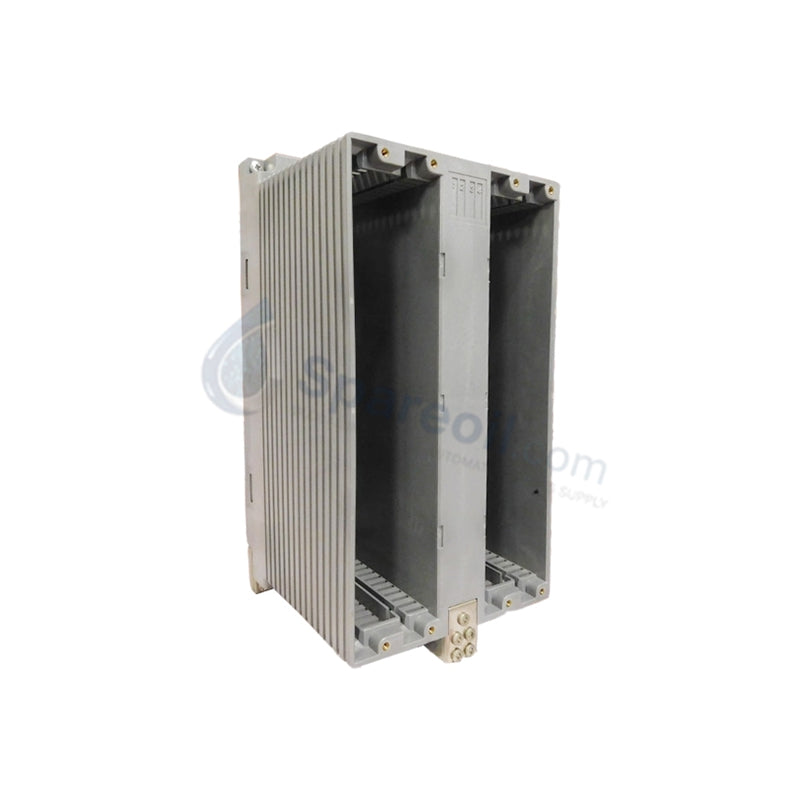

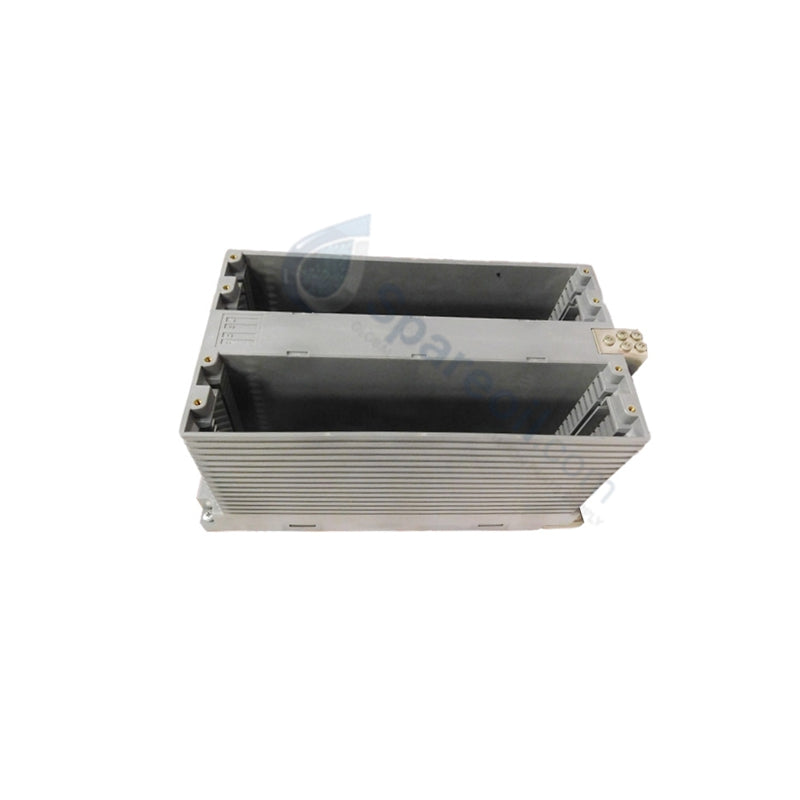

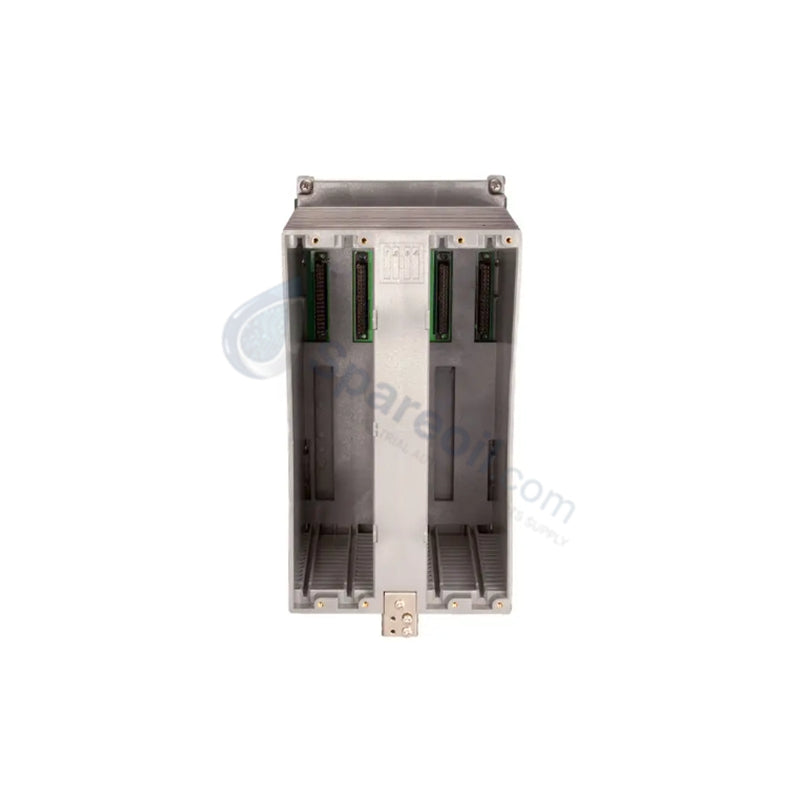

YOKOGAWA AMN32 Nest for Connector I/O Module

Configured for high-density signal termination in CENTUM CS-series control platforms, the YOKOGAWA AMN32 (AMN32 Nest for Connector I/O Module) provides direct physical/electrical execution of field signal aggregation. This module consolidates multiple analog and digital inputs into a connector-based backplane, streamlining interface connectivity between field instrumentation and the DCS control network.

Hardware Specifications

Parameter Specification
Model AMN32
Brand YOKOGAWA
Origin Japan
Weight 0.5 kg
Dimensions 15.2 cm x 12.7 cm x 25.4 cm
Operating Temp -20 deg C to 70 deg C
Power Consumption < 10 W
Channel Capacity 32 I/O points
Connector Type 32-pin female standard interface
Protection Rating IP65

DCS Process Control Connectivity

The AMN32 utilizes channel-to-channel isolation principles established by the CENTUM CS series architecture to maintain signal integrity during data acquisition. By integrating MODBUS RTU and serial communication protocols (RS-232/422/485) directly into the backplane nest, the module facilitates transparent data exchange between disparate field devices and the DCS controller. To ensure stability across the signal loop, the module implements electrical filtering that limits common-mode noise propagation, preventing transient interference from corrupting sensitive analog measurements.

Frequently Asked Questions

Q: Is the AMN32 module capable of hot-swapping within the I/O rack?

A: No. The AMN32 design does not support hot-swapping; field signals and power must be isolated before performing module removal or maintenance to prevent electrical faults and potential system communication errors.

Q: How should the backplane current be calculated when utilizing mixed analog and digital signals?

A: While the AMN32 provides the physical infrastructure, total current draw must be governed by the power limitations of the specific CENTUM CS system rack being utilized. Ensure the sum of all module current consumption does not exceed the rack power supply capacity.

Field Installation Guidelines

  1. Mount the AMN32 nest onto the cabinet backplane using the provided rack-mounting hardware; ensure the chassis maintains a secure ground connection to comply with IP65 shielding requirements.
  2. Align the 32-pin female connectors precisely with the I/O card mating pins; verify that no pins are bent during engagement.
  3. Route field wiring according to the specific protocol requirements (RS-232/422/485); utilize shielded cables to maintain signal fidelity, grounding the shields at the designated cabinet entry point.
  4. Verify the power supply voltage (DC 12-24 V) using a calibrated voltmeter before activating the module.
  5. Perform a diagnostic scan of the module status LEDs upon initial power-up to ensure all channels are active and mapped correctly within the DCS configuration.
