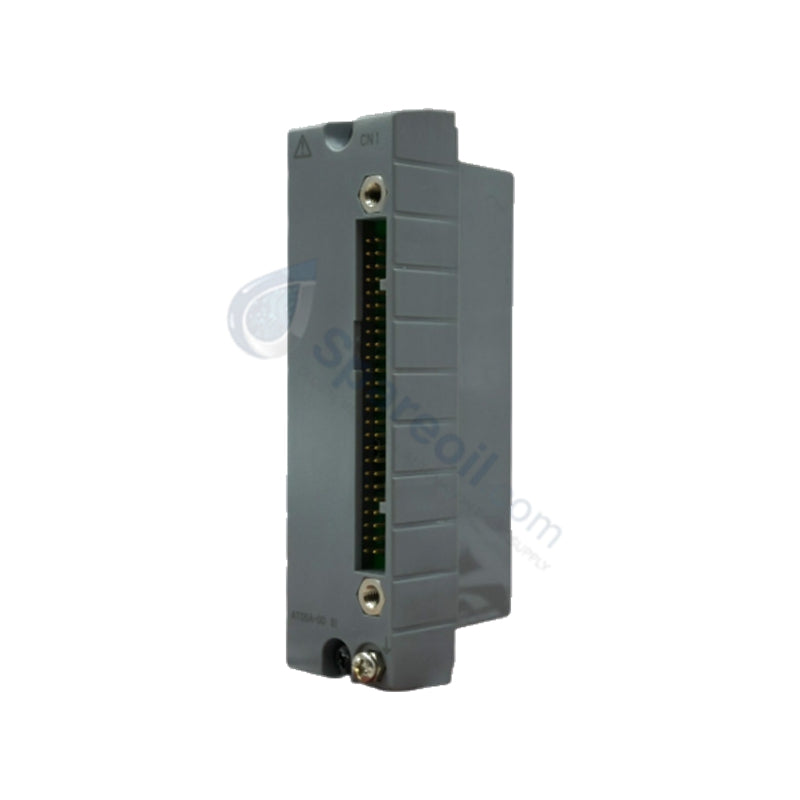

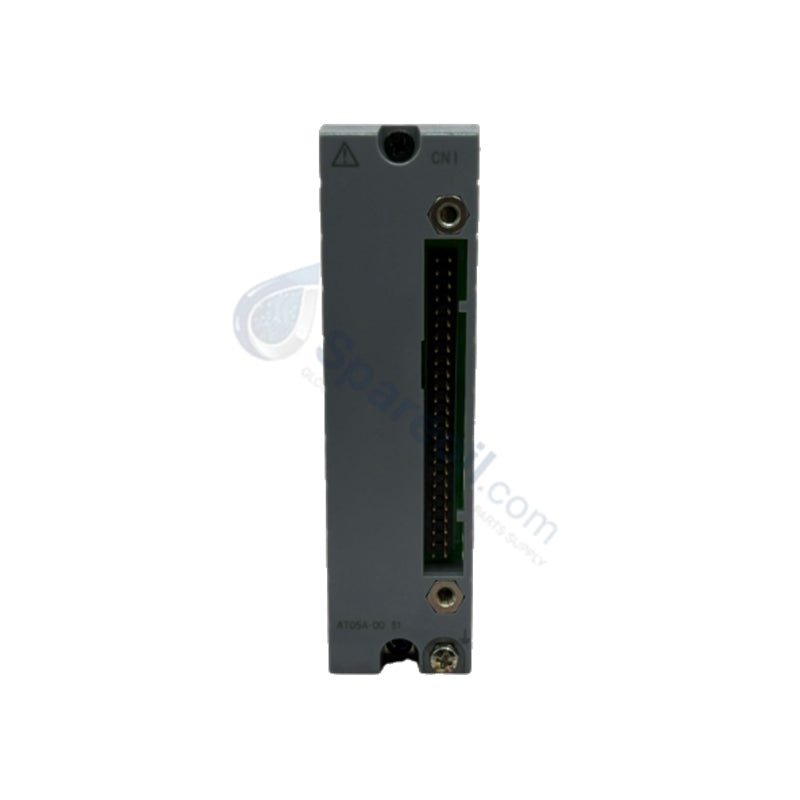

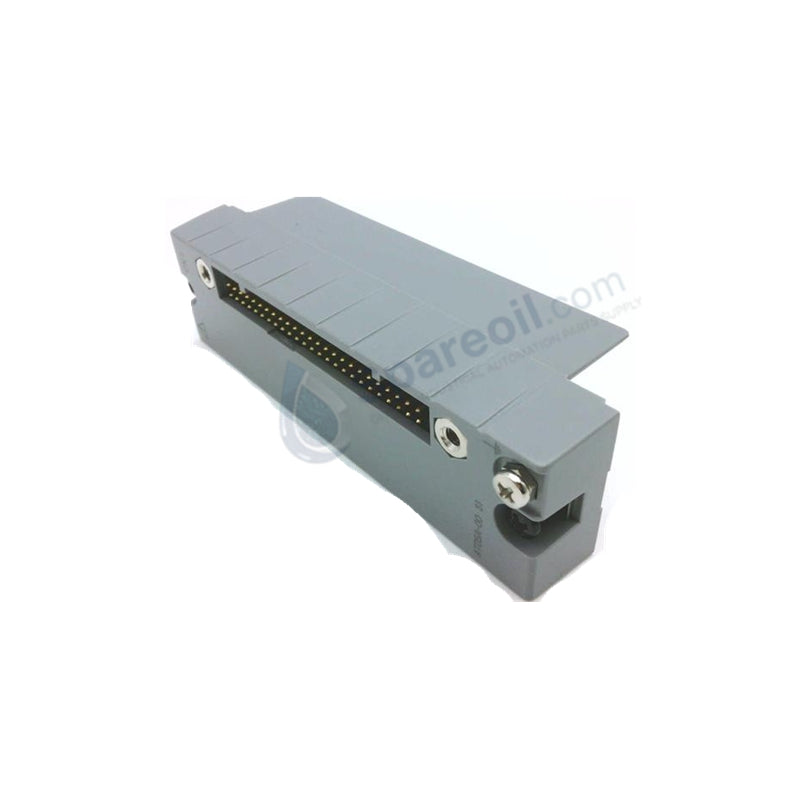

YOKOGAWA ATD5A-00 S1 Cable Interface Adapter

Configured for high-density field signal termination in CENTUM VP and CS 3000 systems, the YOKOGAWA ATD5A-00 S1 (ATD5A-00 Cable Interface Adapter) provides direct physical and electrical execution of signal routing between digital output modules and external field devices.

Hardware Specifications

Parameter Specification
Model ATD5A-00 S1
Brand YOKOGAWA
Origin China
Weight 0.2 kg
Dimensions 107.5 mm x 130 mm x 32.8 mm
Operating Temp Standard industrial cabinet environments
Power Consumption Passive (Derived from 24 VDC I/O loop)
Interface Type 32-channel KS Cable Adapter
Withstand Voltage 2 kV AC (System to Output)
Termination Pressure clamp terminal block

4-20 mA HART Loop Protocol and DCS Connectivity

The ATD5A-00 serves as a critical interface for Yokogawa FIO modules, such as the ADV551, ensuring that signal integrity is maintained from the DCS backplane to the field terminal level. While primarily utilized for digital output switching, the mechanical design facilitates seamless integration within cabinets supporting HART loop protocol instrumentation. The adapter incorporates channel-to-channel isolation architecture, which is required to minimize potential electromagnetic crosstalk between adjacent signal loops. By utilizing standardized KS cable connectors, this adapter ensures deterministic signal mapping, reducing manual wiring errors during the commissioning of field control stations.







Frequently Asked Questions

Q: Does the ATD5A-00 adapter require an external power supply?

A: No, the adapter is a passive interconnect component. It derives power directly from the connected digital output module's 24 VDC supply loop.

Q: Is the terminal block compatible with all wire gauges?

A: The pressure clamp terminals are designed for standard industrial control wiring. Ensure that the selected wire cross-section falls within the manufacturer's specified range for the terminal block to maintain a secure mechanical connection and prevent high-resistance joints.

Field Installation Guidelines

  1. Ensure the control cabinet is de-energized before mounting the adapter to the rack or DIN rail to avoid accidental short-circuits.
  2. Align the KS cable connector with the corresponding port on the ADV551 or compatible digital output module.
  3. Verify that the locking mechanism on the cable connector is fully engaged to prevent intermittent signal loss due to vibration.
  4. Route field wiring into the pressure clamp terminals, ensuring sufficient slack to prevent mechanical strain on the module housing.
  5. Perform a point-to-point continuity check between the field terminal and the DCS controller I/O point to confirm correct mapping prior to system startup.
