133292-01 Bently Nevada 3500 Series Datasheet & Technical Manual

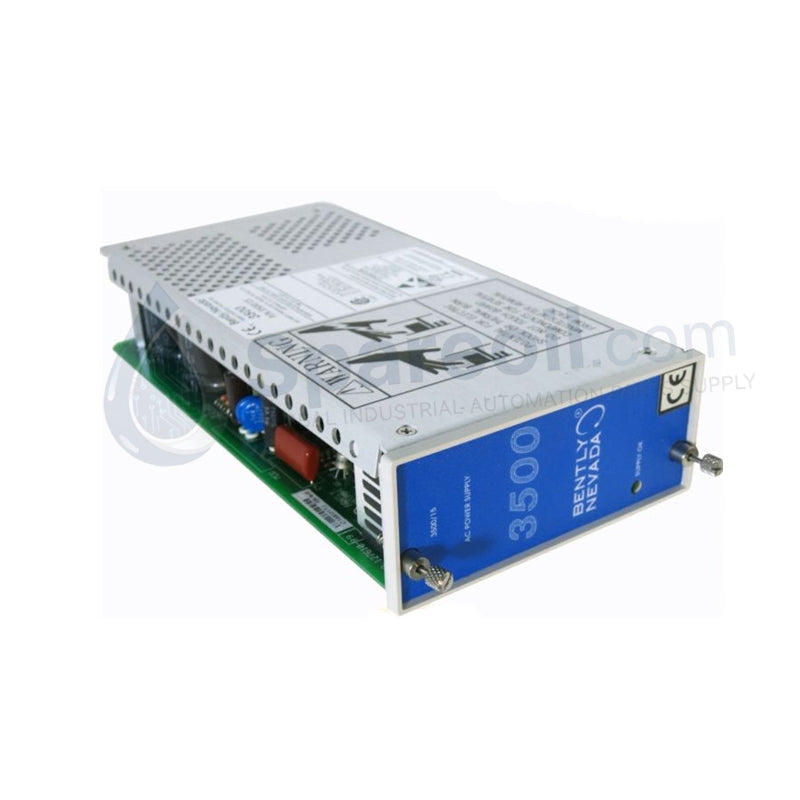

Bently Nevada 133292-01 Low Voltage DC Power Supply Module

Bently Nevada 133292-01 Low Voltage DC Power Supply Module

Availability: 10 left in stock

Bently Nevada 133292-01 3500 Series Power Supply Module The Bently Nevada 133292-01, also cataloged as the 3500/15 Power Supply Module,...

SKU: 3500/15-07-07-05(133292-01+133300-01)

Manufacturer: Bently Nevada
Product No.: 3500/15-07-07-05(133292-01+133300-01)
Product Type: Power Supply Modules
Payment:T/T, Western Union
Weight: 1390g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Bently Nevada 133292-01 3500 Series Power Supply Module

The Bently Nevada 133292-01, also cataloged as the 3500/15 Power Supply Module, operates as a dedicated hardware component for low-voltage DC power regulation within 3500 Monitoring Systems. This hardware component interfaces incoming 24 VDC external lines via the 133300-01 I/O module to drive multi-rail stabilized output current directly across the internal rack backplane.

Hardware Specifications

Parameter	Specification
Model	133292-01 (Part of 3500/15-07-07-05 assembly)
Brand	Bently Nevada (Baker Hughes)
Origin	United States
Weight	Standard 3500 slot allocation weight
Dimensions	Full-height single-slot 3500 rack format
Operating Temp	-30 to +65 deg C
Power Consumption	Input range 20 to 30 VDC (24 VDC nominal)
Active Module P/N	133292-01
Input I/O Module P/N	133300-01
Output Voltages	Regulated multi-rail backplane distribution
Status Indicators	Front-panel LEDs for Power Supply OK and Module OK
Humidity Tolerance	Up to 95 percent non-condensing

Machinery Monitoring & TSI Technical Attributes

The power module architecture incorporates active cross-talk suppression circuitry to prevent line-side voltage transients from introducing high-frequency noise into adjacent machinery protection channels. By maintaining stable, isolation-filtered multi-rail DC outputs, the unit preserves the precision calibration profiles required for eddy-current probe scaling across proximity measurement loops. This stable power rail distribution allows attached monitor cards to execute gap voltage validation routines, maintaining accurate -10 VDC targets for steady-state displacement signals and cross-axis tracking during dynamic rotor dynamics analysis.

Frequently Asked Questions

Q: How does the power supply subsystem handle online hot-swap procedures during active operations?

A: Technicians change out a faulty active module without system downtime only if the 3500 rack utilizes a redundant dual-supply configuration. When a single module is removed, the parallel supply automatically maintains the entire backplane current load without phase or voltage dropouts.

Q: What input protection does the 133300-01 low-voltage DC input I/O module provide?

A: The input I/O module incorporates transient voltage surge suppression barriers and reverse-polarity diode protection circuits to isolate internal backplane logic from upstream DC battery bus disturbances.

Field Installation Guidelines

Install the 133292-01 active power supply module into the leftmost designated power slots of the 3500 chassis, slide it smoothly along the chassis guides, and tighten the front panel screws.
Fasten the matching 133300-01 input I/O module directly onto the rear chassis backplane connectors corresponding to the slot position of the front power module.
Connect the nominal 24 VDC power source using minimum 14 AWG stranded copper wire, maintaining tight screw terminal connections to prevent contact resistance heating.
Route input DC source lines apart from dynamic transducer cable paths within the cabinet layout to prevent any potential electromotive noise coupling.
