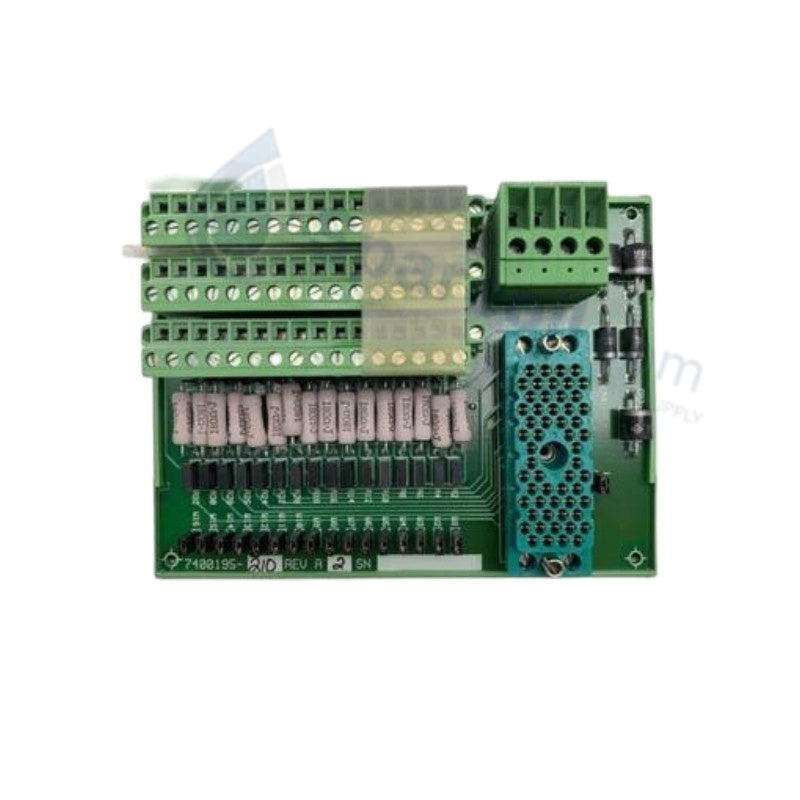

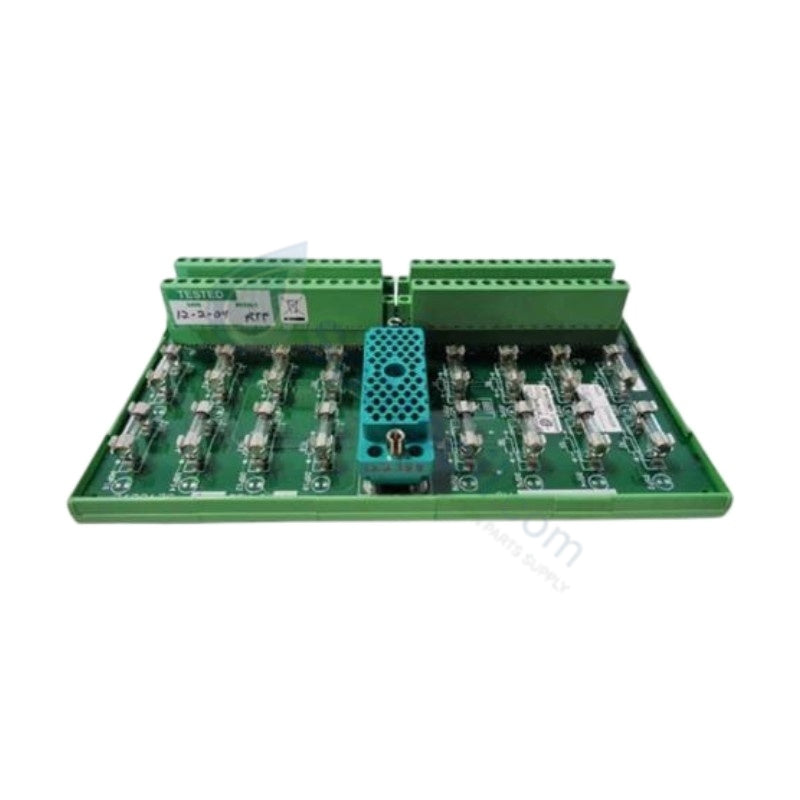

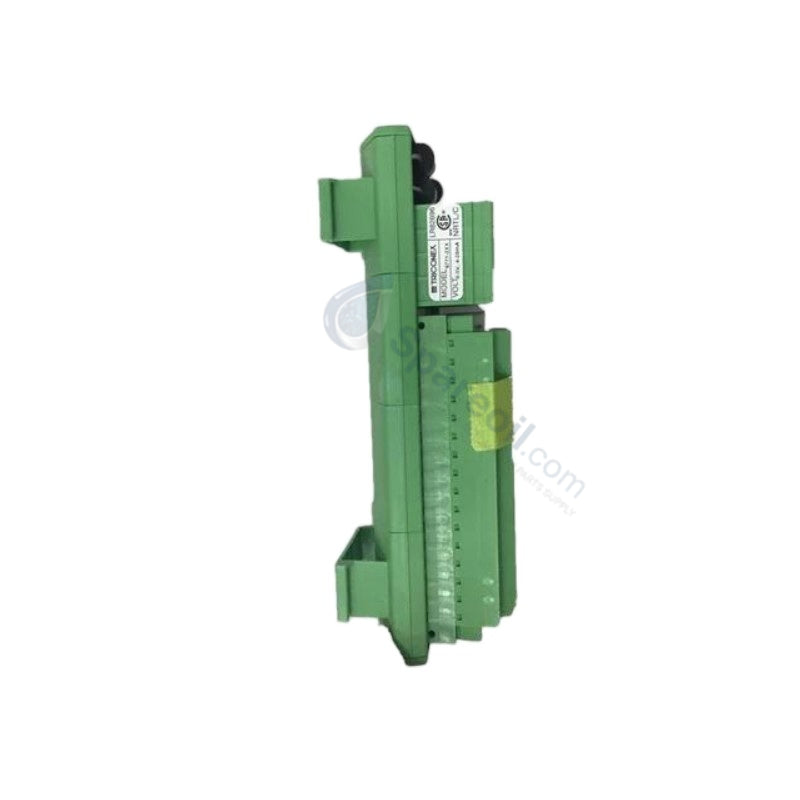

TRICONEX 9674-810 Tricon V9/V10 Series Terminal Boards

Configured for deterministic, fault-tolerant discrete output routing in Tricon V9/V10 Safety Instrumented System (SIS) platforms, the TRICONEX 9674-810 (9674-810 Terminal Board) provides direct physical/electrical execution. The hardware serves as the primary physical termination interface connecting 32-channel discrete safety output signals directly from the TMR module logic to field actuators.

Hardware Specifications

Parameter	Specification
Model	9674-810
Brand	Triconex (Schneider Electric)
Origin	United States
Weight	2.8 kg net weight (Up to 3.2 kg including module)
Dimensions	2.5 cm x 0.6 cm x 40.6 cm (Termination board frame)
Operating Temp	-40 to +70 deg C (Termination board physical ambient)
Storage Temp	-40 to +85 deg C
Power Consumption	~15 W typical baseline
Output Channels	32 discrete output circuits (16 per leg x 2 active legs)
Output Voltage	24 VDC nominal
Output Current	Up to 0.5 A maximum per channel
Signal Isolation	1500 VAC galvanic isolation between backplane and field wiring
Termination Style	Cage-clamp screw terminals, accommodating 12-22 AWG wire
Safety Certification	IEC 61508 / IEC 61511 SIL3, TÜV, CE, UL, FM, ATEX Zone 2

Safety Control (SIS) Technical Characteristics

The terminal board manages high-density routing paths integrated with a Triple Modular Redundant (TMR) 2oo3 architecture, providing dedicated physical pathways for the voted output decisions. Galvanic isolation rated at 1500 VAC splits the high-exposure field wiring loops from the main processing backplane to block induced transient overvoltages and electrical noise spikes from spreading upstream. Internal pass-through circuits interface directly with the module's continuous self-test diagnostic subroutines, enabling precise per-channel fault tracking, open circuit monitoring, and short-circuit protection without compromising overall system loop execution or fail-safe state execution metrics.

Frequently Asked Questions

Q: Does an online hot-swap of the associated output module disrupt the field wiring terminations connected to this board?

A: No. The 9674-810 acts as a fixed passive structural terminal base plate. The active digital output module docks directly onto this board, enabling operators to execute hot-swap module changeouts without pulling field wires, disrupting terminal connections, or interrupting active safety functions.

Q: How does the system handle an overcurrent or short-circuit event on one of the 32 discrete output loops?

A: The connected output module contains active current-limiting switches that track loop performance. When a short circuit pushes the channel beyond its 0.5 A continuous operating rating, the hardware drives the affected channel into a fail-safe isolated state while maintaining the execution of adjacent channels.

Field Installation Guidelines

Shield Grounding Termination: Strip field cabling back jackets and secure the individual drain wires to the central chassis low-impedance earth ground bus bar rather than looping them back to active signal return channels.
Screw Terminal Torque Limits: Secure all cage-clamp screw terminals onto the 12-22 AWG field conductors using a calibrated tool set exactly to 0.6 Nm to prevent thermal loosening or high-resistance contact arcs.
Signal Cable Separation: Enforce physical separation by routing the 24 VDC final element control lines away from raw low-voltage RTD or thermocouple measurement wires inside the panel enclosure to prevent inductive noise injection.
