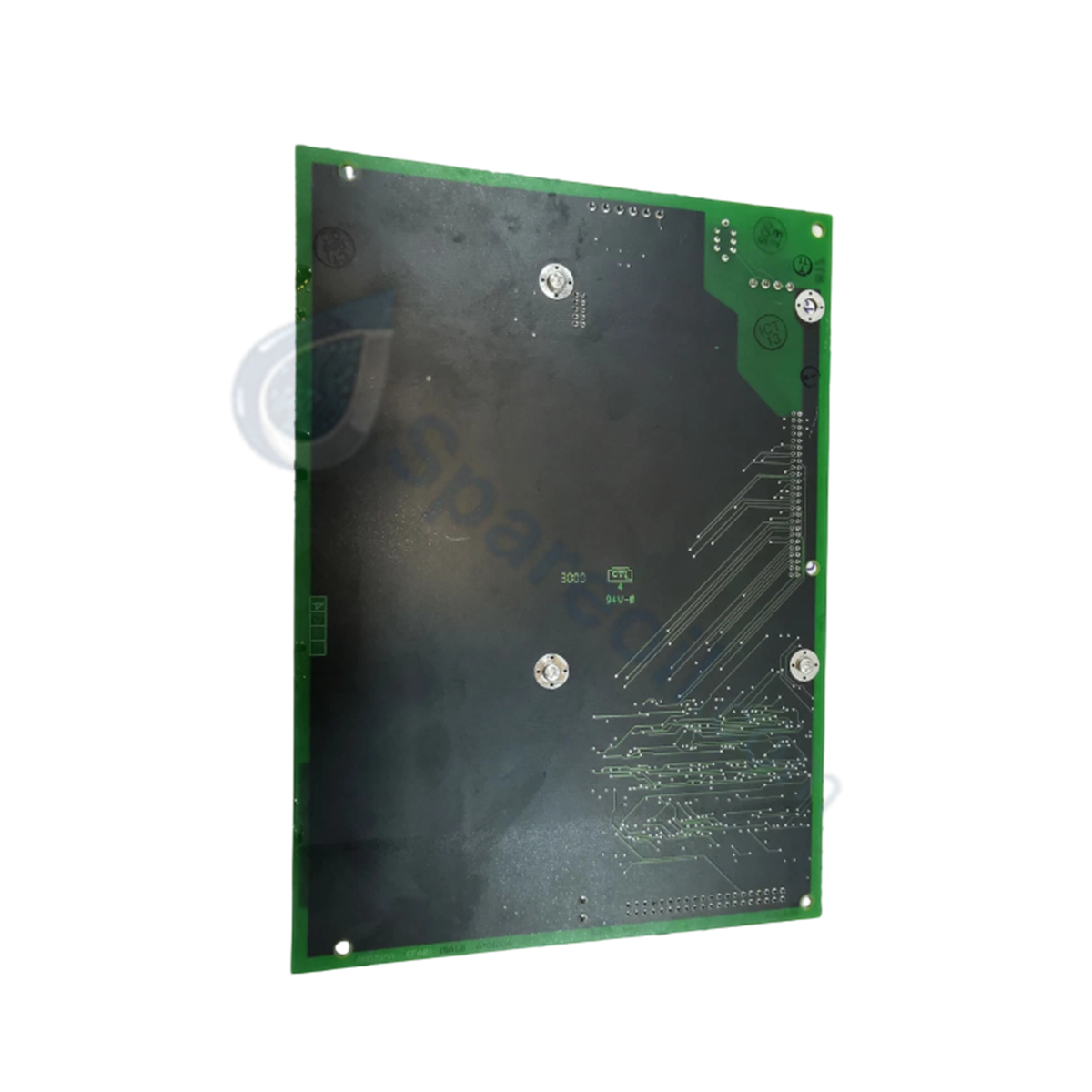

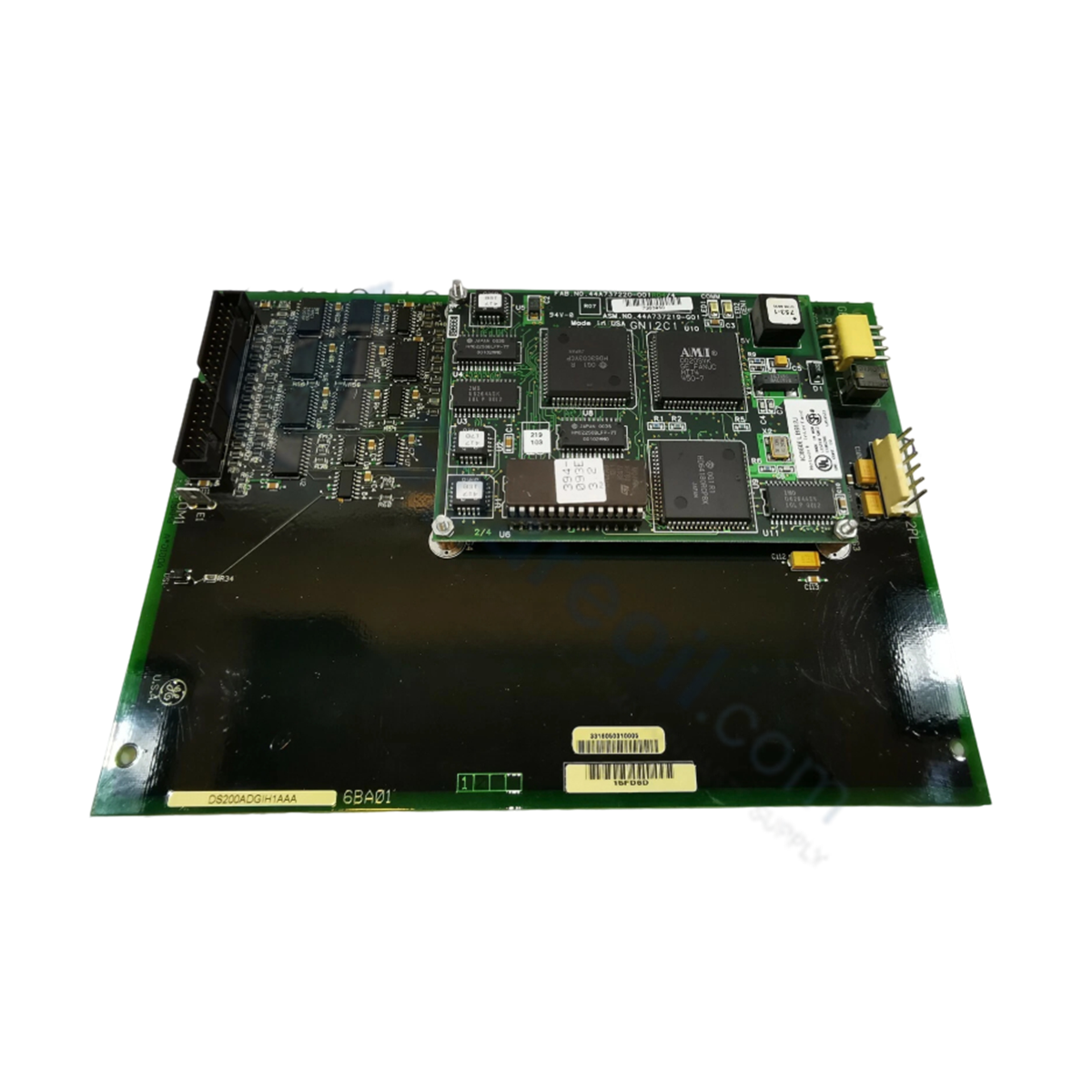

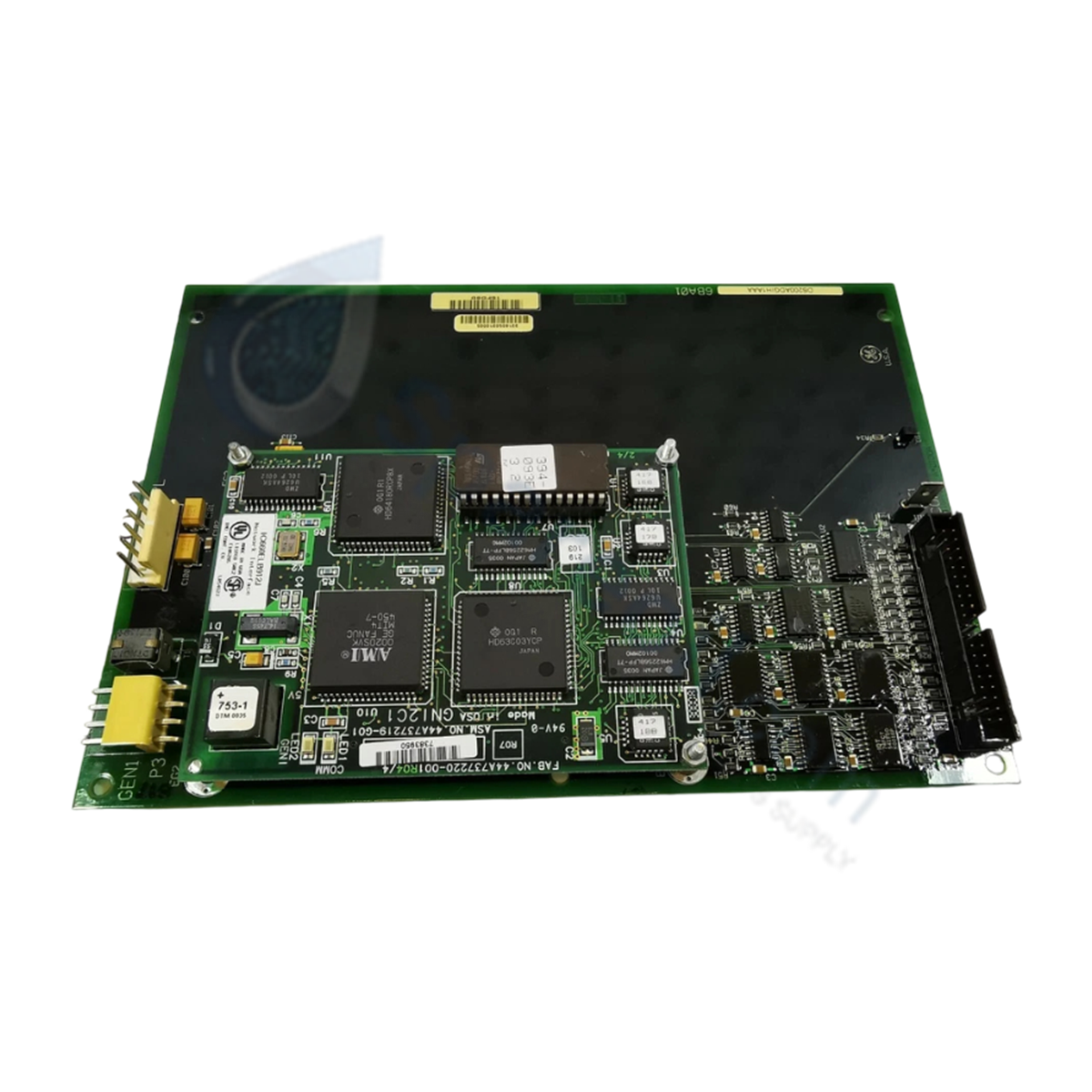

The GE DS200ADGIH1AAA, also cataloged as the DS200ADGI Auxiliary Interface Board, operates as a dedicated hardware component for auxiliary signal conditioning and interface routing within GE Speedtronic Mark V control platforms.

Hardware Specifications

Parameter Specification
Model DS200ADGIH1AAA
Brand GE General Electric
Origin USA
Weight 0.45 kg
Dimensions 6 inches x 8 inches
Operating Temp 0 to 60 deg C
Power Consumption 5 W (Nominal backplane power draw)
System Series Mark V
Assembly Type Normal Assembly
Revisions 3 Revisions (Backward-compatible across first two revisions)
Onboard Jumpers 60 Hardware Jumpers
Interface Headers One 40-pin connector, One 6-pin connector
Diagnostic Interface Multiple onboard test points

Backplane Bus Communication Velocity and Firmware Compatibility

The DS200ADGIH1AAA routes discrete and analog signals across the Mark V board rack via its 40-pin and 6-pin header arrays, maintaining low signal propagation delay across local distribution paths. The 60 hardware jumpers allow manual configuration of signal lines to preserve firmware flash compatibility across legacy and updated Mark V turbine control program structures. This passive and configurable interface topology maintains backplane bus communication velocity without introducing software processing latencies during dynamic control execution cycles.

Frequently Asked Questions

Q: What is the purpose of the onboard test points on the DS200ADGIH1AAA?

A: The onboard test points allow qualified service engineers to verify circuit continuity and measure signal voltages across specific hardware loops using calibrated diagnostic probes.

Q: Are all revision levels of the DS200ADGIH1AAA backward-compatible?

A: The board design maintains direct backward compatibility across its first two functional revision releases, allowing drop-in replacement within corresponding Mark V board rack configurations.

Field Installation Guidelines

  1. Power down the drive cabinet and verify that all power sources to the board rack are disconnected before handling the module.
  2. Wear an ESD grounding wrist strap attached to an unpainted metal chassis frame to prevent static discharge to onboard electronics.
  3. Align the 6-inch by 8-inch circuit board with the designated rack standoffs and secure it using four mounting screws.
  4. Set the 60 configurable jumpers to match the exact signal routing positions of the original board being replaced.
  5. Connect the 40-pin and 6-pin ribbon cable connectors securely, ensuring proper pin-1 keying before re-energizing the control panel.
