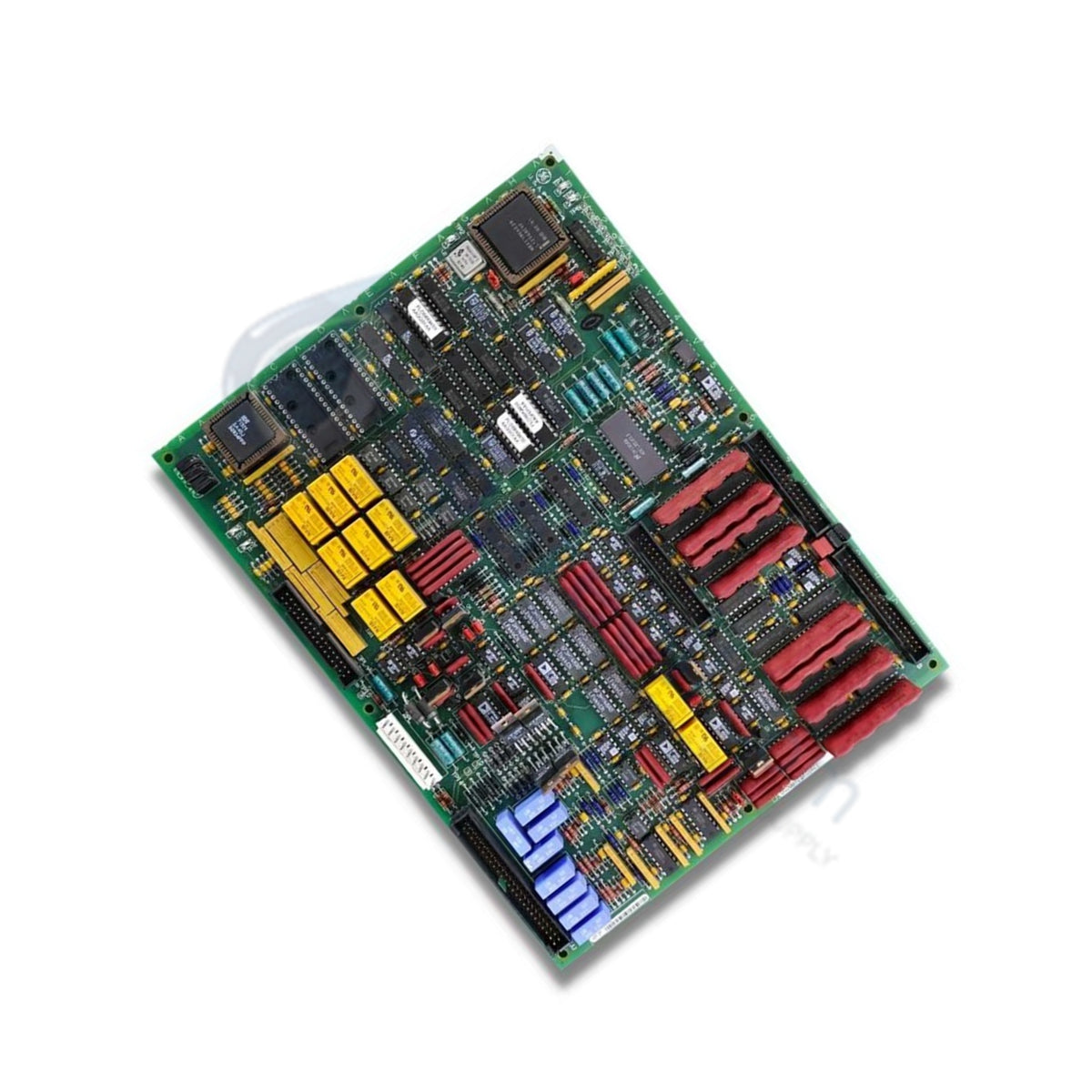

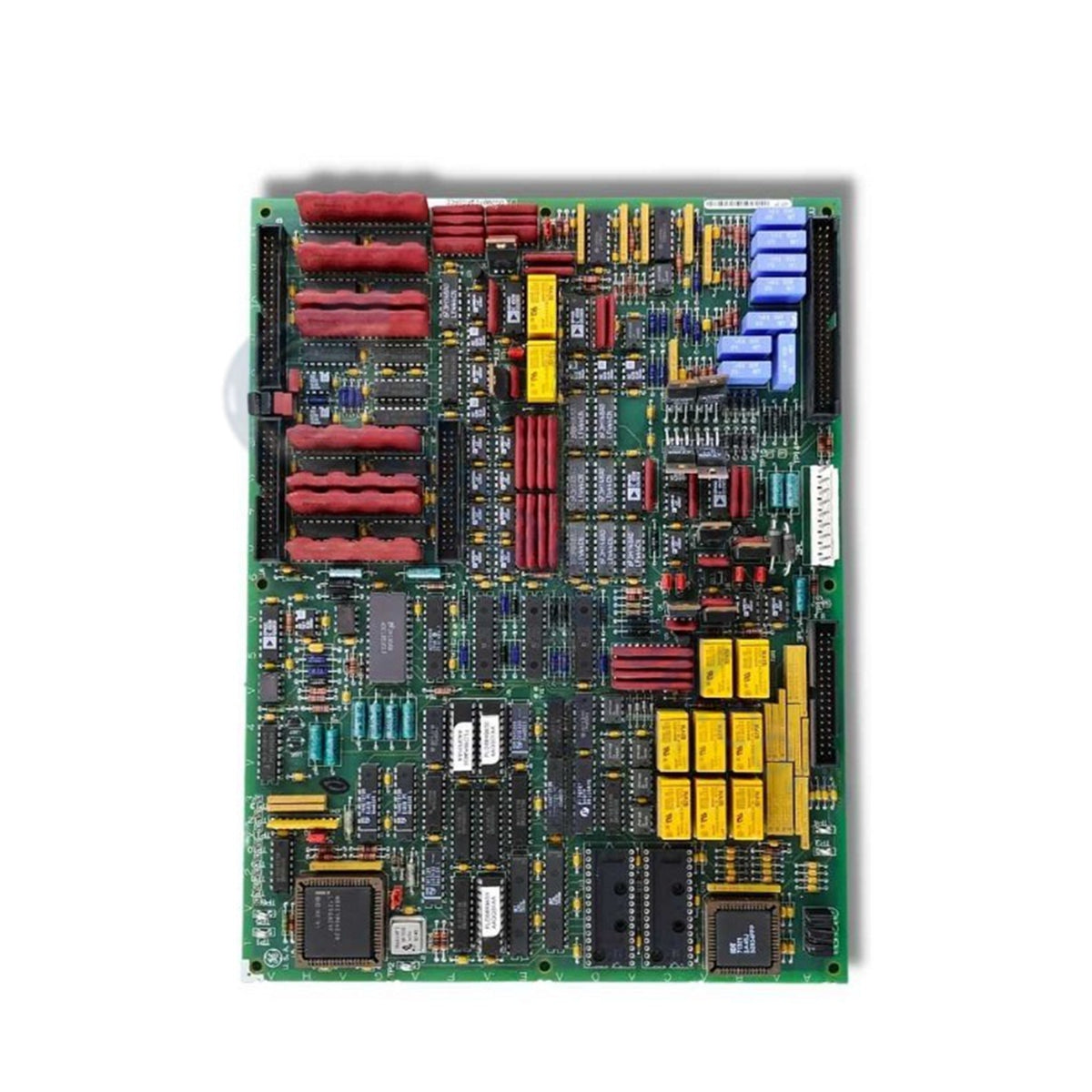

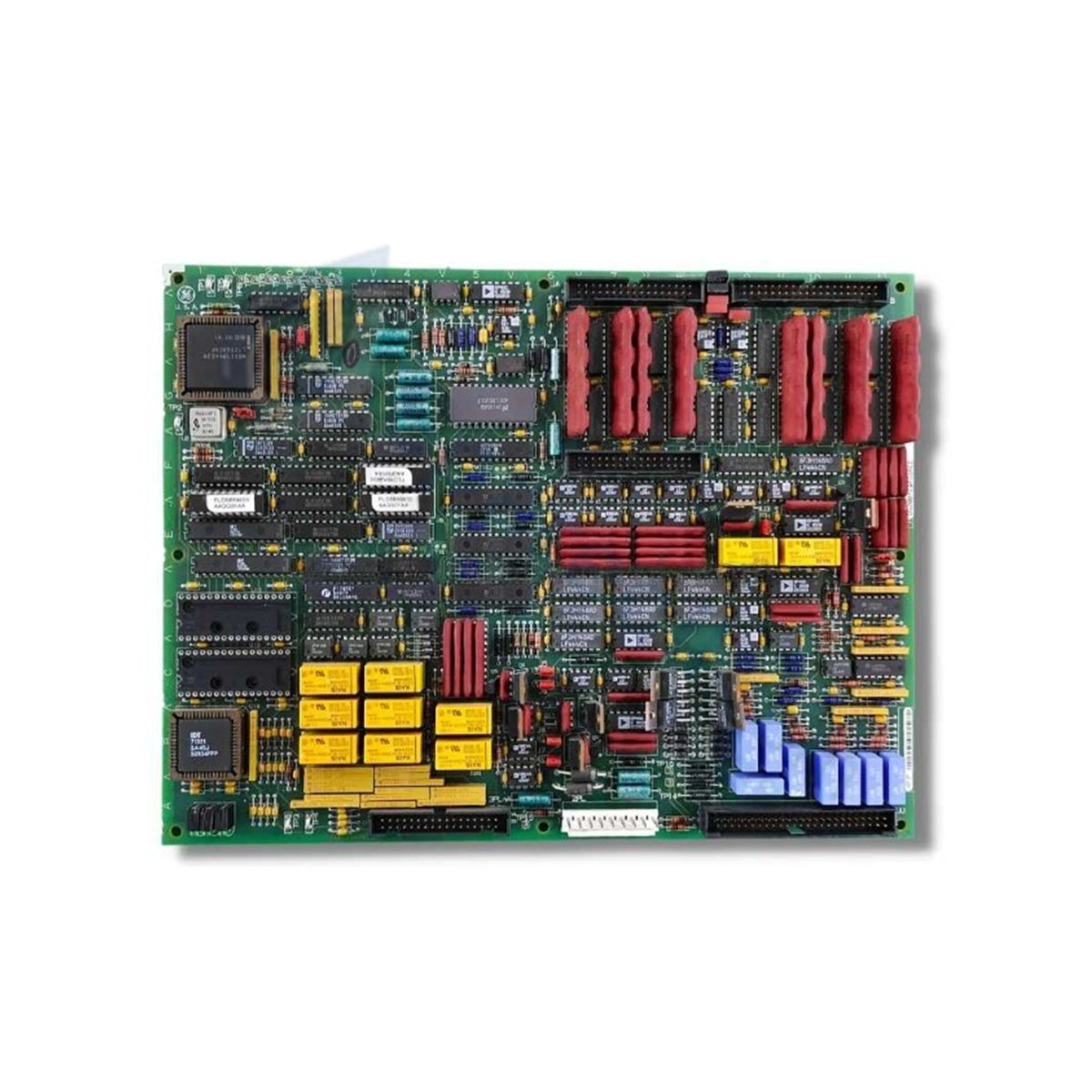

The GE DS200TCQFG1A, also cataloged as the DS200TCQF Analog I/O Extension Card, operates as a dedicated hardware component for analog I/O processing and signal expansion within EX2000 and Mark V control systems.

Suffix Breakdown & Model Matrix

  • DS200: Standard domestic base catalog prefix for GE Mark V and EX2000 printed circuit board assemblies.
  • TCQF: Functional abbreviation designating the TC2000 Analog I/O Extension Card logic structure.
  • G1: Group 1 core product grouping within the assigned GE automation series.
  • A: First functional revision iteration level.

Hardware Specifications

Parameter Specification
Model DS200TCQFG1A
Brand GE (General Electric)
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption System backplane driven
Functional Abbreviation TCQF
Board Type TC2000 Analog I/O Extension Card
Hardware Jumpers 7
50-Pin Connectors 2 (JB, JUU)
34-Pin Connectors 1 (JA)
9-Pin Connectors 1
Status Indicators 6 Green diagnostic LEDs (horizontal layout)
Onboard Logic Programmable logic device with EPROM module
Switching Components Onboard PCB-soldered electronic relays
PCB Coating Normal Coating

Backplane Bus Communication Velocity & I/O Density Scaling

The DS200TCQFG1A interfaces directly with drive cabinet backplane structures to execute high-density analog signal processing via embedded programmable logic devices. High-speed signal transfer across 50-pin bus connectors (JB, JUU) and the 34-pin ribbon bus (JA) provides deterministic response rates required for real-time excitation control loops. Dynamic signaling paths and configuration states are maintained by 7 onboard hardware jumpers, preserving firmware flash compatibility across EPROM iterations while isolating signal cross-talk across internal control channels.

Frequently Asked Questions

Q: What operational feedback do the 6 onboard LEDs provide?

A: The 6 horizontal green LEDs indicate active current flow and normal circuit functionality. Flashing patterns verify ongoing real-time processing across assigned board sub-circuits.

Q: How is the onboard processing code updated on the TCQF board?

A: Firmware code and operational instructions are executed via a dedicated Erasable Programmable Read Only Memory (EPROM) socketed onto the printed circuit board.

Field Installation Guidelines

  1. Disconnect all main power feeds to the EX2000/Mark V drive cabinet before opening access doors. Verify zero-energy state with a calibrated voltage meter.
  2. Put on an anti-static wrist strap properly bonded to cabinet earth ground to prevent electrostatic discharge (ESD) to onboard integrated circuits and memory modules.
  3. Slide the board into card rack guides, ensuring exact alignment with backplane pin assemblies before applying push force to lock connectors JB, JUU, JA, and the 9-pin interface.
  4. Verify all 7 hardware jumper settings match specified system loop configurations prior to energizing the drive assembly.
  5. Inspect EPROM chip seating inside its socket to ensure full physical pin contact before restoring power to the system.
