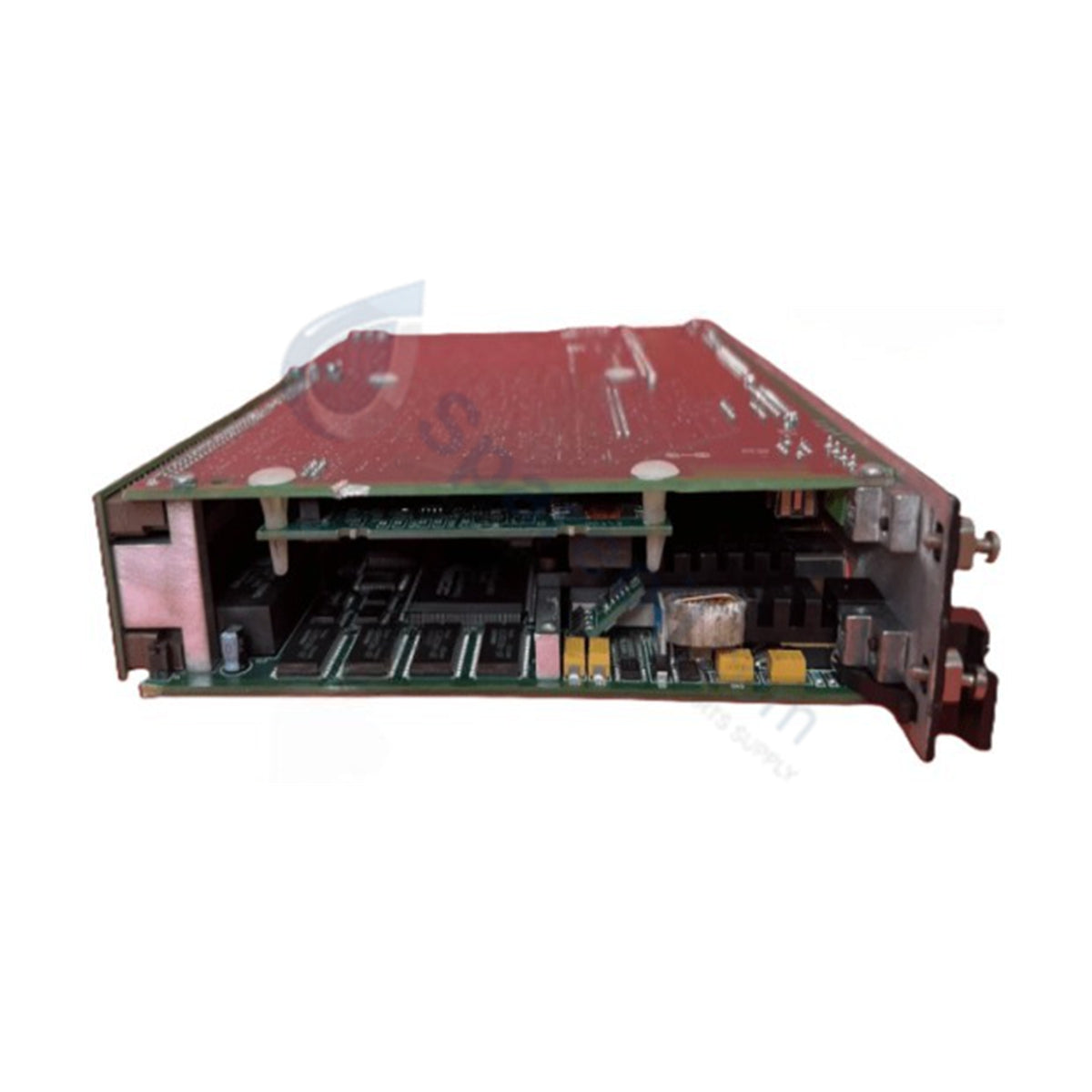

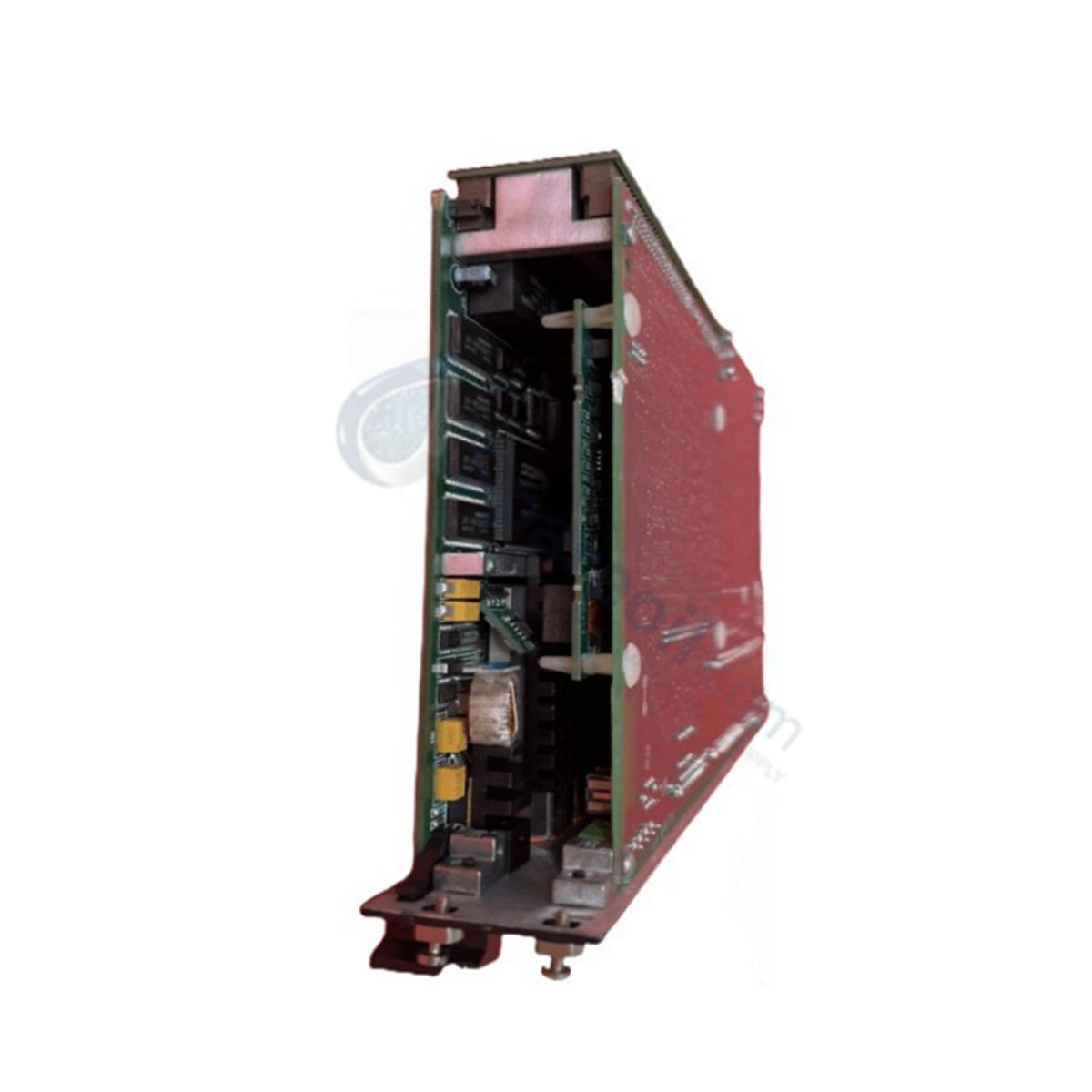

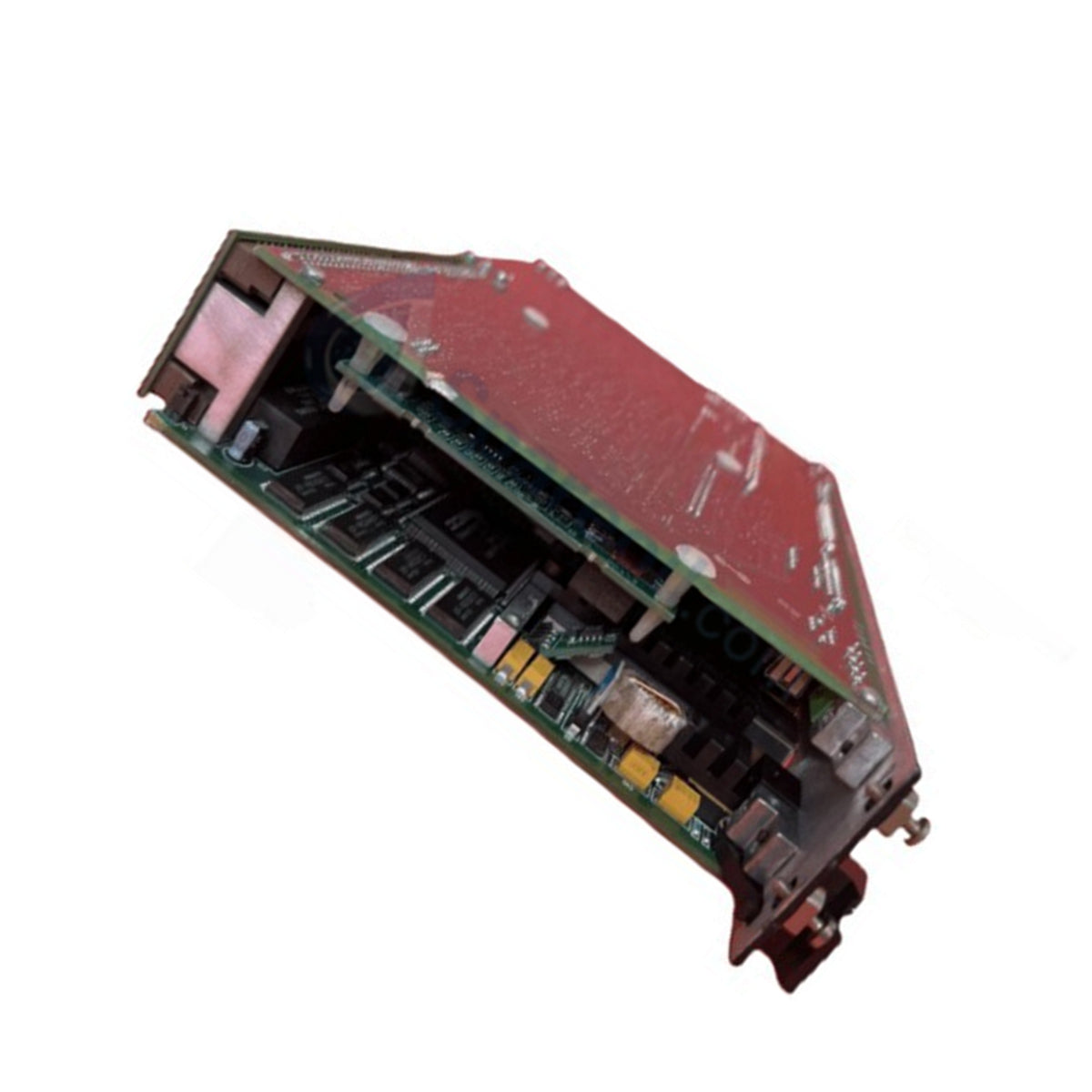

The GE Fanuc DS215UCVBG1AJ, also cataloged as the DS215UCVB Controller Module, operates as a dedicated hardware component for drive processing and diagnostic execution within Mark V Speedtronic systems.

Hardware Specifications

Parameter Specification
Model DS200UCVBG1AJ / DS215UCVBG1AJ
Brand GE Fanuc
Origin USA
Operating Temp 0 to 60 deg C
Power Consumption Power Supplied via VME Backplane
Network Interface 1 x Ethernet RJ45 Port
Switch Configuration 2 DIP Switch Blocks (dLAN Node Addressing 0 to 255)
Hard Drive Interface 1 x Onboard HDD Interface Connector
User Interface Ports External Keyboard Port and Monitor Output Connector
Visual Diagnostics Hexadecimal Status LEDs and System Activity LEDs (OK, ENET)

Backplane Bus Communication & Firmware Compatibility

The GE Fanuc DS215UCVBG1AJ plugs directly into the VME backplane via rear multi-pin connectors to execute real-time drive management tasks. Dedicated backplane bus communication velocity allows uninterrupted signal transmission between the main processing board, hard drive interfaces, and field I/O expansion racks. Dual DIP switch blocks set the direct local area network (dLAN) hex node number (0-255), while onboard logic maintains full firmware flash compatibility for local diagnostic logging and toolbox interface execution.

Frequently Asked Questions

Q: How is the dLAN network address set on the DS215UCVBG1AJ module?

A: Node numbers (0 to 255) are configured manually in hexadecimal format using the two DIP switch blocks located on the front panel.

Q: What diagnostic functions do the front-panel status LEDs perform?

A: The status LEDs output controller error codes directly in binary/hexadecimal format, while individual indicator LEDs show operational status (OK LED for power/normal execution and ENET LED for Ethernet traffic).

Q: How is the module properly extracted from the VME enclosure rack?

A: Disengage top and bottom mechanical extractor levers on the front faceplate to unlock rear VME backplane connectors before pulling the module straight out along its guide rails.

Field Installation Guidelines

  1. Power Off Rack: De-energize primary VME rack power supplies before removing or inserting the controller card.
  2. ESD Precautions: Wear a grounding wrist strap connected to unpainted chassis metal to protect integrated processor circuits from static discharge.
  3. Insertion & Latching: Align module edges with top and bottom card slots. Slide the card inward until rear connectors engage the backplane, then lock the top and bottom extractor levers completely.
  4. Network & Peripheral Wiring: Connect the Ethernet interface and configure the two dLAN DIP switch blocks according to the network node assignment before restoring rack power.
