S9342FA Yokogawa CENTUM Series Datasheet & Technical Manual

ESB Bus Connector Unit | Yokogawa S9342FA CENTUM

ESB Bus Connector Unit | Yokogawa S9342FA CENTUM

Availability: 99 left in stock

Yokogawa S9342FA CENTUM Series Connector Unit The Yokogawa S9342FA, also cataloged as the S9342FA Connector Unit, operates as a dedicated...

SKU: S9342FA

Manufacturer: Yokogawa
Product No.: S9342FA
Product Type: Connector Units
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

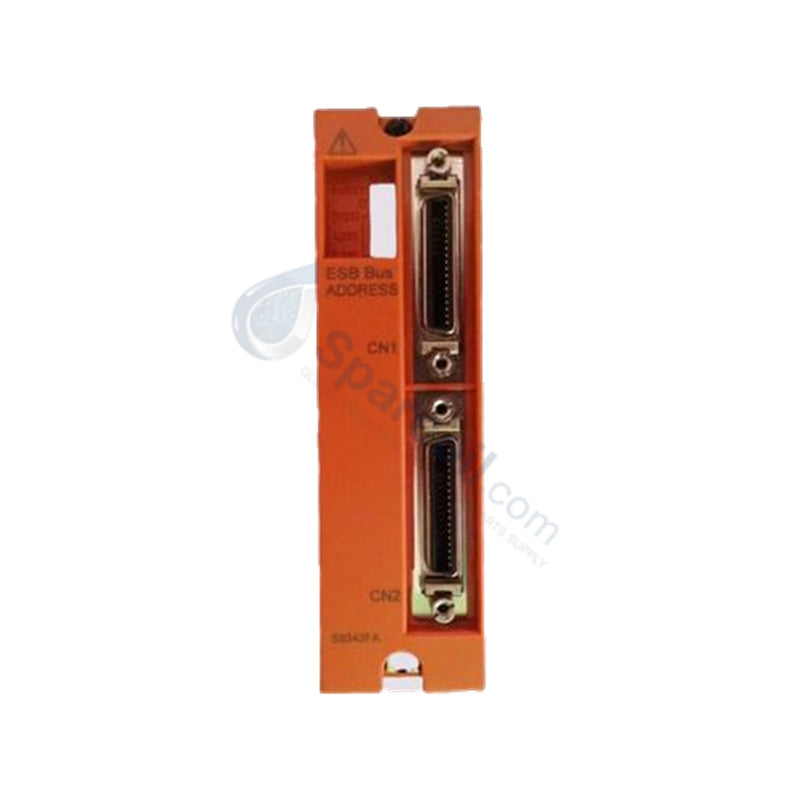

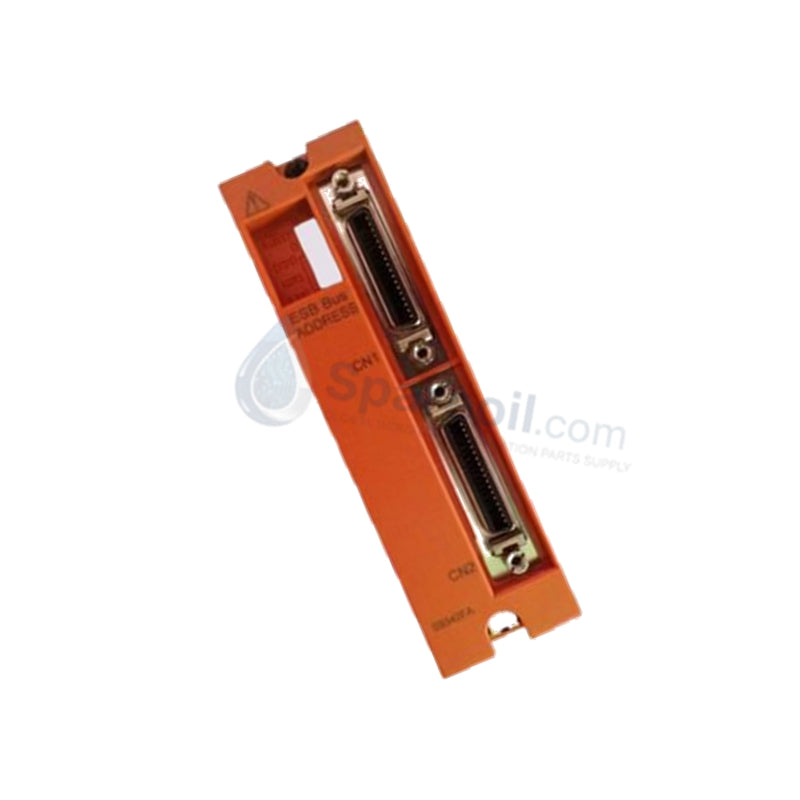

Yokogawa S9342FA CENTUM Series Connector Unit

The Yokogawa S9342FA, also cataloged as the S9342FA Connector Unit, operates as a dedicated hardware component for handling signal processing and communication between I/O modules and the system bus within CENTUM VP and CS 3000 Field Control Stations. The device executes direct physical and electrical interfacing for incoming industrial telemetry networks over the safety backplane architecture. By establishing galvanic isolation barriers between the field-side cabling connections and the internal processor logic, the module preserves data path integrity across the network topology.

Hardware Specifications

Parameter	Specification
Model	S9342FA
Brand	Yokogawa
Origin	Japan
Weight	0.24 kg
Dimensions	32 mm x 114 mm x 63 mm
Operating Temp	-10 to +60 deg C
Power Consumption	50 mA max
Product Type	Connector Units
Bus Interface	ESB Bus application
Power Supply	24 VDC nominal
Network Protocols	RS485, Modbus, Ethernet, CAN
Humidity Range	10-90% RH (non-condensing)
Compliance	CE, UL, EMC compliant

Process Control and Deterministic Network Interfacing

The internal electronic layout implements hardware pathways optimized to manage FOUNDATION Fieldbus and Profibus PA connectivity parameters alongside legacy asynchronous protocols. Built-in differential transceivers enforce strict electrical balance across the RS485 and CAN physical layers, mitigating common-mode voltage fluctuations that generate data packet corruptions. Onboard processing nodes run real-time hardware diagnostics to monitor bus traffic continuity, logging link drops or short-circuit anomalies immediately into the main diagnostic registers of the Field Control Unit.

Frequently Asked Questions

Q: How does the connector unit respond when a serial communication line experiences an external voltage surge?

A: The onboard galvanic isolation circuitry isolates the active communication transceiver lines from the core logic processing bus. This hardware barrier absorbs localized transient overvoltages, preventing high-voltage electrical faults from spreading to the host processor chassis.

Q: Can this unit execute hot-swap insertion and extraction routines while the ESB bus is processing data?

A: Live swap capabilities are bounded by the specific software redundancy configuration of the host sub-rack slot. Technicians must verify that the paired communication nodes are mapped in a dual-redundant layout before executing an online replacement to avoid interrupting active process data loops.

Q: What action does the diagnostic layer perform if an individual protocol channel goes offline?

A: The internal monitoring logic drops the corresponding network health status register bit to zero. This state change forces an immediate system bus alert, allowing the CENTUM control station to trigger alternative redundant data routing routines.

Field Installation Guidelines

Chassis Earth Grounding: Slide the module securely into its assigned housing slot, ensuring that the rear metallic ground tabs lock into the bare metal frame of the sub-rack to establish a low-impedance ground path.
Drain Wire Shield Matrix: Terminate all incoming network cable shield drains directly onto an external copper grounding block inside the cubicle. Do not pass the bare shield wires through the active pin headers of the module.
Separation of Signal Conductors: Enclose all communication bus media within dedicated, grounded steel conduits, keeping a minimum clearance distance of 200 mm from high-current AC electrical lines or variable speed drive outputs.
Connector Tension Testing: Fasten all mating interface screws to standard engineering torque limits to keep the high-density terminal connector stable against constant industrial physical vibrations.
