EZ1900-080 | Emerson AMS | EZ 1000 Sensor Cable

Availability: 99 left in stock

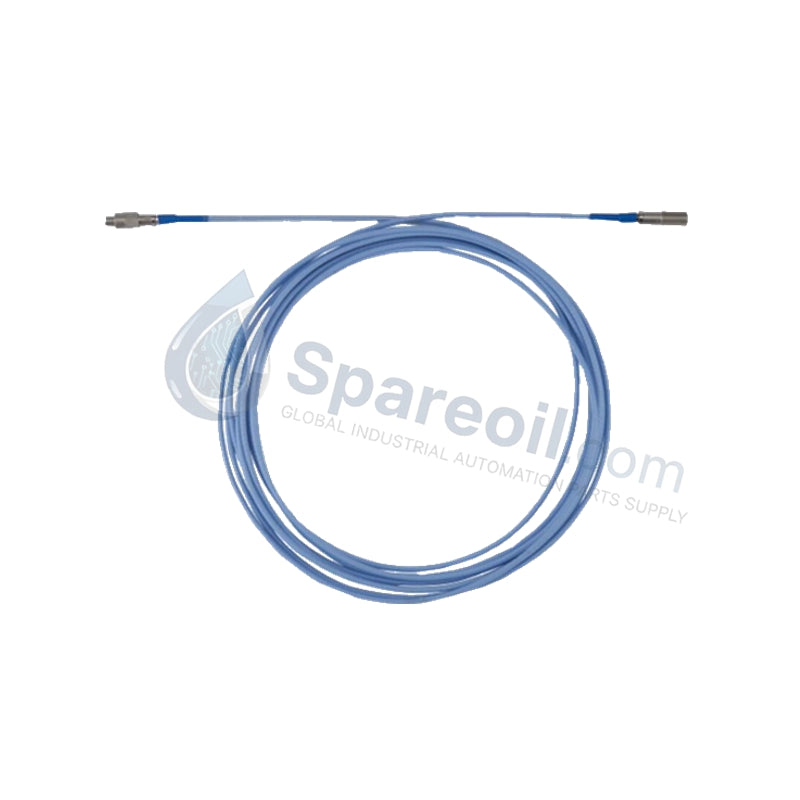

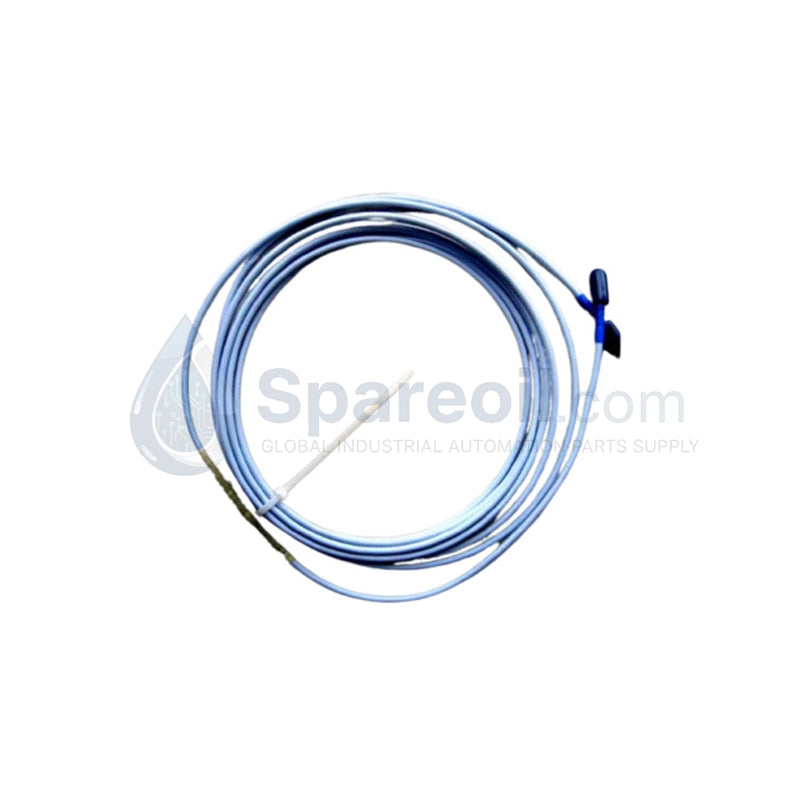

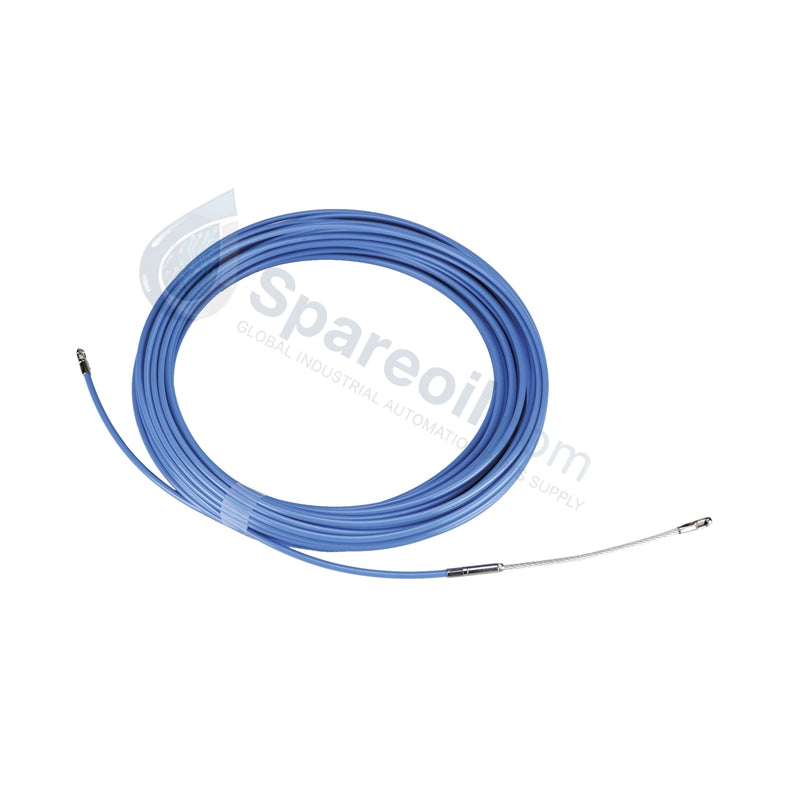

Product Overview The Emerson EZ1900-080 serves as a specialized 8-meter extension cable for the AMS EZ 1000 series eddy current proximity sensors....

SKU: EZ1900-080

Manufacturer: Emerson
Product No.: EZ1900-080
Product Type: Shaft Displacement
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Emerson EZ1900-080 serves as a specialized 8-meter extension cable for the AMS EZ 1000 series eddy current proximity sensors. This cable bridges the critical gap between the displacement sensor and the monitoring transmitter, facilitating precise measurement of shaft vibration, eccentricity, and axial displacement. Specifically engineered for large rotating machinery, the EZ1900-080 maintains the impedance and signal integrity required for accurate data acquisition in turbines, compressors, and high-speed fans. We supply this cable as 100% Brand New original equipment to guarantee the performance and reliability of your machinery protection system.

Technical Specifications

Feature	Details
Manufacturer	Emerson (USA)
Model Number	EZ1900-080
Series	AMS EZ 1000 Eddy Current Sensors
Cable Length	8.0 Meters (Approx. 26.2 ft)
Armor Type	Non-Armored (Flexible Shielded)
Compatible Sensors	AMS EZ 1000 Proximity Probes
Target Material	Ferromagnetic steels (42CrMo4, P235S, ASTM A276 Type 410)
Min. Shaft Diameter	80 mm (3.15")
Min. Target Size	40 mm (1.57")
Weight	0.5 kg
Application	Turbines, Gearboxes, Compressors, Pumps

Engineering Advantages

Optimized Signal Transmission: The EZ1900-080 utilizes a shielded, low-capacitance design that prevents signal attenuation over its 8-meter length. This ensures that the vibration monitoring system receives a high-fidelity representation of shaft movement without electronic noise interference.
Flexible Installation Pathing: The non-armored construction provides a tight bend radius compared to corrugated armored variants. This flexibility allows technicians to route the cable through narrow conduit or complex internal machine housings where space is limited.
Seamless Calibration Matching: Emerson engineers this cable to match the electrical characteristics of the AMS EZ 1000 system. Using the EZ1900-080 eliminates the need for recalibrating the transmitter to account for non-standard cable resistance or impedance.
Lightweight Durability: Despite its length, the cable remains lightweight (0.5 kg), reducing mechanical stress on junction box connectors and sensor leads during high-vibration operation.

FAQs

Can I use the EZ1900-080 in environments with high mechanical impact?

No. The EZ1900-080 features a non-armored design for maximum flexibility. For installations where the cable faces exposure to falling debris or heavy physical contact, you must use an armored variant or provide protective rigid conduit.
Does this extension cable affect the sensor's accuracy?

The AMS EZ 1000 system requires a specific total cable length for calibrated accuracy. Ensure your transmitter and sensor settings match the 8-meter length of the EZ1900-080 to maintain precise displacement measurements.
Is this cable compatible with 42CrMo4 and other common shaft materials?

Yes. The cable supports signal transmission for sensors targeting various ferromagnetic steels, including 42CrMo4, P235S, and ASTM A276 Type 410, common in industrial turbomachinery.
