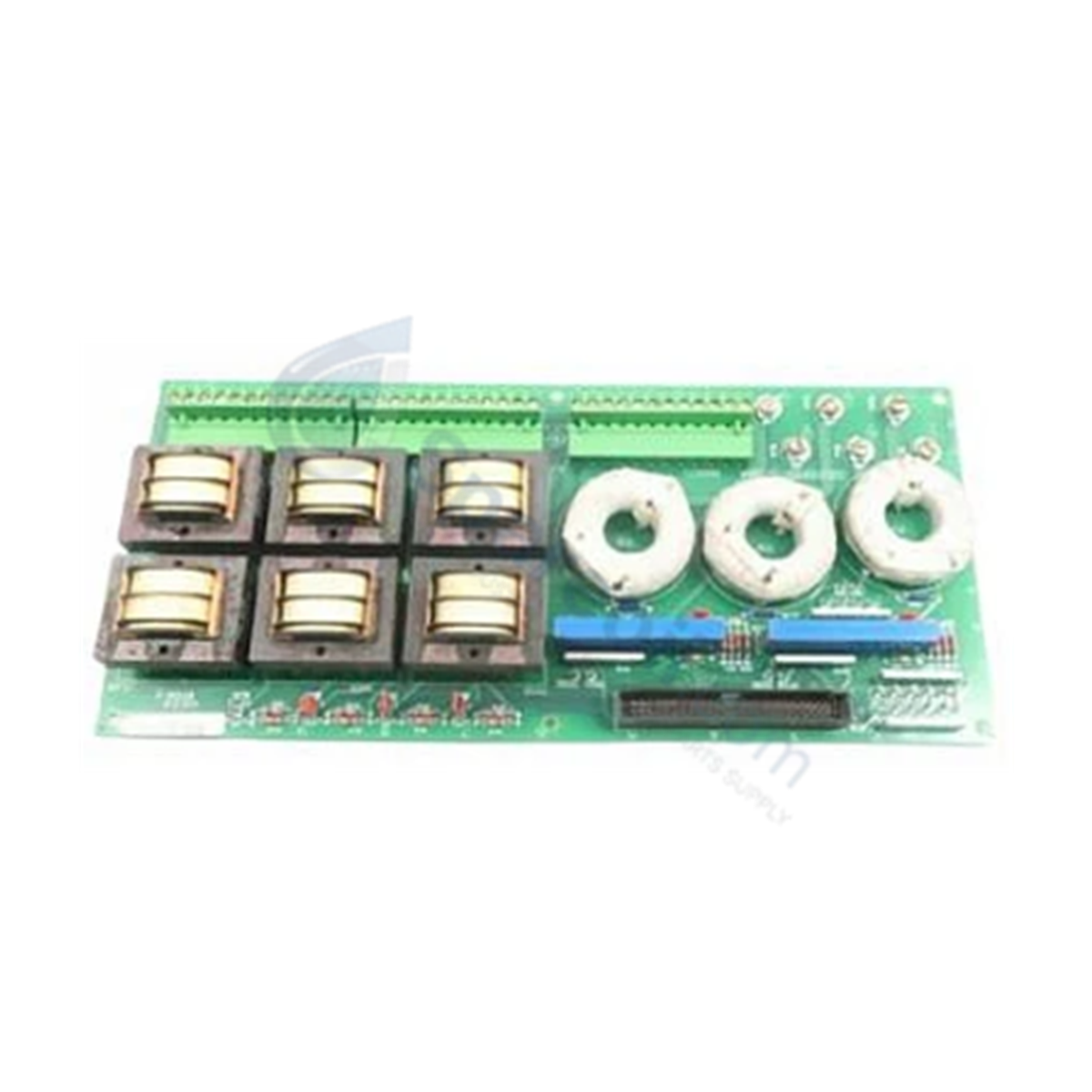

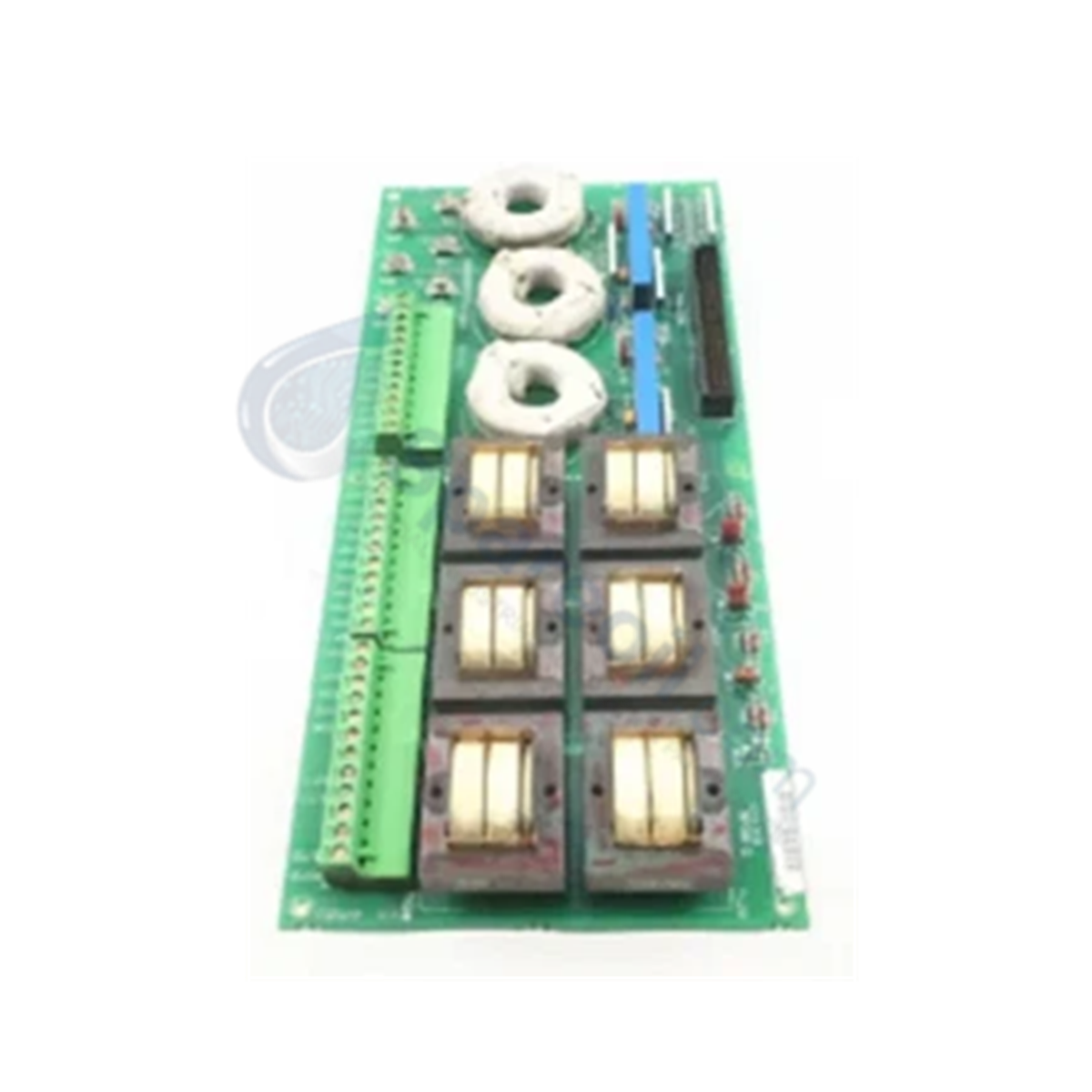

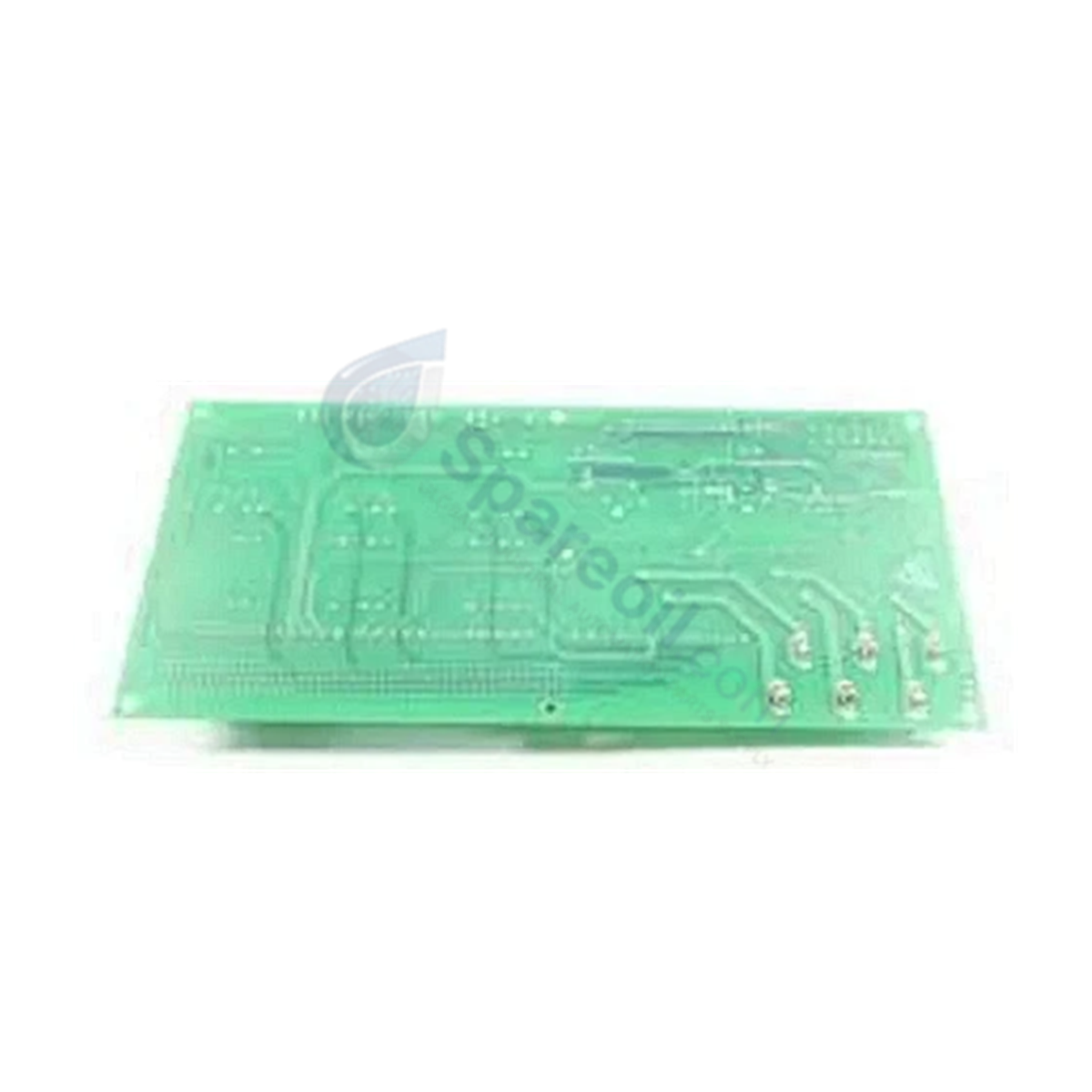

The GE DS200PTCTG1BAA, also cataloged as the DS200PTCT PT and CT Signal Conditioner Board, operates as a dedicated hardware component for potential and current transformer signal attenuation and galvanic isolation within GE Speedtronic Mark V control platforms.

Hardware Specifications

Parameter Specification
Model DS200PTCTG1BAA
Brand General Electric
Origin United States
Weight 0.45 kg
Dimensions 15.9 cm high x 17.8 cm wide
Operating Temp -30 to +65 deg C
Power Consumption +5 VDC at 6 A
Input Voltage 120 VAC
Power Supply Voltage 24 VDC
Relay Channels 12
Power System Frequency 60 Hz
Mounting DIN-rail mounting
Technology Surface mount technology (SMT)
Isolation & Protection Galvanic isolation and surge suppression

Backplane Bus Communication & Firmware Flash Compatibility

The DS200PTCTG1BAA conditions high-amplitude AC signals from field instrument transformers into low-voltage signals compatible with the Mark V core backplane bus. The board maintains deterministic communication velocity by passing processed PT and CT data to control processors without backplane bus latency. Precision surface-mount attenuation networks ensure firmware flash compatibility across varying Mark V software builds, matching analog sampling cycles with high-speed control execution loops. Channel-to-channel isolation circuits prevent cross-talk and transient interference during high-density I/O bus scaling.

Frequently Asked Questions

Q: How does the DS200PTCTG1BAA isolate high-voltage power lines from digital control circuits?

A: The board utilizes onboard galvanic isolation transformers and surge suppression circuits to step down 120 VAC transformer inputs, isolating high-voltage transients from low-voltage backplane logic components.

Q: What power rails are required to operate the board and its 12 relay channels?

A: Main logic power requires +5 VDC at 6 A from the system power supply, while the 12 onboard relay channels operate on a dedicated 24 VDC supply rail.

Field Installation Guidelines

  1. Disconnect all 120 VAC sensing lines and main power sources supplying the Mark V rack prior to physical installation.
  2. Ensure the DIN-rail mounting bracket is securely grounded to field chassis earth ground before snapping the board into position.
  3. Route incoming PT and CT signal wiring separately from low-voltage digital signal lines to minimize inductive noise coupling.
  4. Verify that all field terminal screws are tightened to standard torque specifications and ground shields are terminated at designated single-point earth connections.
  5. Apply 24 VDC relay power and +5 VDC logic power, then verify status indication before energizing live 120 VAC sensing inputs.
