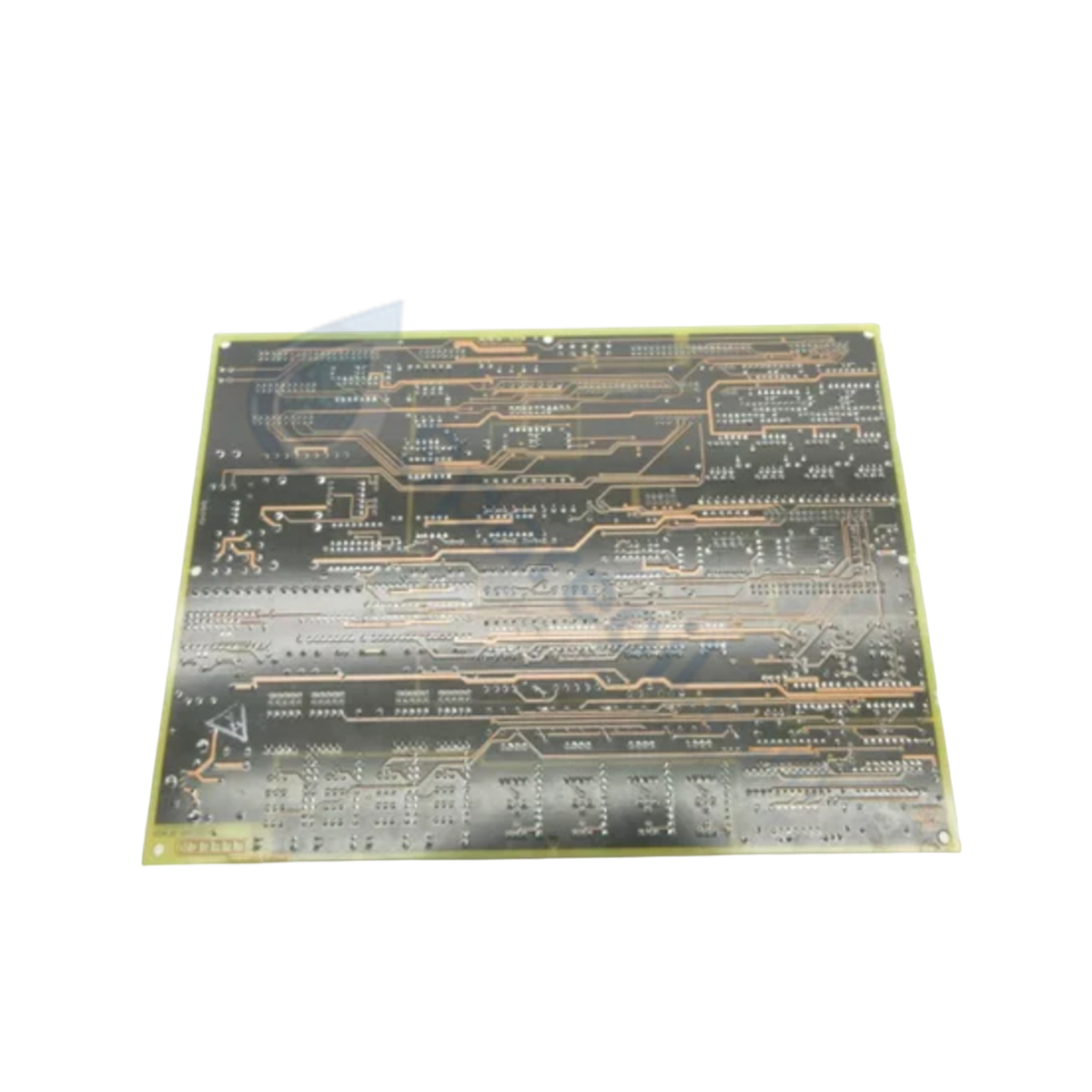

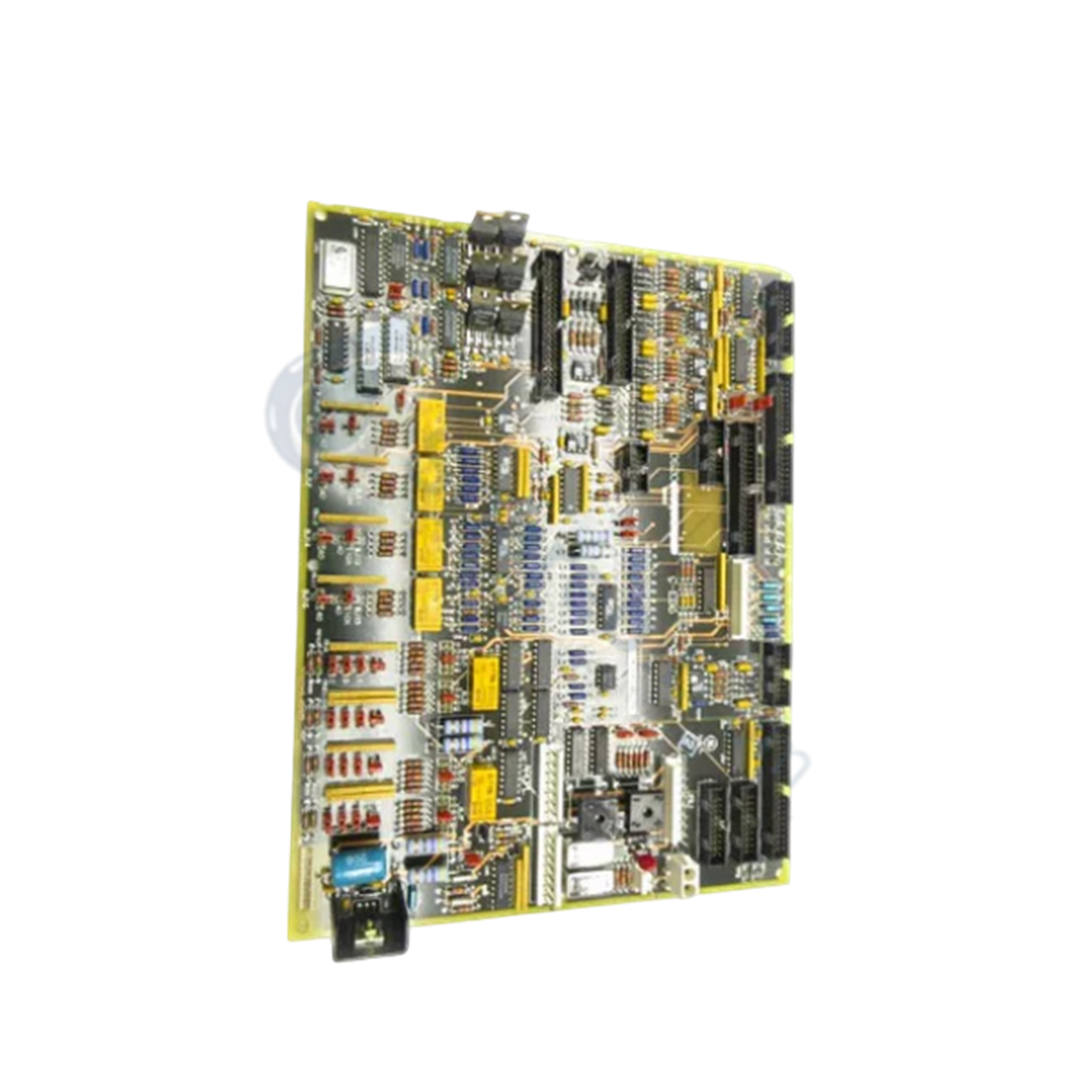

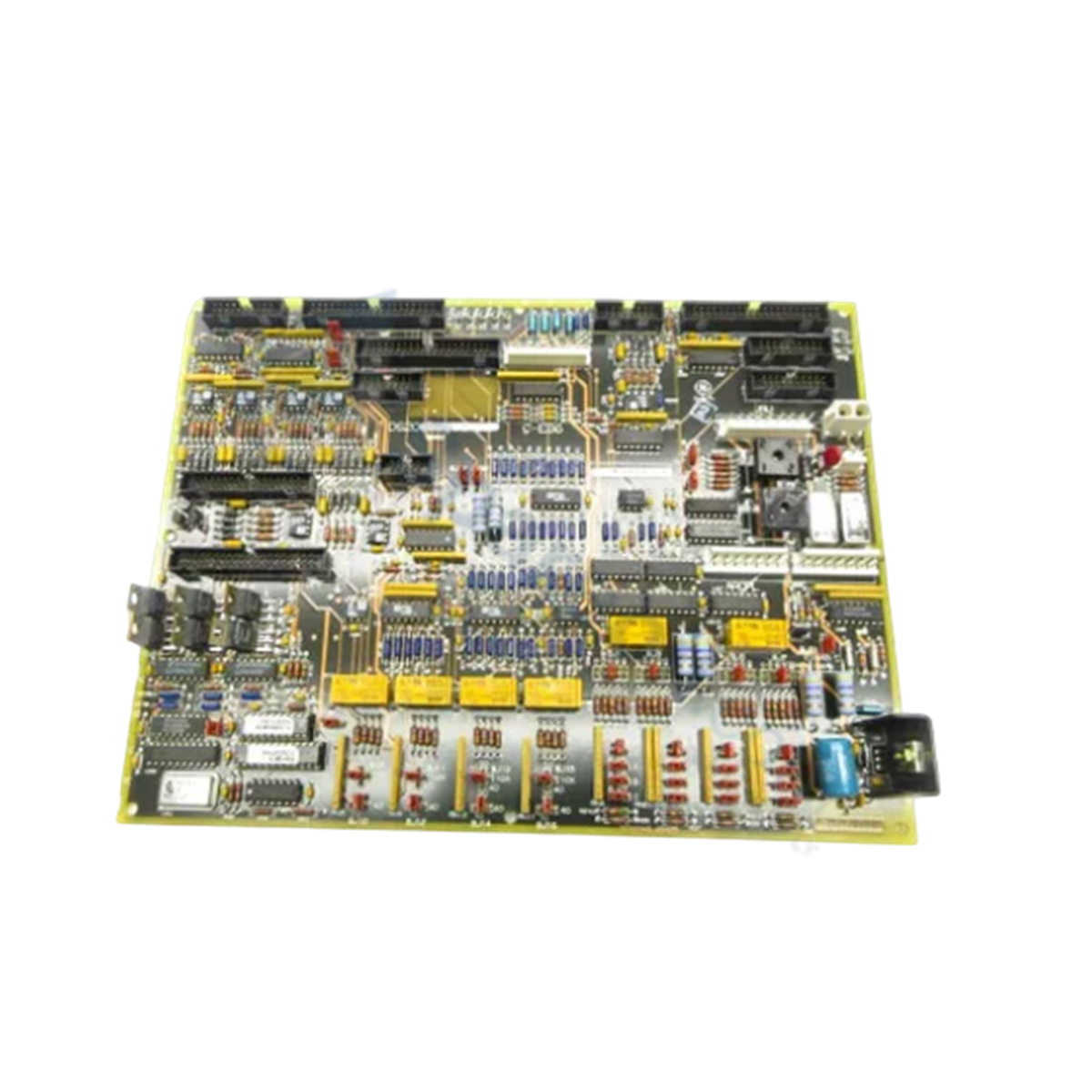

The GE DS200TCQCG1B, also cataloged as the DS200TCQC RST Overflow Board, operates as a dedicated hardware component for analog I/O expansion and signal routing within Mark V Turbine Control System platforms.

Hardware Specifications

Parameter Specification
Model DS200TCQCG1B
Brand GE General Electric
Origin USA
Operating Temp 0 to 60 deg C (standard industrial enclosure)
Power Consumption System backplane powered
Series Mark V Control System
Functional Acronym TCQC
PCB Coating Normal Coating
Functional Revision Revision B (G1 Group 1)
Connectors 3x 40-pin (JFF, JE, 6PL), 3x 34-pin, 1x 16-pin (JC)
Jumpers 24 hardware configuration jumpers
Signal Interfaces Analog I/O expansion, RST triple redundant routing

Backplane Communication Velocity and Bus Interfacing

The DS200TCQCG1B hardware architecture interfaces directly with the Mark V core backplane bus to ensure deterministic network execution across triple-redundant (RST) control topologies. High-density pin configurations—comprising three 40-pin headers (JFF, JE, 6PL), three 34-pin ribbon connectors, and a dedicated 16-pin JC connector—deliver low-latency parallel signal distribution across processing cores. Integrated test points enable real-time voltage and signal integrity validation without interrupting the active backplane bus. Firmware flash compatibility and hardware jumper alignment across all 24 onboard jumper blocks enforce strict synchronization between the expansion I/O processing logic and the primary turbine control processors.

Frequently Asked Questions

Q: What is the procedure for verifying configuration integrity when replacing a DS200TCQCG1B board?

A: Inspect the 24 hardware jumpers on the legacy board and replicate their exact positions on the replacement unit prior to slot insertion. Mismatched jumper configurations can alter internal bus addressing or interrupt routing.

Q: Can the DS200TCQCG1B be removed or inserted while the Mark V system is energized?

A: No. Power down the panel section and disconnect backplane supply power before card removal or insertion to prevent damage to onboard integrated circuits and avoid transient fault conditions on active RST control channels.

Field Installation Guidelines

  • Verify that all high-voltage sources supplying the drive assembly or cabinet are isolated and verified de-energized using calibrated equipment.
  • Ground all ESD protection gear (wrist straps) to the designated cabinet chassis ground point before handling the circuit board.
  • Inspect ribbon cable connectors (JC, JFF, JE, 6PL) for bent pins or debris prior to mating; ensure locking tabs fully engage.
  • Maintain clean, dry enclosure space clear of conductive dust, moisture, or ungrounded auxiliary power cables during installation.
