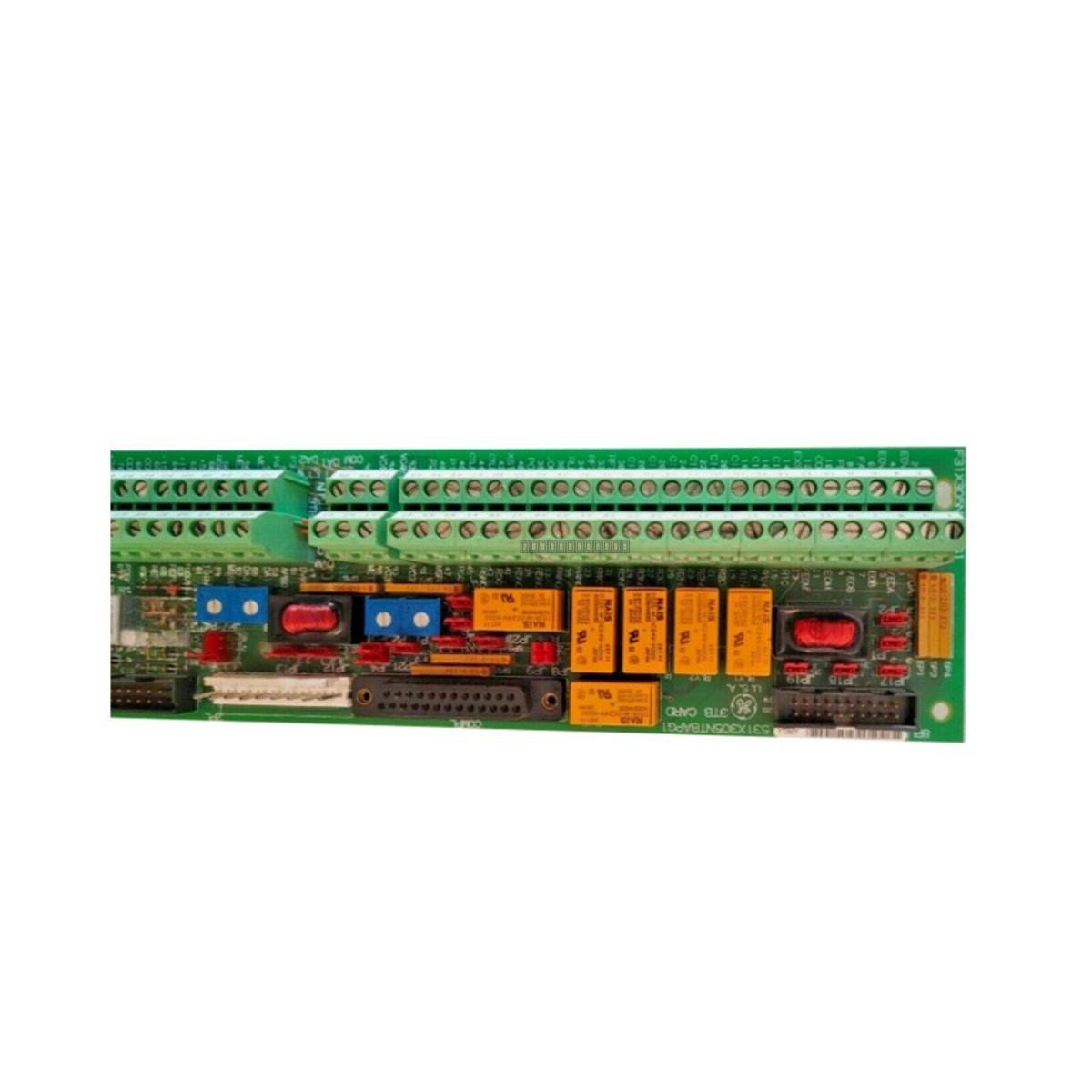

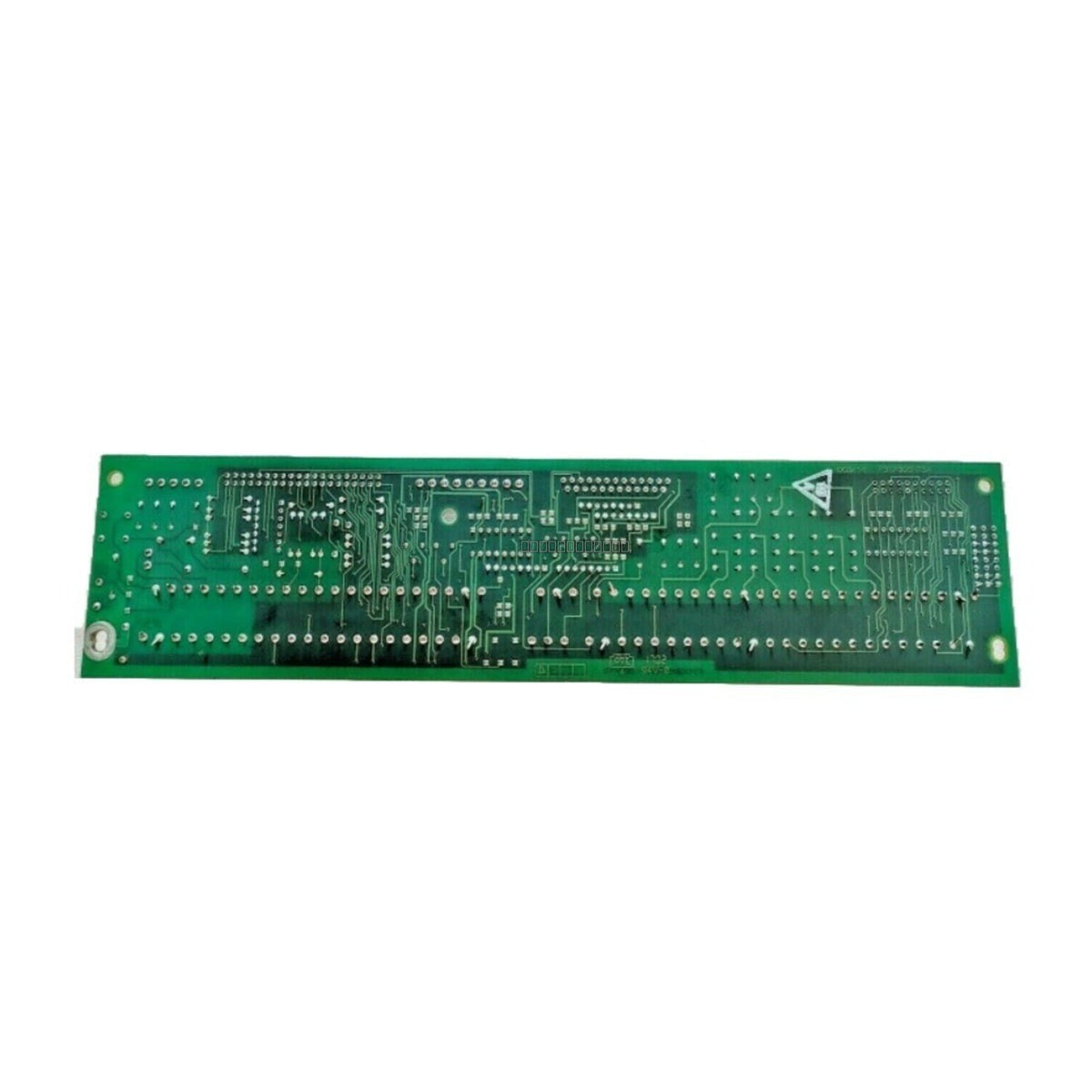

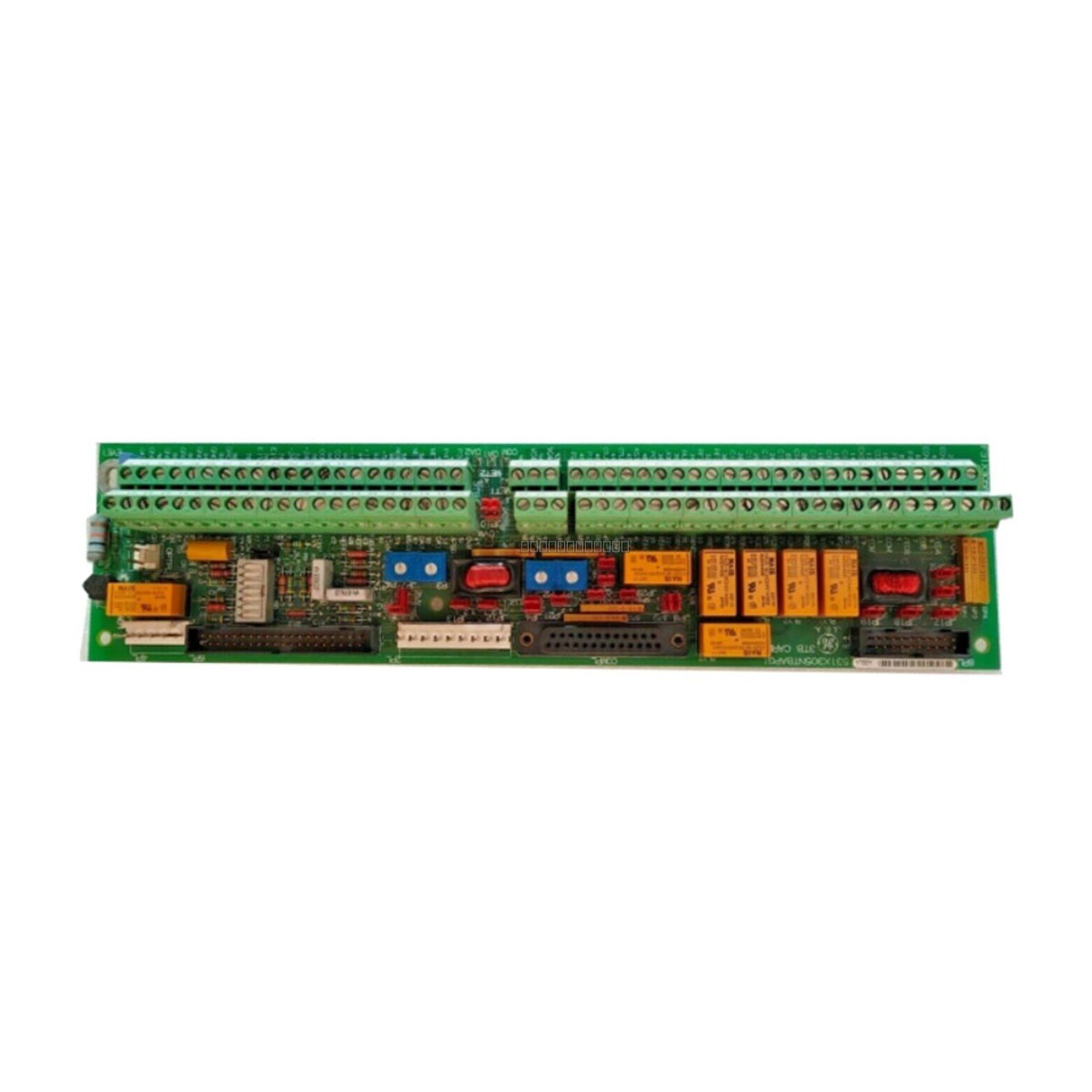

General Electric 531X305NTBAPG1 NTB/3TB Terminal Board

Availability: 2 left in stock

DescriptionThe General Electric 531X305NTBAPG1 is a specialized NTB/3TB Terminal Board assembly designed for use within the Mark VIe and ACDC2000...

SKU: 531X305NTBAPG1

Manufacturer: General Electric
Product No.: 531X305NTBAPG1
Product Type: Terminal Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 260g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The General Electric 531X305NTBAPG1 is a specialized NTB/3TB Terminal Board assembly designed for use within the Mark VIe and ACDC2000 drive control systems. This PC board assembly serves as a critical interface component, facilitating secure and organized wiring connections for drive control signals and power distribution. It is engineered to maintain signal integrity and robust connectivity in demanding industrial drive environments.

Features

Designed for integration with ACDC2000 and Mark VIe control architectures.
High-density configuration featuring 120 terminal points.
Robust isolation barriers providing 250 V AC protection between terminal groups.
Supports voltage ratings up to 300 V AC/DC.
Current handling capacity of 5 A per terminal.

Technical Specifications

Product Model	531X305NTBAPG1
Manufacturer	General Electric
Board Type	NTB/3TB Terminal Board
Terminal Capacity	120 Terminals
Voltage Rating	300 V AC/DC (max)
Current Rating	5 A per terminal
Isolation Barriers	250 V AC between groups
Isolation Resistance	>100 MΩ at 500 V DC
Dielectric Strength	1500 V AC
Tariff Code	8537101190

Installation Guidelines

Ensure the control system is powered down completely before installing or removing the terminal board assembly.
Handle the PCB assembly by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
Verify that all field wiring is properly secured to the 120 terminals to prevent intermittent connections or signal noise.
Ensure that the board is correctly seated in its mounting position to maintain proper grounding and mechanical stability.
Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
Regularly inspect terminal connections for signs of oxidation or loosening due to thermal cycling in the drive cabinet.

FAQ

What system is the 531X305NTBAPG1 compatible with?

This terminal board is primarily used within the General Electric ACDC2000 drive systems and is compatible with Mark VIe series control architectures.

What is the maximum current rating for the terminals?

Each individual terminal on the 531X305NTBAPG1 is rated for a maximum current of 5 A.

Does this board provide electrical isolation?

Yes, the board includes isolation barriers rated for 250 V AC between terminal groups to ensure safe signal separation.
