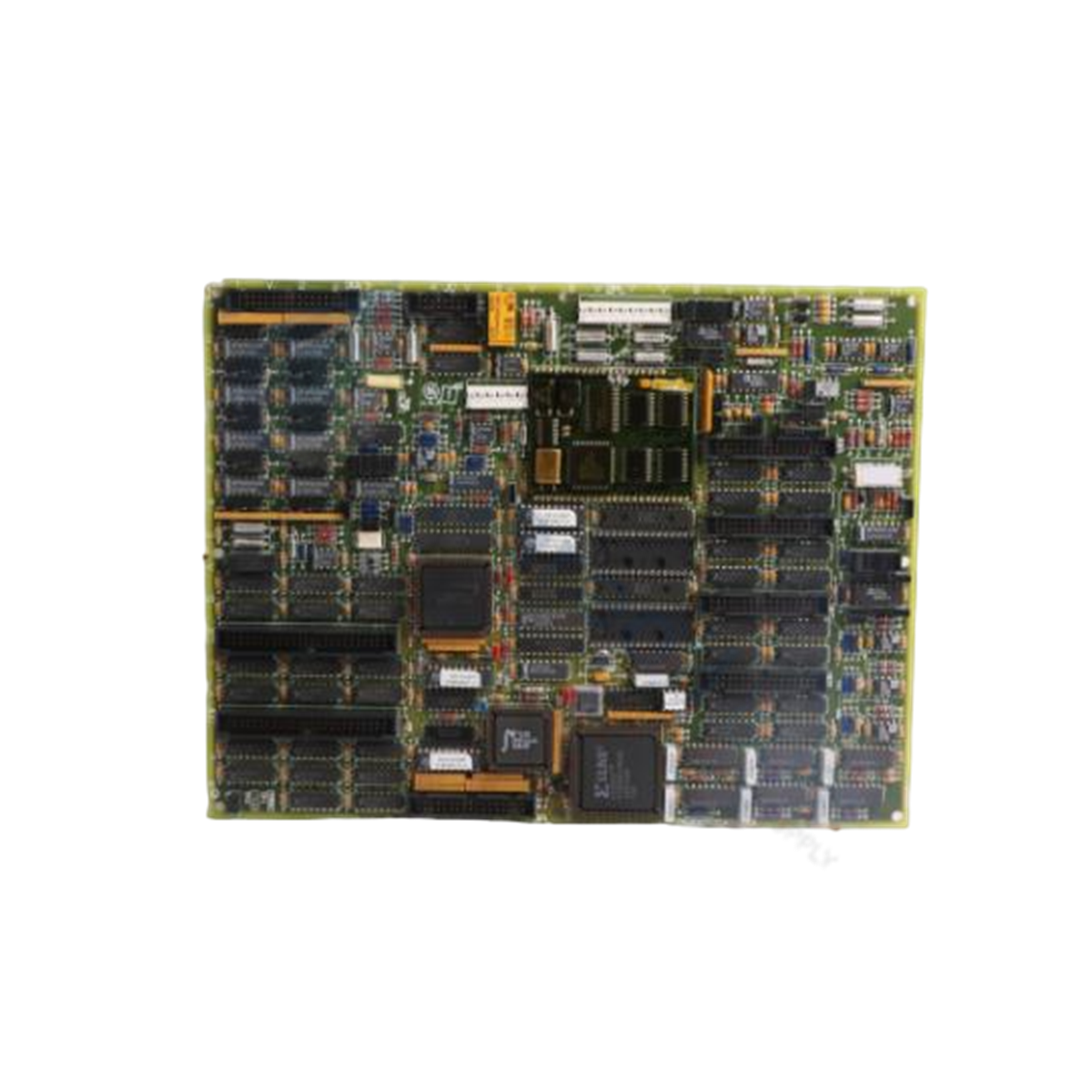

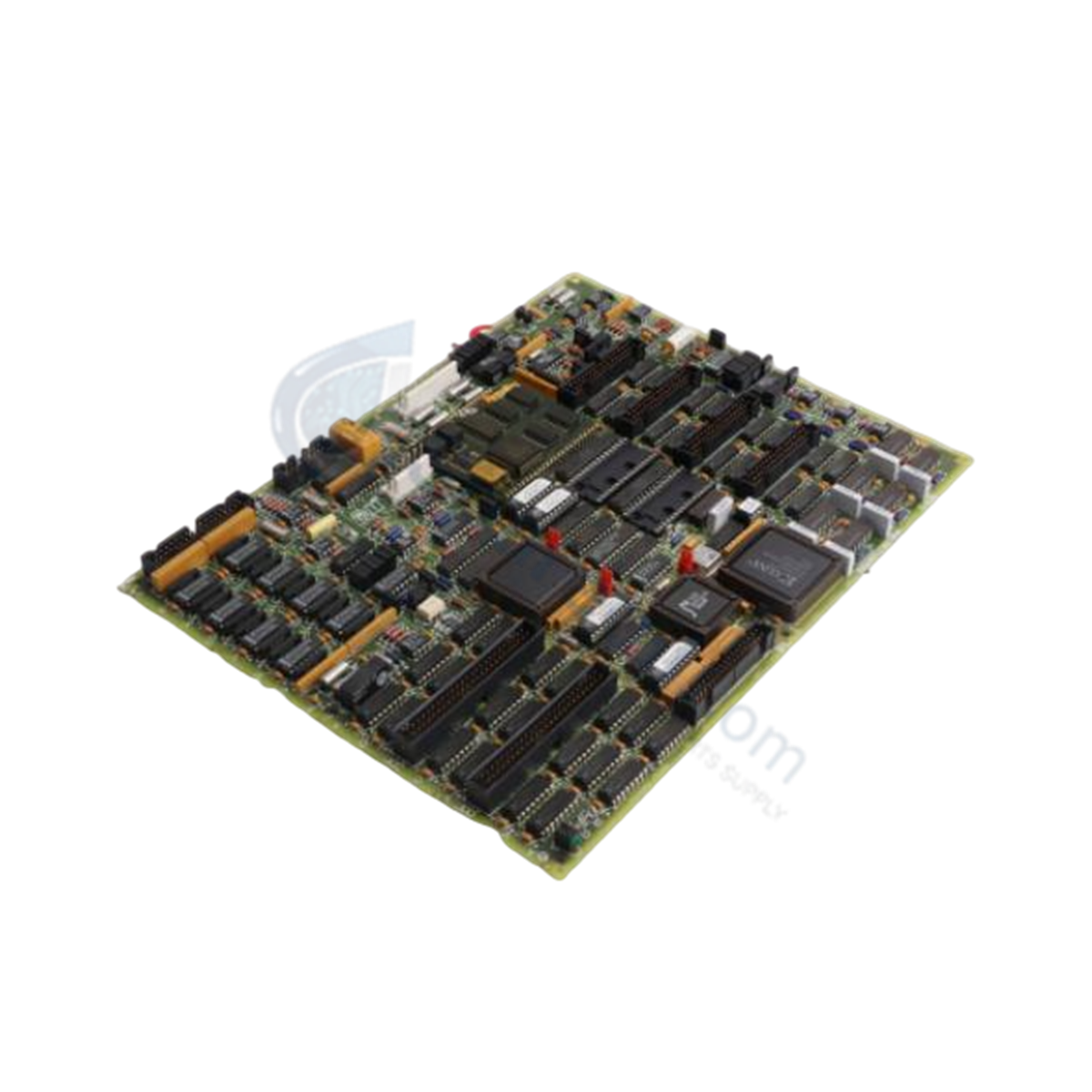

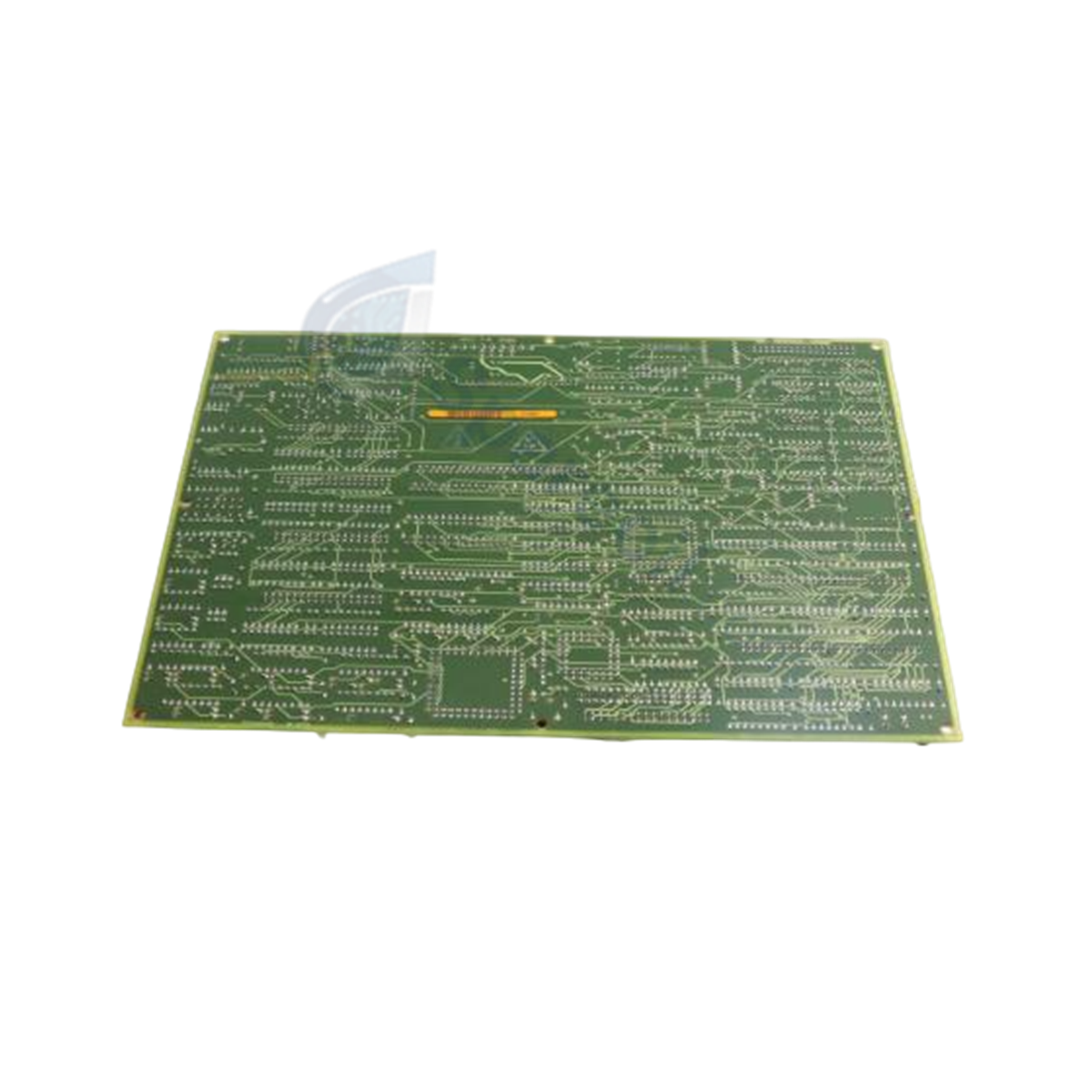

The General Electric DS200TCCAG1B, also cataloged as the DS200TCCA Common Analog I/O Board, operates as a dedicated hardware component for conditioning and processing multi-channel analog measurement signals within Mark V Speedtronic R5 core control enclosures.

Hardware Specifications

Parameter Specification
Model DS200TCCAG1B
Brand General Electric
Origin USA
Weight Standard PCB weight (~0.75 kg / 1.65 lbs)
Dimensions Standard Mark V module PCB profile
Operating Temp 0 to 60 deg C
Power Consumption Bus input powered via internal control rack backplane
Series Mark V
Functional Acronym TCCA
Functional Revision Revision B
Supported Signal Types 4-20 mA inputs/outputs, RTDs, thermocouples, shaft voltage, shaft current
Terminal Board Interfaces CTBA, TBQA, TBCA via JBB and JAA connectors
Data Bus Connector 3PL connector (writes signal values to STCA board / I/O Engine)
Hardware Jumpers J1 (RS232 port enable/disable), JP2 (oscillator disable), JP3 (factory test)

Backplane Bus Communication & I/O Density Scaling

The DS200TCCAG1B integrates high-density multi-channel analog signal acquisition with backplane bus communication across the Speedtronic Mark V control bus. Analog inputs received from field transducers through terminal boards CTBA, TBQA, and TBCA undergo active conditioning and burden-resistor voltage drop measurement on the board. Signal data is subsequently formatted and pushed through the 3PL connector interface directly to the STCA board and system I/O Engine. Maintaining channel-to-channel signal integrity and firmware flash compatibility ensures synchronized, low-latency execution across deterministic processor cycles in the R5 core.

Frequently Asked Questions

Q: What is the function of hardware jumper J1 on the DS200TCCAG1B board?

A: Jumper J1 configures the operational state of the onboard serial port, allowing engineers to manually enable or disable RS232 communication.

Q: How are 4-20 mA current signals read by the TCCA board from external field devices?

A: Current signals enter through the JBB connector from the CTBA terminal board, where the TCCA board measures the precise voltage drop developed across an integrated burden resistor before routing the value to the I/O Engine via the 3PL connector.

Q: Which hardware jumpers should remain in their default operational states during standard field deployment?

A: Jumpers JP2 (oscillator disable) and JP3 (factory test) are intended strictly for diagnostic and factory testing routines and must be configured according to GE documentation for normal operation.

Field Installation Guidelines

  1. Power Isolation: Fully de-energize the Mark V R5 core power supply before inserting or removing the DS200TCCAG1B module from the rack assembly.
  2. ESD Protection: Wear a grounded wrist strap connected to the chassis frame ground point during all handling, jumper setting, or installation procedures.
  3. Hardware Jumper Audit: Inspect jumpers J1, JP2, and JP3 prior to board installation to ensure their positions match the required field operational profiles.
  4. Ribbon Cable Seating: Verify that the 3PL, JBB, and JAA ribbon cable connectors are fully seated and latched to prevent intermittent signal transmission to the STCA board and CTBA terminal assemblies.
  5. Software Configuration: Use the designated HMI software configuration editor to configure parameter scaling for all thermocouple, RTD, shaft voltage/current, and 4-20 mA input/output channels mapped to this card.
