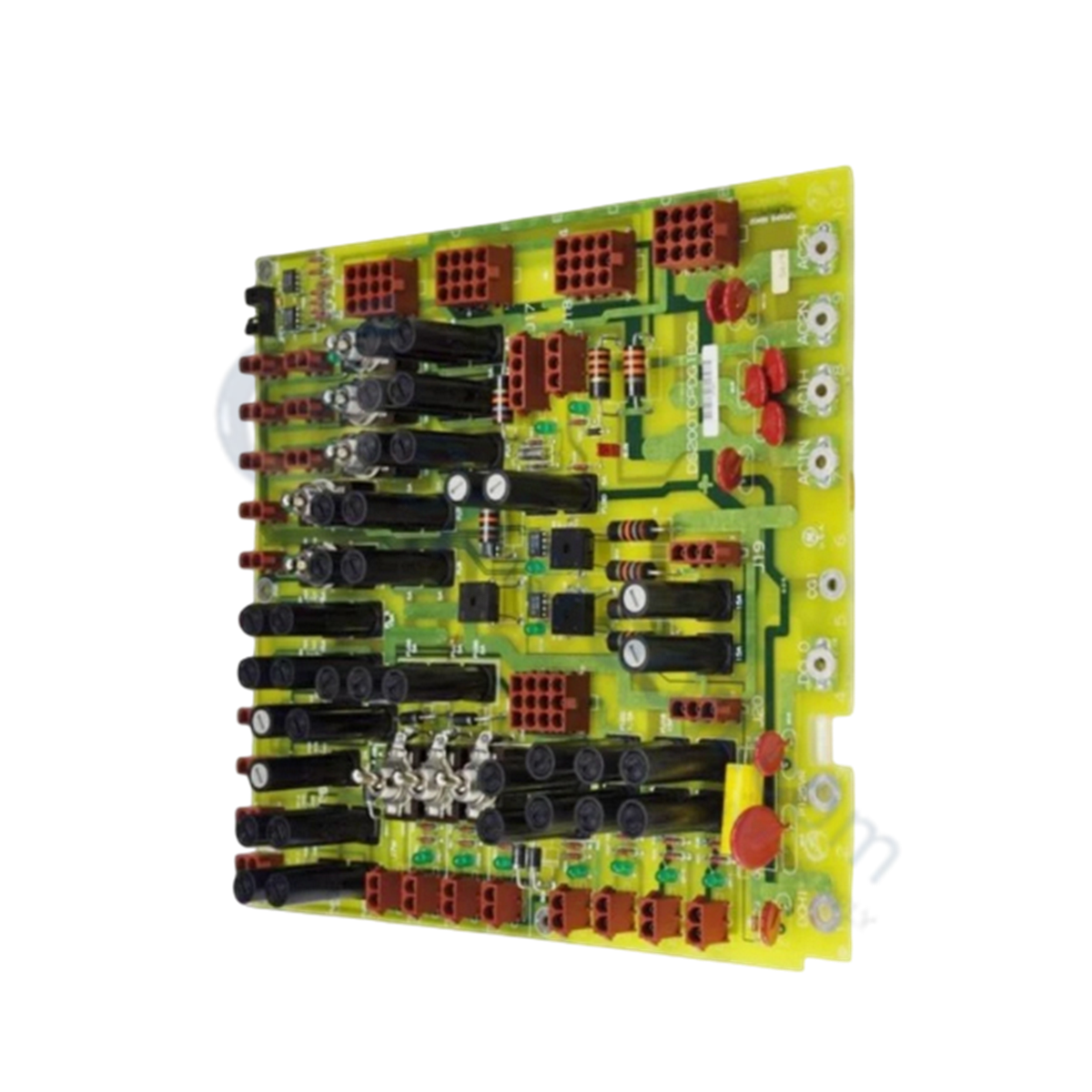

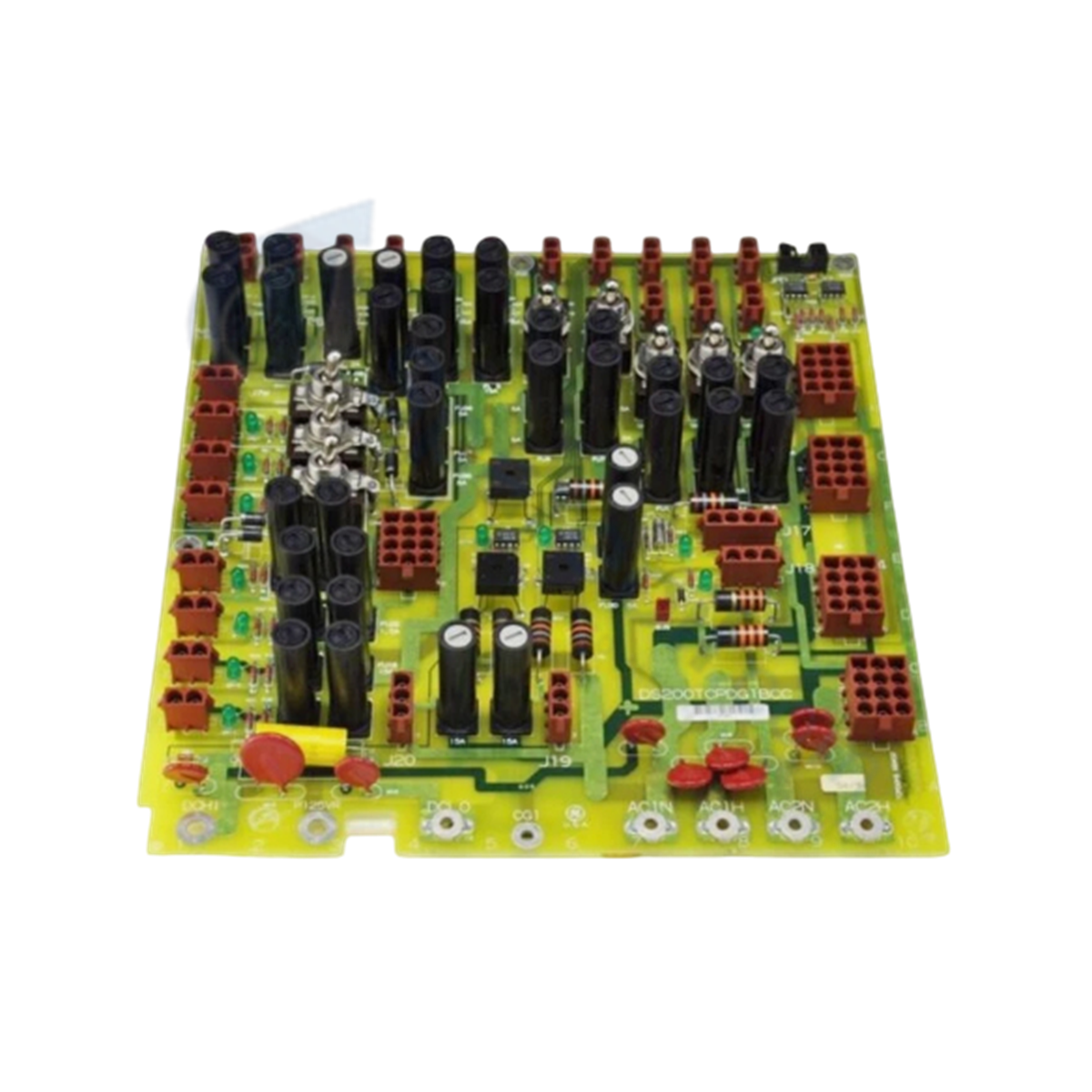

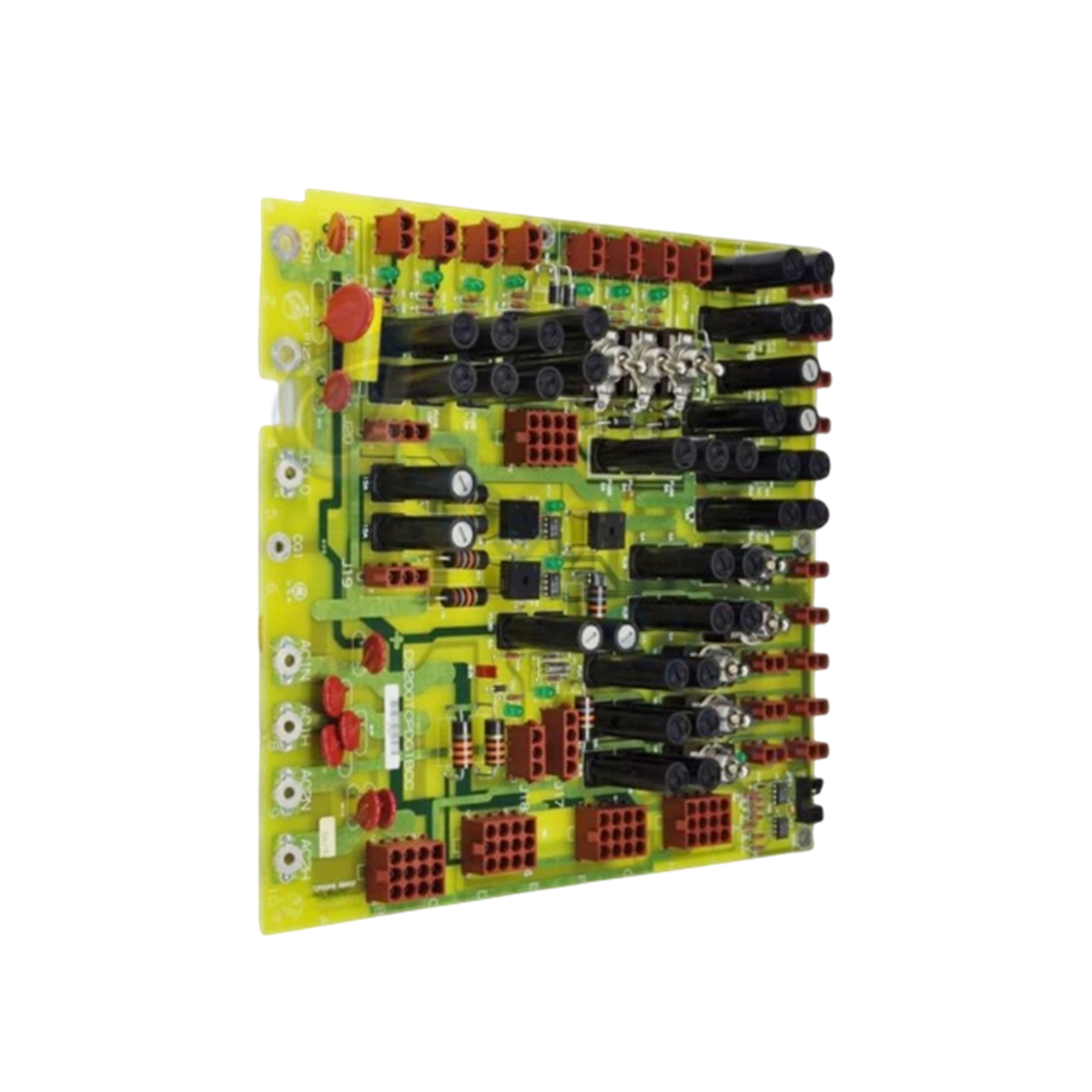

The General Electric DS200TCPDG1B, also cataloged as the DS200TCPD Power Distribution Module, operates as a dedicated hardware component for primary power distribution and circuit fuse monitoring within Mark V Turbine Control System platforms.

Hardware Specifications

Parameter Specification
Model DS200TCPDG1B
Brand General Electric
Origin USA
Weight Standard PCB weight (~0.60 kg / 1.3 lbs)
Dimensions Standard Mark V full-height board profile
Operating Temp 0 to 60 deg C
Power Consumption Bus input scaled per terminal configuration
Series Mark V
Functional Acronym TCPD
Functional Revision Revision B
PCB Coating Normal Coating
Fuse Assembly 36 individual fuses (Designated FU1 through FU36)
Status Indicators 36 Green OK LEDs (fuse status), 2 Red System Fault LEDs
Switching & Jumpers 8 Toggle switches (SW1-SW8), BJS ground reference isolation jumper
Terminals & Connectors 4 Screw signal wire terminals, 1 10-pin header connector

Firmware Flash & Power Bus Integration

Configured to distribute operational DC and AC power throughout the turbine rack, the module relies on high-efficiency firmware flash compatibility across adjacent control boards to process status signals. Input power conversion is conditioned via an auxiliary DACA power unit. The internal power traces maintain strict isolation while interfacing with the backplane logic, ensuring that high-density power delivery does not induce noise or compromise deterministic backplane communication velocity across the Speedtronic system architecture.

Frequently Asked Questions

Q: How do the individual status LEDs indicate a blown fuse on the DS200TCPDG1B?

A: Each of the 36 fuse positions features a dedicated OK LED. An illuminated LED indicates that the fuse is healthy and operational, while an extinguished LED signifies a blown fuse requiring replacement.

Q: What is the function of the onboard BJS hardware jumper?

A: The BJS jumper selects ground reference isolation for automated drive assembly systems utilizing an external reference, providing a clean ground tie when enabled.

Q: What tools are required to secure field signal wiring to the power distribution board?

A: Standard copper signal wires connect directly to the four screw terminals using a slotted screwdriver to torque or release the retention clamp.

Field Installation Guidelines

  1. Power Isolation: De-energize all primary supply lines fed into the distribution board before attempting installation, removal, or fuse replacement.
  2. Static Precaution: Wear a grounded ESD wrist strap before handling the PCB assembly to prevent damage to sensitive surface-mount components.
  3. Mounting: Carefully position the board onto its mounting standoffs inside the Mark V rack enclosure, ensuring all support points line up cleanly.
  4. Wiring Termination: Strip signal wire leads cleanly, insert the bare copper end fully into the corresponding terminal block, and firmly tighten the terminal retention screw.
  5. Jumper Setting Verification: Ensure the BJS ground reference jumper matches the exact electrical grounding requirements of the specific control drive configuration prior to re-applying power.
