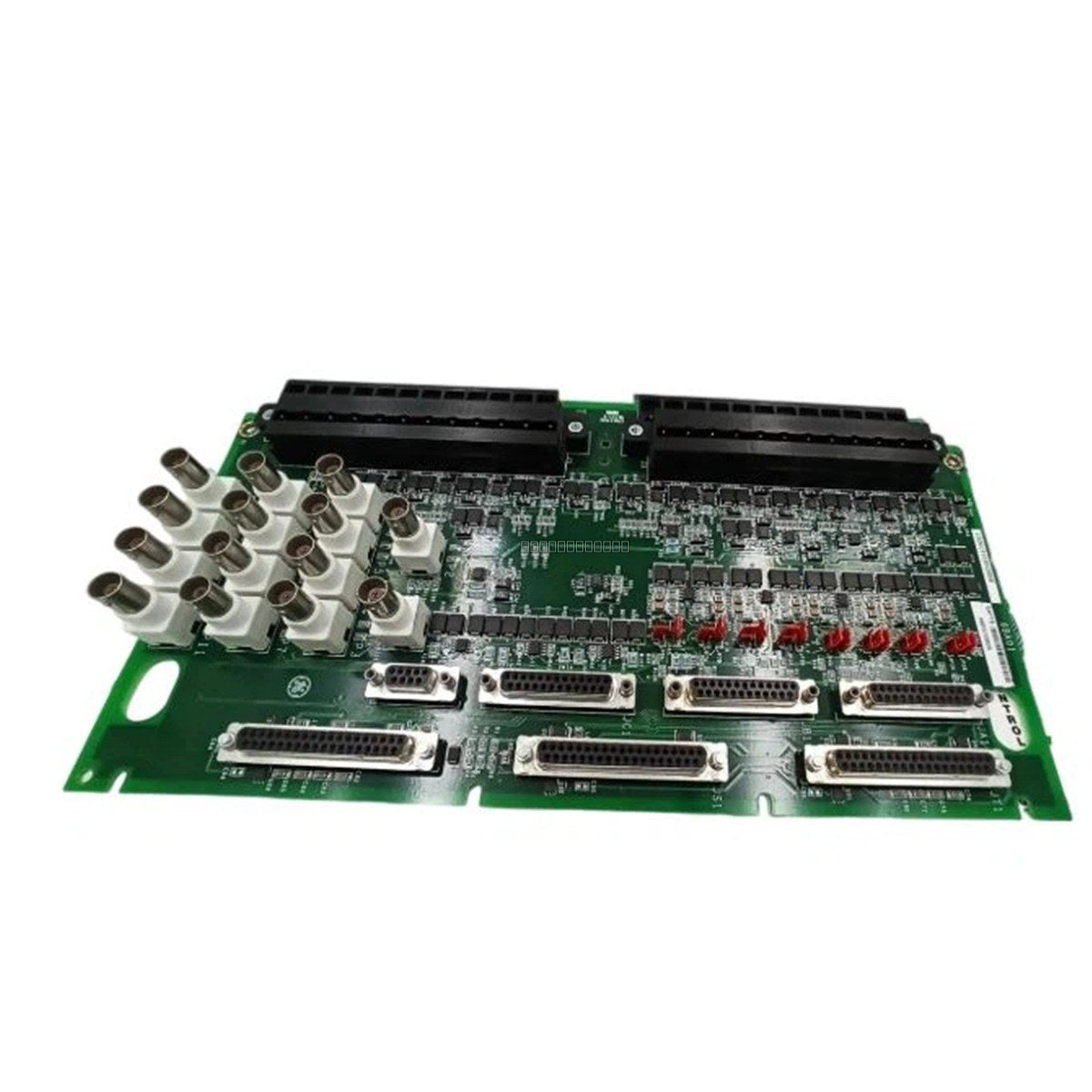

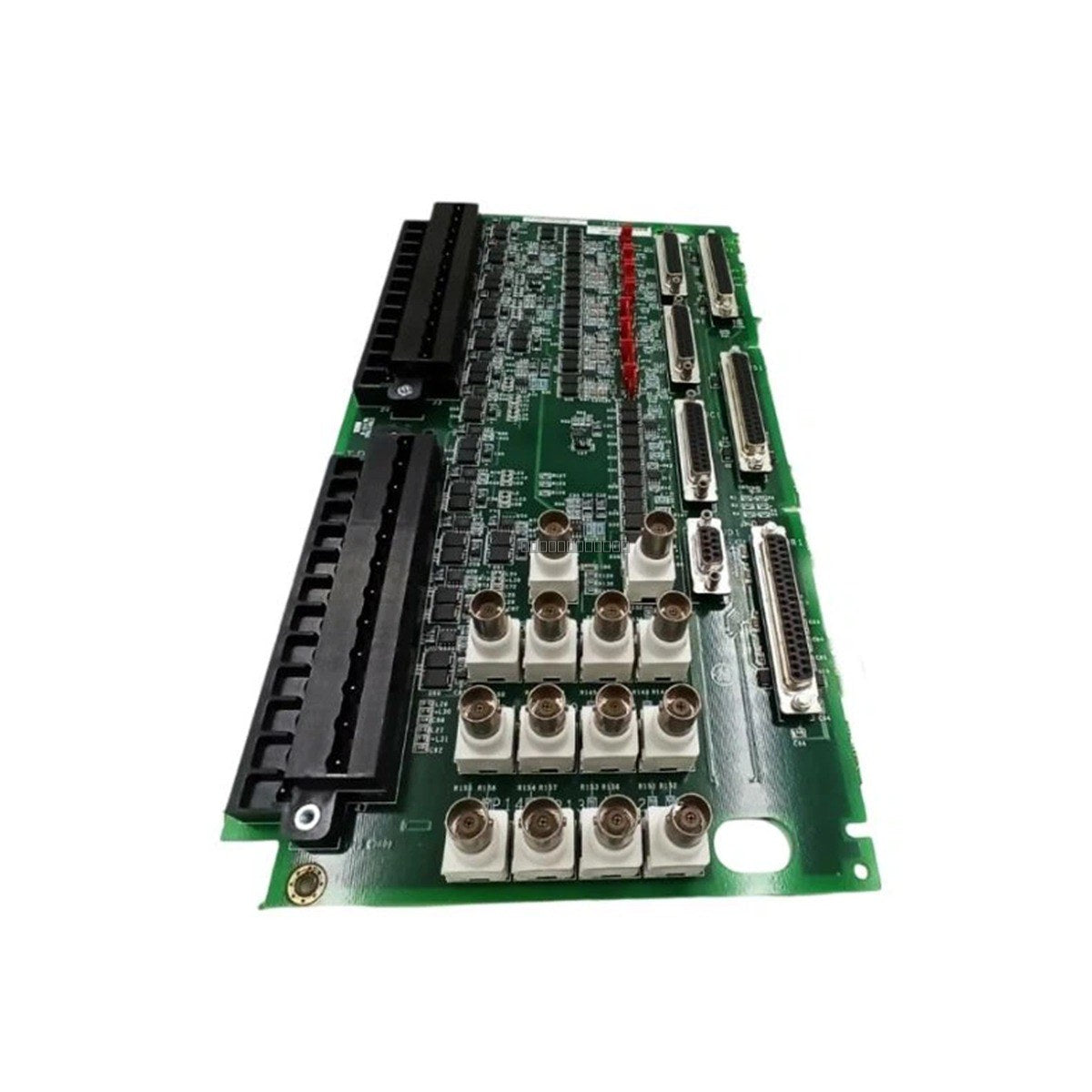

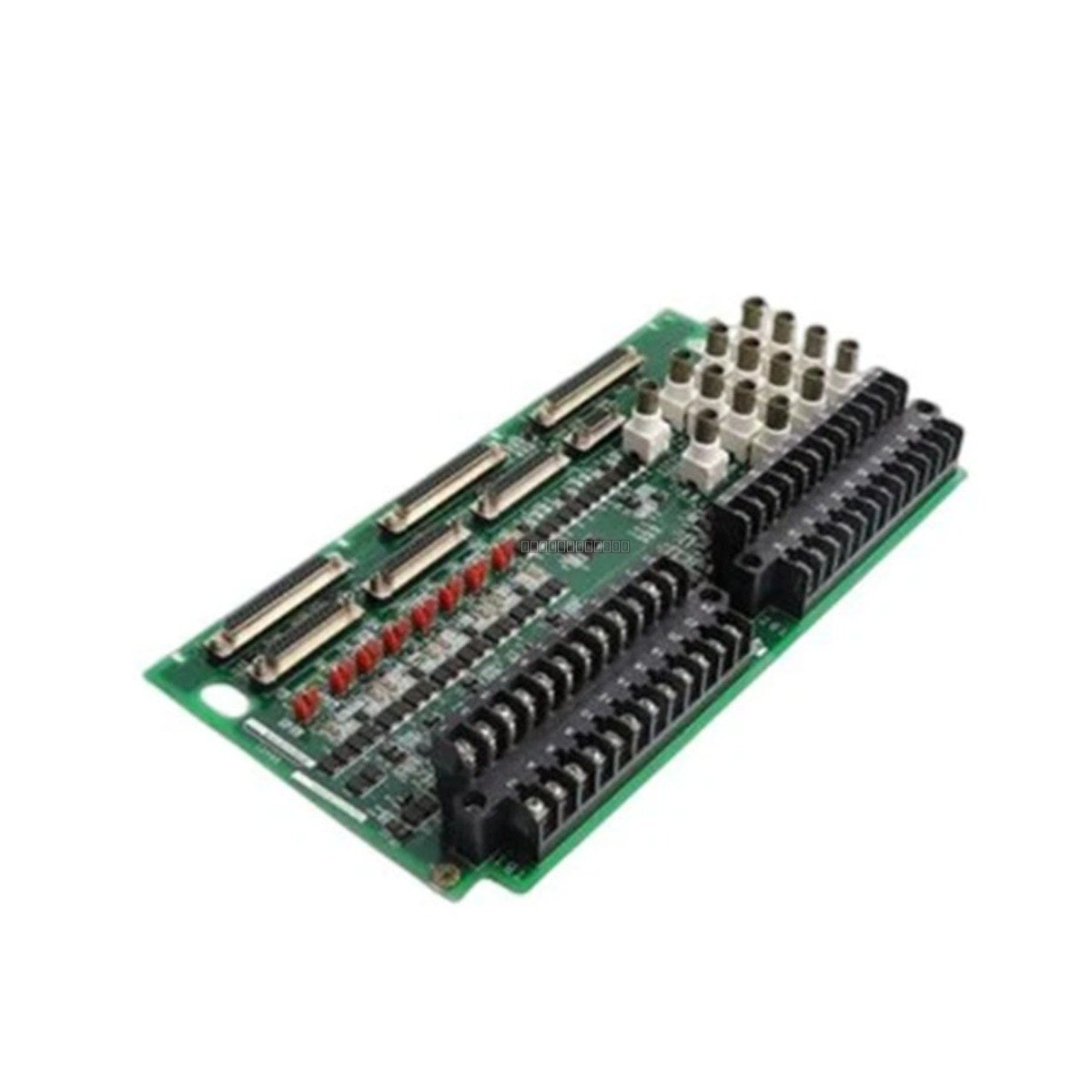

General Electric IS200TVIBH2B Vibration Terminal Board

General Electric IS200TVIBH2B Mark VIe Vibration Terminal Board

Availability: 1 left in stock

DescriptionThe General Electric IS200TVIBH2B is a Vibration Input Terminal Board designed for use within the Mark VIe control system. This...

SKU: IS200TVIBH2B

Manufacturer: General Electric
Product No.: IS200TVIBH2B
Product Type: Vibration Terminal Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 840g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The General Electric IS200TVIBH2B is a Vibration Input Terminal Board designed for use within the Mark VIe control system. This terminal board serves as a critical interface for vibration monitoring applications, providing the necessary signal conditioning and connectivity for various sensor types. It is engineered to support high-density monitoring requirements, facilitating the integration of vibration data into the broader turbine or machinery control architecture.

Features

Designed for integration with the Mark VIe control series.
Supports up to 13 vibration probe inputs.
Compatible with proximity probes and accelerometers.
Provides excitation for IEPE sensors.
Robust terminal design for secure field wiring connections.

Applications

This module is primarily utilized in industrial environments for rotating machinery protection, including steam and gas turbines, compressors, and large pumps. It allows for the continuous monitoring of vibration levels to detect mechanical faults such as imbalance, misalignment, or bearing wear.

Technical Specifications

Product Model	IS200TVIBH2B
Manufacturer	General Electric
Input Voltage	24 V DC (±10%)
Power Consumption	≤15 W
Proximity Probe Frequency	0–10 kHz
Accelerometer Frequency	Up to 20 kHz
IEPE Sensor Excitation	18–24 V DC
Analog Input Range	±10 V peak
Tariff Code	8537101190

Installation Guidelines

Ensure the control system is powered down before installing or removing the terminal board from the rack.
Handle the board using ESD-safe practices to prevent damage to sensitive electronic components.
Verify that all field wiring is properly terminated and secured to the terminal blocks to prevent intermittent signal loss.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
Ensure proper grounding of the terminal board chassis to the system common ground as per GE Mark VIe installation standards.

FAQ

Is the IS200TVIBH2B still in production?

No, this model has been discontinued by the manufacturer. It is typically sourced through surplus or refurbished inventory channels.

What type of sensors does this board support?

The IS200TVIBH2B supports proximity probes, accelerometers, and IEPE sensors, making it versatile for various vibration monitoring configurations.
