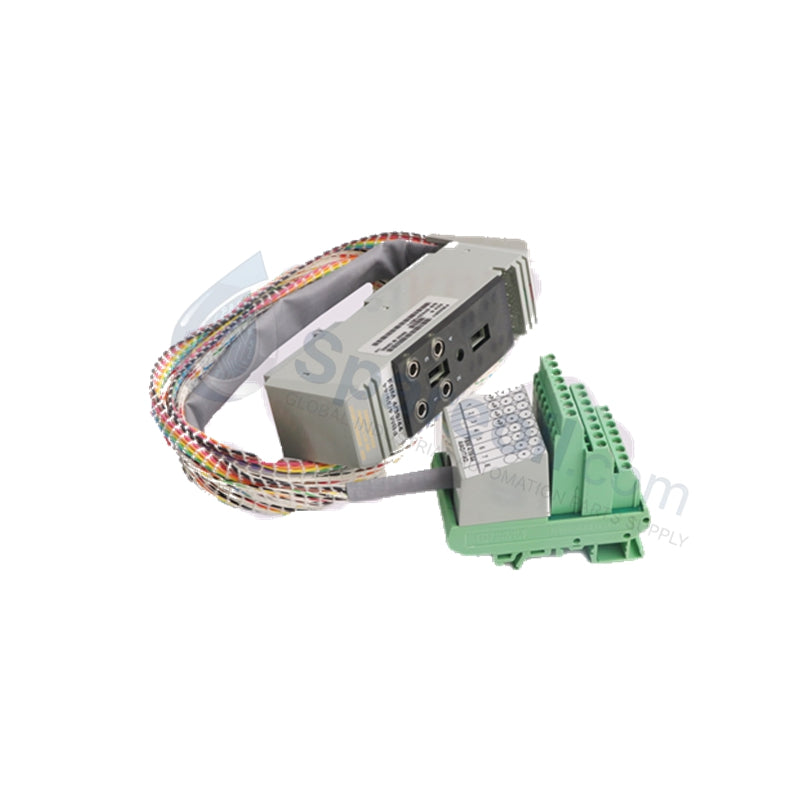

P0500RY Foxboro FBM4/39/44 Cable Technical Manual & Datasheet

Availability: 10 left in stock

Foxboro FBM4/39/44 P0500RY I/A Series Termination Cable The Foxboro FBM4/39/44 P0500RY, also cataloged as the P0500RY Fieldbus Termination Cable Assembly,...

SKU: FBM4/39/44 P0500RY

Manufacturer: Foxboro
Product No.: FBM4/39/44 P0500RY
Product Type: Fieldbus Termination Cable Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 360g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

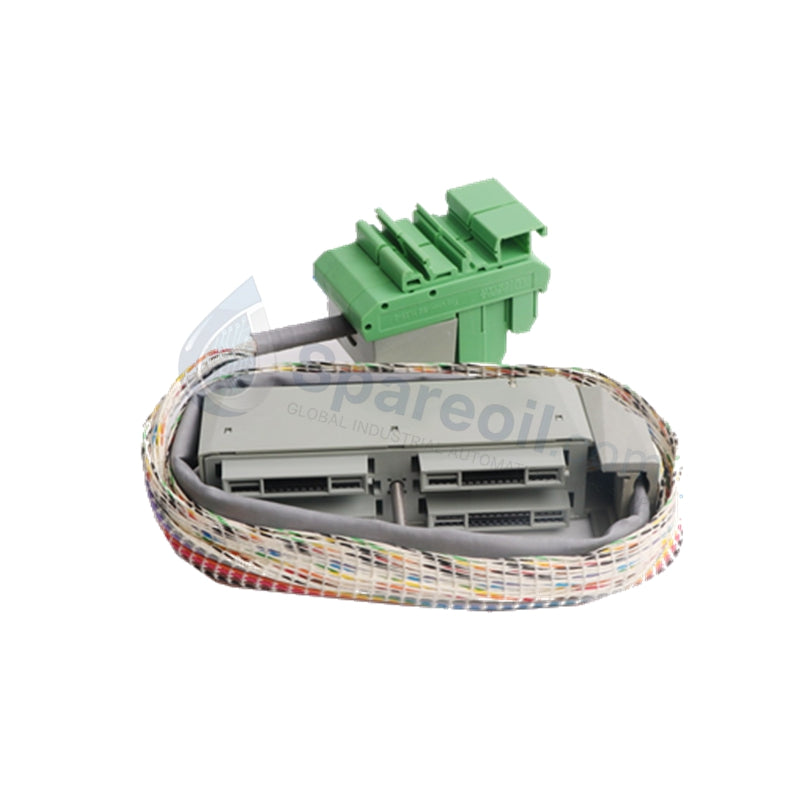

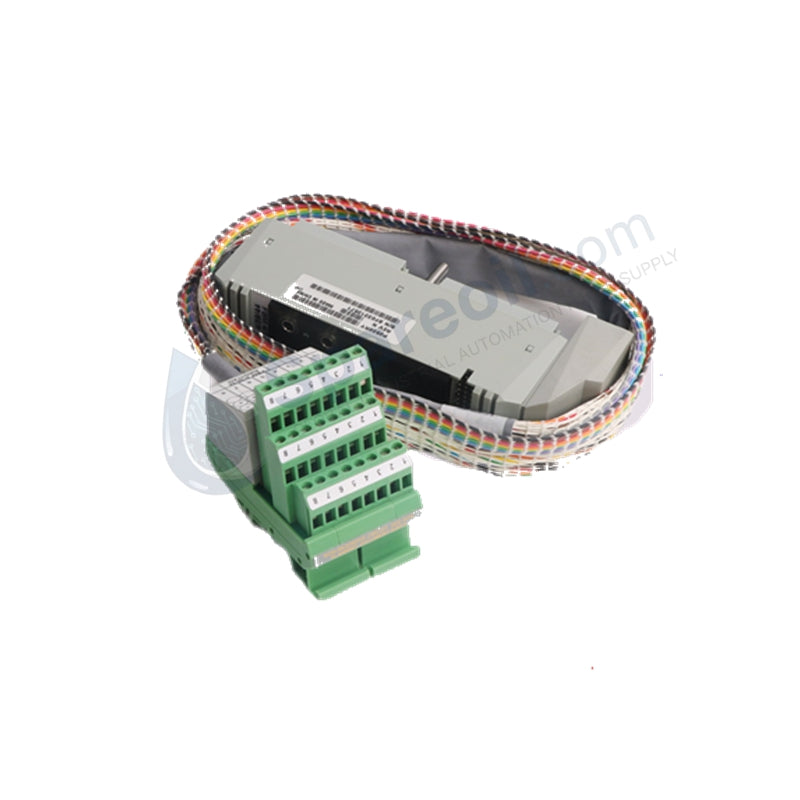

Foxboro FBM4/39/44 P0500RY I/A Series Termination Cable

The Foxboro FBM4/39/44 P0500RY, also cataloged as the P0500RY Fieldbus Termination Cable Assembly, operates as a dedicated hardware component for field transmitter interfacing within I/A Series Distributed Control System networks. Configured for FBM4, FBM39, and FBM44 base hardware, this physical cable assembly drives continuous, low-latency electrical multi-channel signal routing between the field terminal distribution plane and active subsystem processing cards. The component limits structural transmission degradation across high-density connection paths using integrated physical copper shielding boundaries.

Hardware Specifications

Parameter	Specification
Model	FBM4/39/44 P0500RY
Brand	Foxboro (Schneider Electric)
Origin	United States
Weight	0.36 kg (0.79 lbs)
Dimensions	140 cm x 15.5 cm x 4.5 cm
Operating Temp	-40 to +125 deg C (Cable matrix environment)
Power Consumption	Passive (Zero active current consumption load)
Voltage Rating	Up to 250 VAC / 400 VDC
Current Rating	5 to 10 A (Application configuration dependent)
Insulation Resistance	Minimum 1000 M-Ohm baseline barrier
Shielding Structure	Co-axial EMI / RFI multi-layer metallic braid envelope
Termination Interface	M8 x 0.8 structural plug configuration with screw / solder blocks
Enclosure Rating	IP67 protection rating (Mated plug interface boundary)
Storage Temperature	-40 to +85 deg C
Certifications	CE, UL, CSA standards compliance

Process Control & DCS Instrument Characteristics

The P0500RY implementation relies on structural twisted-pair configurations designed to defend the 4-20 mA HART loop protocol against capacitive cross-modulation. The internal metallic braid provides physical attenuation of external radio-frequency and electromagnetic fields, blocking noise injection into low-level analog circuits. This physical shield configuration suppresses channel-to-channel cross-talk, keeping the source analog signal clean before it enters the analog-to-digital converter matrix. Furthermore, the stable thermal properties of the internal high-conductivity copper strands help reduce parasitic voltage shifts across termination points, protecting the reference metrics required for accurate cold junction compensation (CJC) processing on paired FBM thermocouple cards.

Frequently Asked Questions

Q: Can the P0500RY physical cable lines be safely connected while the FBM processor is powered?

A: Yes. The passive terminal connection layout supports physical mechanical insertion while the backplane is active. However, field loops must be placed in a safe manual state before connecting to prevent temporary switching spikes from triggering channel diagnostic faults.

Q: What is the maximum insulation breakdown voltage limit for this assembly under continuous load?

A: The passive physical cable lines are rated up to a dielectric separation boundary of 250 VAC / 400 VDC. Operating the channels past these exact structural voltage constraints will break down the dielectric layer, leading to localized signal short circuits.

Q: How does this termination assembly communicate diagnostic wire faults to the I/A Series DCS?

A: The P0500RY is an entirely passive copper conductor network and contains no active logic. It relies on the internal monitoring circuitry of the paired active Field Bus Module (FBM4/39/44) to evaluate loop resistance shifts and identify open-circuit or short-circuit statuses.

Field Installation Guidelines

Physical Routing and Bend Radius Restrictions: Install the cable assembly through dedicated low-voltage wire ways. Maintain a minimum structural bend radius of 10 times the outer cable diameter to avoid breaking the internal metallic shields and copper wire strands.
Shield Grounding Matrix: Terminate the integrated EMI/RFI shielding braid exclusively at the primary system cabinet instrument ground bar. Do not ground the cable shield at both the field junction box and the FBM rack frame to prevent generating circulating ground loop currents.
Cable Separation Rules: Route the passive termination assembly lines far from high-voltage AC electrical lines, heavy motor conduits, and switching inductive loads. Maintain a minimum physical distance of 300 mm to suppress electro-magnetic coupling.
Plug Locking Engagement: When installing the plug variant, hand-tighten the M8 x 0.8 threaded structural locking ring until fully seated against the receptacle gasket boundary. This mechanical sealing engagement must be complete to maintain the rated IP67 ingress protection status.
